BLRID3X3X5-2+1T:2+1T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> BLRID3X3X5-2+1T:2+1T

Preview

BLRID3X3X5-2+1T:2+1T: DescriptionRF Transformer, 40MHz Min, 220MHz Max, 3:3,; CategoryPower management transformer; File Size194KB，1 Pages; Manufacturer3L Electronic Corporation

Download Datasheet Parametric Compare View All

BLRID3X3X5-2+1T:2+1T Overview

RF Transformer, 40MHz Min, 220MHz Max, 3:3,

BLRID3X3X5-2+1T:2+1T Parametric

Parameter Name	Attribute value
Maker	3L Electronic Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
maximum cutoff frequency	220 MHz
minimum cutoff frequency	40 MHz
Insertion loss	1.5 dB
Manufacturer's serial number	BLRID
Installation features	THROUGH HOLE MOUNTED
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
surface mount	NO
Transformer type	RF TRANSFORMER
Turns ratio (Np:Ns)	3:3

BLRID3X3X5-2+1T:2+1T Preview

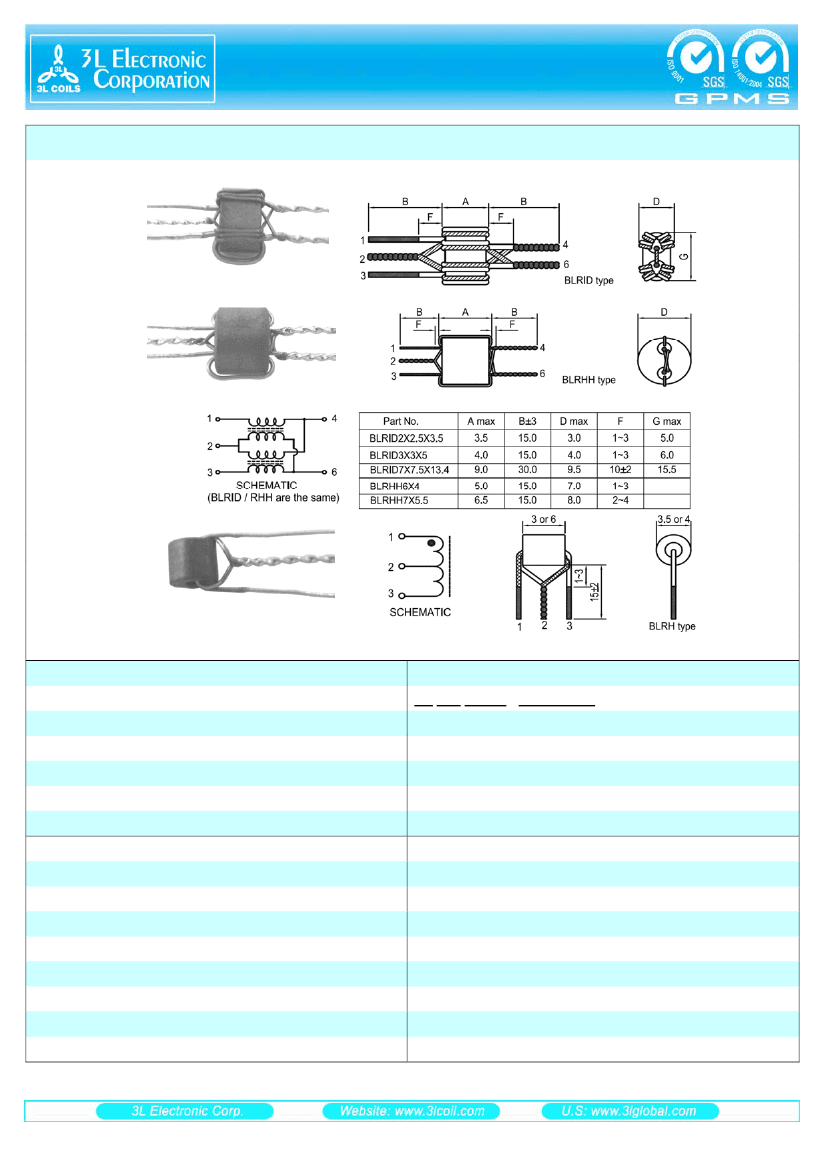

BALANCE-UNBALANCE TRANSFORMER

BLRID/RHH/RH TYPE

Shape and size :

Features :

．Balance-unbalance

transformers.

．Low

loss and excellent frequency response.

．Bifilar

or trifilar wire windings guarantee a high

degree of balance.

．Core

materials is low loss Ni-Zn ferrite.

Ordering informations :

BL RID 3X3X5 - 2+1T : 2+1T

(1) (2)

(3)

(4)

(1) Type :

Balun

coils.

(2) Style : Core type is

RID

or

RH

,

RHH.

(3) Core size :

TH=3.0

;

L=3.0

;

W=5.0mm.

(4) Turns ratio :

2T+1T : 2T+1T.

Characteristics :

．Input

impedance : 300 Ohms.

．Output

impedance : 75 Ohms or 300 Ohms .

．Insertion

loss: 1.5 dB Max(40MHz~220MHz).

．V.S.W.R.:

2.0 max(40MHz~220MHz) .

．Operating

temperature : -20

℃

to 80

℃.

．Test

equipment :

HP8753E network analyzer.

Applications :

．Television

equipment.

．CATV

circuits.

．Telecommunication

devices.

．Other

application for impedance matching.

6.1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
