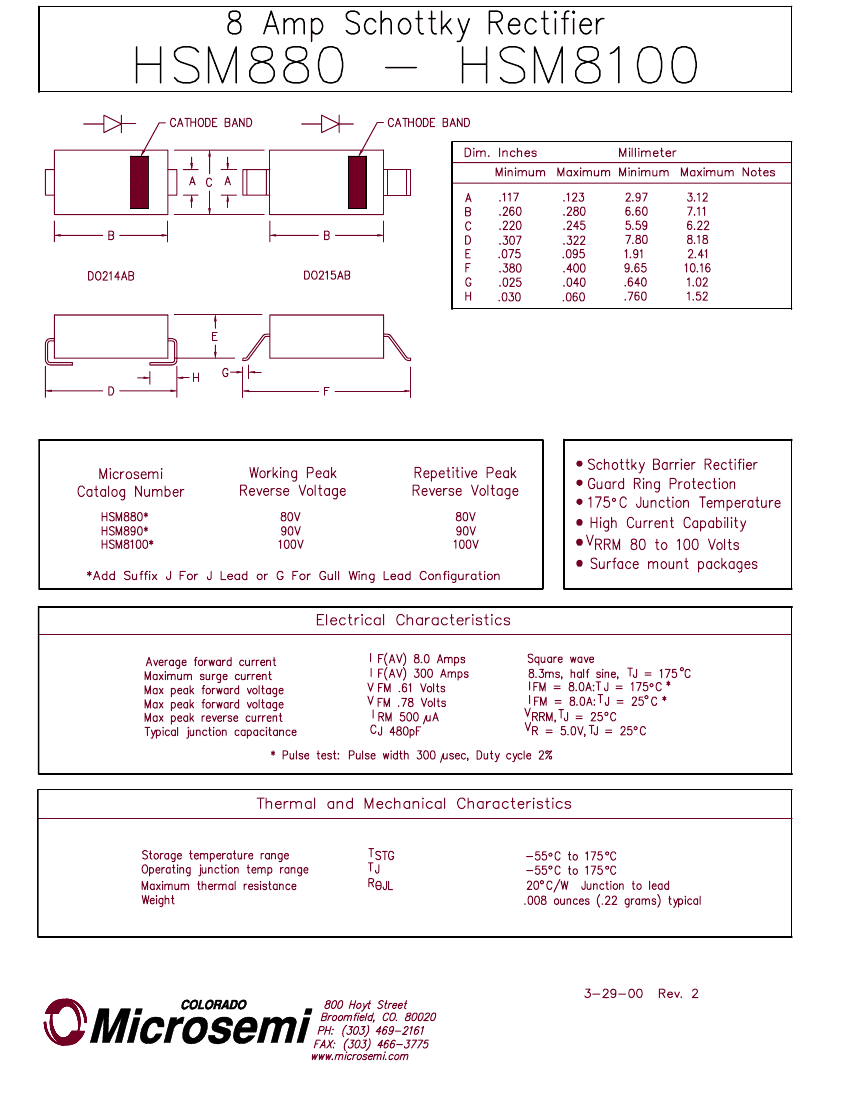

Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 80V V(RRM), Silicon, DO-215AB, DO-215AB, 2 PIN

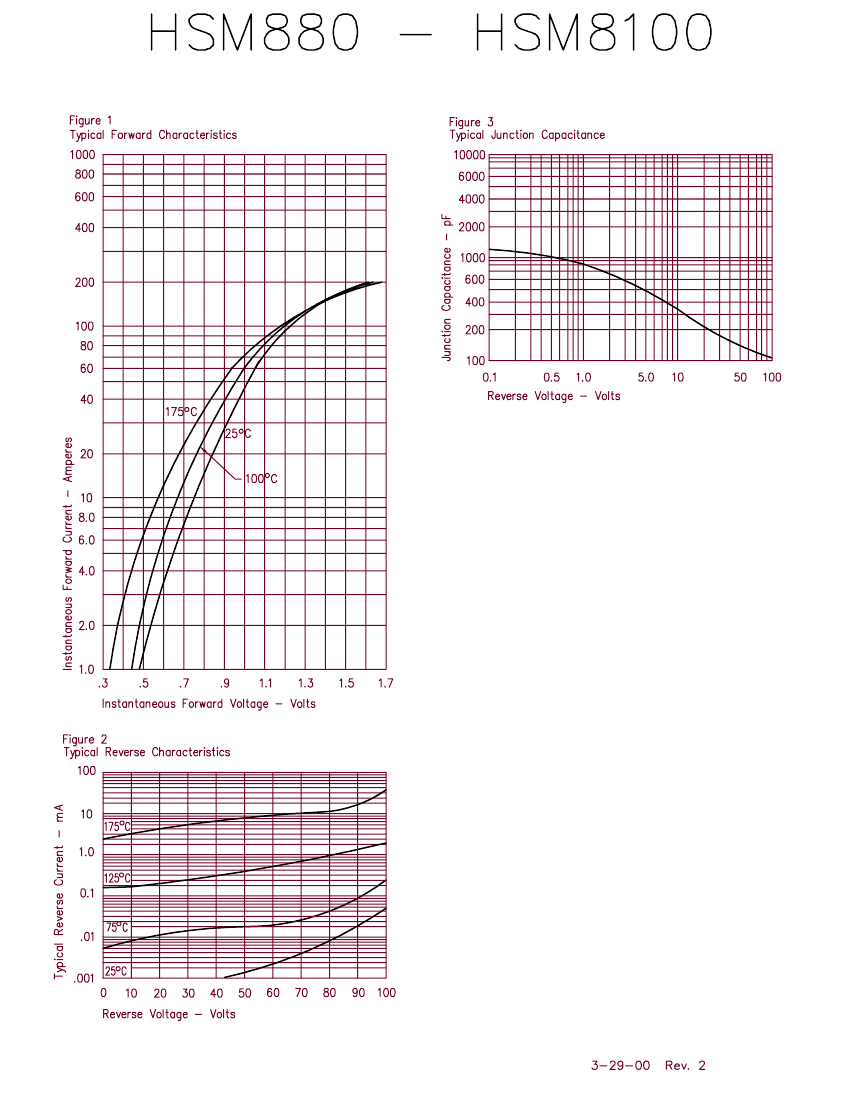

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Objectid | 1349341435 |
| Parts packaging code | DO-215AB |
| package instruction | SMCG, 2 PIN |
| Contacts | 2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS |
| application | EFFICIENCY |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.78 V |
| JEDEC-95 code | DO-215AB |
| JESD-30 code | R-PDSO-G2 |
| Maximum non-repetitive peak forward current | 300 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 8 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 80 V |
| Maximum reverse current | 500 µA |
| Reverse test voltage | 80 V |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| HSM880G | HSM890J | HSM8100J | HSM8100G | HSM890G | |
|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 80V V(RRM), Silicon, DO-215AB, DO-215AB, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 90V V(RRM), Silicon, DO-214AB, DO-214AB, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, DO-214AB, DO-214AB, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, DO-215AB, DO-215AB, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 90V V(RRM), Silicon, DO-215AB, DO-215AB, 2 PIN |
| Is it lead-free? | Contains lead | Contains lead | Lead free | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | conform to | conform to | incompatible |
| Parts packaging code | DO-215AB | DO-214AB | DO-214AB | DO-215AB | DO-215AB |
| package instruction | SMCG, 2 PIN | SMCJ, 2 PIN | R-PDSO-J2 | R-PDSO-G2 | SMCG, 2 PIN |
| Contacts | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | unknown | unknown | compliant | compliant | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, LOW POWER LOSS |
| application | EFFICIENCY | EFFICIENCY | EFFICIENCY | EFFICIENCY | EFFICIENCY |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.78 V | 0.78 V | 0.78 V | 0.78 V | 0.78 V |
| JEDEC-95 code | DO-215AB | DO-214AB | DO-214AB | DO-215AB | DO-215AB |
| JESD-30 code | R-PDSO-G2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-G2 | R-PDSO-G2 |
| Maximum non-repetitive peak forward current | 300 A | 300 A | 300 A | 300 A | 300 A |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum output current | 8 A | 8 A | 8 A | 8 A | 8 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 80 V | 90 V | 100 V | 100 V | 90 V |
| Maximum reverse current | 500 µA | 500 µA | 500 µA | 500 µA | 500 µA |
| Reverse test voltage | 80 V | 90 V | 100 V | 100 V | 90 V |
| surface mount | YES | YES | YES | YES | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | GULL WING | C BEND | C BEND | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Objectid | 1349341435 | 1349341438 | 1349341434 | 1349341433 | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED |
