PL13/15 DFB Series
Laser Diode Modules

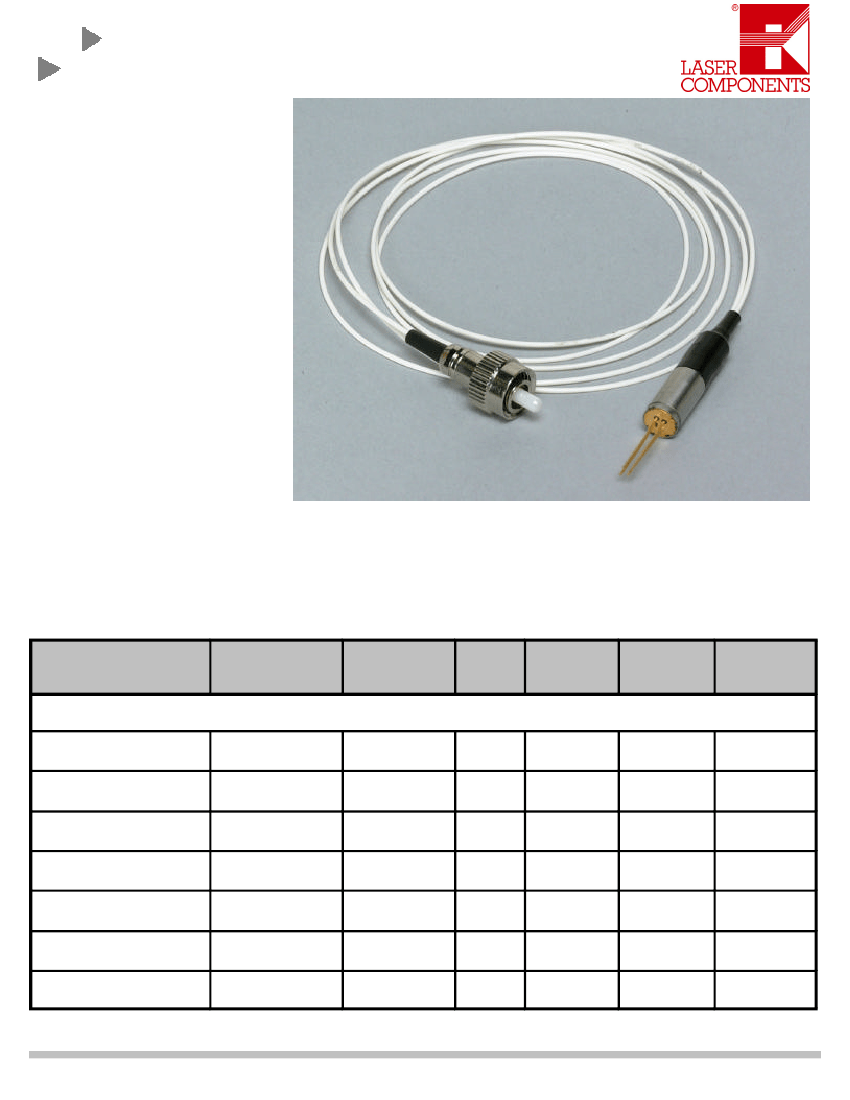

PD-LD Inc. offers a variety of
packaging options for its’ DFB Series of
laser diodes. These units are available
i n r e a d y -t o - u s e , f i b e r - c o u p l e d
packages, including FC, ST, and SC
receptacles, as well as fiber- pigtailed
units.
The InGaAsP
laser diodes
offered by PD-LD are of proven design
and manufacture; t h e standard
wavelengths are centered at 1310 and
1 5 5 0 n m . F i b e r -c o u p l e d CW
(continuous-wavelength) output powers
range from 0.1 - 2 mW, depending on
the fiber type and desired performance
level. Tracking error over OTR -40 to
+85C is 1.0 dB maximum .
Optional board- or panel -mount
flanges are available for pigtailed
devices; contact PD-LD Sales. Also,
PD-LD Inc. will package non-standard
lasers or parts specified by a customer
using standard or custom receptacle or
pigtailing techniques. Both receptacle
and pigtail packages are made using an
active micro-positioning system and
proven packaging techniques. Reliable
and efficient devices are produced.
PD-LD offers two popular pin-outs
for DFB lasers to address various
existing PCB layouts. PM fiber
available.
Features
•
Internal Monitor Photdetector
•
Compact, reliable receptacle & coax fiber-coupled package
•
0.1 - 2.0 mW singlemode (9/125)
•
30dB minimum side mode supression
•
0.2nsec typical rise/fall time
Performance Specifications
PD-LD
Part No.
1
Wavelength (nm)
Min. Typ. Max.
Min. Fiber
Coupled Power
(mW)
Pin-out
Threshold
Operating
Current (mA) Current (mA)
Typ. Max. Typ.
Max.
Monitor PD
Current (mA)
Min. Typ.
Continuous Wavelength InGaAsP Lasers @ 25C
1 mW
into 9/125 SMF
0.5mW
FC Receptacle
2 mW
into 9/125 SMF
1 mW
into 9/125 SMF
0.5 mW
into 9/125 SMF
1 mW
Into PM fiber
2 mW
into 9/125 SMF
“H”
6
“H”
6
“T”
10
“H”
10
“H”
15
“T”
10
“T”
10
15
20
30
15
20
30
30
30
45
30
30
60
15
20
35
20
18
40
20
18
40
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
PL13U0011FCC-A -0-01
PL13U0.5FC11-S -0
PL13N0021FAA-0-0-01
PL15M0011SCA -0-0-01
PL15M0.51SCC-R-0-01
PL15N001T00A-0-0-01
PL15N002FC0-0-0-01
1290
1310
1330
1290
1310
1330
1295
1310
1325
1530
1550
1570
1530
1530
1530
1550
1570
1550
1570
1550
1570
1
Examples only; most device/packaging combinations available. See
1
Examples only; most device/packaging combinations available.
part numbers on reverse; cmay be Sales Dept. notice.
Changes to specifications ontact made without
98-02FOLDa.Rev C
07-03PL13/15DFB. Rev.A
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49
(0)8142
28640,
Fax: +49 (0)8142 286411,
info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
Laser Diodes for Fiber Optics

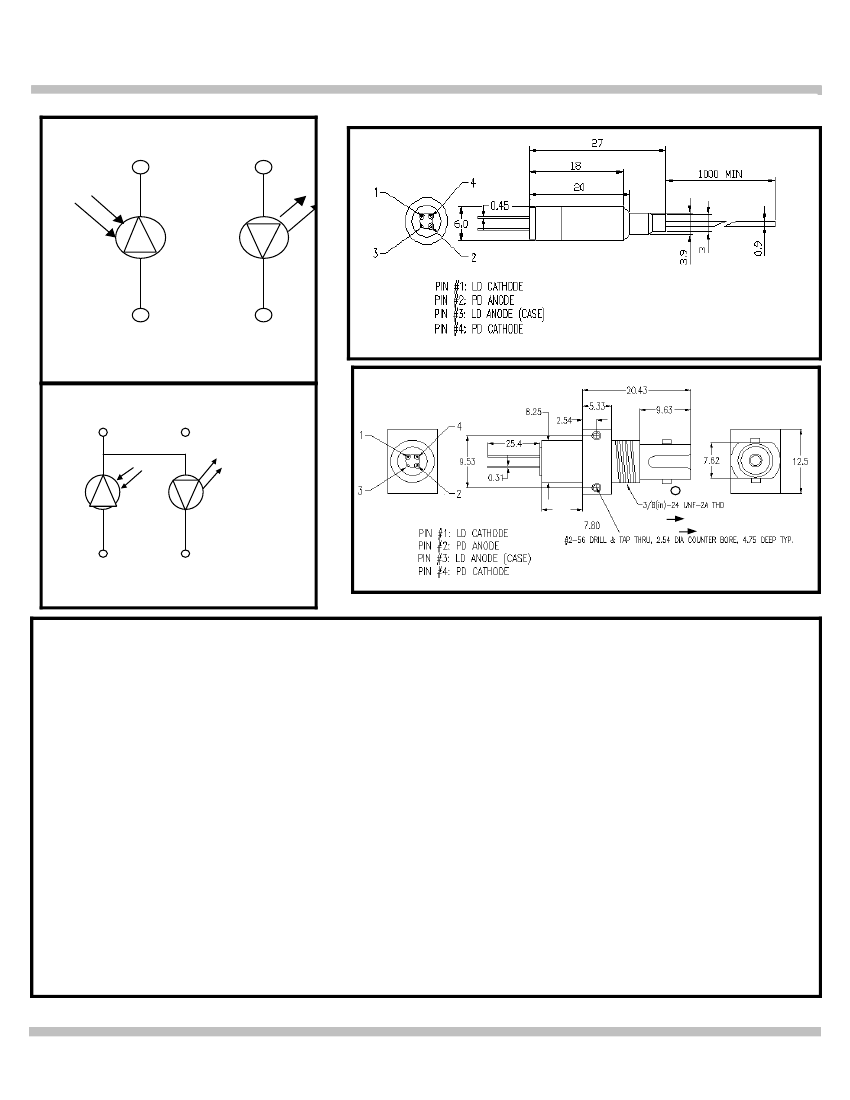

Physical Dimensions (mm) & Pin Connection
PLD L13/15DFB- Series
“H”
(4)
Case
(3)
PD
LD
Coaxial-Pigtailed Laser
Diode Package
(2)
(1)
13A,13U,15A,15M Lasers
Consult PD -LD for Available Board Mount
(10181 or 10198) or Panel Mount Brackets
(10219) or refer to LDs w/ PM Fiber Pigtail
(2)
(3) Case
“T”
PD
LD
(4)
(1)
13N, 15N Laser
Ordering Information
Lasers - Pigtailed & Receptacle
ST Receptacle LD Package
PLWWWPPPFCCB-0-V-LL
L = Laser
WWW=Wavelength and Pin-out
1310nm
1550nm
PPP = Fiber-Coupled Power
0.1
= 0.10 mW (100
µW)
0.8
= 0.8 mW (800
µW
)
0.2
= 0.20 mW (200
µW)
001
= 1.0 mW
0.5
= 0.5 mW (500
µW
)
002
= 2.0 mW
Fiber Type
9/125 SMF
B = Bracket Type
O=Orientation
V=Version
50/125 MMF
A
= None
0=None
0=Standard Specificatons
62.5/125 MMF
B
= Panel Mount
A=Bracket Shipped Loose (pigtailed units only)
100/140 MMF
C
= Board Mount
Specify orientation as required
Customer Supplied
1310nm Polarization Maintaining Fiber, Panda type 9.5/125/900
1550nm Polarization Maintaining Fiber, Panda type 10.5/125/900
LL = Length in meters
(01,02,0.5 ect.) (pigtailed devices only)
CC = Connector Type
(pigtailed devices only)
ST
= ST/PC
SC
= SCPC
SA=SC/APC
FC
= FC/PC
FA
= FC/APC
FU
= FC/UP C
OO
= None
F=
1=
2=
3=
4=
9=
S
=
T=
ST is a registered trademark of AT&T
Web: www.lasercomponents.com
07-03PL13/15DFB.Rev.A
Issue: 10/03 / V5 / HW / www/pdf/pd_ld/ pl1315df.pdf
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 (0)8142 28640, Fax: +49 (0)8142 286411, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
