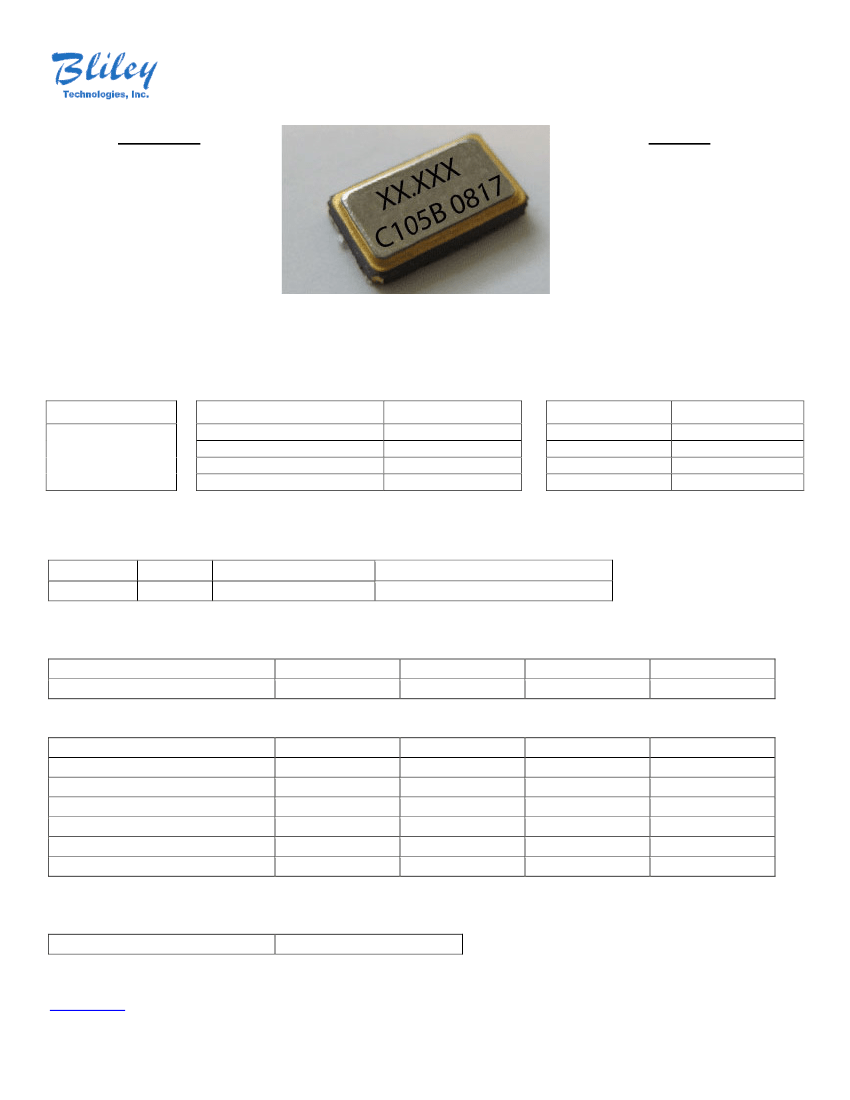

5.0 mm x 3.2 mm XO
Description:
•
The C105B Crystal Oscillator
(XO) Series products provide a
wide range of options in
temperature stability, operating
frequency range, and multiple
supply voltages in a 5.0 x
3.2mm ceramic package.
•
•
•
•
•
C105B series
Features:
Available in frequencies from 1.544
MHz to 156MHz
Tri-state Enable/Disable
Hermetically sealed ceramic
SMD package
TTL/HCMOS compatible
RoHS-6/Leadfree compliant
Can withstand Solder Reflow
temperatures of 260°C.
Frequency Range, Operating Temperature, and Frequency Stability:
Product Code
Product Code
Operating Temperature
Freq. Stability
A
A
-10 to +60C
+/- 25 ppm
B
B
1.544 to 156MHz
0 to +70C
+/- 50 ppm
C
C
-20 to 70C
+/- 75 ppm
D
D
-40 to 85C
+/-100ppm
•
***Frequency stability includes 25C tolerance, drift over temperature, change versus voltage and load, 20 year aging,
shock and vibration
•
Frequency
Aging:
(typical at 156MHz after 30 days continuous operation)
Frequency
156 MHz
Timeframe
1st Year
Aging
+/- 5.0ppm
Product Code
N/A
Supply Voltage (Vs):
Power Supply (Vs)
Product Code
1.8 Vdc +/-10%
A
2.5 Vdc +/-10%
B
3.3 Vdc +/-10%
C
5.0 Vdc +/-10%
D
Current Consumption ( I
DD
):
Frequency Range ( MHz )
1.544 to 9.999
10.000 to 34.999
35.000 to 49.999
50.000 to 125.000
125.000 to 156.000
I
DD
( at 1.8 V )
mA
6
7
15
25
25
I
DD
( at 2.5V )
mA
7
8
20
30
30
I
DD
( at 3.3V )
mA
8
10
25
35
40
I
DD
( at 5.0V )
mA
10
25
35
60
80
Environmental:
Storage Temperature
-55 to +125
°C
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 3
Tel
(814) 838-3571
Rev 1.3
5.0 mm x 3.2 mm XO
Output Waveform:
Output Symmetry
Rise Time ( nS )
Fall Time ( nS )
Output Voltage
Output Voltage
HCMOS load ( pF )
At 50% V
DD
Tr
Tf
V
OH
V
OL
Min
45%
3
3
90% V
DD
29.70
Typical
50%
5
5
Max
55%
10
10
10% V
DD
30.30
C105B series
30.00
Start-up Time: 10 mS max.
Tri-state function Pin 1:
Pin 1 = logic high or open ; Output active at Pin 3
Pin 1 = logic low ; high impedance at pin 3 Output disabled
Ordering Options:
Product Family
Operating
Temperature
C105B
A
C105B
B
C105B
C
C105B
D
Frequency
Stability
A
B
C
D
Supply Voltage
A
B
C
D
Operating
Frequency
XXX.XXXX MHz
XXX.XXXX MHz
XXX.XXXX MHz
XXX.XXXX MHz
C105B C A B 10.0000MHz
Part Number Build Example
**Consult Bliley sales if other options required
** Not all combinations of operating frequency and supply voltage are available.
RoHs compliant; -20 to 70C; +/- 25 ppm with a 2.5 volt supply
And 10 MHz nominal operating frequency.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 3
Tel
(814) 838-3571
Rev 1.3
