P2186-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> P2186-25

P2186-25: DescriptionStandard SRAM, 8KX8, 250ns, NMOS, PDIP28, PLASTIC, DIP-28; Categorystorage storage; File Size280KB，8 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

P2186-25 Overview

Standard SRAM, 8KX8, 250ns, NMOS, PDIP28, PLASTIC, DIP-28

P2186-25 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	250 ns
Other features	INTEGRATED RAM
JESD-30 code	R-PDIP-T28
length	37.02 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

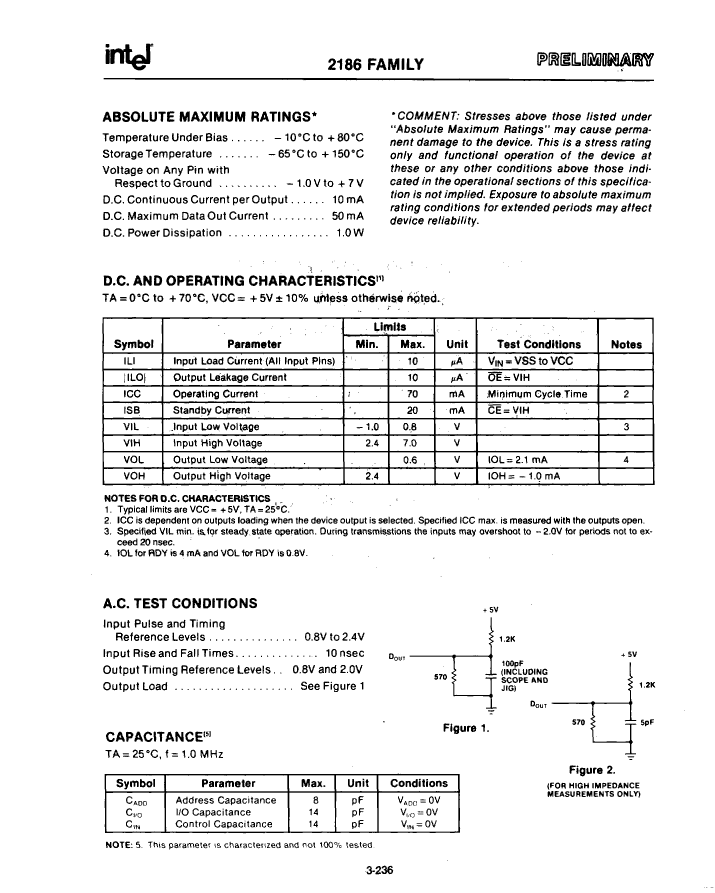

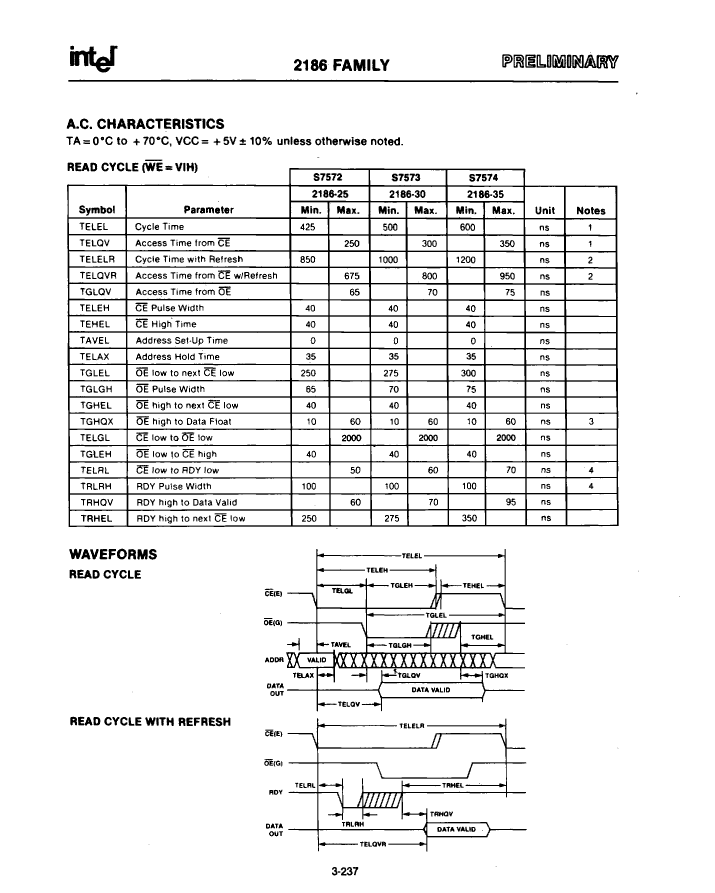

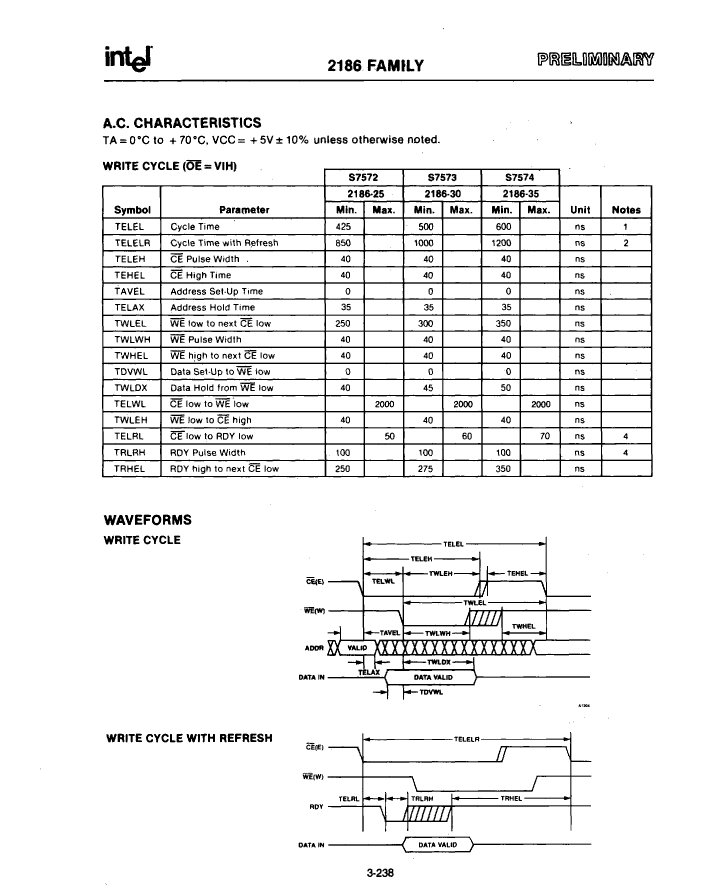

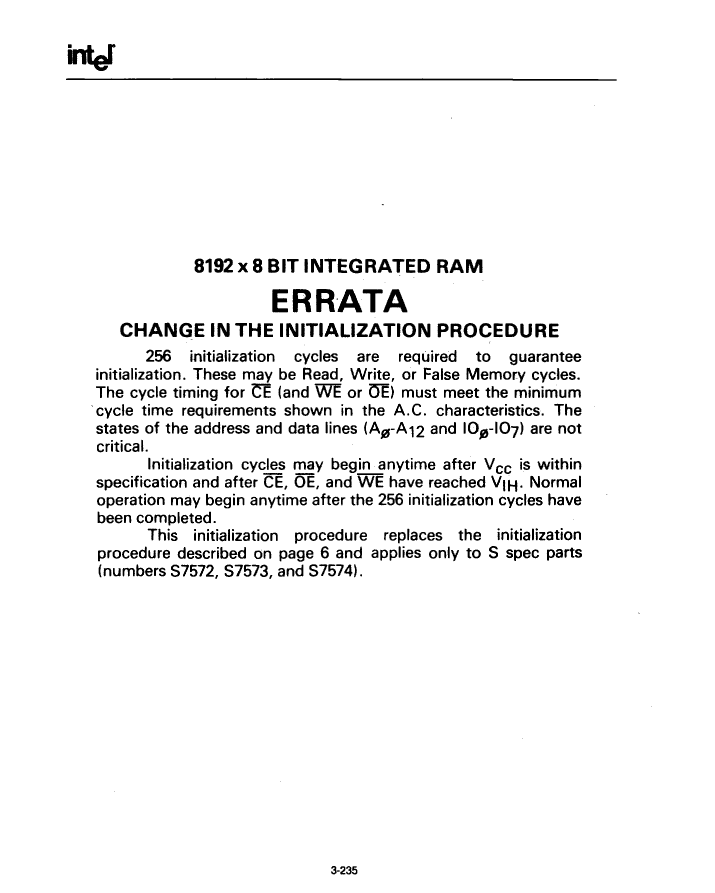

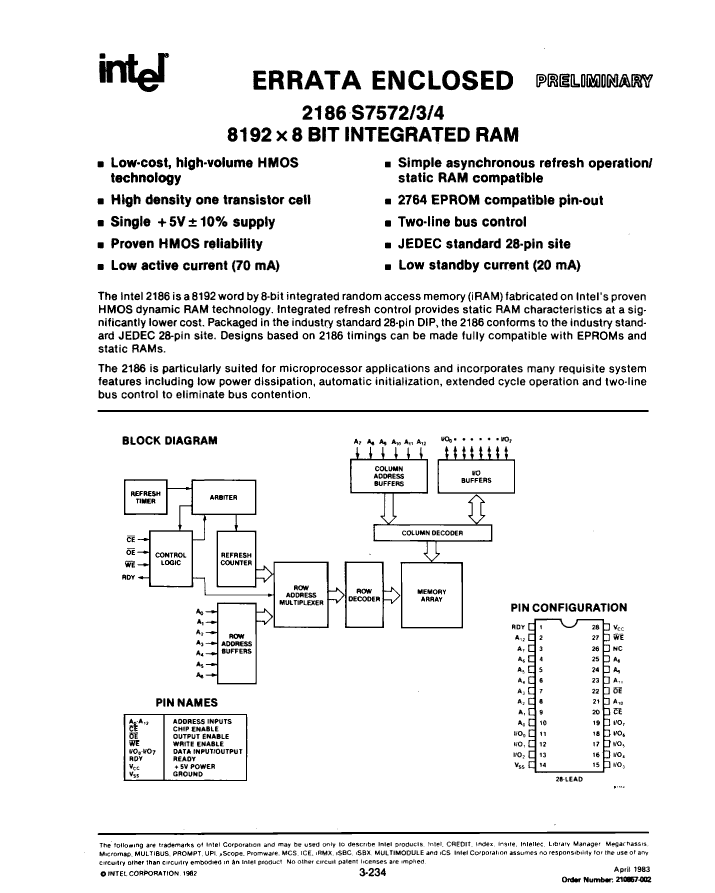

Preview

Download Datasheet

View All

P2186-25 Related Products

	P2186-25	D2186-35	P2186-30	D2186-30	P2186-35	D2186-25
Description	Standard SRAM, 8KX8, 250ns, NMOS, PDIP28, PLASTIC, DIP-28	Standard SRAM, 8KX8, 350ns, NMOS, CDIP28, HERMETIC SEALED, DIP-28	Standard SRAM, 8KX8, 300ns, NMOS, PDIP28, PLASTIC, DIP-28	Standard SRAM, 8KX8, 300ns, NMOS, CDIP28, HERMETIC SEALED, DIP-28	Standard SRAM, 8KX8, 350ns, NMOS, PDIP28, PLASTIC, DIP-28	Standard SRAM, 8KX8, 250ns, NMOS, CDIP28, HERMETIC SEALED, DIP-28
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP, DIP28,.6	DIP,	DIP, DIP28,.6	DIP,	DIP, DIP28,.6
Contacts	28	28	28	28	28	28
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	250 ns	350 ns	300 ns	300 ns	350 ns	250 ns
Other features	INTEGRATED RAM	INTEGRATED RAM	INTEGRATED RAM	INTEGRATED RAM	INTEGRATED RAM	INTEGRATED RAM
JESD-30 code	R-PDIP-T28	R-GDIP-T28	R-PDIP-T28	R-GDIP-T28	R-PDIP-T28	R-GDIP-T28
length	37.02 mm	37.084 mm	37.02 mm	37.084 mm	37.02 mm	37.084 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Maker	Intel	-	Intel	Intel	Intel	Intel
