2234-2-63-1: DescriptionBoard Connector, 63 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2234-2-63-1 Overview

Board Connector, 63 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal

2234-2-63-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.236 inch
subject depth	0.079 inch
body length	1.654 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	2234
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	63
Base Number Matches	1

Preview

Download Datasheet

View All

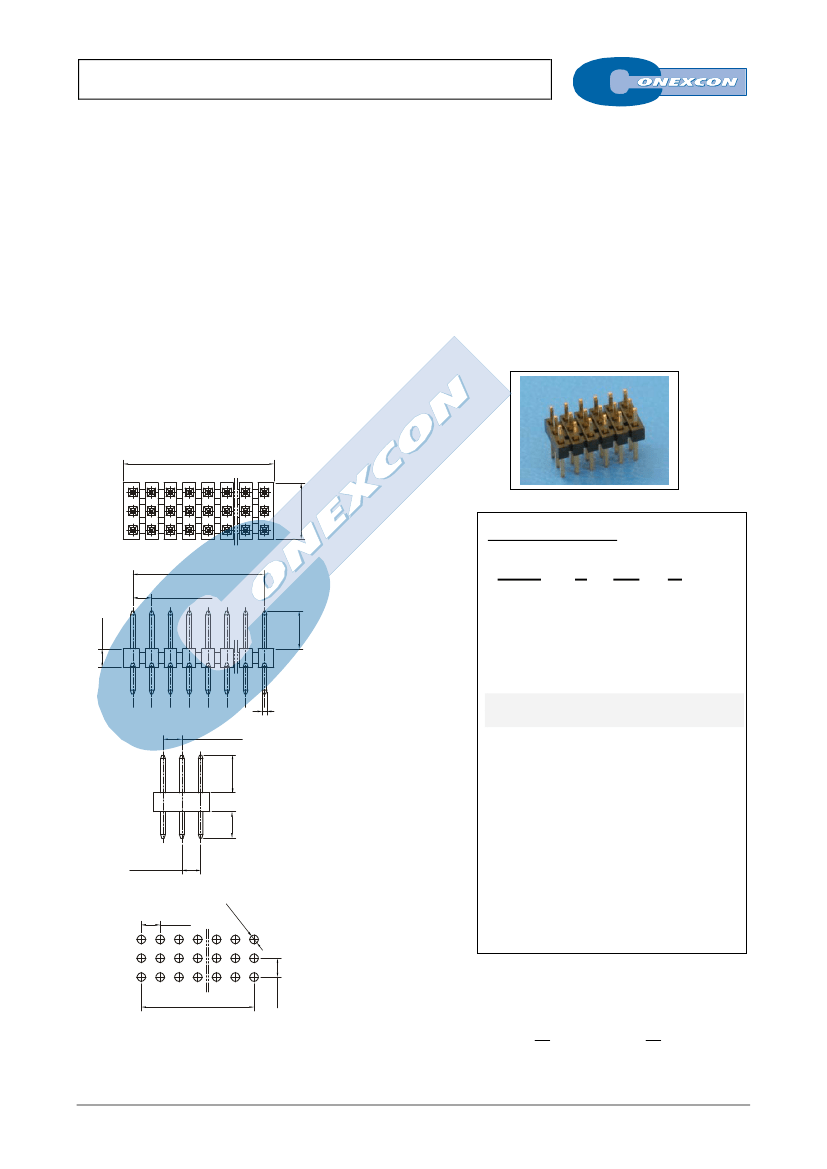

TRIPLE ROW VERTICAL PIN HEADER

2234 SERIES.

2.00 mm. (0.079”) pitch.

General Features

Electrical Features



Available in 12 through 120 circuits

Mates with 2.00 mm. pitch 3051 and 3052 series

0.50 mm. square pin with different plating

Available with different pin length.

Contact sales office



Voltage rating: < 125V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2pF at 1 KHz.

Materials

Mechanical Features

Pin retention force to insulator: > 0.30 Kgf

Durability: 50 cycles



Insulator: Polyester nylon 6T UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS Compliant

Dimension Information

B±0.25

6.00

Ordering Information:

A±0.15

2.00±0.13

4.00±0.25

2234 -

T-

XX-

2.00

1. Connector Series

2. (T) Contact Plating

0.50±0.13

2.00±0.13





T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

3. (XX) Number of circuits

Available in 6 through 120 circuits

(XX= circuits per row)

2.00±0.13

Toler. ±0.05mm.

2.00

4. (C) Pin Dimensions

Dim. A

2.00

.90

ø0



C =

H = 4.00 mm. ; D = 2.80 mm.

DIMENSIONS

2.00















2.00













(XX) = Number of circuits

A-XX
