43202-6504 datasheet, PDF - EEWORLD Datasheet

43202-6504: DescriptionTelecom and Datacom Connector, 6 Contact(s), Right Angle, Solder Terminal, Locking, Jack,; CategoryThe connector The connector; File Size202KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

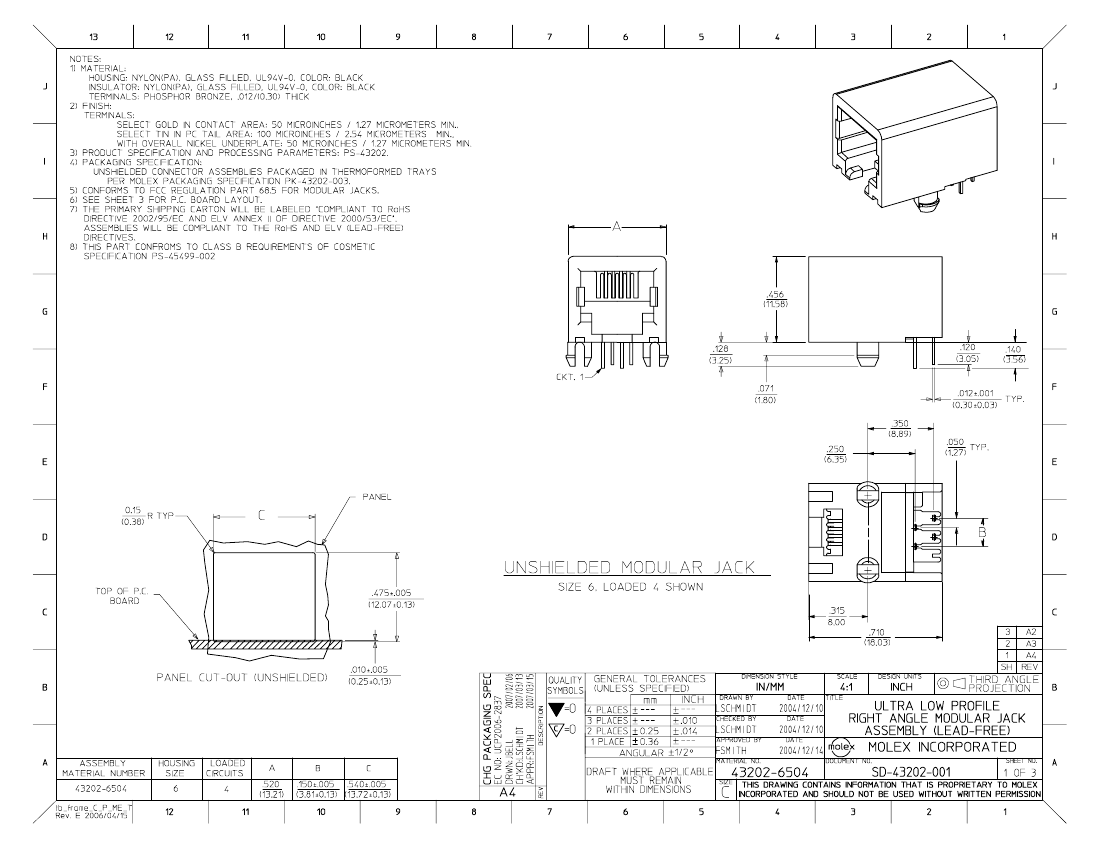

43202-6504 Overview

Telecom and Datacom Connector, 6 Contact(s), Right Angle, Solder Terminal, Locking, Jack,

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.456 inch
subject depth	0.71 inch
body length	0.52 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulator color	BLACK
Manufacturer's serial number	43202
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1

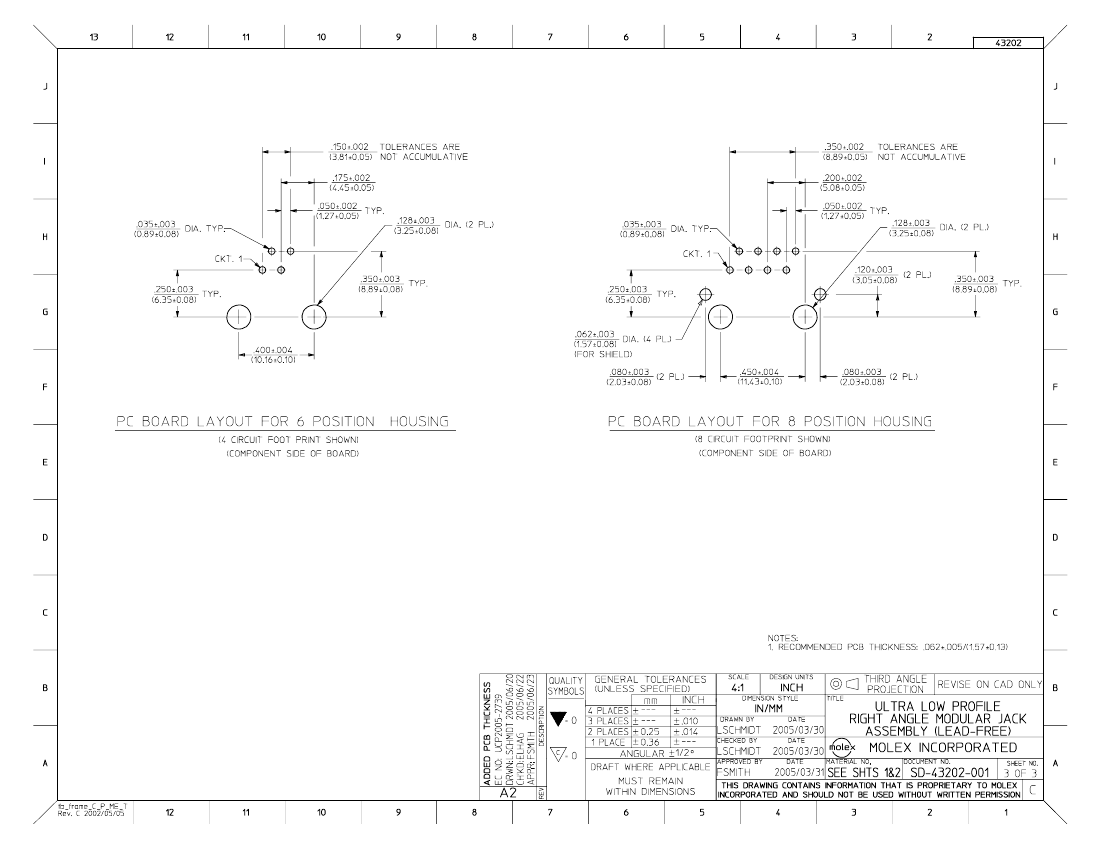

PCB contact pattern	STAGGERED
Plating thickness	50u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

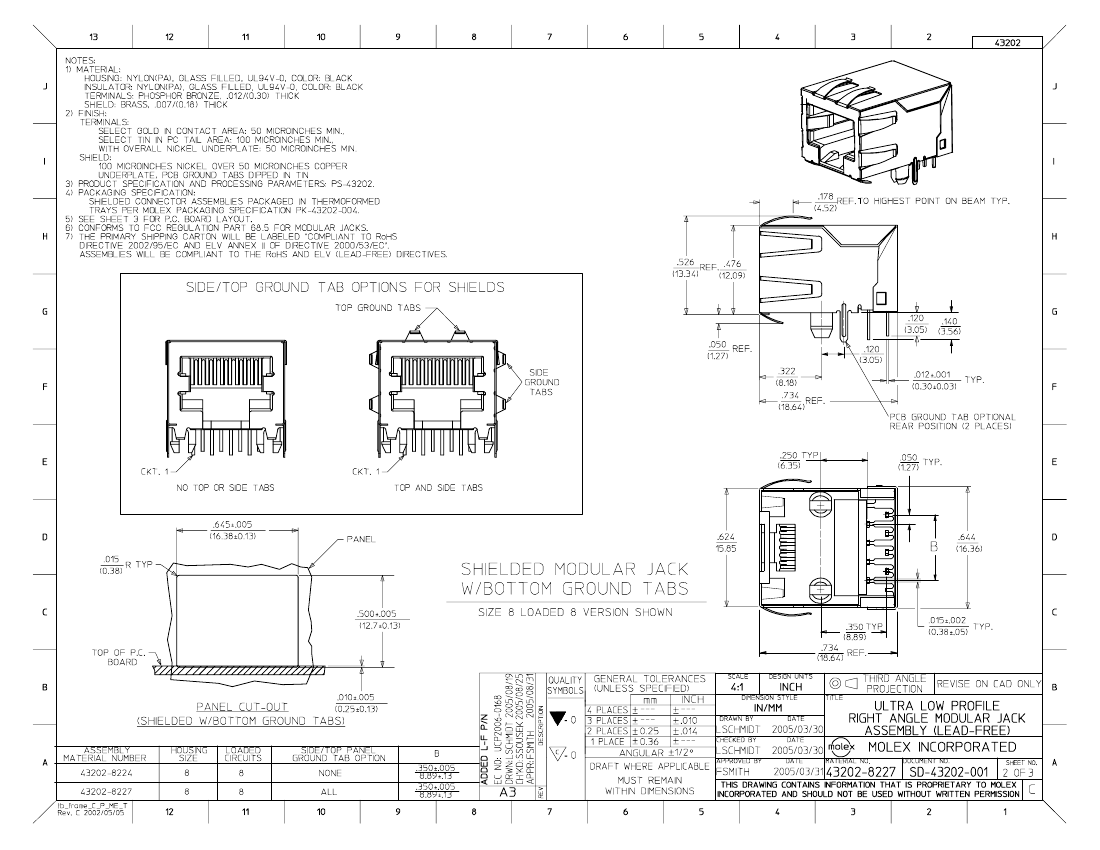

	43202-6504	43202-8227
Description	Telecom and Datacom Connector, 6 Contact(s), Right Angle, Solder Terminal, Locking, Jack,	Telecom and Datacom Connector, 8 Contact(s), Right Angle, Solder Terminal, Locking, Jack,
Reach Compliance Code	unknow	compli
body width	0.456 inch	0.476 inch
subject depth	0.71 inch	0.734 inch
body length	0.52 inch	0.644 inch
Body/casing type	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR	TELCOM, MODULAR
Insulator color	BLACK	BLACK
Manufacturer's serial number	43202	43202
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
PCB contact pattern	STAGGERED	STAGGERED
Plating thickness	50u inch	50u inch
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.12 inch	0.12 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	6	8
