FMGA-461/ES: DescriptionData Line Filter, 1 Function(s), 40V, 0.8A, 18 Pin(s), Metal, HERMETIC SEALD, METAL PACKAGE-18; CategoryAnalog mixed-signal IC filter; File Size283KB，14 Pages; ManufacturerCrane Co.

Download Datasheet Parametric Compare View All

FMGA-461/ES Overview

Data Line Filter, 1 Function(s), 40V, 0.8A, 18 Pin(s), Metal, HERMETIC SEALD, METAL PACKAGE-18

FMGA-461/ES Parametric

Parameter Name	Attribute value
Maker	Crane Co.
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	1.2 Ω
filter type	DATA LINE FILTER
high	6.35 mm
JESD-609 code	e4
length	25.65 mm
Manufacturer's serial number	FMGA
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Packaging Materials	METAL
physical size	L25.65XB22.35XH6.35 (mm)/L1.01XB0.88XH0.25 (inch)
Rated current	0.8 A
Rated voltage	40 V
Terminal surface	GOLD
width	22.35 mm

FMGA-461/ES Preview

Crane Aerospace & Electronics Power Solutions

FMSA/FMGA EMI Input Filters

28 VOLT INPUT – 0.8 AMP

EATURES

• –55°C to +125°C operation

• 50 dB min. attenuation at 500 kHz

differential mode

• 45 dB min. attenuation at 5MHz

common mode

• Compliant to MIL-STD-461C, CE03

• Compatible with MIL-STD-704E

DC power bus

• Compatible with MIL-STD-704A

through E (FMGA)

MODEL

FMSA-461

FMGA-461

0.8 amp

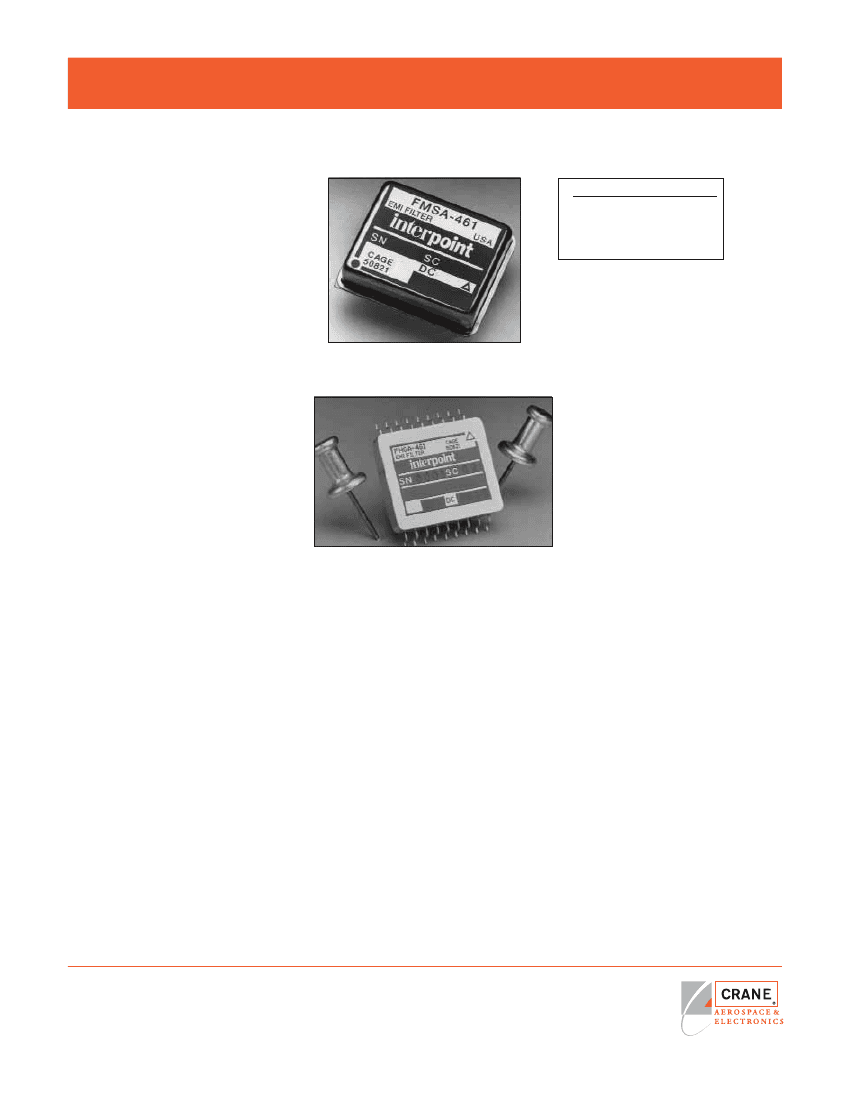

FMSA SERIES™ EMI FILTER

The FMSA-461 EMI filter modules have been designed as a

companion for Interpoint MSA flyback power converters. Multiple

MSA power converters can be operated from a single filter provided

the total power line current does not exceed the filter maximum

rating. The FMSA filter will reduce the MSA’s power line reflected

ripple current to within the limit of MIL-STD-461C, Method CE03, as

shown in the example of Figures 4 and 5.

The FMSA is fabricated using thick film hybrid technology and is

sealed in a metal package for military, aerospace and other appli-

cations requiring EMI suppression. The filter uses only ceramic

capacitors for reliable high temperature operation.

comply with CE03. For MHF, MHF+, MHD, and MHE models, the

converter has an LC type line filter such that an inductor is seen

looking into its positive input terminal. For these converters, it is

necessary to terminate the filter with a capacitor to insure uncondi-

tionally stable operation. A capacitor across the filter output termi-

nals of greater than 4μF or the optional damping circuit shown on

the connection diagram will be adequate for stable operation. No

capacitor is required for MSA, or DCH models.

PTIONAL

AMPING

IRCUIT

The optional damping circuit (Figure 2) can be used to prevent filter

overshoot caused by MIL-STD-704A 80 V, or other, transients

having rise times of less than 200 μSec. This damping can be alter-

nately provided with a 1.50 Ω resistor in series with the filter positive

input where the additional line loss can be tolerated. For transients

with rise times of greater than 200 μsec, there is no overshoot and

the damping circuit is not required.

PERATION

The MSA power converter has an internal 2 μF capacitor across its

input power terminals. When the MSA and FMSA filters are used

together, this capacitor becomes part of the filter and forms its final

LC output section. When 2 or 3 MSAs are used with a single filter,

this capacitor becomes 4 μF or 6 μF respectively, rather than 2 μF,

improving the rejection vs. frequency.

The FMSA filter can also be used with other types of Interpoint

power converters (MHF, MHF+, MHE, MHD, and DCH series) to

AYOUT

EQUIREMENTS

The case of the filter must be connected to the case of the converter

through a low impedance connection to minimize EMI.

Crane Aerospace & Electronics

Electronics Group (Interpoint Brand)

PO Box 97005 • Redmond WA 98073-9705

425.882.3100 • electronics@craneae.com

www.craneae.com

Page 1 of 14

Rev D - 20060508

Crane Aerospace & Electronics Power Solutions

FMSA/FMGA EMI Input Filters

28 VOLT INPUT – 0.8 AMP

FMGA SERIES™ EMI FILTER

Interpoint’s surface mount FMGA-461™ EMI filter has been

designed to work with Interpoint’s surface mount MGA and MGH

Series DC/DC converters. Multiple MGA or MGH Series converters

can be operated from a single FMGA filter provided the total power

line current does not exceed the filter’s maximum rating. The FMGA

filter will reduce the converter’s power line reflected ripple current to

within the limit of MIL-STD-461C, Method CE03 as shown in Figures

4 through 7. The filter uses only ceramic capacitors for reliable high-

temperature operation.

microseconds. The damping circuit can be used with a 1.50 Ω

resistor in series with the filter’s positive input where the additional

line loss can be tolerated. For transients with rise times of greater

than 200 microseconds, there is no overshoot and the damping

circuit is not required.

URFACE

OUNT

ACKAGE

The FMGA EMI filter can be surface mounted with pick-and-place

equipment or manually. It is recommended that the case be

attached with flexible epoxy adhesive or silicone which is thermally

conductive (>1 watt /meter/°K).

Internal components are soldered with SN96 (melting temperature

221°C) to prevent damage during reflow. Maximum reflow tempera-

ture for surface mounting the FMGA filter is 220°C for a maximum

of 30 seconds. SN60, 62, or 63 are the recommended types of

solder. Hand soldering should not exceed 300°C for 10 seconds per

pin.

The hermetically sealed metal cases are available in two different

lead configurations. See case B for dimensions and options.

ONNECTION AND

PERATION

Where more than one pin has the same designation (e.g. pins 7, 8,

and 9 are Positive Output), all of those pins must be connected for

output performance to meet the specifications.

The MGA Series has an internal 2 μF capacitor its input terminals

and the MGH Series has an internal 0.47 μF capacitor across its

input power terminals. When the MGA or MGH converters are used

with the FMGA filter, this capacitor becomes part of the filter and

forms its final LC output section. When 2 or 3 MGA or MGH

converters are used with a single filter, this capacitor becomes

larger, improving the rejection versus frequency.

AYOUT

EQUIREMENTS

RANSIENT

AMPING

The optional damping circuit shown in Figure 2 will prevent filter

overshoot caused by 80 V transients with rise times of less than 200

The case of the filter must be connected to the case of the converter

through a low impedance connection to minimize EMI.

0.65

Positive

Input

6800 pF

500 V

>285 H

6 H

Positive

Output

0.014 F / 500 V

2 F

Input

Common

6800 pF

500 V

2 F

0.014 F / 500 V

Output

Common

0.014 F / 500 V

FMGA-461

The case ground connection between the filter and the converter should be as low an impedance as possible

to minimize EMI. Direct contact of baseplate to chassis ground provides the lowest impedance.

IGURE

1: FMGA T

YPICAL

CHEMATIC

www.craneae.com

Page 2 of 14

Rev D - 20060508

Crane Aerospace & Electronics Power Solutions

FMSA/FMGA EMI Input Filters

28 VOLT INPUT – 0.8 AMP

AMPING

IRCUITS

FMSA-461

Positive

Input

Positive

Output

Case

Ground

Input

Common

Output

Common

DC/DC Converter

Positive

Input

Case

Ground

Input

Common

Output

Common

Positive

Output

The RC output is an optional

damping circuit. It is recommended in

applications where 80 volt line

transients may occur with rise times

<200 s. See text page one

"Connection and Operation."

C = 10 F, 100V –

C =

Sprague 109D106X9100C2

R = 2.2 , 5%, 1/4 W, Carbon comp.

Multiple units

allowed up to

rated output current.

IGURE

2: FMSA D

AMPING

IRCUIT

FMGA-461

Positive

Input

Positive

Output

Case

Ground

Input

Common

Output

Common

DC/DC Converter

Positive

Input

Case

Ground

Input

Common

Output

Common

Positive

Output

The RC output is an optional

damping circuit. It is recommended in

applications where 80 volt line

transients may occur with rise times

<200 s. See text page one

"Connection and Operation."

C = 10 F, 100V –

C =

Sprague 109D106X9100C2

R = 2.2 , 5%, 1/4 W, Carbon comp.

Multiple units

allowed up to

rated output current.

IGURE

3: FMGA D

AMPING

IRCUIT

www.craneae.com

Page 3 of 14

Rev D - 20060508

Crane Aerospace & Electronics Power Solutions

FMSA/FMGA EMI Input Filters

28 VOLT INPUT – 0.8 AMP

OPERATING CONDITIONS AND CHARACTERISTICS

Input Voltage Range

• 0 to 50 VDC continuous FMSA models

16 to 40 VDC continuous FMGA models

• 80 V for 100 ms transient

Lead Soldering Temperature (10 sec per lead)

• 300°C

Storage Temperature Range (Case)

• –65°C to +150°C

Case Operating Temperature (Tc)

• –55°C to +125°C full power

Derating Input/Output Current

• Derate linearly from 100% at 100°C to 0.60

amps at 125°C case. Above 125°C derate to 0%.

Capacitance

• 0.045 μF max, any pin to case

Isolation

• 100 megohm minimum at 500 V

• Any pin to case, except case pin

MECHANICAL AND ENVIRONMENTAL

Size (maximum)

FMSA models 0.980 x 0.805 x 0.270 (24.89 x 20.45 x 6.86 mm)

See case A1 for dimensions.

FMGA models 1.010 x 0.880 x 0.250 inches (25.65 x 22.35 x 6.35 mm)

Shown with “gull wing” lead option, also available with straight

leads. See case B for dimensions and options.

Weight (maximum)

10.3 grams typical, 11.5 grams maximum

Screening*

Standard, ES. See “883, Class H, QML Products – Element Evaluation” and

“883, Class H, QML Products – Environmental Screening” for more informa

tion.

* FMGA model has the option of Class H screening, while FMSA does not.

0.65

Positive

Input

6800 pF

500 V

>285 H

6 H

Positive

Output

0.014 F / 500 V

2 F

Input

Common

6800 pF

500 V

2 F

0.014 F / 500 V

Output

Common

0.014 F / 500 V

FMSA-461

The case ground connection between the filter and the converter should be as low an impedance as possible

to minimize EMI. Direct contact of baseplate to chassis ground provides the lowest impedance.

IGURE

4: FMSA S

CHEMATIC

– T

YPICAL

ALUES

www.craneae.com

Page 4 of 14

Rev D - 20060508

Crane Aerospace & Electronics Power Solutions

FMSA/FMGA EMI Input Filters

28 VOLT INPUT – 0.8 AMP

PIN OUT FMSA MODELS

2, 3

5, 6

Designation

Positive Input

Positive Output

Case Ground

Output Common

Input Common

Case Ground

Squared corner and

dot on top of cover

indicate pin one.

2 3

BOTTOM

VIEW

FMSA

6 5

See case A1 for dimensions.

PINS NOT IN USE

FMSA:

Case ground

Connect to case ground for optimum

fitting

IGURE

5: FMSA P

FMGA:

Case ground (pin 5, 6, 13, 14)

Pin 3, 4, 15, 16

(pins with no connection)

Connect to case ground for optimum

fitting

Connect to case ground for optimum

fitting

PIN OUT FMGA MODELS

Description

1, 2

Positive Input

3, 4

No Connection

5, 6

Case Ground

7, 8, 9

Positive Output

10, 11, 12 Output Common

13, 14

Case Ground

15, 16

No Connection

17, 18

Input Common

To meet specified performance, all pins

must be connected except “No

Connection” pins.

TOP VIEW

FMGA

Differently colored glass bead around pin one or dimple in

header (bottom or side of case) indicates pin one.

Cover marking is oriented with pin one at the upper right corner.

See case B for dimensions and “gull-wing” lead option.

IGURE

6: FMGA P

www.craneae.com

Page 5 of 14

Rev D - 20060508

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FMGA-461/ES Related Products

	FMGA-461/ES	FMGA-461Z/ES
Description	Data Line Filter, 1 Function(s), 40V, 0.8A, 18 Pin(s), Metal, HERMETIC SEALD, METAL PACKAGE-18	Data Line Filter, 1 Function(s), 40V, 0.8A, 18 Pin(s), Metal, HERMETIC SEALD, GULL WING, METAL PACKAGE-18
Maker	Crane Co.	Crane Co.
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Maximum DC resistance	1.2 Ω	1.2 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER
high	6.35 mm	6.35 mm
JESD-609 code	e4	e4
length	25.65 mm	25.65 mm
Manufacturer's serial number	FMGA	FMGA
Installation type	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Packaging Materials	METAL	METAL
physical size	L25.65XB22.35XH6.35 (mm)/L1.01XB0.88XH0.25 (inch)	L25.65XB22.35XH6.35 (mm)/L1.01XB0.88XH0.25 (inch)
Rated current	0.8 A	0.8 A
Rated voltage	40 V	40 V
Terminal surface	GOLD	GOLD
width	22.35 mm	22.35 mm

Recommended Resources

AD7982 differential conversion single-ended signal circuit design

DS8 type 100V, 5A mutual inductance three-phase three-wire electric meter wiring

Horn gap arrester and valve type arrester circuit diagram

STK1040 power amplifier circuit

555 two-channel output negative timing pulse circuit

Remote control infrared detection circuit

LM358 board test results are different from simulation: Using LM358, the first op amp is used as a follower circuit, and the second op amp is used as a simple differential circuit to power the microcontroller ADC. It uses a 3.3V power supply. The first op ...; uwueii Analog electronics

Ultra-low power chip solution for battery-powered devices: Hello everyone, I use a single lithium iron phosphate battery to power the system, the input voltage range is 2.0-3.6v, the output is fixed at 3.0v, and the output current is less than 1A. Can you rec...; gjun027 Analogue and Mixed Signal

【430 Beginner 02】Observe and search for MSP430F5310: As mentioned before , the official wiki is here: http://processors.wiki.ti.com/index.php/MSP430_LaunchPad_(MSP-EXP430G2) I downloaded the new version of "MSP-EXP430G2 LaunchPad Experimental Board User...; lvshuxun Microcontroller MCU

[NXP Rapid IoT Review] Easy to use: [i=s]This post was last edited by jj1989 on 2018-12-30 14:29[/i] [size=4] [md]Seeing everyone unboxing their own **Rapid IoT Prototyping Kit SLN-RPK-NODE**, I couldn't wait, but there was no news of d...; jj1989 RF/Wirelessly

Regarding the register operation of the STM32Fxxx timer interrupt.: System clock 24mhz, timer3 time base 24mztimer starts two events: CC1 comparison event; update eventThe interrupt program is as follows,case 1void TIM3_IRQHandler(void){if (TIM_GetITStatus(TIM3, TIM_I...; lock stm32/stm8

Urgent help!!!: What kind of development board is this? I searched for it according to the name in the picture, but couldn't find it. Please help me, thank you!...; 小桥流水0201 PCB Design

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
