PUMA68SV16000XL-017 datasheet, PDF

Datasheet> All Categories > storage> storage> PUMA68SV16000XL-017

PUMA68SV16000XL-017: DescriptionSRAM Module, 512KX32, 17ns, CMOS, PLASTIC, LCC-68; Categorystorage storage; File Size163KB，12 Pages; ManufacturerMOSAIC; Websitehttp://www.mosaicsemi.com/

Download Datasheet Parametric Compare View All

PUMA68SV16000XL-017 Overview

SRAM Module, 512KX32, 17ns, CMOS, PLASTIC, LCC-68

PUMA68SV16000XL-017 Parametric

Parameter Name	Attribute value
Maker	MOSAIC
Parts packaging code	QMA
package instruction	,
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	17 ns
Other features	ALSO CONFIGURABLE AS 2M X 8
Spare memory width	16
JESD-30 code	S-XQMA-J68
memory density	16777216 bit
Memory IC Type	SRAM MODULE
memory width	32
Number of functions	1
Number of terminals	68
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX32
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal location	QUAD

Preview

Download Datasheet

View All

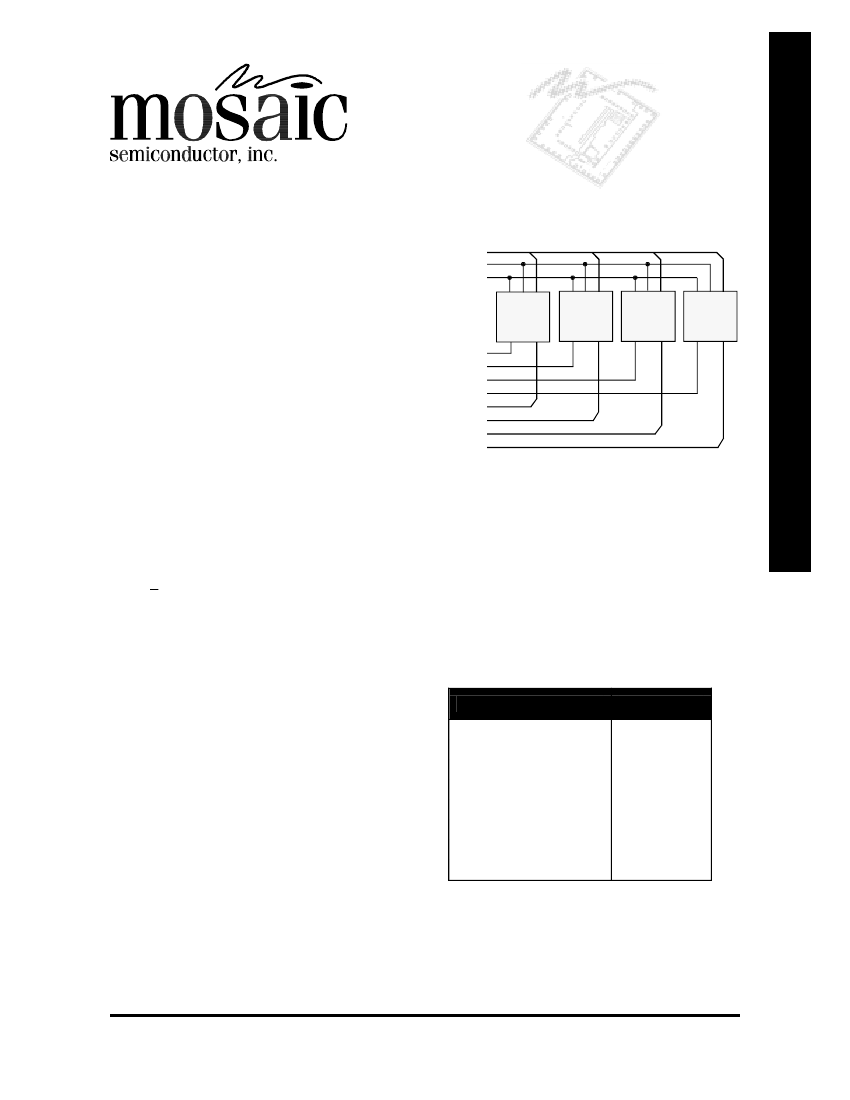

512 K x 32 Static RAM

PUMA 68SV16000X - 012/015/017

Issue 5.1 December 1999

Description

The PUMA68 range of devices provide a high

density surface mount industry standard memory

solution which may accommodate various memory

technologies including SRAM, EEPROM and

Flash. The devices are designed to offer a defined

upgrade path and may be user configured as 8, 16

or 32 bits wide.

The PUMA68SV16000X is a 512Kx32 SRAM mod-

ule housed in a 68 Jleaded package which complies

with the JEDEC 68 PLCC standard. Access times of

12, 15 or 17ns are available. The 3.3V low voltage

device is available to commercial and industrial

temperature grade.

64Kx32, 128Kx32 and 256Kx32 SRAM PUMA68

devices are available in the same footprint. The

upgrade part (1Mx32 SRAM) is planned.

Block Diagram

A0~A18

/OE

/WE

512K x 8

SRAM

/CS1

/CS2

/CS3

/CS4

D0~7

D8~15

D16~23

D24~31

512K x 8

SRAM

512K x 8

SRAM

512K x 8

SRAM

Features

• Access times of 12/15/17 ns.

• 3.3V + 10%.

• Comercial and Industrial temperature grades

• JEDEC standard 68 J Lead footprint.

• Industry standard pinout.

• May be organised as 512K x 32, 1M x 16, 2M X 8

• Operating Power

(32 Bit) 2.95W (max)

• Low power standby. (TTL) 0.72W (max)

(CMOS) 145mW (max)

• Low voltage data retention mode.

• Completely Static Operation.

Pin Definition

See page 2.

Pin Functions

Description

Address Input

Data Input/Output

Chip Select

Write Enable

Output Enable

No Connect

Power

Ground

Signal

A0~A18

D0~D31

/CS1~4

/WE

/OE

Package Details

PUMA 68 - Plastic 68 ‘J’ Leaded Package

Max. Dimensions (mm) - 25.27 x 25.27 x 5.08

11403 West Bernardo Court, Suite 100, San Diego, CA92127.

TEL (858) 674 2233, Fax No. (858) 674 2230 E-mail:

sales@mosaicsemi.com

PUMA68SV16000XL-017 Related Products

	PUMA68SV16000XL-017	PUMA68SV16000XI-012	PUMA68SV16000X-012	PUMA68SV16000XLI-012	PUMA68SV16000XI-017	PUMA68SV16000XL-012
Description	SRAM Module, 512KX32, 17ns, CMOS, PLASTIC, LCC-68	SRAM Module, 512KX32, 12ns, CMOS, PLASTIC, LCC-68	SRAM Module, 512KX32, 12ns, CMOS, PLASTIC, LCC-68	SRAM Module, 512KX32, 12ns, CMOS, PLASTIC, LCC-68	SRAM Module, 512KX32, 17ns, CMOS, PLASTIC, LCC-68	SRAM Module, 512KX32, 12ns, CMOS, PLASTIC, LCC-68
Maker	MOSAIC	MOSAIC	MOSAIC	MOSAIC	MOSAIC	MOSAIC
Parts packaging code	QMA	QMA	QMA	QMA	QMA	QMA
Contacts	68	68	68	68	68	68
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	17 ns	12 ns	12 ns	12 ns	17 ns	12 ns
Other features	ALSO CONFIGURABLE AS 2M X 8	ALSO CONFIGURABLE AS 2M X 8	ALSO CONFIGURABLE AS 2M X 8	ALSO CONFIGURABLE AS 2M X 8	ALSO CONFIGURABLE AS 2M X 8	ALSO CONFIGURABLE AS 2M X 8
Spare memory width	16	16	16	16	16	16
JESD-30 code	S-XQMA-J68	S-XQMA-J68	S-XQMA-J68	S-XQMA-J68	S-XQMA-J68	S-XQMA-J68
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1
Number of terminals	68	68	68	68	68	68
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	85 °C	70 °C
organize	512KX32	512KX32	512KX32	512KX32	512KX32	512KX32
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
