TSP2-1212S datasheet, PDF - EEWORLD Datasheet

TSP2-1212S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid; CategoryPower/power management The power supply circuit; File Size55KB，2 Pages; ManufacturerTri-Mag Inc.

Download Datasheet Parametric View All

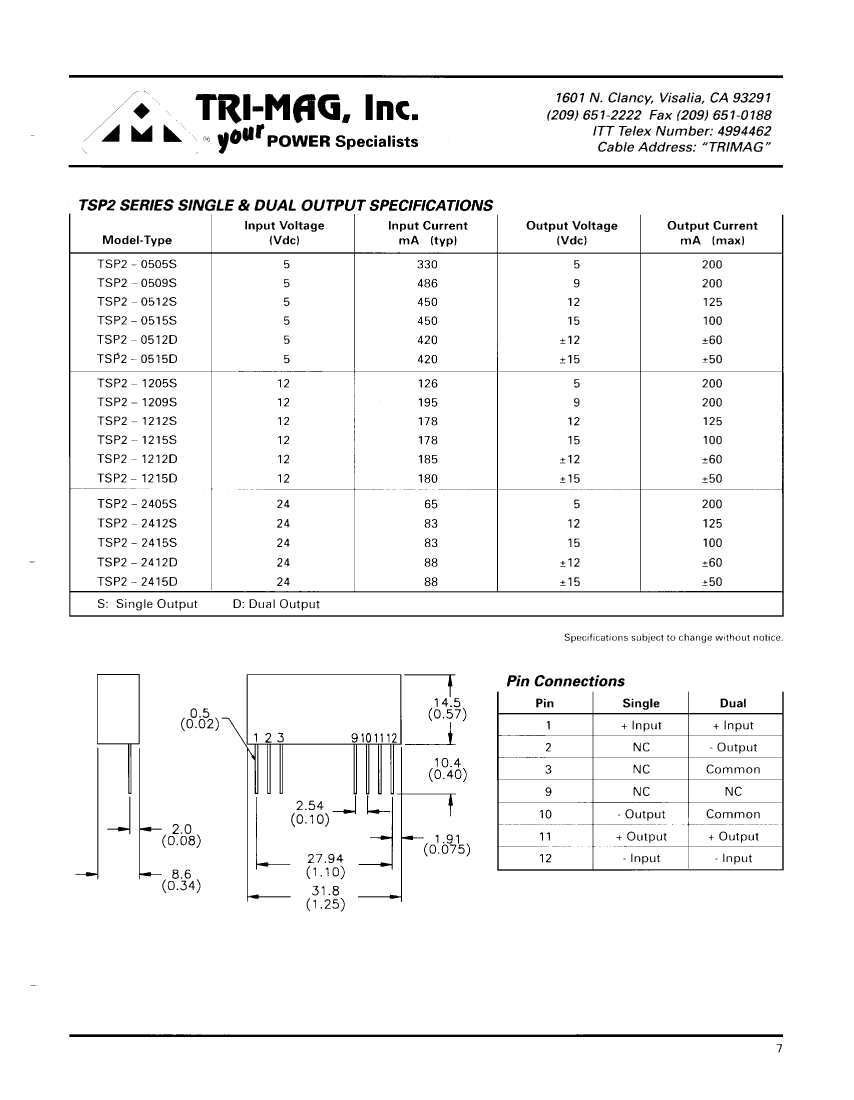

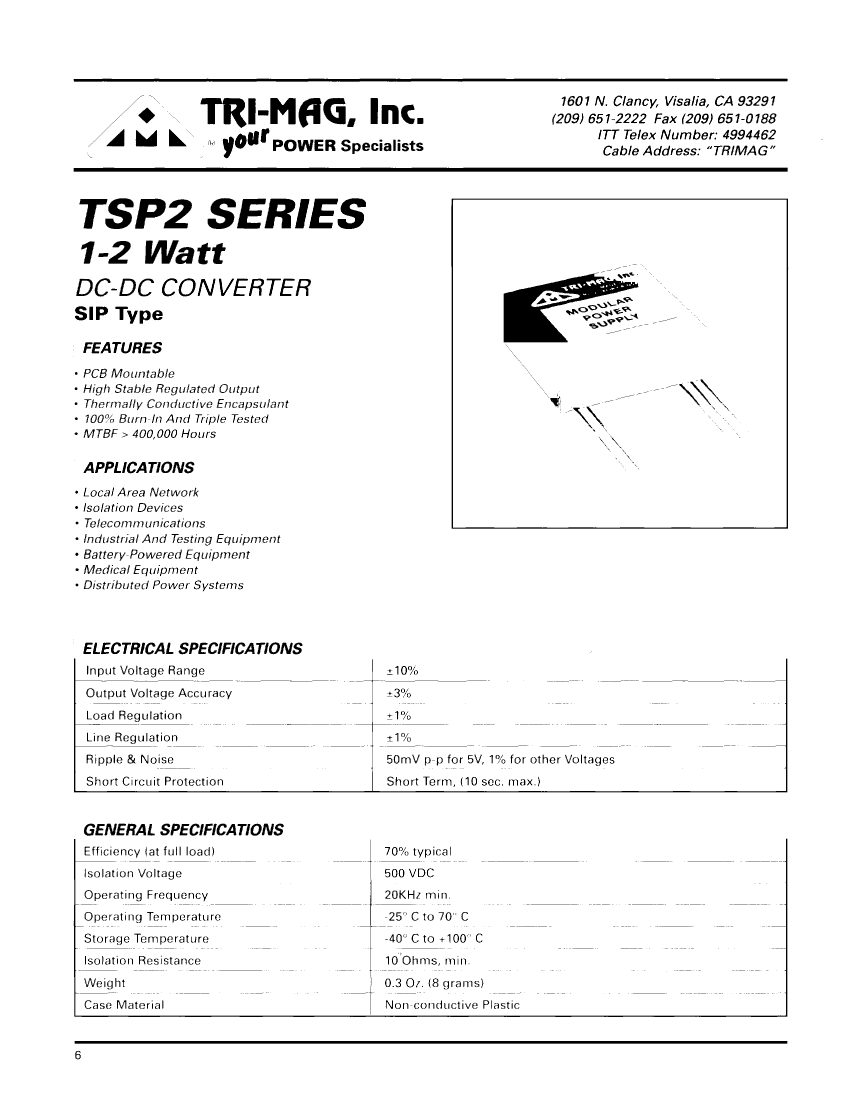

TSP2-1212S Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid

Parameter Name	Attribute value
Maker	Tri-Mag Inc.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	70%
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-PSIP-T7
Maximum grid adjustment rate	1%
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum output voltage	12.36 V
Minimum output voltage	11.64 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Fine-tuning/adjustable output	NO
