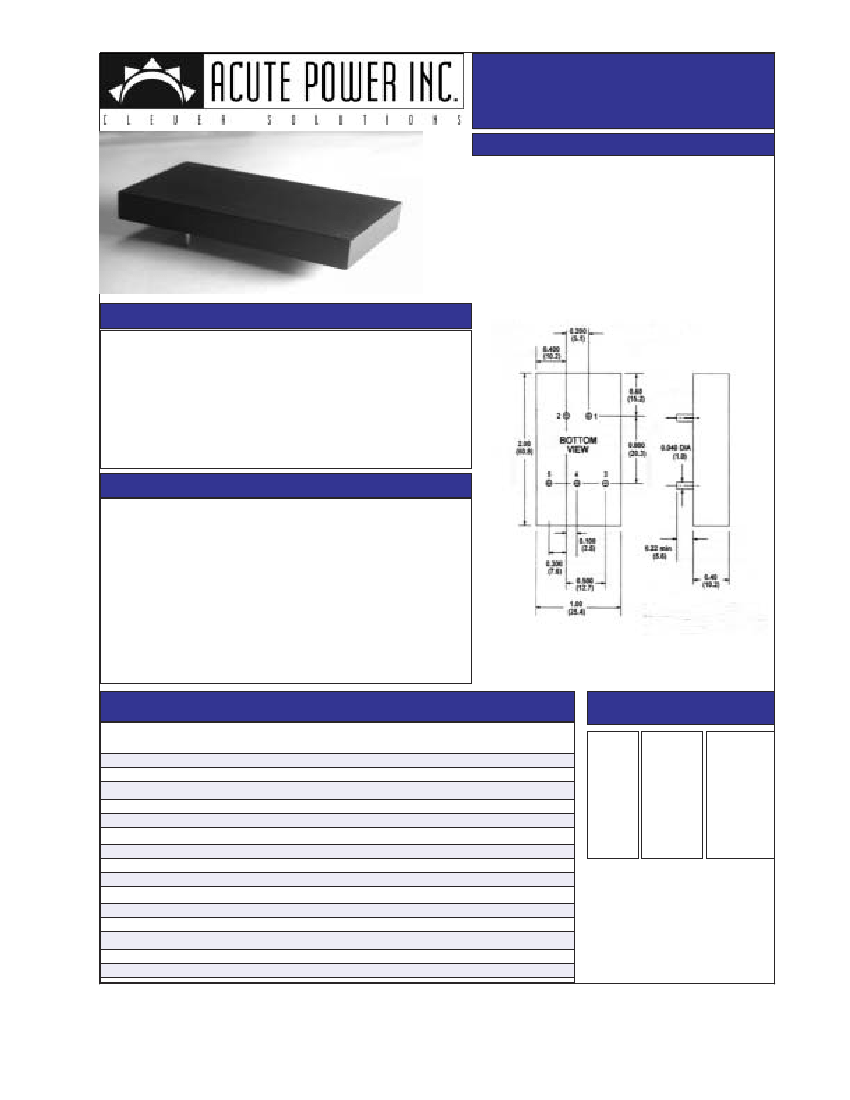

5 WATT DC/DC

BRM 05 Series

Features

•

Wide input voltage range 2:1

5 Watts (1”x2”x0.4”)

Efficiency to 82%

PI input filter

Electrical Specifications

Input Voltage/Range................ See Table

Output Voltage Accuracy........ -/+ 2%

Line Regulation...................... -/+ 0.5%

Load Regulation (single)........ -/+ 0.5%

Load Regulation (dual).......... -/+ 2%

Efficiency.............................. See Table

EM/RFI................................ Six-Sided Continuous Shield

General Specifications

Switching Frequency................100KHz Typ.

Output Ripple & Noise.............100mVp-p(20MHz B.W.)

Isolation Voltage.......................1500VDC

Isolation Resistance..................1 gigohm

Storage Temperature Range.......-40C to 100C

Operating Temperature Range... -25C to +71C

Short Circuit Protection........... Continuous

Case Material........................... Black Coated Copper With

Non-Conductive Base

Model Selection Guide

Input

Nom.

12V

24V

48V

Voltage

Range

9-18VDC

18-36VDC

36-72VDC

Output

Voltage

5VDC

12VDC

15VDC

+/-12VDC

+/-15VDC

5VDC

12VDC

15VDC

+/-12VDC

+/-15VDC

5VDC

12VDC

15VDC

+/-12VDC

+/-15VDC

Output

Current

1000mA

470mA

400mA

+/-230mA

+/-190mA

1000mA

470mA

400mA

+/-230mA

+/-190mA

1000mA

470mA

400mA

+/-230mA

+/-190mA

Efficiency

(%)

Model

Number

BRM05-12S05RTH

BRM05-12S12RTH

BRM05-12S15RTH

BRM05-12D12RTH

BRM05-12D15RTH

BRM05-24S05RTH

BRM05-24S12RTH

BRM05-24S15RTH

BRM05-24D12RTH

BRM05-24D15RTH

BRM05-48S05RTH

BRM05-48S12RTH

BRM05-48S15RTH

BRM05-48D12RTH

BRM05-48D15RTH

Pin Connection

Pin#

Single

+Vin

-Vin

+Vout

No pin

-Vout

Dual

+Vin

-Vin

+Vout

Common

-Vout

International Coil, Inc. 15 Jonathan Drive, Unit 1, Brockton, MA 02301

Ph:(508)

580-8515

Fax:

(508) 580-8511 www.acutepower.com
