5769-5122 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5769-5122

5769-5122: DescriptionBoard Connector, 12 Contact(s), Right Angle, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size151KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5769-5122 Overview

Board Connector, 12 Contact(s), Right Angle, Surface Mount Terminal, Locking

5769-5122 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.219 inch
subject depth	0.443 inch
body length	1.561 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P12
Contact to complete cooperation	AU ON NI
Contact material	BRASS
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	5769
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	12

Preview

Download Datasheet

View All

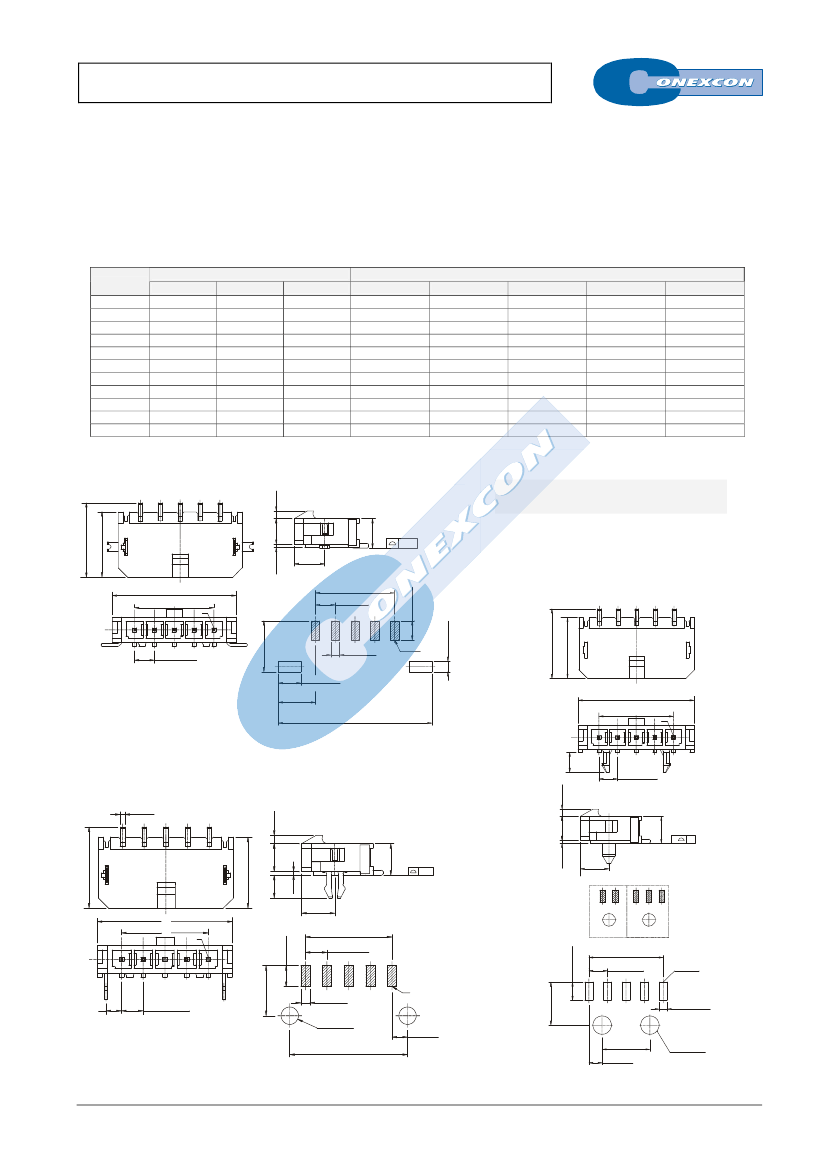

3.00mm MICRO POWER R/ ANGLE HEADER

5769. SERIES.

Features

3.00mm(0.118”). For High Current / High Density



Mates with 5750 series housing

Positive lock . Current Rating: 5 A max.

Available with different PCB lock options

Ordering and Dimensional Information



Available in 2 a 12 circuits in single row

Material: Nylon 9T UL 94V-0

Contact Material: Brass with different plating options

Dimensional Information

CIRCUITOS

CÓDIGO

Sin arpón

5769 –

T021

5769 –

T031

5769 –

T041

5769 –

T051

5769 –

T061

5769 –

T071

5769 –

T081

5769 –

T091

5769 –

T101

5769 –

T111

5769 –

T121

Con arpón

5769 –

T022

5769 –

T032

5769 –

T042

5769 –

T052

5769 –

T062

5769 –

T072

5769 –

T082

5769 –

T092

5769 –

T102

5769 –

T112

5769 –

T122

Con pivote

5769 –

T023

5769 –

T033

5769 –

T043

5769 –

T053

5769 –

T063

5769 –

T073

5769 –

T083

5769 –

T093

5769 –

T103

5769 –

T113

5769 –

T123

3.00 (.118)

6.00 (.236)

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

9.65 (.380)

12.65 (.498)

15.65 (.616)

18.65 (.734)

21.65 (.852)

24.65 (.970)

27.65 (1.088)

30.65 (1.206)

33.65 (1.325)

36.65 (1.442)

39.65 (1.561)

DIMENSIONES

14.20 (.559)

17.20 (.677)

20.20 (.795)

23.20 (.913)

26.20 (1.031)

29.20 (1.150)

32.20 (1.268)

35.20 (1.386)

38.20 (1.504)

41.20 (1.622)

44.20 (1.740)

7.30 (.287)

10.30 (.406)

13.30 (.524)

16.30 (.642)

19.30 (.760)

22.30 (.878)

25.30 (.996)

28.30 (1.114)

31.30 (1.232)

34.30 (1.350)

37.30 (1.469)

4.70 (.185)

7.70 (.303)

10.70 (.421)

13.70 (.539)

16.70 (.657)

19.70 (.776)

22.70 (.894)

25.70 (1.012)

28.70 (1.130)

With Out Board Lock: 5769-TXX1

1.20

.047

T = Contact Plating



4.43

.174

T =

Tin plated

Recommended Finish

T =

Gold flash over 50µ” nickel.

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

With Plastic Board Lock: 5769-TXX3

9.85

.388

3.86

.152

11.25

.443

0.50

.020

4.60

.181

0.1

6.94±0.08

.273±.003

3.00±0.10

.118±.004

2.92±0.05

.115±.002

A±0.10

1.65±0.05

.065±.002

3.00±0.05

.118±.002

1.27±0.05

.050±.002

3.43±0.05

.135±.002

5.61±0.10

.211±.004

C±0.10

Circ. 1

11.25

.443

9.85

.388

RECOMMENDED PCB LAYOUT

3.20

With Metal Board lock: 5769-TXX2

0.64

.025

.156

1.20

.047

1.20

.047

3.00±0.05

.118±.002

3.86

.152

4.43

.174

0.1

3.86

.152

4.43

.174

11.25

.443

0.50

.020

9.85

.388

0.1

4.60

.181

3.15

.124

0.50

.020

4.60

.181

2.92±0.05

.115±.002

A±0.10

2.92±0.05

.115±.002

2 Circuitos

3 Circuitos

3.00±0.10

.118±.004

A±0.10

3.00±0.10

.118±.004

Circ. 1

6.94±0.08

.273±.003

6.94±0.08

2.16

.085

3.00±0.05

.118±.002

1.27±0.05

.050±.002

Ø2.41±0.05

.095±.002

D±0.08

RECOMMENDED PCB LAYOUT

2.16±0.05

.085±.002

.273±.003

1.27±0.05

.050±.002

E±0.08

2.15±0.05

.085±.002

RECOMMENDED PCB LAYOUT

Ø3.0±0.05

.118±.002

FULL LINE CATALOGUE

L-XX
