PI6C9910ASX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PI6C9910ASX

PI6C9910ASX: DescriptionPLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 0.300 INCH, 1.27 MM PITCH, SOIC-24; Categorylogic logic; File Size161KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI6C9910ASX Overview

PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 0.300 INCH, 1.27 MM PITCH, SOIC-24

PI6C9910ASX Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SOIC
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
series	6C
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.4 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	24
Actual output times	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
minfmax	80 MHz

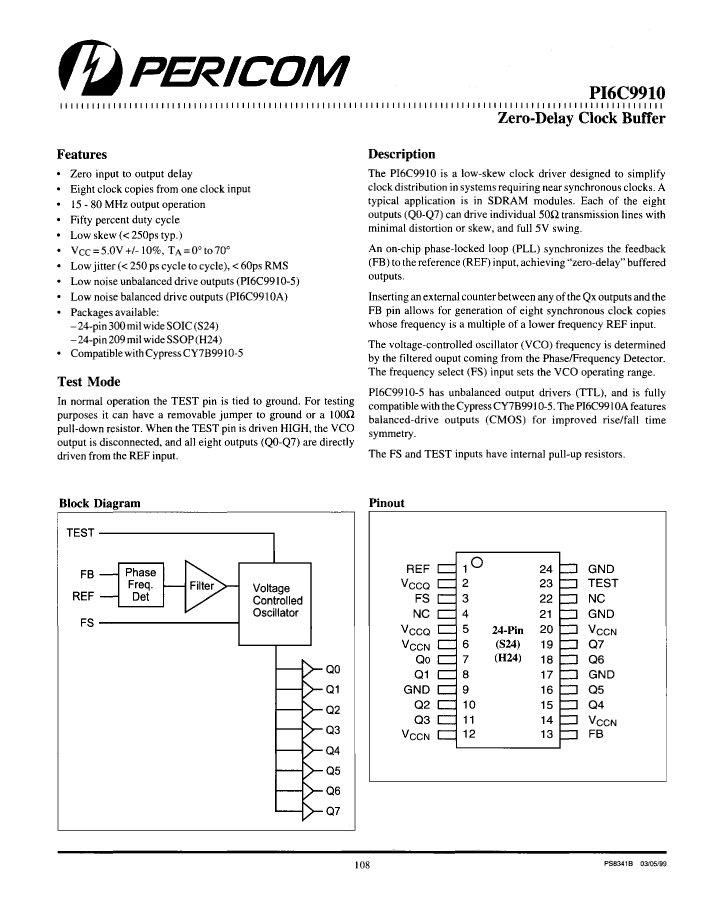

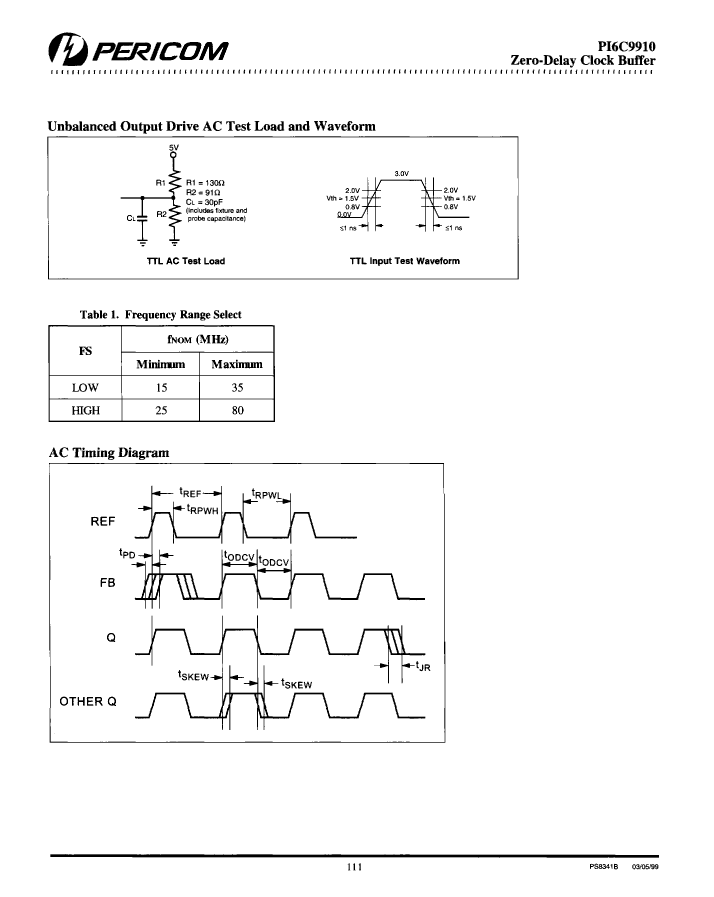

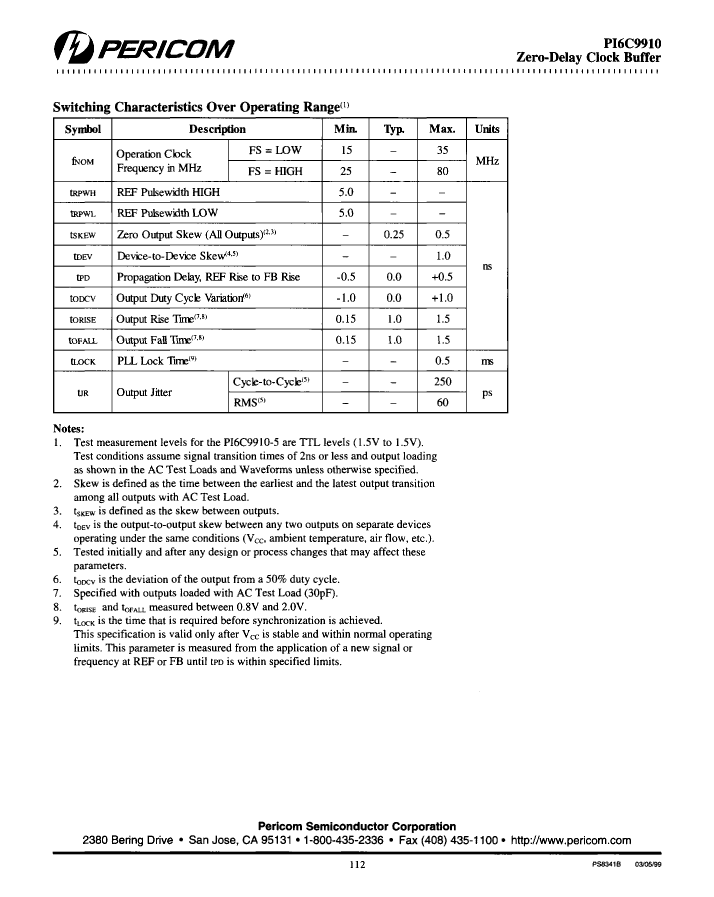

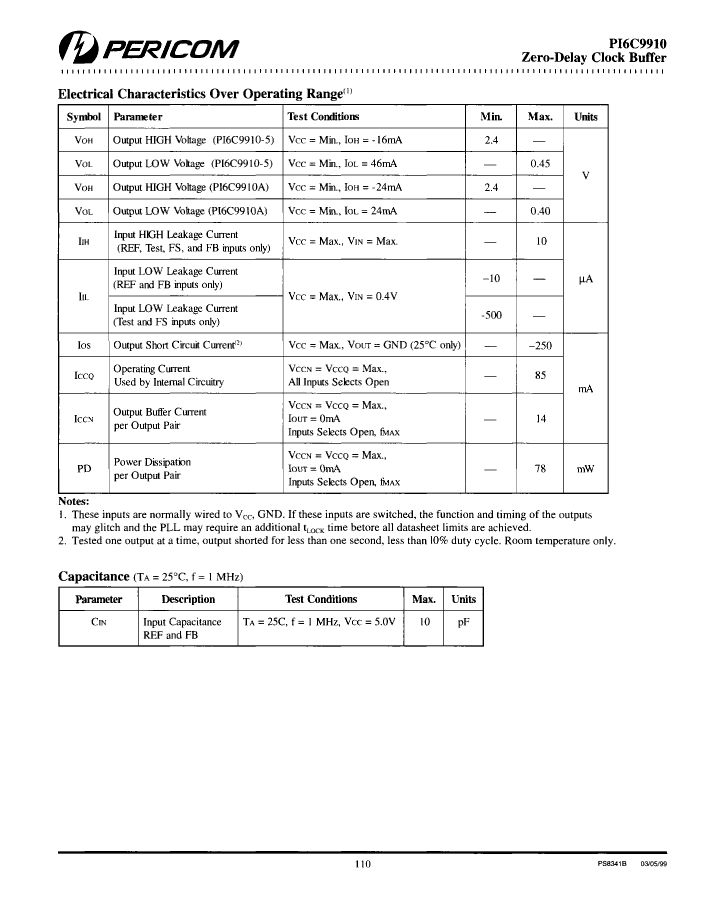

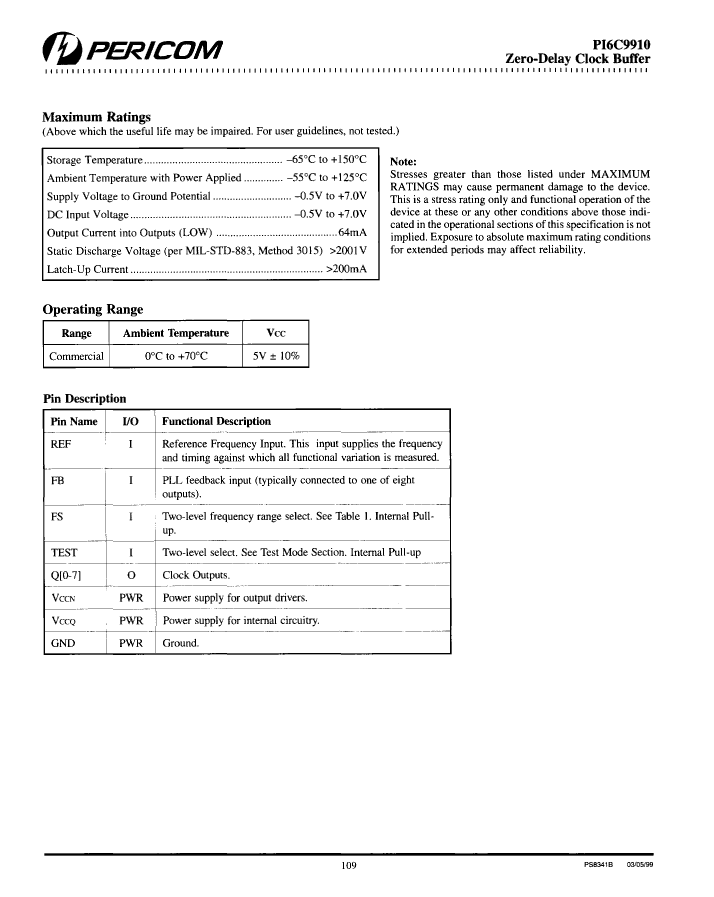

Preview

Download Datasheet

View All

PI6C9910ASX Related Products

	PI6C9910ASX	PI6C9910-5SX	PI6C9910AHX	PI6C9910-5HX
Description	PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 0.300 INCH, 1.27 MM PITCH, SOIC-24	PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 0.300 INCH, 1.27 MM PITCH, SOIC-24	PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 5.30 MM, 0.65 MM PITCH, SSOP-24	PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 5.30 MM, 0.65 MM PITCH, SSOP-24
Parts packaging code	SOIC	SOIC	SSOP	SSOP
package instruction	SOP,	SOP,	SSOP,	SSOP,
Contacts	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
series	6C	6C	6C	6C
Input adjustment	STANDARD	STANDARD	STANDARD	STANDARD
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0
length	15.4 mm	15.4 mm	8.2 mm	8.2 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER
Number of functions	1	1	1	1
Number of terminals	24	24	24	24
Actual output times	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns	0.5 ns	0.5 ns	0.5 ns
Maximum seat height	2.65 mm	2.65 mm	2 mm	2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	5.3 mm	5.3 mm
minfmax	80 MHz	80 MHz	80 MHz	80 MHz
