PI6C991
5V High-Speed Programmable
Skew Clock Buffer -
SuperClock
®
Product Features
•
Four pairs of programmable skew outputs
•
3.75 to 80 MHz output operation
•
User-selectable output functions:
−
Selectable skews
−
Inverted and noninverted
−
Operation at ½ and ¼ input frequency
−
Operation at 2X and 4X input frequency
•
Low skew <100ps typical, same pair. 250ps max.
•
Allow REF clock input to have Spread Spectrum
modulation for EMI reduction
•
2X, 4X, ½ and ¼ outputs
•
3-level inputs for skew and output frequency control
•
External feedback, internal loop filter
•
Low cycle-to-cycle Jitter: <25ps RMS
•
Duty cycle of output clock signals: 45% min. 55% max.
•
Compatible with Pentium based processor
•
Same pinout as Cypress CY7B991
•
Packaged in Plastic 32-pin PLCC Package
Description
The PI6C991 is a low-skew, low jitter, 5V phase-lock loop (PLL)
programmable skew clock driver, for high performance comput-
ing and networking applications. This part offers user selectable
skew-control of 4 output pairs, providing the timing delays neces-
sary to optimize high performance clock distribution circuits.
Each output can be hardwired to one of nine delay or function
configurations. Delay increments are determined by the input clock
frequency and the configurations selected by the user.
The PI6C991 allows the REF clock input to have Spread Spectrum
modulation for EMI reduction.
The PI6C991 is pin-compatible with Cypress RoboClock CY7B991,
with improved AC/DC characteristics.

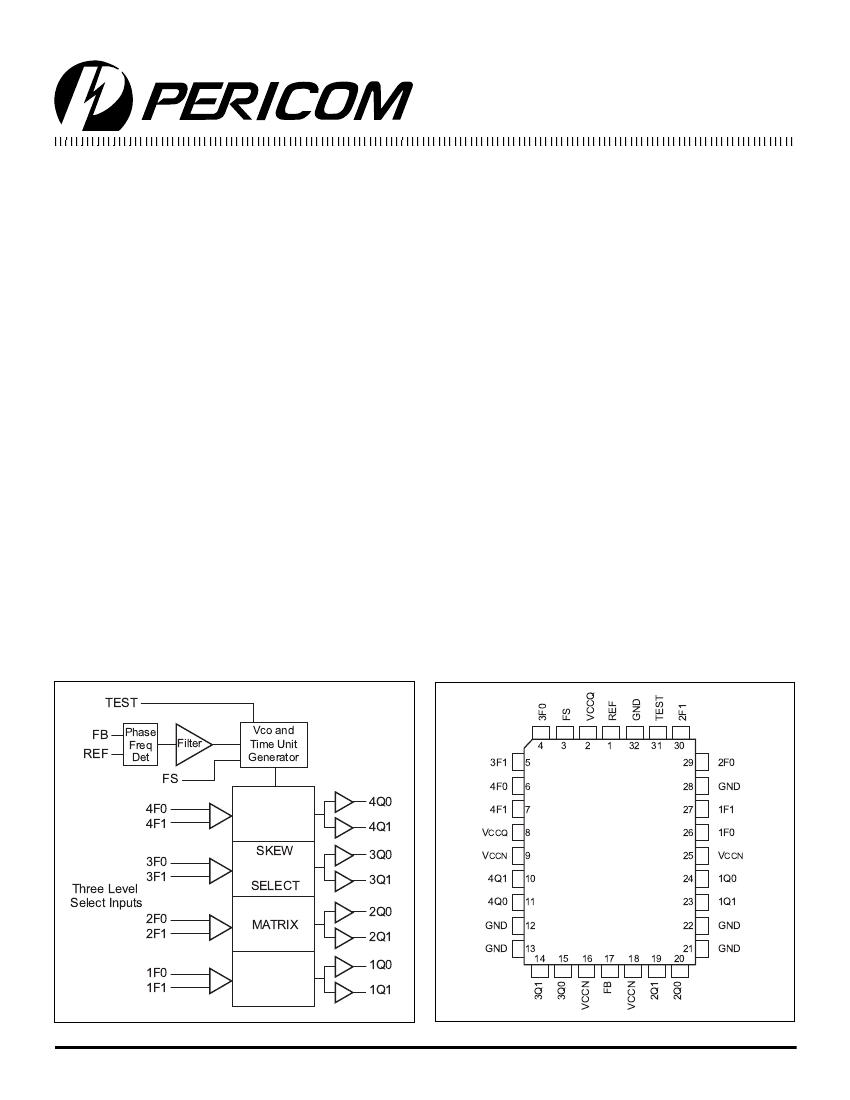

Logic Block Diagram
Pin Configuration
32-Pin
J
1
10/10/00
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI6C991
5V High Speed Programmable Skew
Clock Buffer -
SuperClock
®
Pin Definitions
Signal Name
REF
FB
FS
1F0, 1F1
2F0, 2F1
3F0, 3F1
4F0, 4F1
TEST
1Q 0, 1Q 1
2Q 0, 2Q 1
3Q 0, 3Q 1
4Q 0, 4Q 1
V
CCN
V
CCQ
GND
PWR
O
I
I/O
D e s cription
Reference frequency input. This input supplies the frequency and timing
reference which all functional variation is measured.
PLL feedback input (typically connected to one of the eight outputs).
Three- level frequency range select.
See Table 1
.
Three- level function select inputs for output pair 1 (1Q 0, 1Q 1).
See Table 2
.
Three- level function select inputs for output pair 2 (2Q 0, 2Q 1).
See Table 2
.
Three- level function select inputs for output pair 3 (3Q 0, 3Q 1).
See Table 2
.
Three- level function select inputs for output pair 4 (4Q 0, 4Q 1).
See Table 2
.
Three- level select. See test mode section under the block diagram descriptions.
O utput pair 1.
See Table 2
.
O utput pair 2.
See Table 2
.
O utput pair 3.
See Table 2
.
O utput pair 4.
See Table 2
.
Power supply for output drivers.
Power supply for internal circuitry.
Ground
Block Diagram Description
Phase Frequency Detector and Filter
These two blocks accept input signals from the reference frequency
(REF) input and the feedback (FB) input and generate correction
information to control the frequency of the Voltage-Controlled
Oscillator (VCO). These blocks, along with the VCO, form a Phase-
Locked Loop (PLL) that tracks the incoming REF signal.
VCO and Time Unit Generator
The VCO accepts analog control inputs from the PLL filter block
and generates a frequency that is used by the time unit generator to
create discrete time units that are selected in the skew mix matrix.
The operational range of the VCO is determined by the FS control
pin. The time unit (t
U
) is determined by the operating frequency of
the device and the level of the FS pin as shown in Table 1.
Skew Select Matrix
The skew select matrix is comprised of four independent sections.
Each section has two low-skew, high-fanout drivers (xQ0, xQ1),
and two corresponding three-level function select (xF0, xF1)
inputs. Table 2 shows the nine possible output functions for each
section as determined by the function select inputs. All times are
measured with respect to the REF input assuming that the output
connected to the FB input has 0t
U
selected.
2
PS8448A
10/10/00
t
0
+1t
U
t
0
+2t
U
t
0
+3t
U
t
0
+4t
U
t
0
+5t
U
1Fx
2Fx
(N/A)
LL
LM
LH
ML
MM
MH
HL
HM
HH
(N/A)
(N/A)
(N/A)
3Fx
4Fx
LM
LH
(N/A)
ML
(N/A)
MM
(N/A)
MH
(N/A)
HL
FB Input
REF Input
-6t
U
-4t
U
-3t
U
-2t
U
-1t
U
0t
U
+1t
U
+2t
U
+3t
U
+4t
U
HM
+6t
U
LL/HH DIVIDED
HH
INVERT
Figure 1. Typical Outputs with FB Connected to a Zero-Skew Output
(4)
3
PS8448A
10/10/00
t
0
+6t
U
t
0
-6t
U
t
0
-5t
U
t
0
-4t
U
t
0
-3t
U
t
0
-2t
U
t
0
-1t
U
t
0
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI6C991
5V High Speed Programmable Skew
Clock Buffer -
SuperClock
®
Table 1. Frequency Range Select and t
U
Calculation
(1)
f
NOM
(M Hz)
M in.
LO W
MID
HIGH
15
25
40
M ax.
30
50
100
Table 2. Programmable Skew Configurations
(1)
Function Se le cts
1F1, 2F1,
3F1, 4F1
Output Functions
3Q0, 3Q1
4Q0,
4Q1
FS
(2,3)
t
U
=
f
NOM
x N
where N=
1
Approximate
Fre que ncy
(M Hz) at
which
t
U
= 1.0ns
22.7
38.5
62.5
1F0, 2F0, 1Q0, 1Q1,
3F0, 4F0 2Q0, 2Q1
LO W
- 4t
U
- 3t
U
- 2t
U
- 1t
U
Divide by 2
- 6t
U
- 4t
U
- 2t
U
- 0t
U
44
26
16
LOW
MID
HIGH
LOW
MID
MID
HIGH
LOW
+1t
U
+2t
U
+3t
U
+4t
U
+2t
U
+4t
U
+6t
U
Divide by 4
Inverted
HIGH
MID
HIGH
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI6C991
5V High Speed Programmable Skew
Clock Buffer -
SuperClock
®
Test Mode
The TEST input is a three-level input. In normal system operation,
this pin is connected to ground, allowing the PI6C991 to
operate as explained briefly above (for testing purposes, any of the
three-level inputs can have a removable jumper to ground, or be
tied LOW through a 100Ω resistor. This will allow an external tester
to change the state of these pins).
If the TEST input is forced to its MID or HIGH state, the device will
operate with its internal phase locked loop disconnected, and in-
put levels supplied to REF will directly control all outputs.
Relative output to output functions are the same as in normal mode.
In contrast with normal operation (TEST tied LOW). All outputs
will function based only on the connection of their own function
select inputs (xF0 and xF1) and the waveform characteristics of the
REF input.
Maximum Ratings
(Above which the useful life may be impaired)
Storage Temperature ............................................ 65ºC to +150ºC
Ambient Temperature
with Power Applied ..............................................55ºC to +125ºC
Supply Voltage to Ground Potential ....................... 0.5V to +7.0V
DC Input Voltage .................................................... 0.5V to +7.0V
Output Current into Outputs (LOW) ................................... 64mA
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ................................. >2001V
Latch-Up Current ............................................................ >200mA
Operating Range
Range
Commercial
Industrial
Ambie nt
Te mpe rature
0ºC to +70ºC
40ºC to +85ºC
V
CC
5V ±10%
5V ±10%
Notes for Tables on Pages 3 through 7:
1. For all three-state inputs, HIGH indicates a connection to V
CC
, LOW indicates a connections to GND, and MID indicates an open
connection. Internal termination circuitry holds an unconnected input to V
CC
/2.
2. The level to be set on FS is determined by the normal operating frequency (f
NOM
) of the V
CO
and the Time Unit Generator (see Logic
Block Diagram). Nominal frequency (f
NOM
) always appears at 1Q0 and the other outputs when they are operated in their undivided
modes (see Table 2). The frequency appearing at the REF and FB inputs will be f
NOM
when the output connected to FB is undivided.
The frequency of the REF and FB inputs will be f
NOM
/2 or f
NOM
/4 when the part is configured for a frequency multiplication by
using a divided output as the FB input.
3. When the FS pin is selected HIGH, the REF input must not transition upon power-up until V
CC
has reached 2.8V.
4. FB connected to an output selected for zero skew (ie., xF1 = xF0 = MID).
6. These inputs are normally wired to V
CC
, GND, or left unconnected (actual threshold voltages vary as a percentage of V
CC
). Internal
termination resistors holds unconnected inputs at V
CC
/2. If these inputs are switched, the function and timing of the outputs may glitch
and the PLL may require an additional t
LOCK
time before all datasheet limits are achieved.
7. The part should be tested one output at a time, output shorted for less than one second, less than 10% duty cycle. Room temperature only.
11. Test measurement levels are TTL levels (1.5V to 1.5V). Test conditions assume signal transition times of 2ns or less and output loading as
shown in the AC Test Loads and Waveforms unless otherwise specified.
12. Guaranteed by statistical correlation. Tested initially and after any design or process changes that may affect these parameters.
13. Skew is defined as the time between the earliest and the latest output transition among all outputs for which the same t
U
delay has been selected
when all are loaded with 30pF and terminated with 50Ω to 2.06V.
14. t
SKEWPR
is defined as the skew between a pair of outputs (xQ0 and xQ1) when all eight outputs are selected for 0t
U
.
15. t
SKEW0
is defined as the skew between outputs when they are selected for 0t
U
. Other outputs are divided or inverted but not shifted.
16. C
L
= 0pF. For C
L
= 30pF, t
SKEW0
= 0.35ns
17. There are three classes of outputs: Nominal (multiple of t
U
delay), Inverted (4Q0 and 4Q1 only with 4F0 = 4F1 = HIGH), and Divided
(3Qx and 4Qx only in Divide-by-2 or Divide-by-4 mode).
18. t
DEV
is the output-to-output skew between any two devices operating under the same conditions (V
CC
ambient temperature, air flow, etc.).
19. t
ODCV
is the deviation of the output from a 50% duty cycle. Output pulse width variations are included in t
SKEW2
and t
SKEW4
specifications.
20. t
PWH
is measured at 2.0V. t
PWL
is measured at 0.8V.
21. t
ORISE
and t
OFALL
measured between 0.8V and 2.0V.
22. t
LOCK
is the time that is required before synchronization is achieved. This specification is valid only after V
CC
is stable and within normal
operating limits. This parameter is measured from the application of a new signal or frequency at REF or FB until t
PD
is within specified limits.
4
PS8448A
10/10/00
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI6C991
5V High Speed Programmable Skew
Clock Buffer -
SuperClock
®
DC Characteristics Over the Operating Range
Symbol
V
OH
V
OL
V
IH
V
IL
V
IH3
V
IM3
V
IL3
|I
IN
|
Parame te r
Output HIGH Voltage
Output LOW Voltage
Input HIGH Voltage of REF, FB inputs
Input LOW Voltage of REF, FB inputs
Input HIGH Voltage of
3- level inputs TEST, FS, xFn
(6)
Input MID Voltage of
3- level inputs TEST, FS, xFn
(6)
Input LOW Voltage of
3- level inputs TEST, FS, xFn
(6)
Input Leakage Current
of REF, FB inputs
V
IN
= V
CC
or 0.4V
V
CC
= Max
V
IN
= V
CC
(HIGH level)
|I
3
|
3- level Input DC Current
(TEST, FS, nF1:0)
V
IN
= V
CC
/2 (MID level)
V
IN
= GND (LOW level)
I
OS
I
CCQ
Short Circuit Current
(7)
Operating Current used by
Internal Circuitry
Output Buffer Current per Output Pair
Power Dissipation per Output Pair
V
CC
= Max, V
OUT
= GND
(25º only)
V
CCN
= V
CCQ
= Max,
All Input Selects Open
V
CCN
= V
CCQ
= Max,
I
OUT
= 0mA
Input Selects Open, f
MAX
MIN
≤
V
CC
≤
Max
Te s t Condition
V
CC
= MIN, I
OH
= 16mA
V
CC
= MIN, I
OL
= 46mA
2.0
0.5
V
CC
0.85
V
CC
/2 0.5
M in.
2.4
0.45
V
CC
0.8
V
CC
V
CC
/2 +0.5
0.85
10
200
50
200
250
85
mA
14
78
V
M ax.
Units
µA
I
CCN
PD
5
PS8448A
10/10/00
京公网安备 11010802033920号
EEWORLD
