PI6C9930HX: DescriptionPLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 5.30 MM, 0.65 MM PITCH, SSOP-24; Categorylogic logic; File Size146KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI6C9930HX Overview

PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 5.30 MM, 0.65 MM PITCH, SSOP-24

PI6C9930HX Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
series	6C
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	8.2 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	24
Actual output times	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	0.5 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.6 ns
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
minfmax	100 MHz

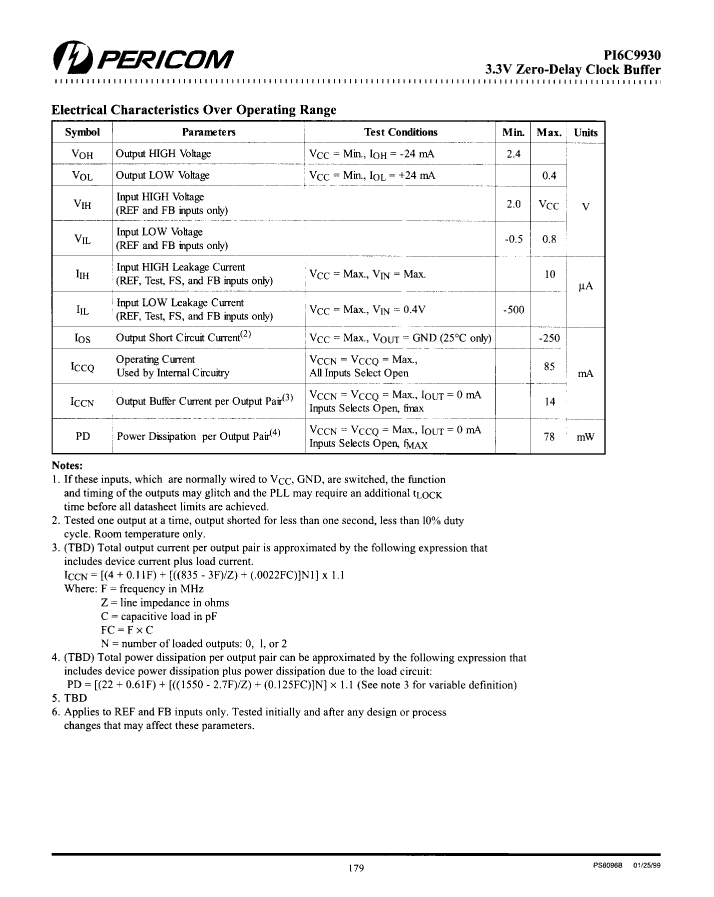

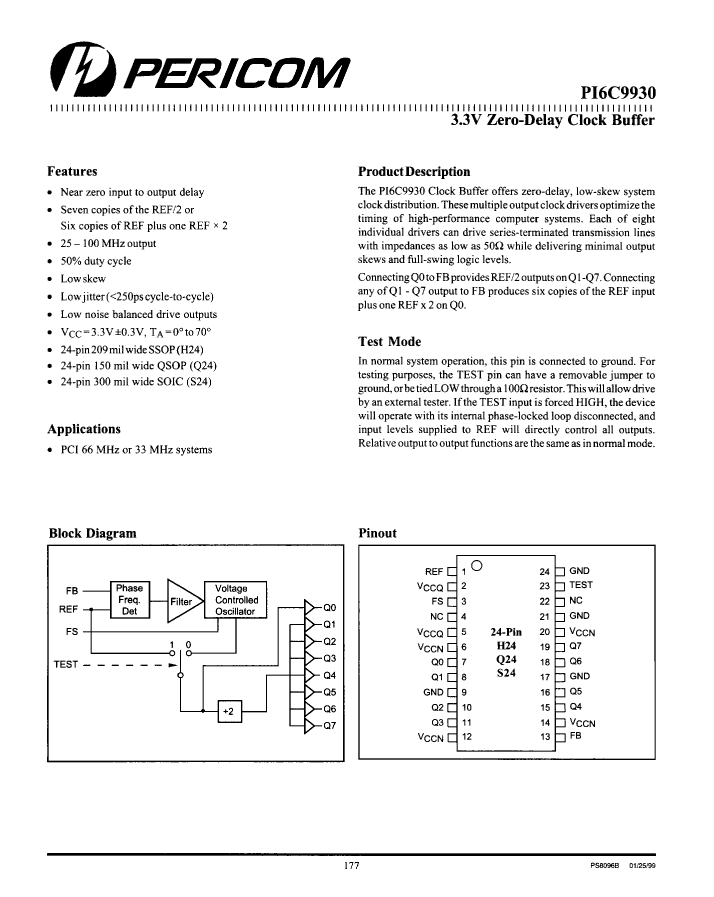

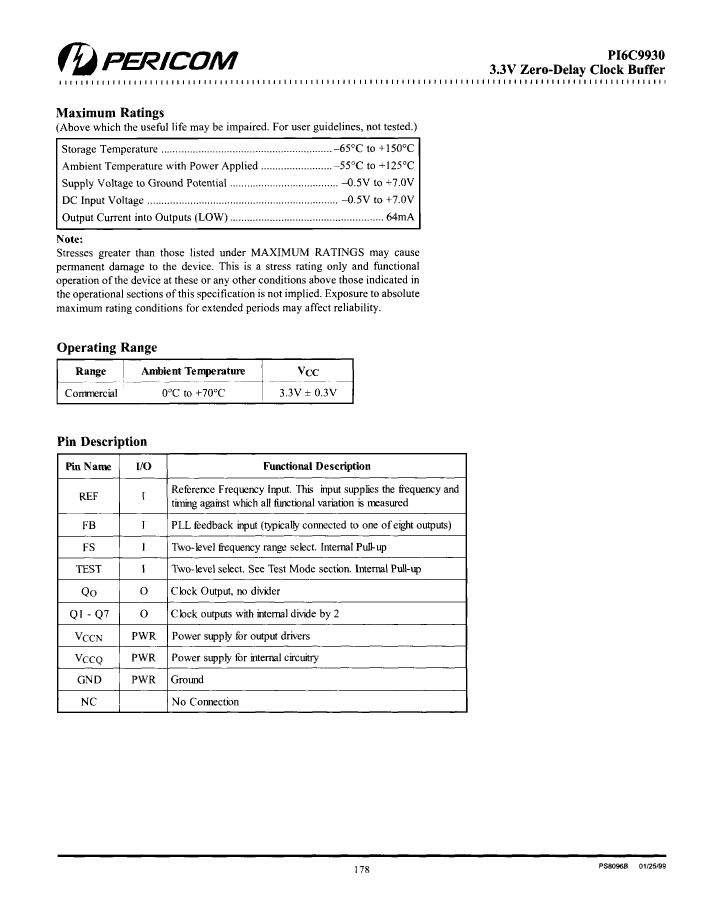

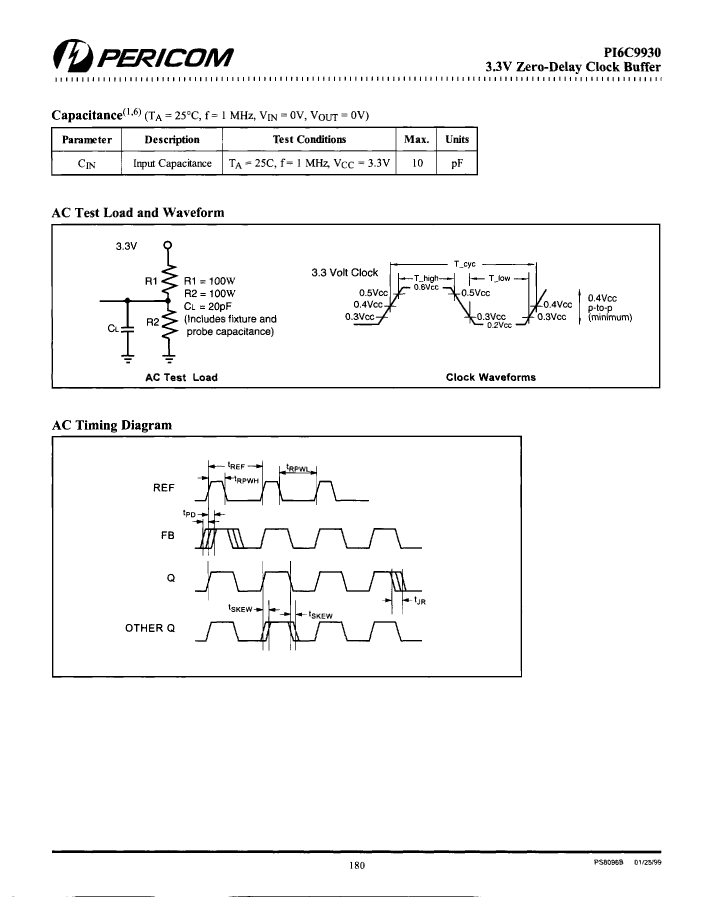

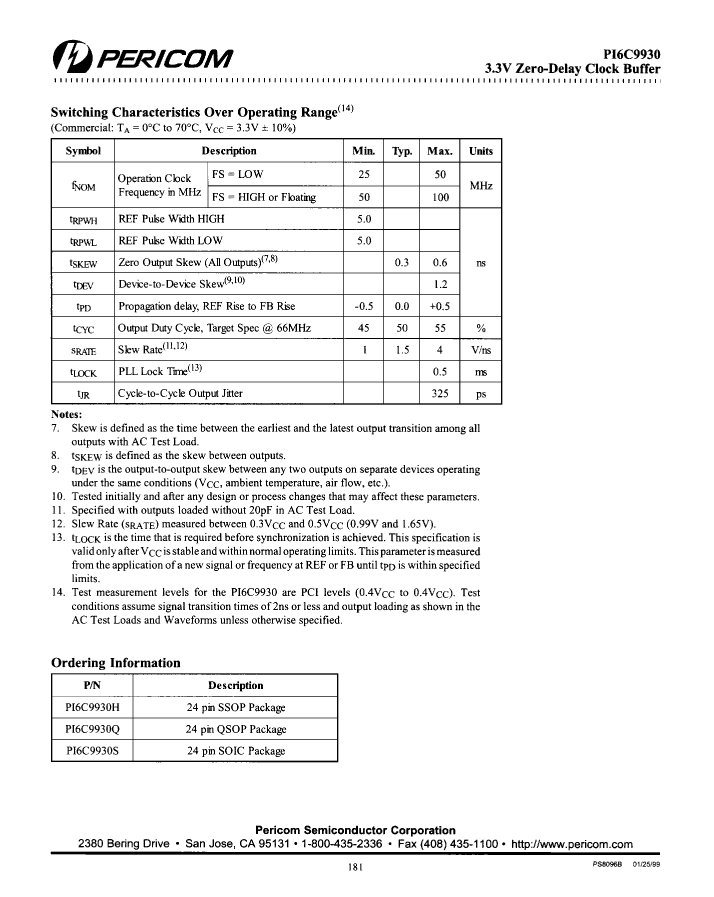

Preview

Download Datasheet

View All

PI6C9930HX Related Products

	PI6C9930HX	PI6C9930QX	PI6C9930SX
Description	PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 5.30 MM, 0.65 MM PITCH, SSOP-24	PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 0.150 INCH, 0.635 MM PITCH, QSOP-24	PLL Based Clock Driver, 6C Series, 8 True Output(s), 0 Inverted Output(s), PDSO24, 0.300 INCH, 1.27 MM PITCH, SOIC-24
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP	SOIC	SOIC
package instruction	SSOP,	SSOP,	SOP,
Contacts	24	24	24
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
series	6C	6C	6C
Input adjustment	STANDARD	STANDARD	STANDARD
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0
length	8.2 mm	8.65 mm	15.4 mm
Logic integrated circuit type	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER	PLL BASED CLOCK DRIVER
Number of functions	1	1	1
Number of terminals	24	24	24
Actual output times	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
propagation delay (tpd)	0.5 ns	0.5 ns	0.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.6 ns	0.6 ns	0.6 ns
Maximum seat height	2 mm	1.75 mm	2.65 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.635 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	5.3 mm	3.9116 mm	7.5 mm
minfmax	100 MHz	100 MHz	100 MHz
