PI74ALPTX16244K datasheet, PDF

PI74ALPTX16244K: DescriptionBus Driver, ALPT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.173 INCH, PLASTIC, TVSOP-48; Categorylogic logic; File Size149KB，7 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

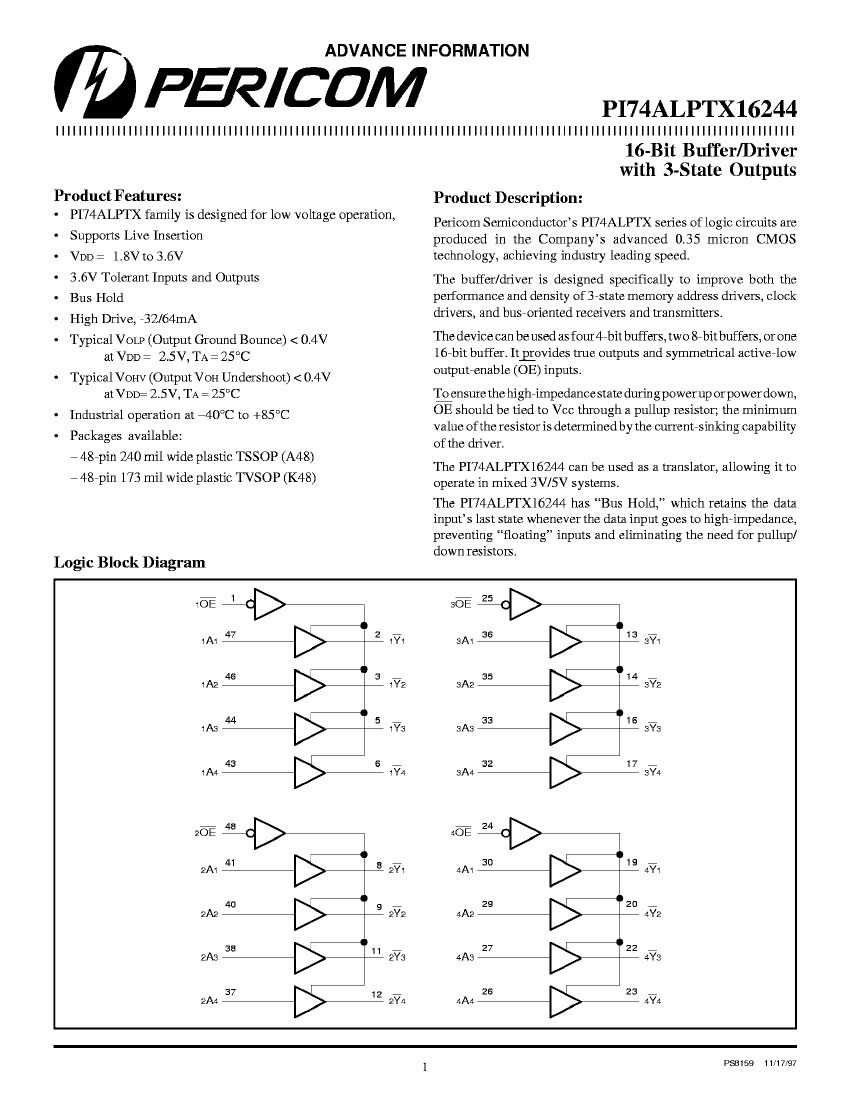

PI74ALPTX16244K Overview

Bus Driver, ALPT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.173 INCH, PLASTIC, TVSOP-48

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SOIC
package instruction	TSSOP, TSSOP48,.25,16

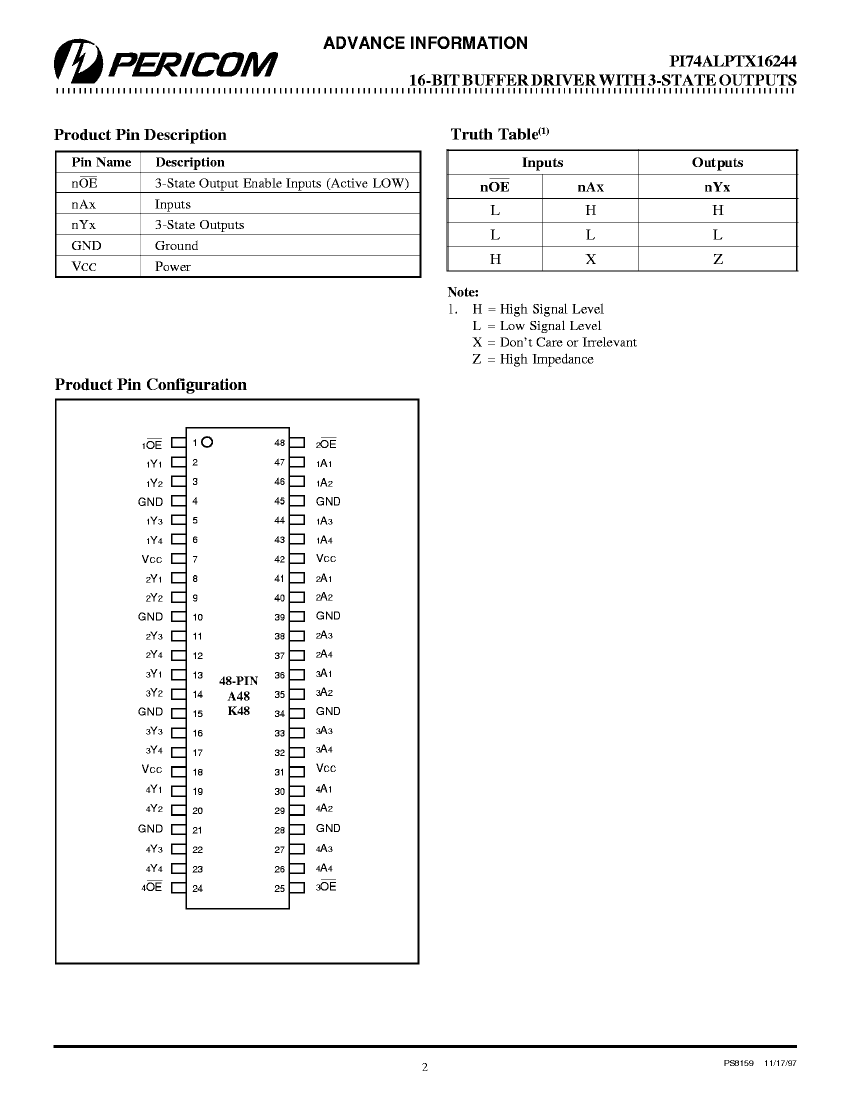

Contacts	48
Reach Compliance Code	compliant
ECCN code	EAR99
Control type	ENABLE LOW
series	ALPT
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	9.7 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP48,.25,16
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	2/3.3 V

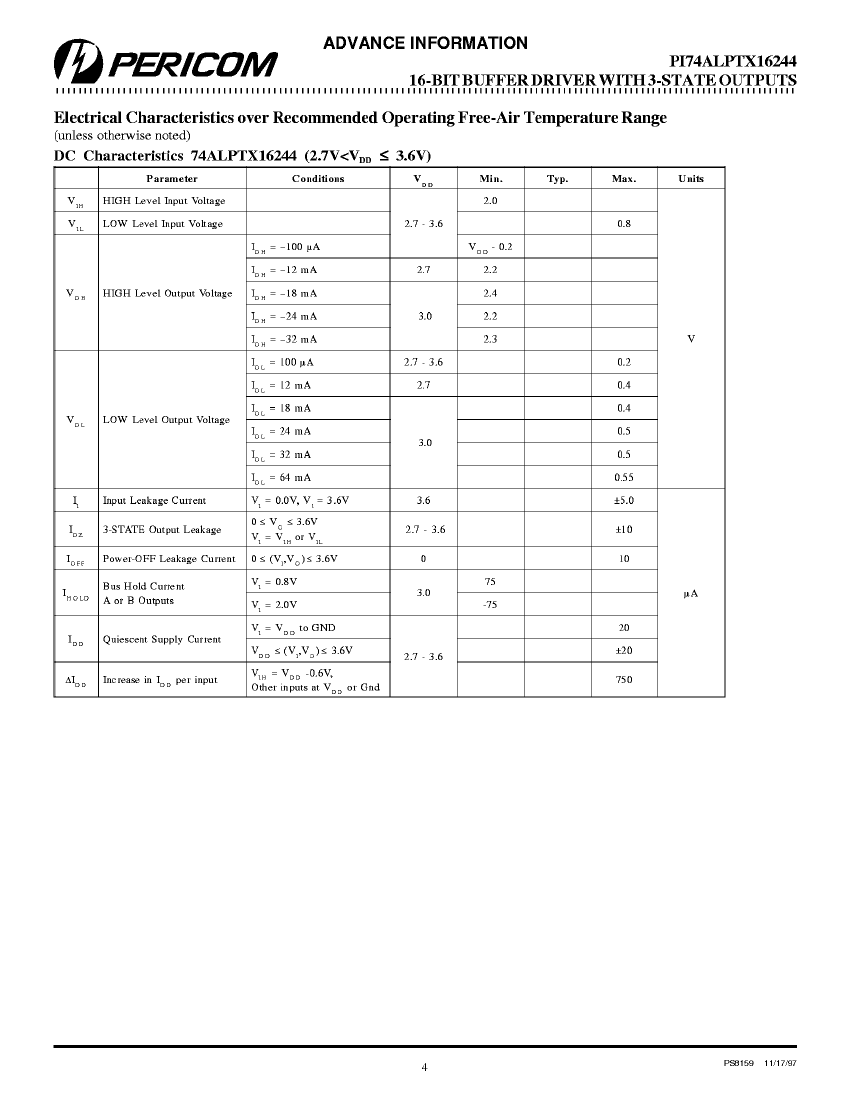

Prop。Delay @ Nom-Sup	5.7 ns
propagation delay (tpd)	5.7 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm

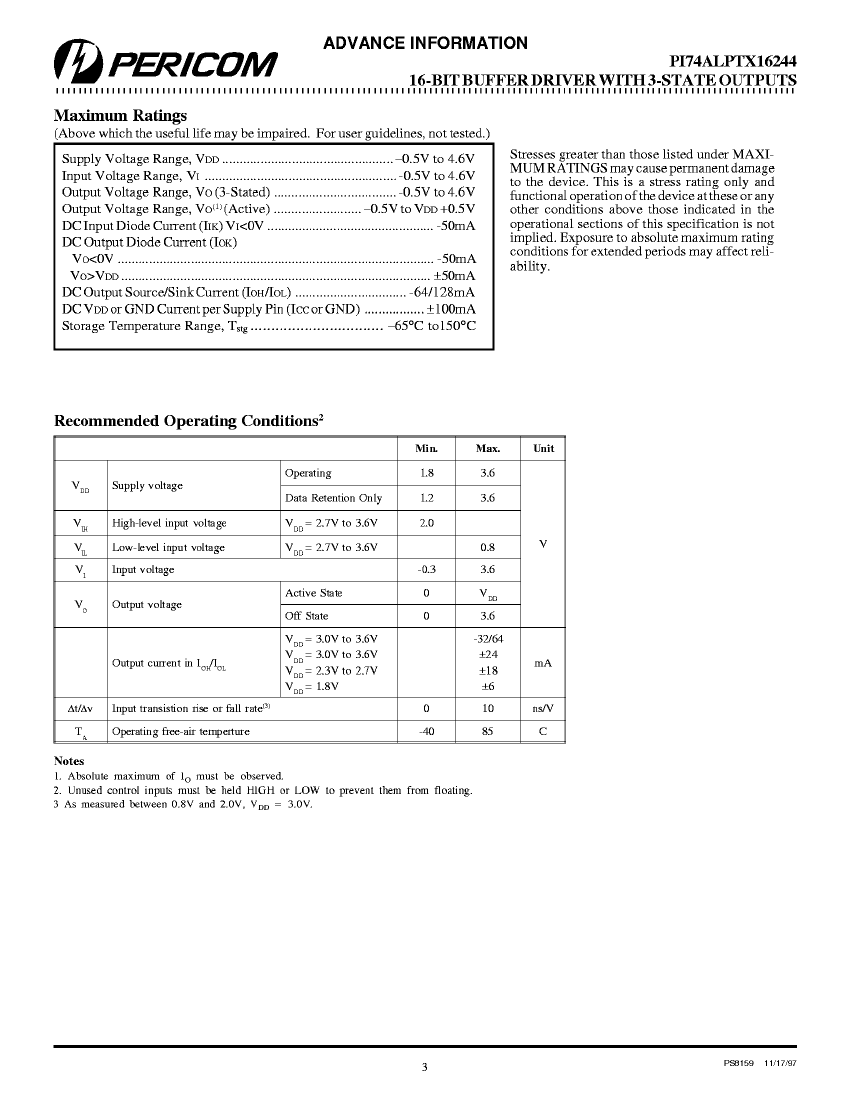

Maximum supply voltage (Vsup)	3.6 V

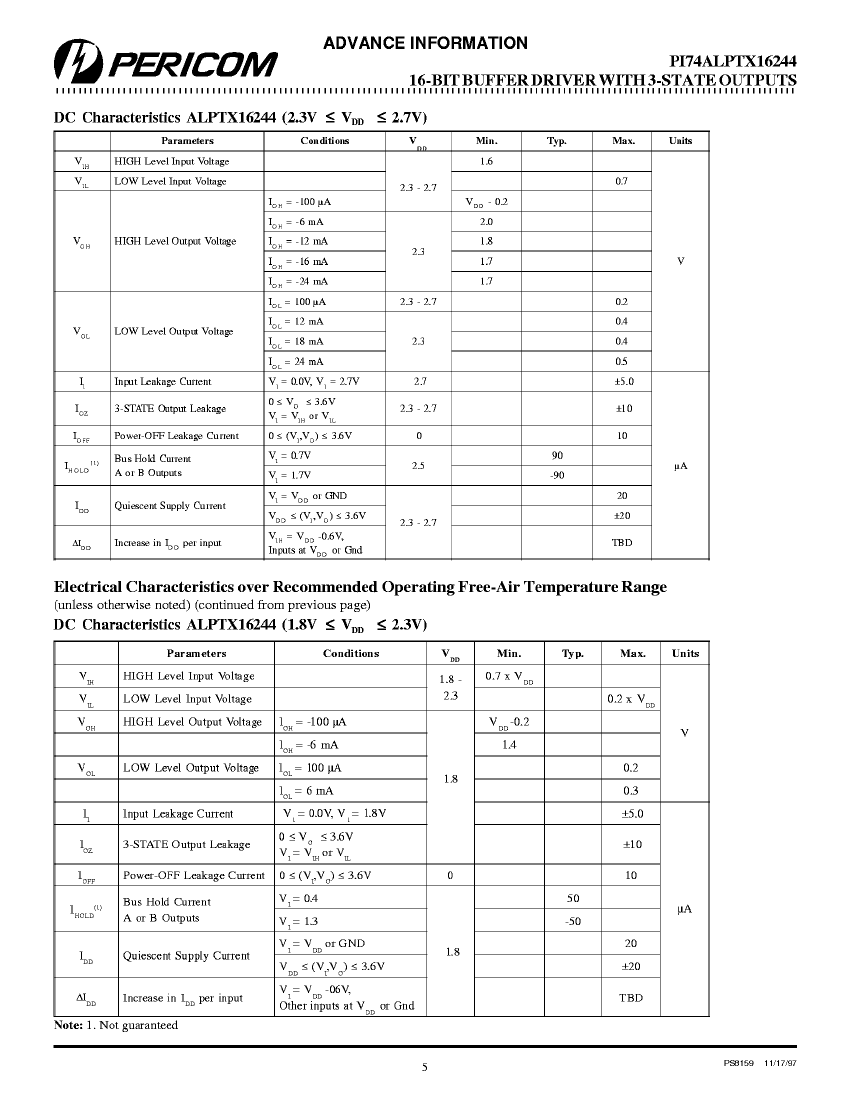

Minimum supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.4 mm
Terminal location	DUAL
width	4.4 mm

	PI74ALPTX16244K	PI74ALPTX16244KX
Description	Bus Driver, ALPT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.173 INCH, PLASTIC, TVSOP-48	Bus Driver, ALPT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.173 INCH, PLASTIC, TVSOP-48
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SOIC	SOIC
package instruction	TSSOP, TSSOP48,.25,16	TSSOP,
Contacts	48	48
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
series	ALPT	ALPT
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
length	9.7 mm	9.7 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	4	4
Number of functions	4	4
Number of ports	2	2
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.7 ns	5.7 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	0.4 mm	0.4 mm
Terminal location	DUAL	DUAL
width	4.4 mm	4.4 mm
