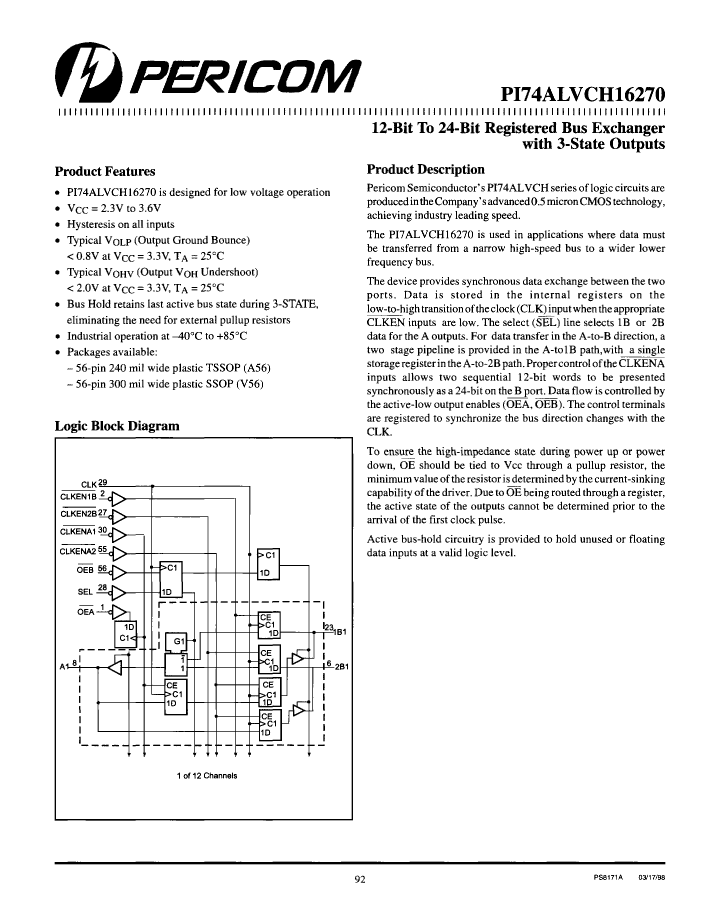

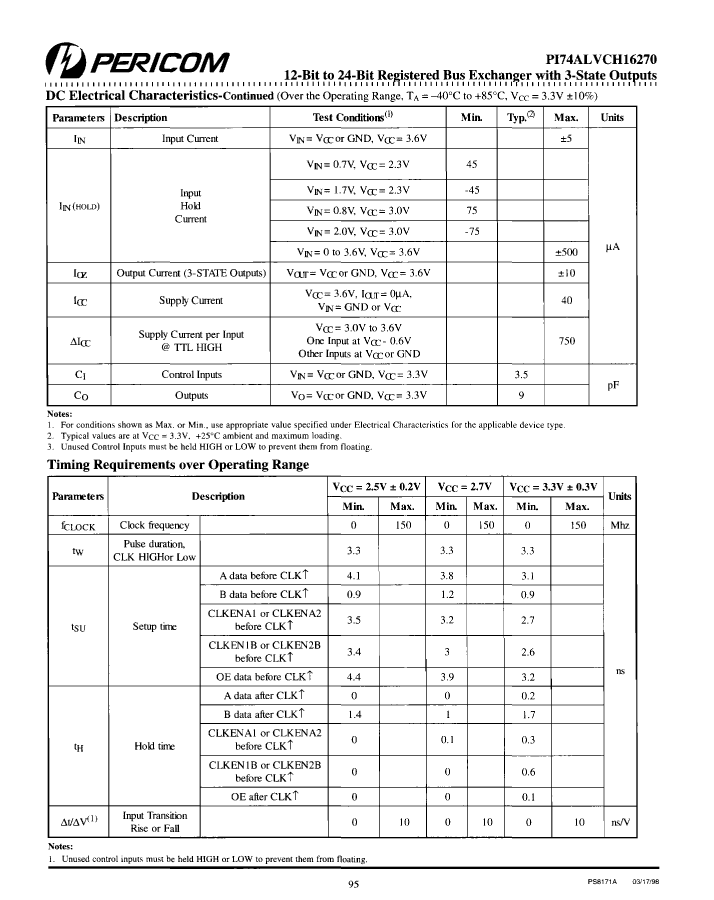

Bus Exchanger, ALVC/VCX/A Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Pericom Semiconductor Corporation (Diodes Incorporated) |
| Parts packaging code | SSOP |
| package instruction | SSOP, |
| Contacts | 56 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| series | ALVC/VCX/A |
| JESD-30 code | R-PDSO-G56 |
| length | 18.415 mm |
| Logic integrated circuit type | BUS EXCHANGER |
| Number of digits | 12 |
| Number of functions | 1 |
| Number of ports | 3 |

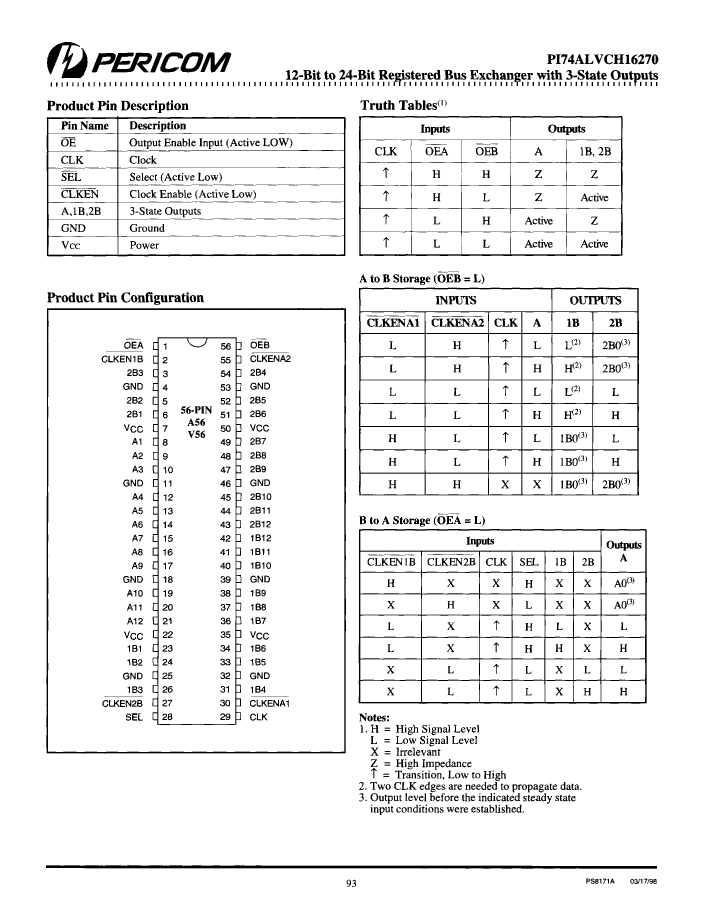

| Number of terminals | 56 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |

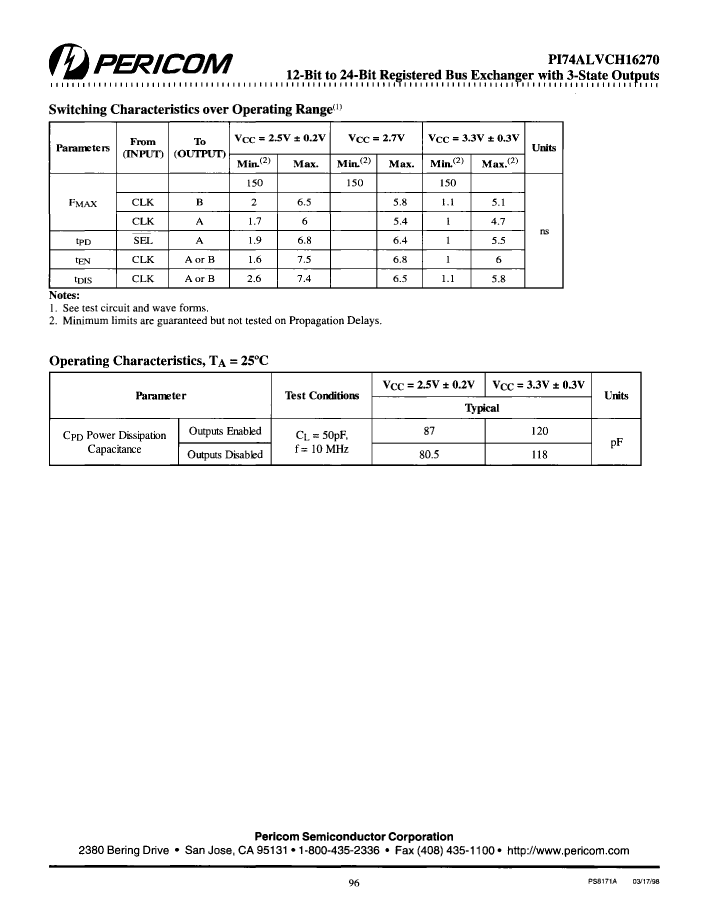

| propagation delay (tpd) | 6.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.79 mm |

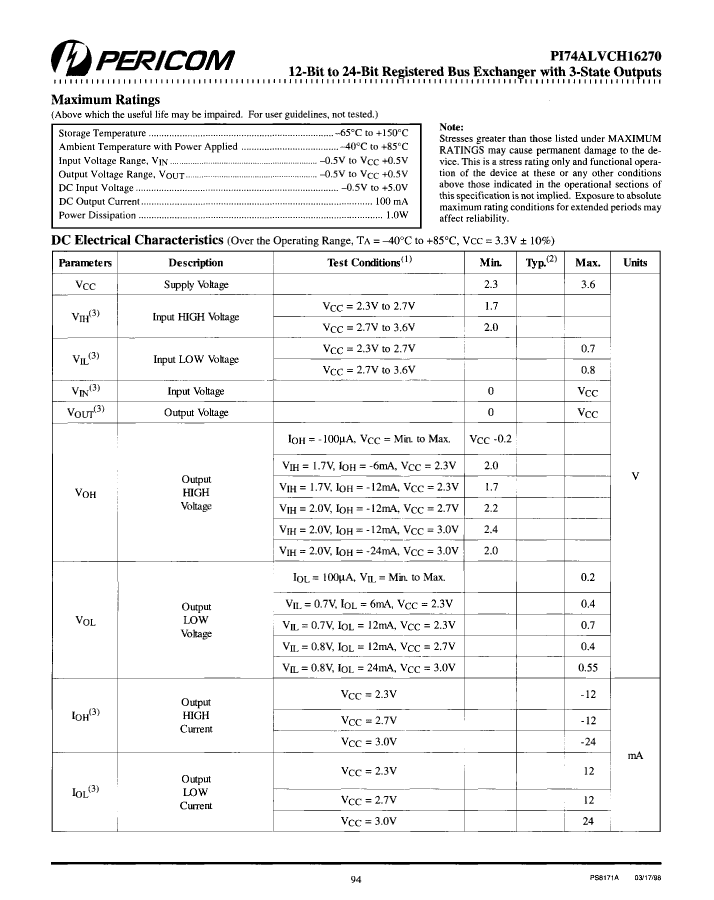

| Maximum supply voltage (Vsup) | 3.6 V |
| Minimum supply voltage (Vsup) | 2.3 V |
| Nominal supply voltage (Vsup) | 3.3 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.49 mm |
| PI74ALVCH16270VX | PI74ALVCH16270AX | PI74ALVCH16270VEX | PI74ALVCH16270AEX | |
|---|---|---|---|---|
| Description | Bus Exchanger, ALVC/VCX/A Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56 | Bus Exchanger, ALVC/VCX/A Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56 | Bus Exchanger, ALVC/VCX/A Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56 | Bus Exchanger, ALVC/VCX/A Series, 1-Func, 12-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56 |
| Is it Rohs certified? | incompatible | incompatible | conform to | conform to |
| Maker | Pericom Semiconductor Corporation (Diodes Incorporated) | Pericom Semiconductor Corporation (Diodes Incorporated) | Pericom Semiconductor Corporation (Diodes Incorporated) | Pericom Semiconductor Corporation (Diodes Incorporated) |
| Parts packaging code | SSOP | TSSOP | SSOP | TSSOP |
| package instruction | SSOP, | TSSOP, | SSOP, | TSSOP, |
| Contacts | 56 | 56 | 56 | 56 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| series | ALVC/VCX/A | ALVC/VCX/A | ALVC/VCX/A | ALVC/VCX/A |
| JESD-30 code | R-PDSO-G56 | R-PDSO-G56 | R-PDSO-G56 | R-PDSO-G56 |
| length | 18.415 mm | 14 mm | 18.415 mm | 14 mm |
| Logic integrated circuit type | BUS EXCHANGER | BUS EXCHANGER | BUS EXCHANGER | BUS EXCHANGER |
| Number of digits | 12 | 12 | 12 | 12 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 3 | 3 | 3 | 3 |
| Number of terminals | 56 | 56 | 56 | 56 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | TSSOP | SSOP | TSSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| propagation delay (tpd) | 6.5 ns | 6.5 ns | 6.5 ns | 6.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.79 mm | 1.2 mm | 2.79 mm | 1.2 mm |
| Maximum supply voltage (Vsup) | 3.6 V | 3.6 V | 3.6 V | 3.6 V |
| Minimum supply voltage (Vsup) | 2.3 V | 2.3 V | 2.3 V | 2.3 V |
| Nominal supply voltage (Vsup) | 3.3 V | 3.3 V | 3.3 V | 3.3 V |
| surface mount | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.635 mm | 0.5 mm | 0.635 mm | 0.5 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.49 mm | 6.1 mm | 7.49 mm | 6.1 mm |
