PI74ALVCH16271AE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> PI74ALVCH16271AE

Preview

PI74ALVCH16271AE: DescriptionMultiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56; Categorylogic logic; File Size185KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PI74ALVCH16271AE Overview

Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56

PI74ALVCH16271AE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
ECCN code	EAR99
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G56
JESD-609 code	e3
length	14 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER
Number of functions	12
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

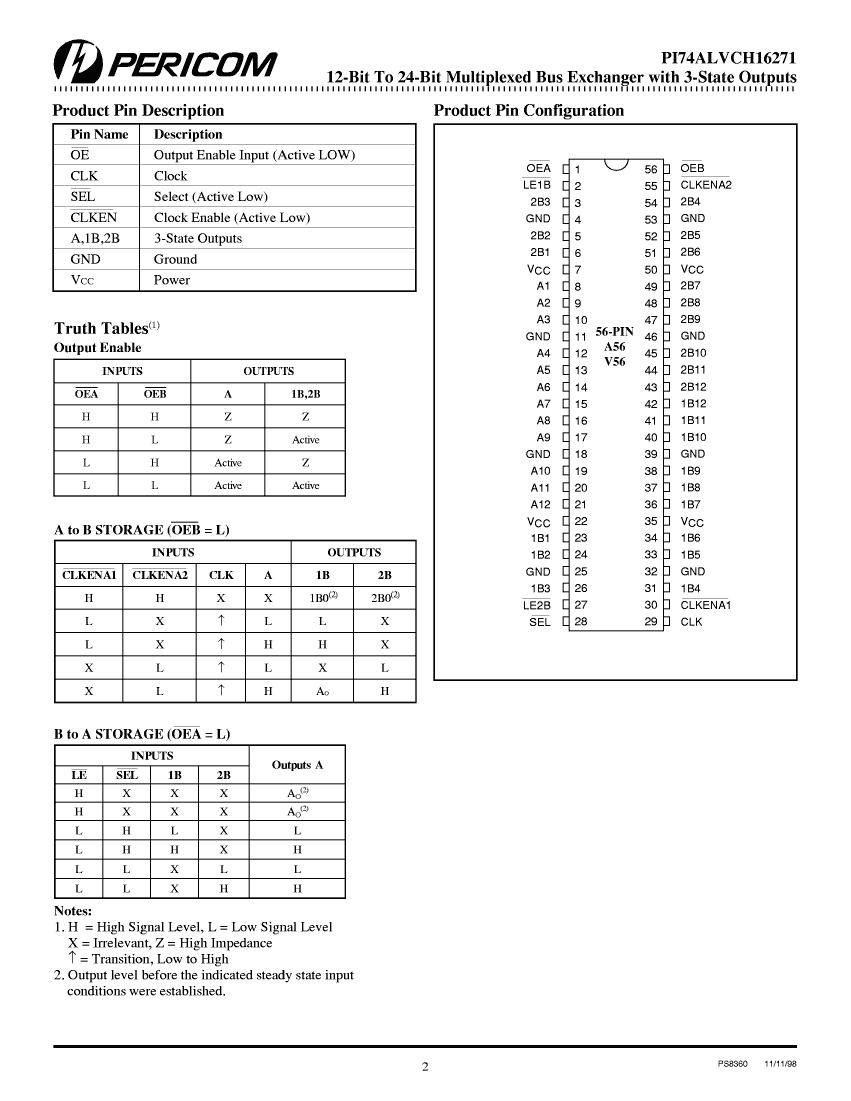

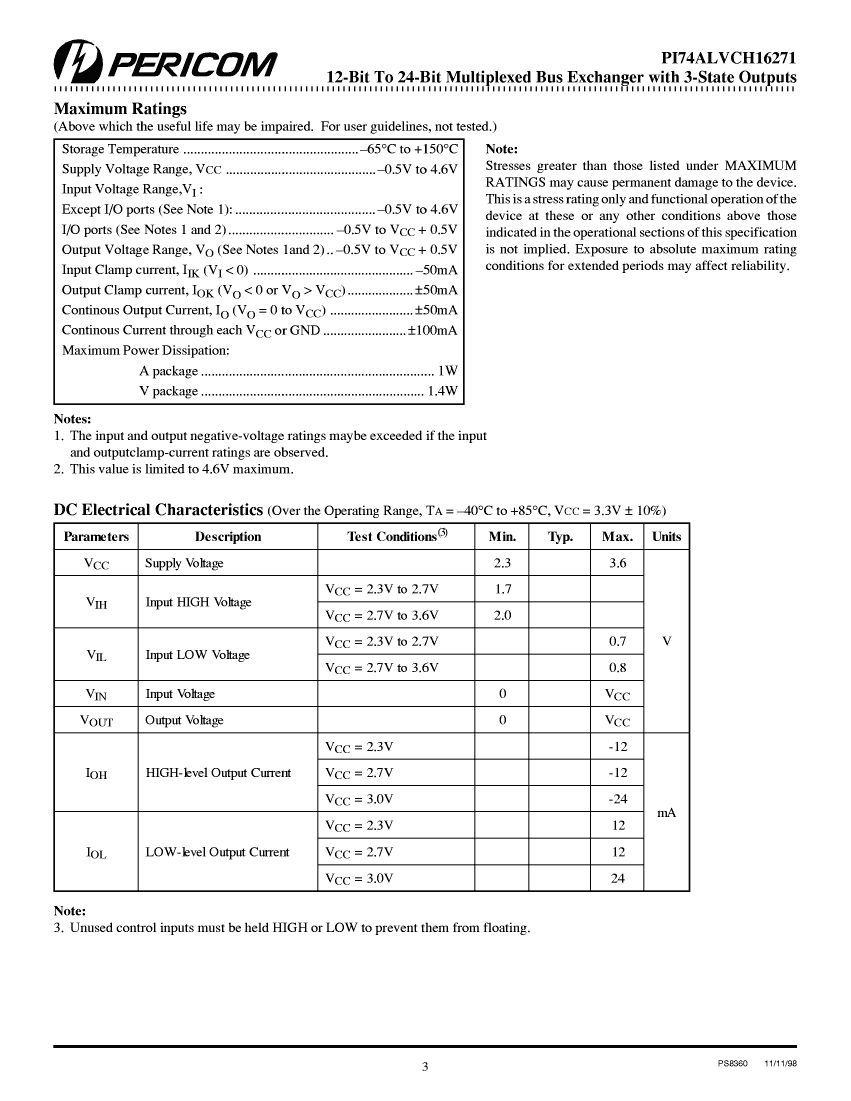

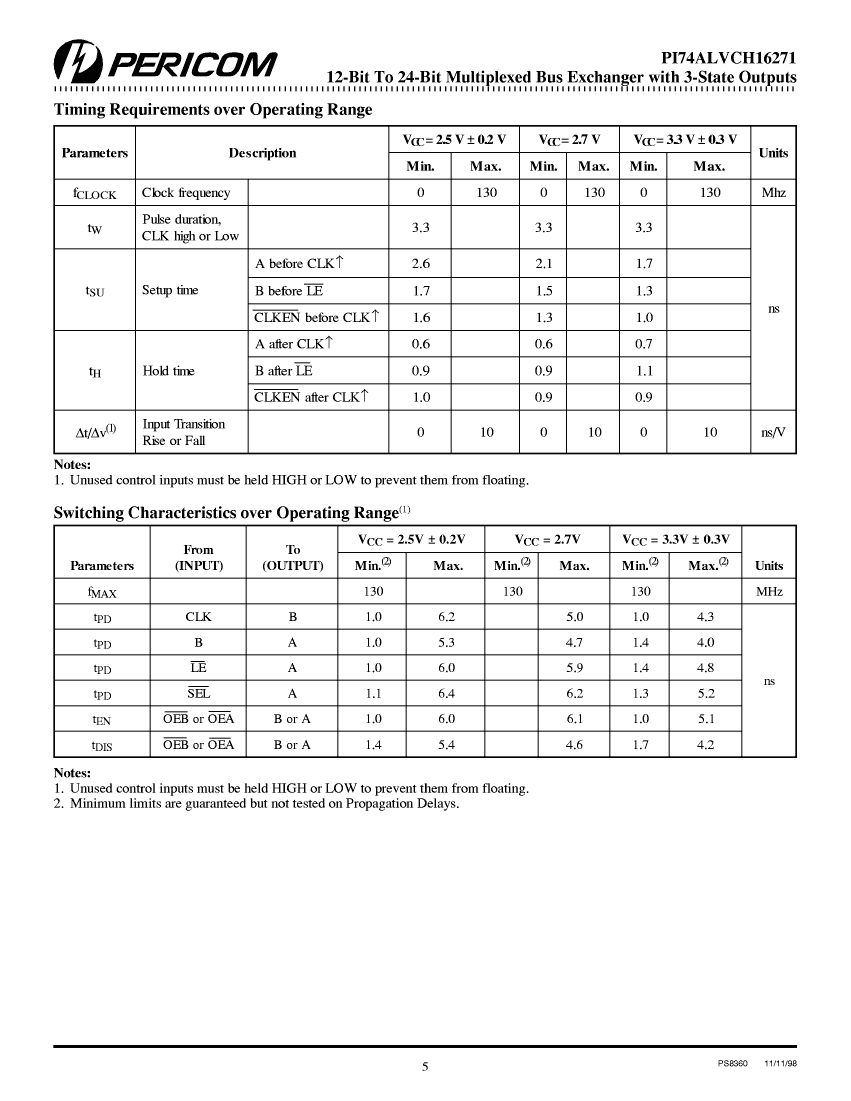

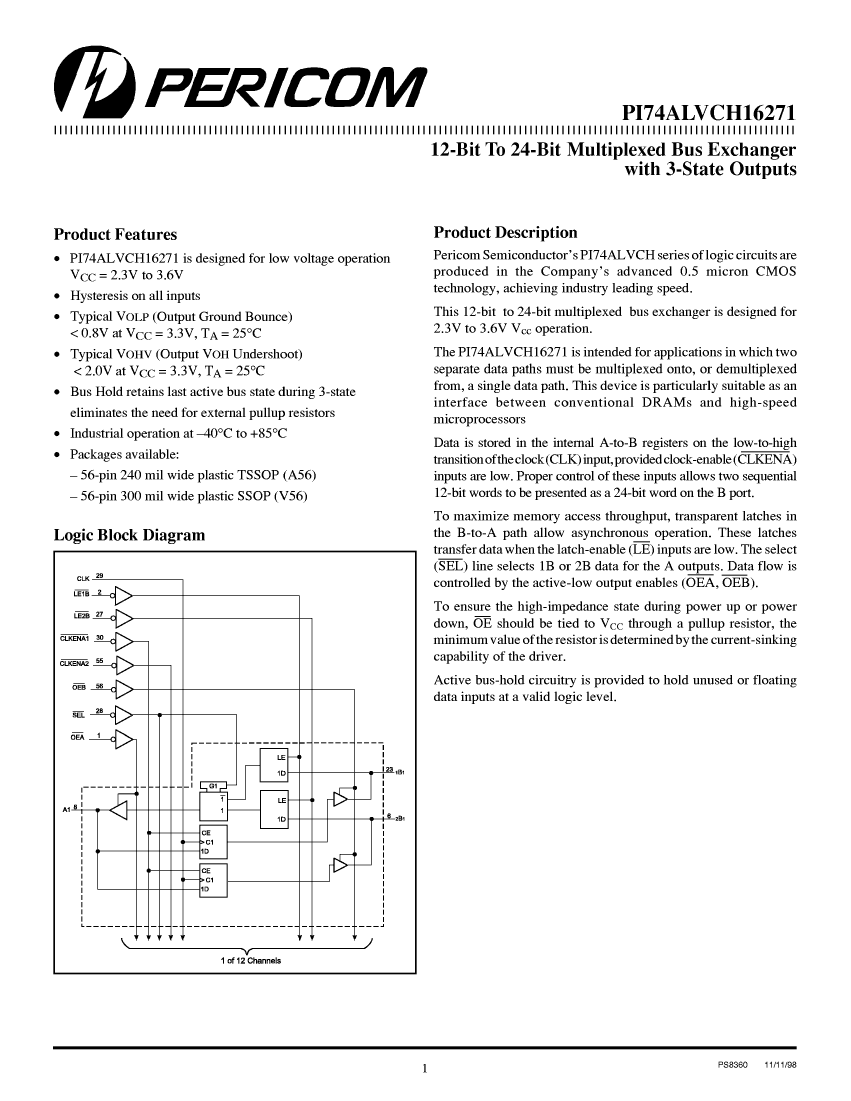

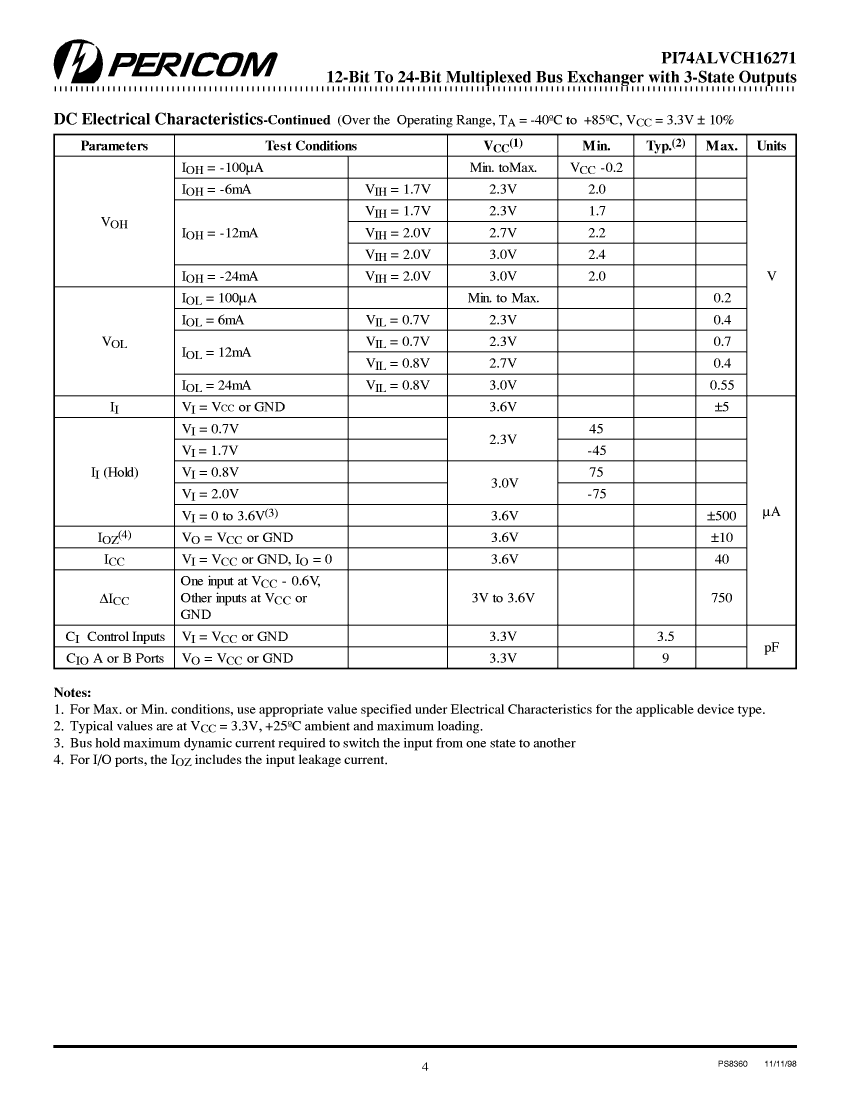

PI74ALVCH16271AE Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PI74ALVCH16271AE Related Products

	PI74ALVCH16271AE	PI74ALVCH16271VE
Description	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Multiplexer And Demux/Decoder, ALVC/VCX/A Series, 12-Func, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56
Is it lead-free?	Lead free	Lead free
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP	SSOP
package instruction	TSSOP,	SSOP,
Contacts	56	56
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
series	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e3	e3
length	14 mm	18.415 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER	MULTIPLEXER AND DEMUX/DECODER
Number of functions	12	12
Number of terminals	56	56
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL
width	6.1 mm	7.5 mm
