2-557102-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-557102-9

2-557102-9: DescriptionCONNECTOR,D-SHELL,PCB MNT,RECEPT,120 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size180KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-557102-9 Overview

CONNECTOR,D-SHELL,PCB MNT,RECEPT,120 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL

2-557102-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
body width	0.283 inch
subject depth	0.402 inch
body length	3.447 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Dielectric withstand voltage	250VAC V
maximum insertion force	.8896 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	557102
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	120
Base Number Matches	1

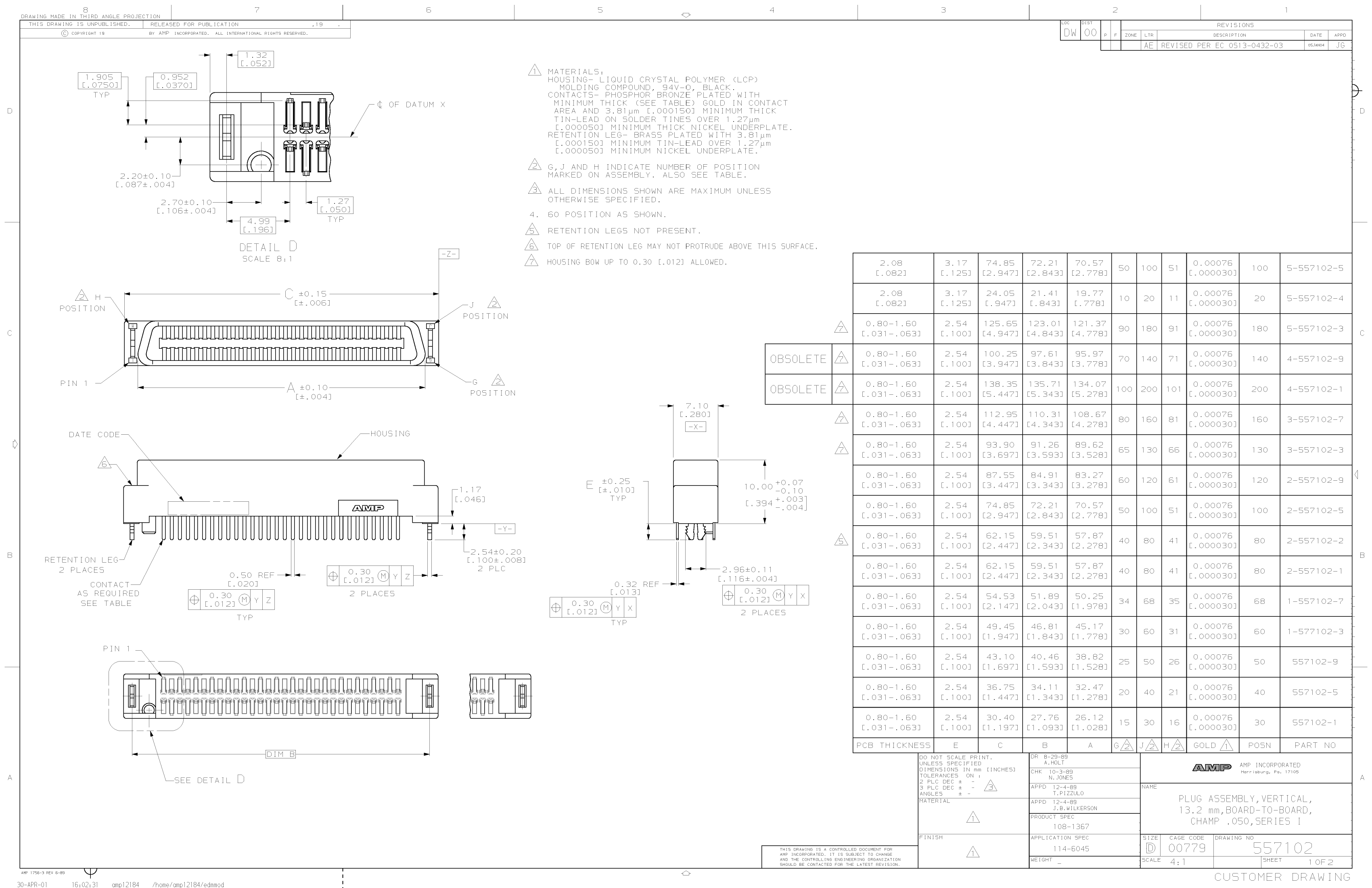

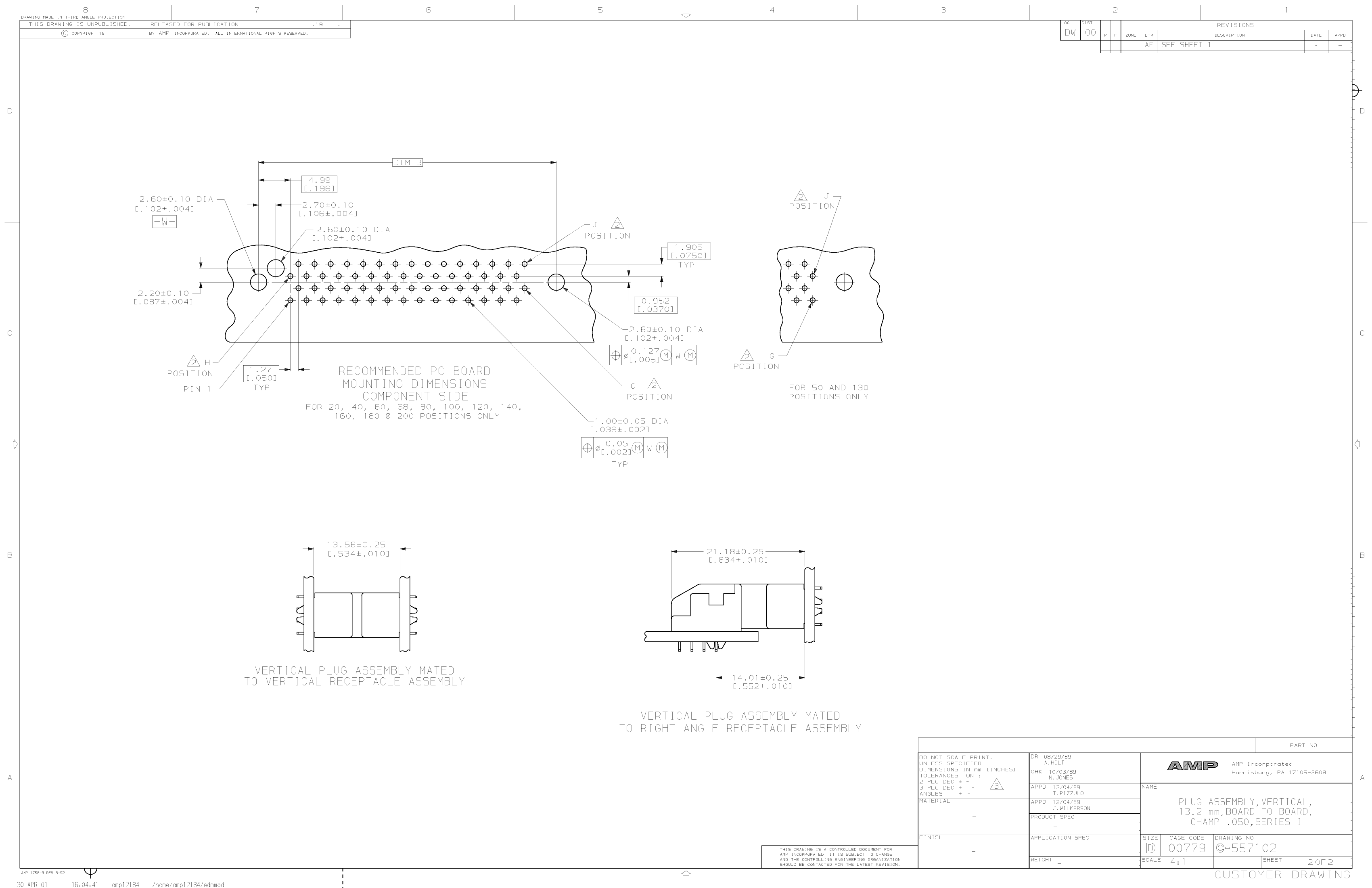

Preview

Download Datasheet

View All

2-557102-9 Related Products

	2-557102-9	2-557102-2	4-557102-9	4-557102-1
Description	CONNECTOR,D-SHELL,PCB MNT,RECEPT,120 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL	80 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG	CONNECTOR,D-SHELL,PCB MNT,RECEPT,140 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL	200 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG
Reach Compliance Code	compli	unknown	unknown	unknown
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	PLUG
Contact to complete cooperation	AU	NOT SPECIFIED	AU	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED
Manufacturer's serial number	557102	557102	557102	557102
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	120	80	140	200
Is it Rohs certified?	incompatible	incompatible	-	incompatible
Base Number Matches	1	1	1	-
