Instruction Sheet
Series TNC Solder
Receptacle Jacks
408-2938
28 JUL 04
Rev A
(was IS 2938)
Solder Tab
Nut
Solder Tab
Receptacle Body
Receptacle Body
Solder Tab
Nut
Standard
Lockwasher
Solder
Terminal
ASSEMBLIES
STANDARD RECEPTACLE WITH STANDARD LOCKWASHER AND NUT
STANDARD RECEPTACLE WITH SOLDER TERMINAL (LOCKWASHER) AND NUT
PART NUMBER
227758-2, 227764-2
227760-2, 227762-2

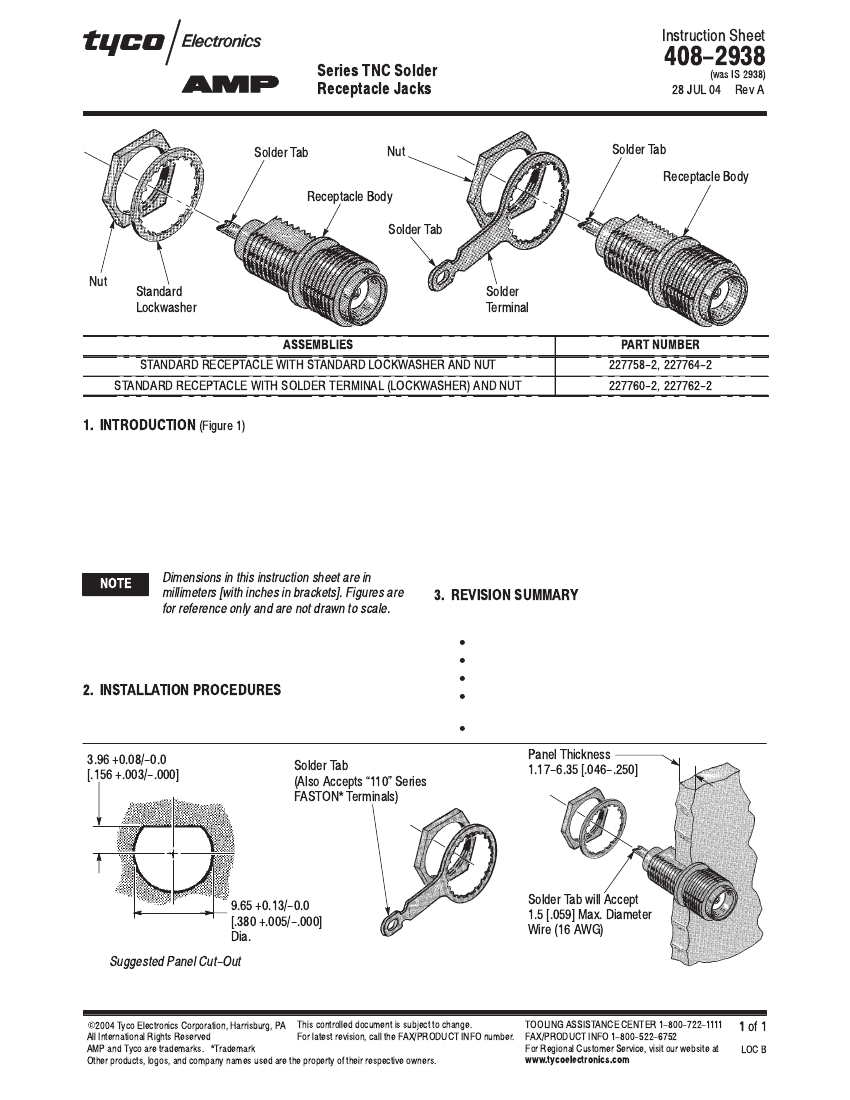

Figure 1
1. INTRODUCTION
(Figure 1)
Standard Series TNC Solder Receptacle Jacks are
used in panel–mount applications. They are available
with combinations of dielectric material and center
contact platings as provided in the customer
drawings.
The assemblies containing a solder tab on the
lockwasher are used with coaxial cables.
NOTE
Dimensions in this instruction sheet are in
millimeters [with inches in brackets]. Figures are
for reference only and are not drawn to scale.
2. Insert the threaded portion of the jack through
the cut–out.
3. Slip on the lockwasher; thread on and tighten
the nut.
4. Solder the wire to the tab as required.
5. Terminate the tab on the solder terminal
(lockwasher) where this style assembly is used.
3. REVISION SUMMARY
Per EC 0990–0864–04
Reasons for reissue of this instruction sheet are
provided in Section 3, REVISION SUMMARY.
2. INSTALLATION PROCEDURES
1. First determine mounting requirements. Panel
cut–out dimensions are shown in Figure 2.
3.96 +0.08/-0.0
[.156 +.003/-.000]
Solder Tab
(Also Accepts 110" Series
FASTON* Terminals)
S
Updated document to corporate requirements
S
Deleted obsolete part numbers in Figure 1
S
Added new text to Section 1, INTRODUCTION
S
Created new Section 2, INSTALLATION
PROCEDURES
S
Created new Section 3, REVISION SUMMARY
Panel Thickness
1.17-6.35 [.046-.250]
9.65 +0.13/-0.0
[.380 +.005/-.000]
Dia.
Solder Tab will Accept
1.5 [.059] Max. Diameter
Wire (16 AWG)
Suggested Panel Cut-Out
Figure 2
E
2004 Tyco Electronics Corporation, Harrisburg, PA
This controlled document is subject to change.
For latest revision, call the FAX/PRODUCT INFO number.
TOOLING ASSISTANCE CENTER 1-800-722-1111
FAX/PRODUCT INFO 1-800-522-6752
For Regional Customer Service, visit our website at
All International Rights Reserved
AMP and Tyco are trademarks.
*Trademark
1
of 1
LOC B
Other products, logos, and company names used are the property of their respective owners.
www.tycoelectronics.com
