2-641168-0 datasheet, PDF - EEWORLD Datasheet

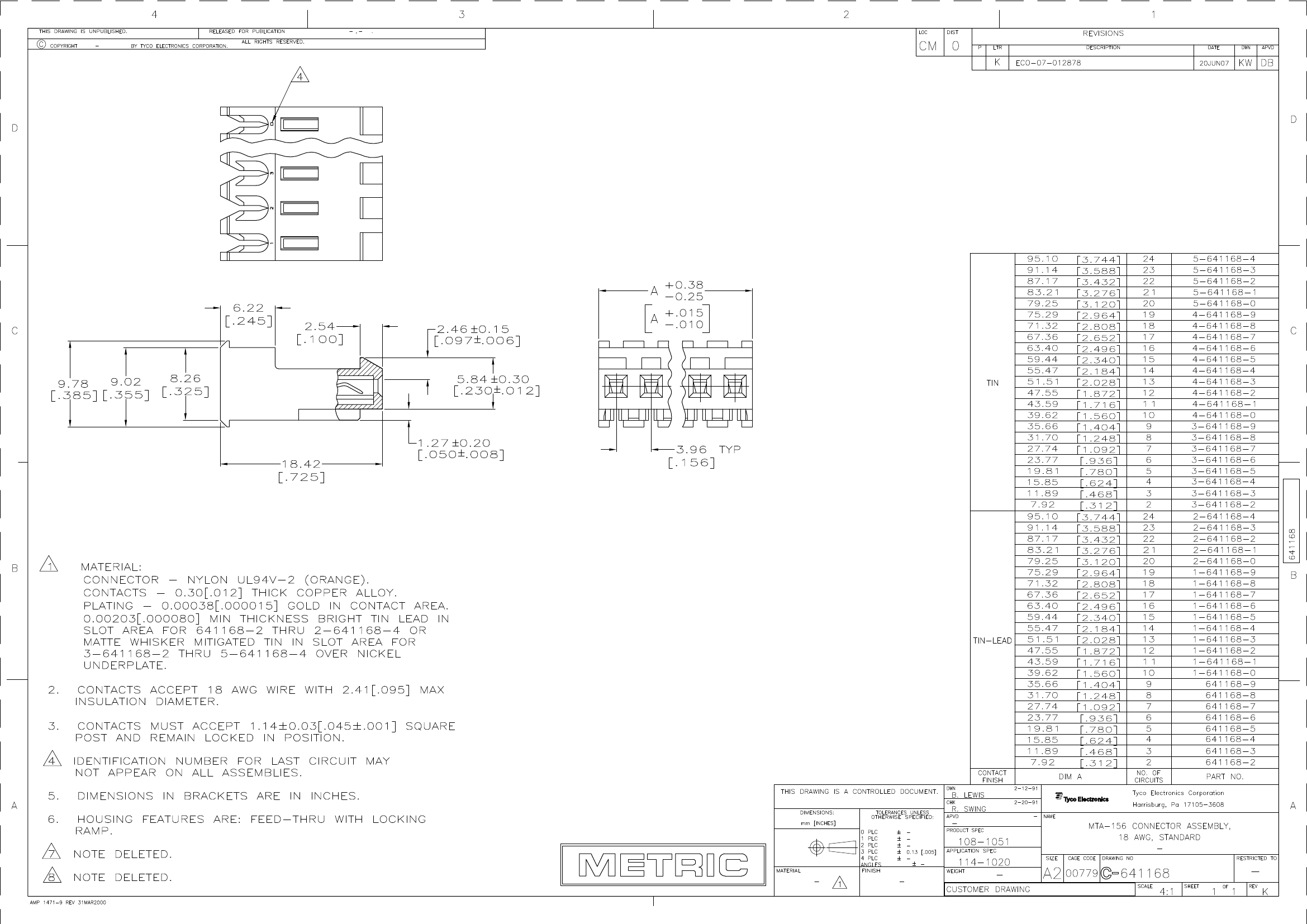

2-641168-0: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,20 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-641168-0 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,20 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	FEED-THRU
body width	0.385 inch
subject depth	0.725 inch
body length	3.12 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V
Durability	25 Cycles
maximum insertion force	5.7824 N
Insulation resistance	5000000000 Ω
Insulator color	ORANGE
insulator material	NYLON
Manufacturer's serial number	641168
Plug contact pitch	0.156 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	20
Maximum wire diameter	18 AWG
Minimum wire diameter	18 AWG
Evacuation force-minimum value	.4448 N
Base Number Matches	1
