2-520314-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-520314-2

2-520314-2: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,22 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-520314-2 Overview

HEADER CONNECTOR,PCB MNT,PLUG,22 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK

2-520314-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	HIGH EXTRACTION FORCE
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.19 inch
subject depth	0.273 inch
body length	2.393 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1400VAC V
Durability	25 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	520314
Plug contact pitch	0.1 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22
Base Number Matches	1

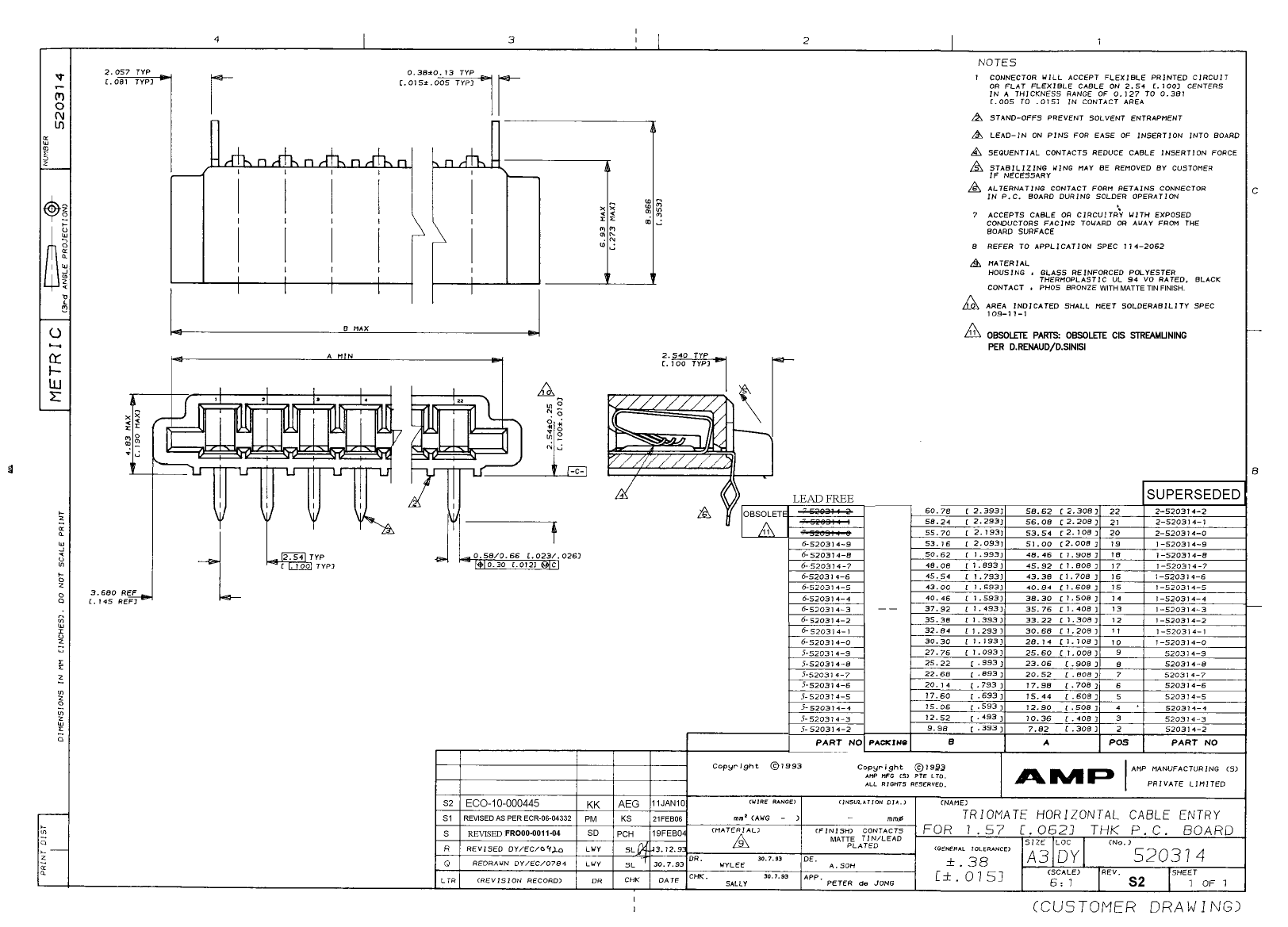

Preview

Download Datasheet

View All

2-520314-2 Related Products

	2-520314-2	2-520314-1	520314-3	520314-8	520314-9	1-520314-4	1-520314-5	H155375G
Description	HEADER CONNECTOR,PCB MNT,PLUG,22 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,21 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,3 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,8 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK	9 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,PLUG,14 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,15 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GUIDE SLOT,BLACK	Board Connector, 55 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown	unknown	compliant
body width	0.19 inch	0.19 inch	0.19 inch	0.19 inch	0.19 inch	0.19 inch	0.19 inch	0.13 inch
subject depth	0.273 inch	0.273 inch	0.273 inch	0.273 inch	0.273 inch	0.273 inch	0.273 inch	0.059 inch
body length	2.393 inch	2.293 inch	0.493 inch	0.993 inch	1.093 inch	1.593 inch	1.693 inch	5.5 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	FFC/FPC CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	SQ PIN-SKT
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SURFACE MOUNT
Total number of contacts	22	21	3	8	9	14	15	55
Other features	HIGH EXTRACTION FORCE	HIGH EXTRACTION FORCE	HIGH EXTRACTION FORCE	HIGH EXTRACTION FORCE	HIGH EXTRACTION FORCE	HIGH EXTRACTION FORCE	HIGH EXTRACTION FORCE	-
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	-
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	-
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-
Manufacturer's serial number	520314	520314	520314	520314	-	520314	-	H1
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	-
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal length	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Base Number Matches	1	1	1	1	1	-	-	-
