AM7969-125PCB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM7969-125PCB

AM7969-125PCB: DescriptionLine Receiver, 1 Func, 1 Rcvr, BIPolar, PDIP28, PLASTIC, DIP-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size7MB，124 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AM7969-125PCB Overview

Line Receiver, 1 Func, 1 Rcvr, BIPolar, PDIP28, PLASTIC, DIP-28

AM7969-125PCB Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-PDIP-T28
length	37.084 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Number of receiver bits	1
Maximum seat height	5.715 mm
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

Preview

Download Datasheet

View All

REI Datasheet

AM7968, AM7969

TAXIchip Integrated Circuits

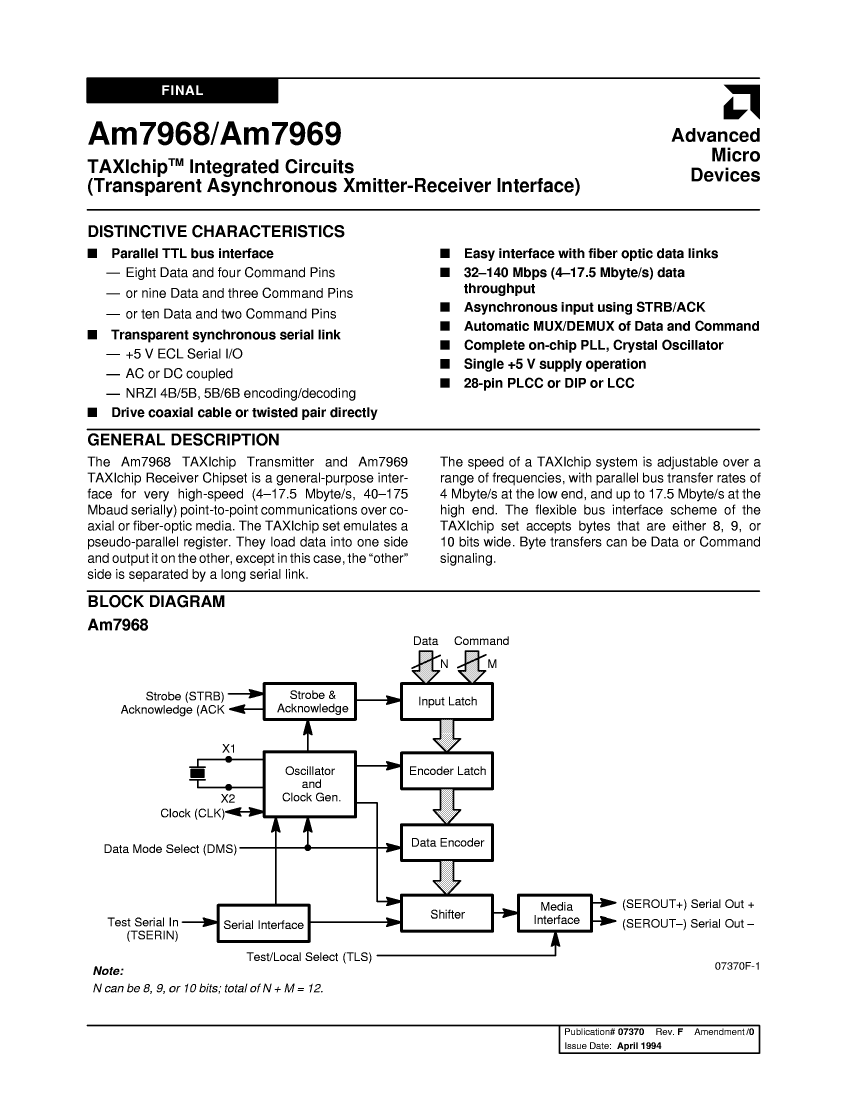

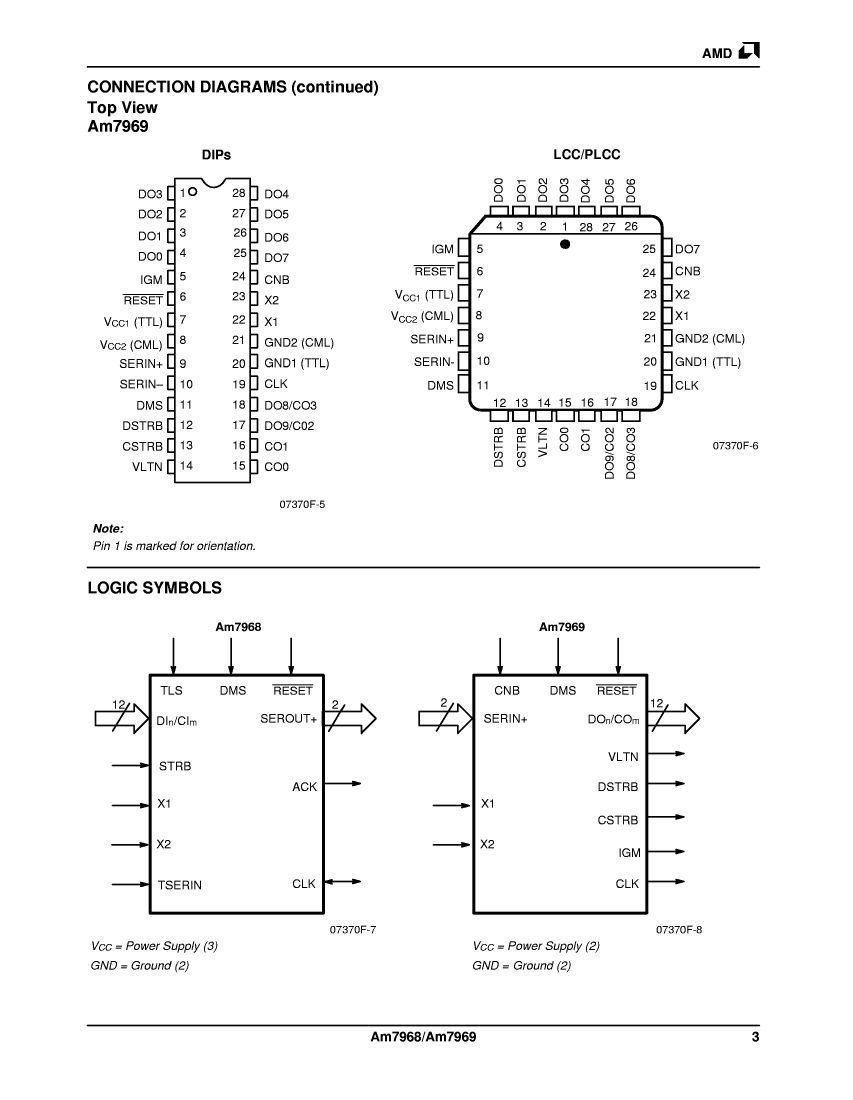

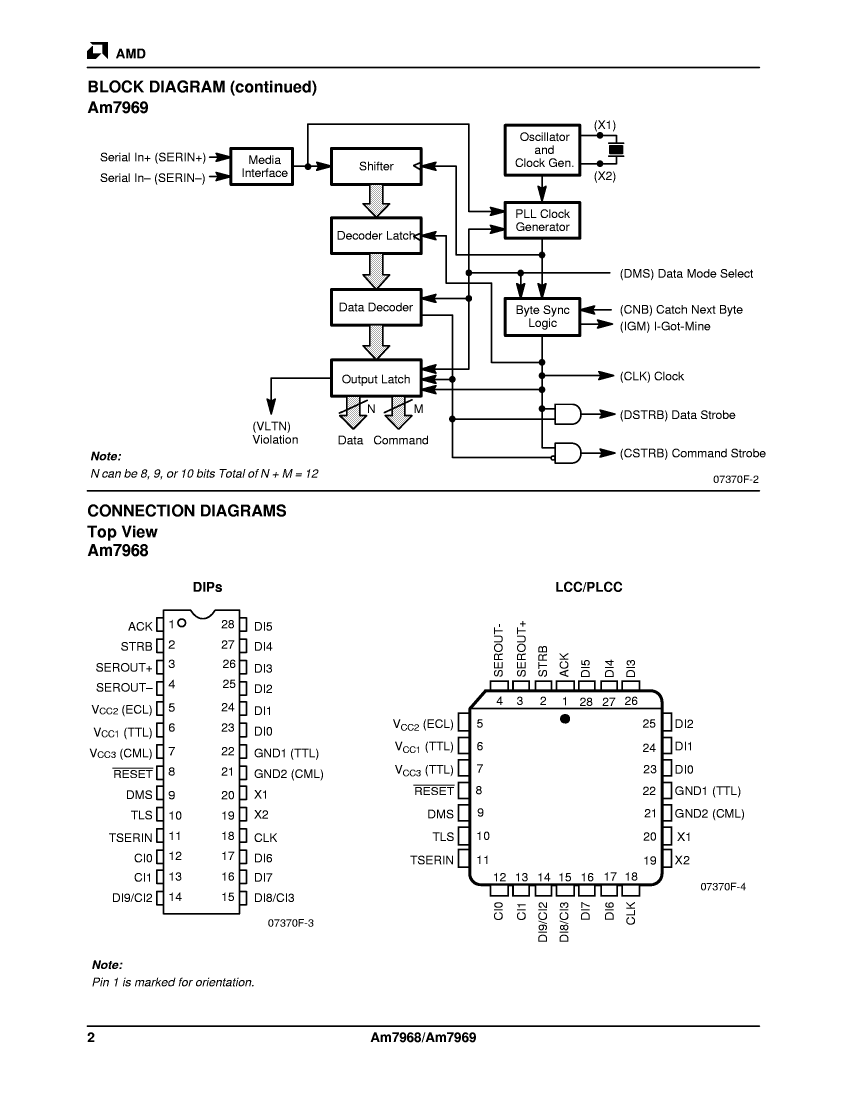

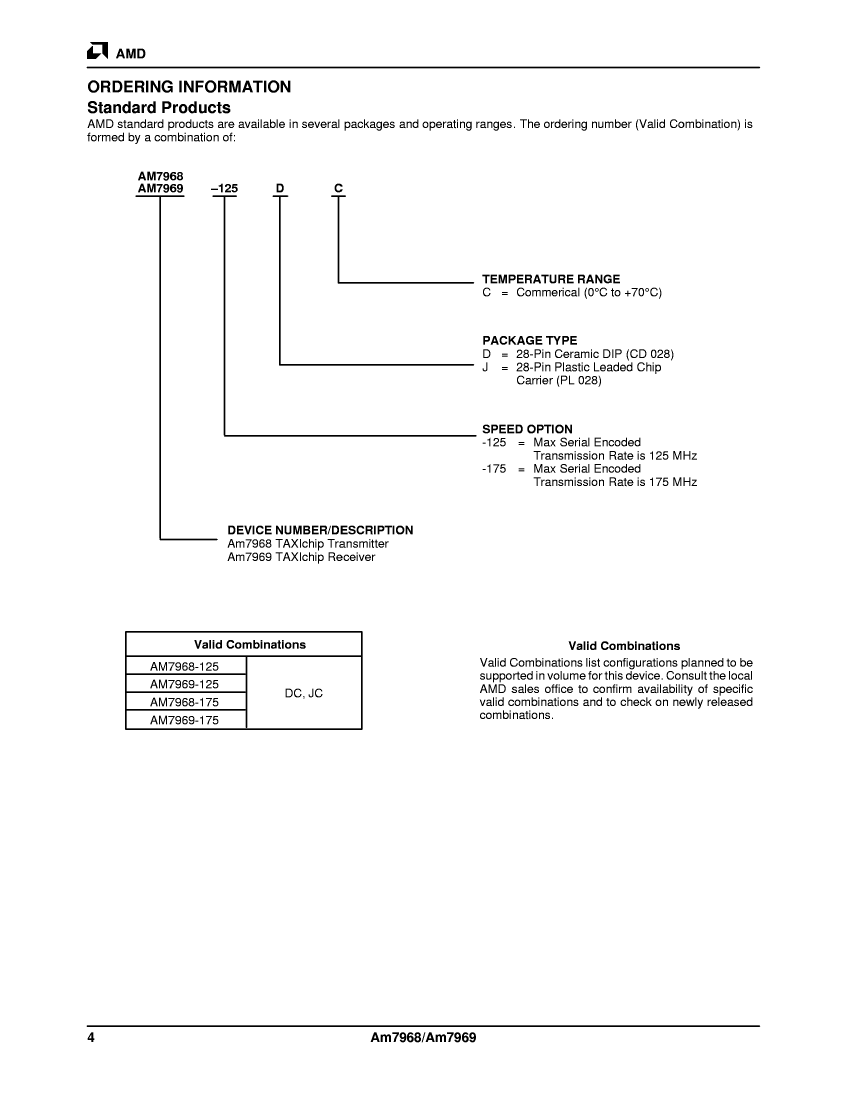

The Am7968 TAXIchip Transmitter and the AM7969 TAXIchip Receiver Chipset is a general-purpose

interface for very high-speed (4-17.5 Mbyte/s, 40-175 Mbaud serially) point-to-point communications

over coaxial or fiber-optic media. The TAXIchip set emulates a pseudo-parallel register. They load

data into one side and output it on the other, except in this case, the “other” side is separated by a

long serial link.

The speed of a TAXIchip system is adjustable over a range of frequencies, with parallel bus transfer

rates of 4 Mbyte/s at the low end, and up to 17.5 Mbyte/s at the high end. The flexible bus interface

scheme of the TAXIchip set accepts bytes that are either 8, 9, or 10 bits wide. Byte transfers can be

Data or Command signaling.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

AM7969-125PCB Related Products

	AM7969-125PCB	AM7968-125PC	AM7968-125DCB	AM7968-125PCB	AM7969-125DCB	AM7969-175PC	AM7968-175PC
Description	Line Receiver, 1 Func, 1 Rcvr, BIPolar, PDIP28, PLASTIC, DIP-28	Line Driver, 1 Func, 1 Driver, BIPolar, PDIP28, PLASTIC, DIP-28	Line Driver, 1 Func, 1 Driver, BIPolar, CDIP28, CERAMIC, DIP-28	Line Driver, 1 Func, 1 Driver, BIPolar, PDIP28, PLASTIC, DIP-28	Line Receiver, 1 Func, 1 Rcvr, BIPolar, CDIP28, CERAMIC, DIP-28	Line Receiver, 1 Func, 1 Rcvr, TTL, PDIP28, PLASTIC, DIP-28	Line Driver, 1 Func, 1 Driver, TTL, PDIP28, PLASTIC, DIP-28
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	STANDARD	STANDARD	STANDARD	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	STANDARD
Interface integrated circuit type	LINE RECEIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE RECEIVER	LINE RECEIVER	LINE DRIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-GDIP-T28	R-PDIP-T28	R-GDIP-T28	R-PDIP-T28	R-PDIP-T28
length	37.084 mm	37.084 mm	37.1475 mm	37.084 mm	37.1475 mm	37.084 mm	37.084 mm
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum seat height	5.715 mm	5.715 mm	5.588 mm	5.715 mm	5.588 mm	5.715 mm	5.715 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Maker	Rochester Electronics	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Differential output	-	YES	YES	YES	-	-	YES
Number of drives	-	1	1	1	-	-	1
