2-487526-2 datasheet, PDF - EEWORLD Datasheet

2-487526-2: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,0.1 PITCH,LATCH,BLACK; CategoryThe connector The connector; File Size100KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

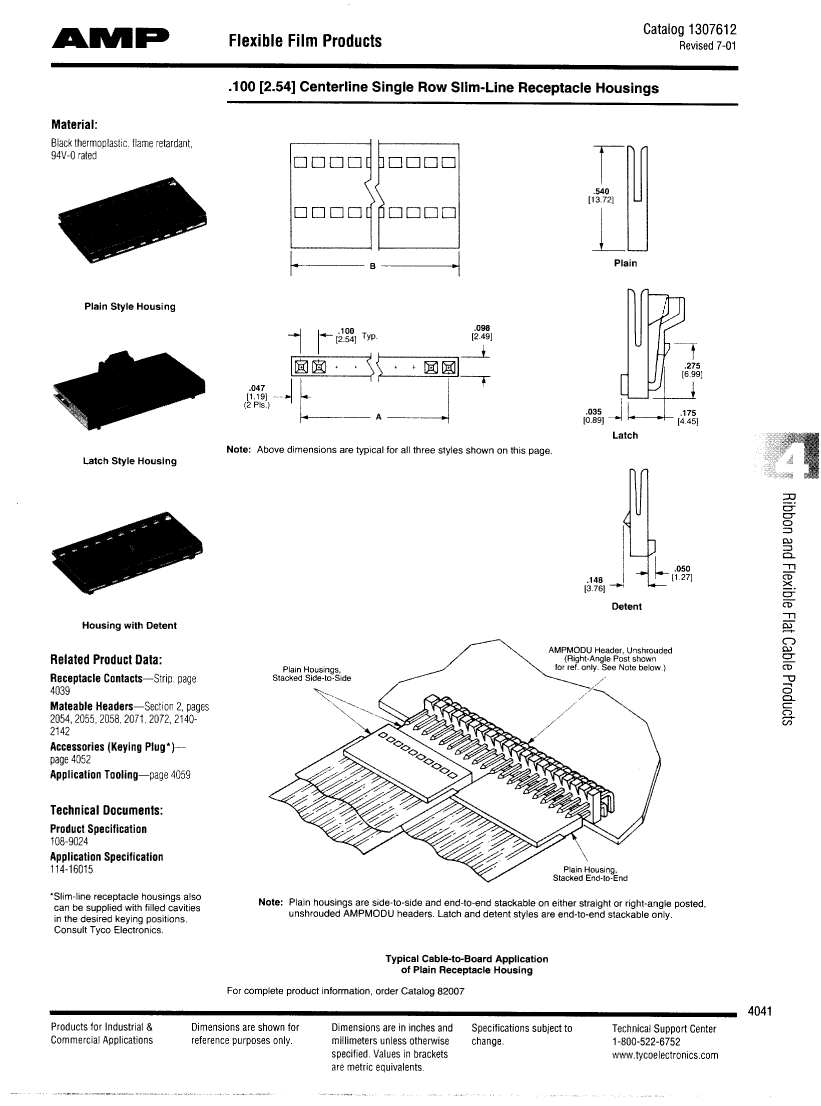

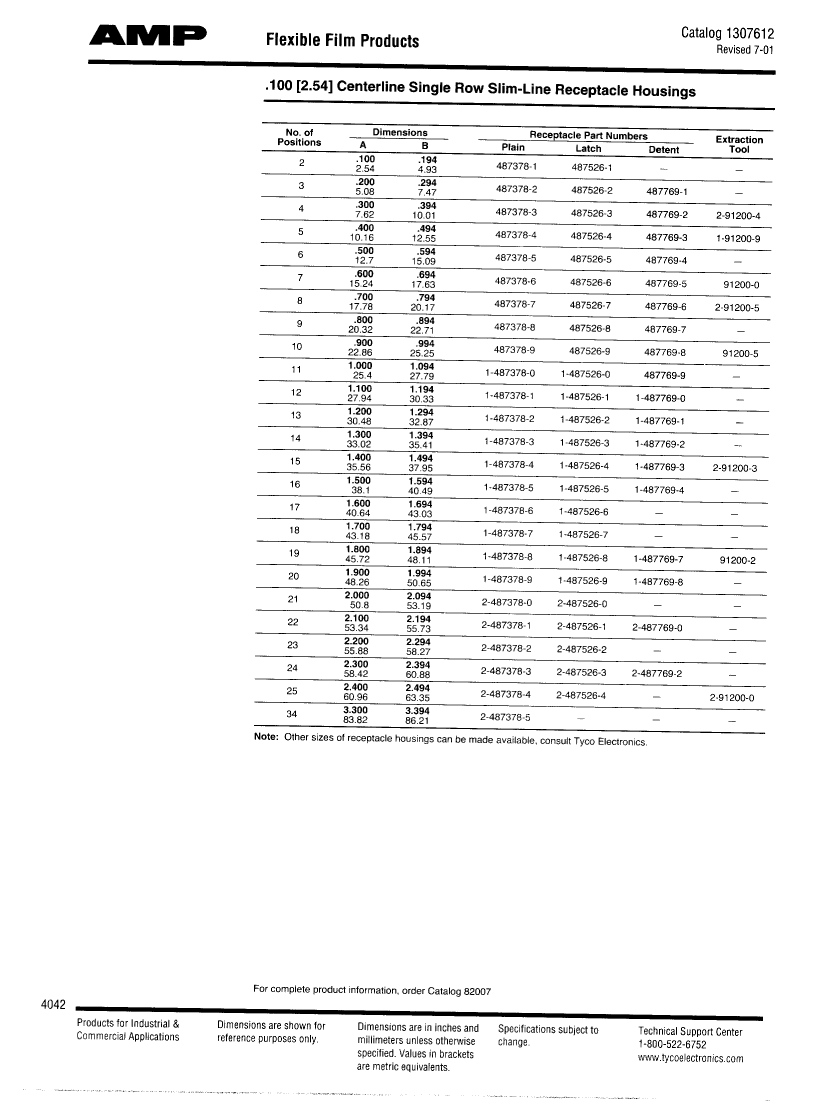

2-487526-2 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,0.1 PITCH,LATCH,BLACK

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	LATCH STYLE HOUSING
body width	0.21 inch
subject depth	0.54 inch
body length	2.294 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	STAMPED, STRIP
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Minimum insulation diameter	0.011 inch
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	487526
Plug contact pitch	0.1 inch
Installation option 1	LATCH
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	23
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

	2-487526-2	2-487526-0	G2803S-12-T
Description	HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,0.1 PITCH,LATCH,BLACK	21 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, RECEPTACLE	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Reach Compliance Code	unknow	unknown	compliant
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	FFC/FPC CONNECTOR	BOARD CONNECTOR
Number of rows loaded	1	1	1
Total number of contacts	23	21	12
body width	0.21 inch	-	0.078 inch
subject depth	0.54 inch	-	0.06 inch
body length	2.294 inch	-	0.948 inch
contact mode	RECTANGULAR	-	RECTANGULAR
Contact style	SQ PIN-SKT	-	SQ PIN-SKT
Insulator color	BLACK	-	BLACK
insulator material	THERMOPLASTIC	-	POLYESTER
Manufacturer's serial number	487526	-	G2800
Plug contact pitch	0.1 inch	-	0.079 inch
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Objectid	-	1416302006	1225136173
ECCN code	-	EAR99	EAR99
Contact to complete cooperation	-	NOT SPECIFIED	SN ON NI
Contact point gender	-	FEMALE	MALE
Contact material	-	NOT SPECIFIED	PHOSPHOR BRONZE
Installation type	-	CABLE	BOARD
Number of connectors	-	ONE	ONE
