M20-8903005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M20-8903005

M20-8903005: DescriptionBoard Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M20-8903005 Overview

Board Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE

M20-8903005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	not_compliant
Other features	ROHS COMPLIANT
body width	0.136 inch
subject depth	0.098 inch
body length	3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M20-89
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

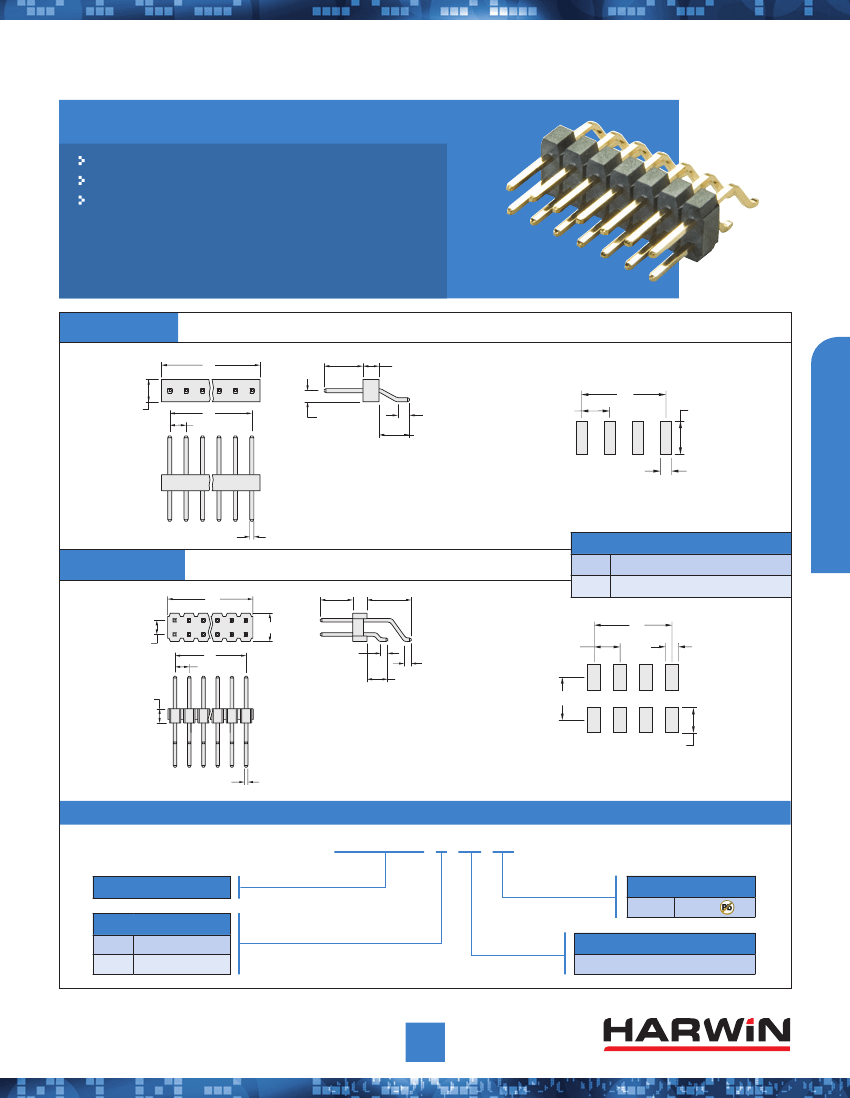

M20 Connectors

Male Horizontal Surface Mount

Double row pin headers can be cut into smaller sizes.

For tape and reel packaging, contact

technical@harwin.com.

Suitable for use with female connectors shown on

pages 140 to 145.

SINGLE ROW

6.00

3.05

2.54

1.78

1.80

4.70

2.54

3.00

1.02

Recommended PC Board Pattern

0.64 square

CalCulation

2.54 x No. of contacts per row

2.54 x (No. of contacts per row - 1)

DOUBLE ROW

5.00

2.54

1.27

3.70

4.20

5.80

7.90

2.54

1.27

3.17

0.64 square

Recommended PC Board Pattern

HOW TO ORDER

M20 - 89 X XX 05

series CoDe

tail sPaCinG

Single Row

Double Row

Finish

Gold

no. oF ContaCts Per roW

02 to 40

All dimensions in mm.

www.harwin.com

151

2.54mm (.100") PITCH

2.50

M20-8903005 Related Products

	M20-8903005	M20-8903705	M20-8903805	M20-8913905	M20-8900205
Description	Board Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE	Board Connector, 37 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking	Board Connector, 38 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking	Board Connector, 78 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking
Reach Compliance Code	not_compliant	compliant	compliant	compliant	compliant
body width	0.136 inch	0.12 inch	0.12 inch	0.197 inch	0.12 inch
subject depth	0.098 inch	0.283 inch	0.283 inch	0.411 inch	0.283 inch
body length	3 inch	3.7 inch	3.8 inch	3.9 inch	0.2 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	2	1
Number of rows loaded	1	1	1	2	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	30	37	38	78	2
Maker	Harwin	Harwin	Harwin	Harwin	-
ECCN code	-	EAR99	EAR99	-	EAR99
Installation option 1	-	LOCKING	LOCKING	LOCKING	LOCKING
