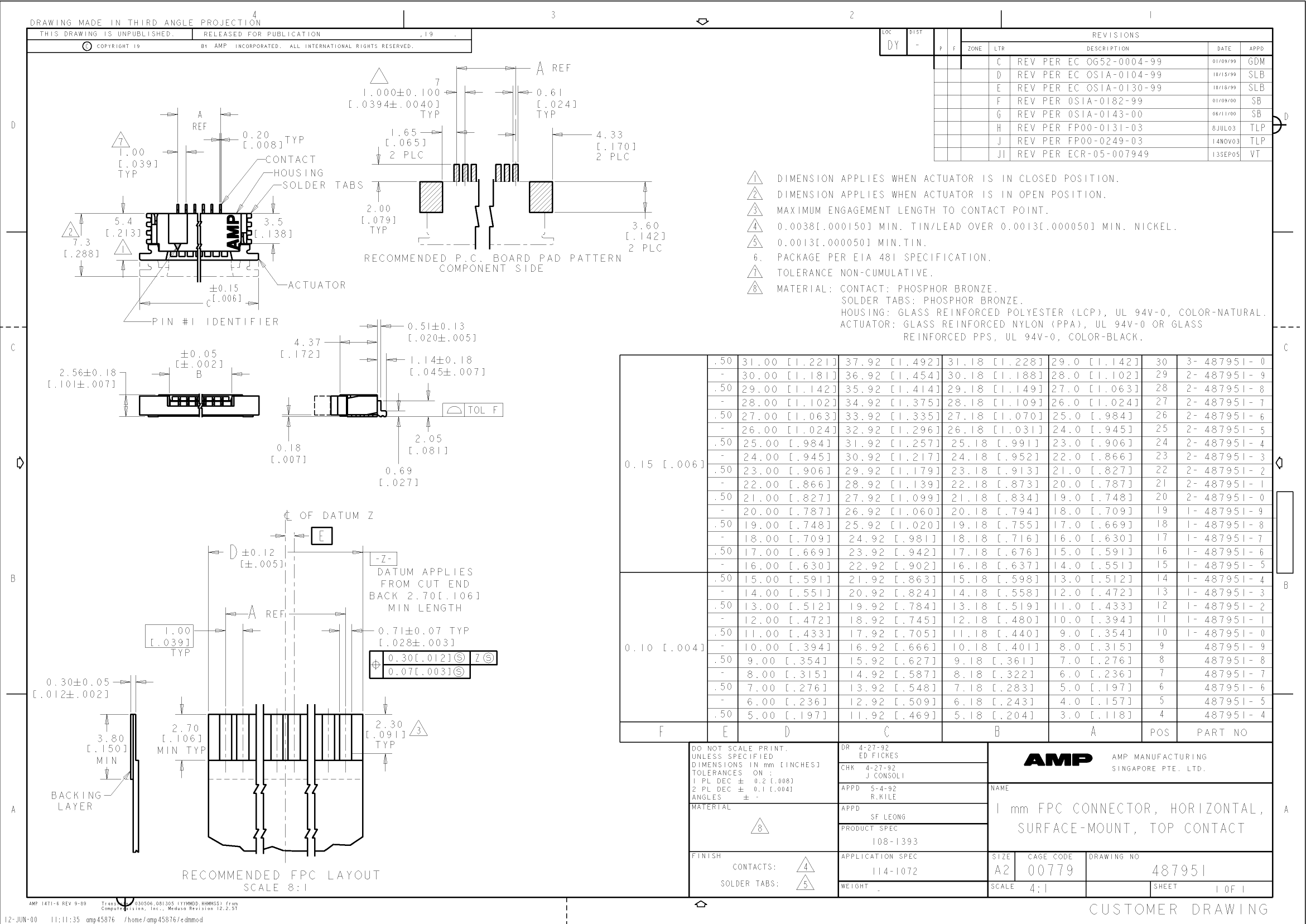

FLEX CABLE CONNECTOR,PCB MNT,23 CONTACTS,1,LOCKING MECH
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compli |
| Other features | TOP CONTACT TYPE |
| Board mount options | SOLDER HOLDING POSTS |
| body width | 0.101 inch |
| subject depth | 0.213 inch |
| body length | 1.217 inch |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | SN-PB |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 200VAC V |
| Durability | 30 Cycles |
| maximum insertion force | ZIF N |
| Insulator color | BEIGE |
| insulator material | THERMOPLASTIC |
| Plug contact pitch | 0.039 inch |
| Installation option 1 | LOCKING MECH |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 150u inch |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.9906 mm |
| Total number of contacts | 23 |
| Base Number Matches | 1 |
| 2-487951-3 | 2-487951-9 | 2-487951-2 | TPS40170-Q1_15 | TPS40190_15 | 487951-7 | 487951-5 | H149375T | |
|---|---|---|---|---|---|---|---|---|
| Description | FLEX CABLE CONNECTOR,PCB MNT,23 CONTACTS,1,LOCKING MECH | FLEX CABLE CONNECTOR,PCB MNT,29 CONTACTS,1,LOCKING MECH | FLEX CABLE CONNECTOR,PCB MNT,22 CONTACTS,1,LOCKING MECH | TPS40170-Q1 4.5-V to 60-V, Wide-Input, Synchronous PWM Buck Controller | LOW PIN COUNT SYNCHRONOUS BUCK CONTROLLER | FLEX CABLE CONNECTOR,PCB MNT,7 CONTACTS,1,LOCKING MECH | FLEX CABLE CONNECTOR,PCB MNT,5 CONTACTS,1,LOCKING MECH | Board Connector, 49 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle |
| Is it Rohs certified? | incompatible | incompatible | incompatible | - | - | incompatible | incompatible | - |
| Reach Compliance Code | compli | unknow | compli | - | - | compliant | compliant | compliant |
| Other features | TOP CONTACT TYPE | TOP CONTACT TYPE | TOP CONTACT TYPE | - | - | TOP CONTACT TYPE | TOP CONTACT TYPE | - |
| Board mount options | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | - | - | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | - |
| body width | 0.101 inch | 0.101 inch | 0.101 inch | - | - | 0.101 inch | 0.101 inch | 0.13 inch |
| subject depth | 0.213 inch | 0.213 inch | 0.213 inch | - | - | 0.213 inch | 0.213 inch | 0.059 inch |
| body length | 1.217 inch | 1.454 inch | 1.179 inch | - | - | 0.587 inch | 0.509 inch | 4.9 inch |
| Connector type | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | - | - | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN-PB | SN-PB | SN-PB | - | - | SN-PB | SN-PB | - |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 200VAC V | 200VAC V | 200VAC V | - | - | 200VAC V | 200VAC V | - |
| Durability | 30 Cycles | 30 Cycles | 30 Cycles | - | - | 30 Cycles | 30 Cycles | - |
| maximum insertion force | ZIF N | ZIF N | ZIF N | - | - | ZIF N | ZIF N | - |
| Insulator color | BEIGE | BEIGE | BEIGE | - | - | BEIGE | BEIGE | - |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | - | - | THERMOPLASTIC | THERMOPLASTIC | - |
| Plug contact pitch | 0.039 inch | 0.039 inch | 0.039 inch | - | - | 0.039 inch | 0.039 inch | 0.1 inch |
| Installation option 1 | LOCKING MECH | LOCKING MECH | LOCKING MECH | - | - | LOCKING MECH | LOCKING MECH | - |
| Installation option 2 | LOCKING | LOCKING | LOCKING | - | - | LOCKING | LOCKING | - |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | - | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT |
| PCB row number | 1 | 1 | 1 | - | - | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | - | - | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | - | - | 85 °C | 85 °C | - |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | - | - | -40 °C | -40 °C | - |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Plating thickness | 150u inch | 150u inch | 150u inch | - | - | 150u inch | 150u inch | - |
| Rated current (signal) | 1 A | 1 A | 1 A | - | - | 1 A | 1 A | - |
| Guideline | UL | UL | UL | - | - | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.9906 mm | 0.9906 mm | 1 mm | - | - | 0.9906 mm | 0.9906 mm | 2.54 mm |
| Total number of contacts | 23 | 29 | 22 | - | - | 7 | 5 | 49 |
| Base Number Matches | 1 | 1 | 1 | - | - | 1 | 1 | - |
