223524-6: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,NATURAL; CategoryThe connector The connector; File Size180KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

223524-6 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,NATURAL

223524-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	NONE
body width	0.701 inch
subject depth	1.339 inch
body length	2.83 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	100 Cycles
maximum insertion force	.695 N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223524
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.132 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	180
Evacuation force-minimum value	.1112 N
Base Number Matches	1

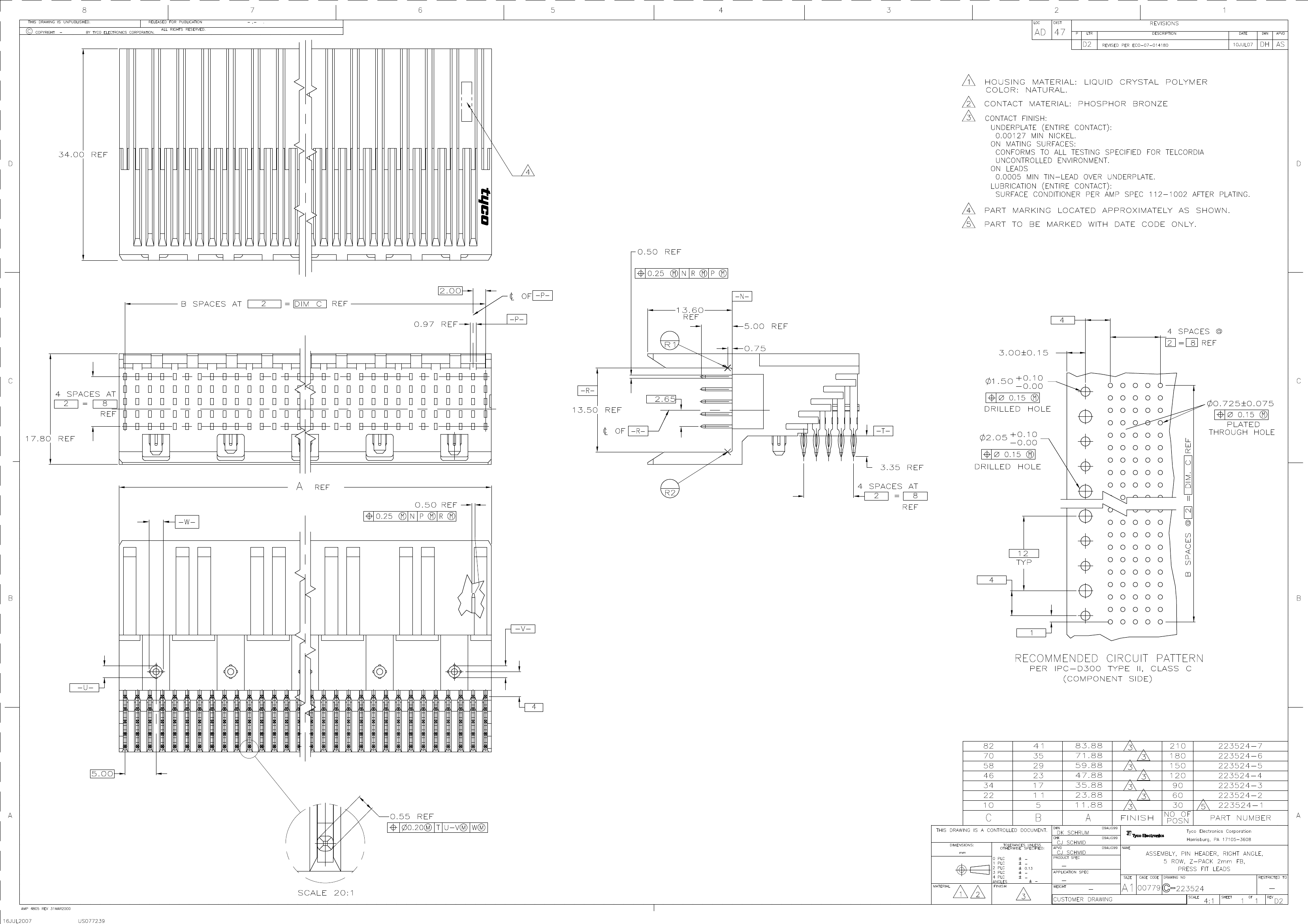

Preview

Download Datasheet

View All

223524-6 Related Products

	223524-6	223524-5	223524-2	223524-3
Description	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,90 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,NATURAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	unknow	compli	unknow
Other features	NONE	NONE	NONE	NONE
body width	0.701 inch	0.701 inch	0.701 inch	0.701 inch
subject depth	1.339 inch	1.339 inch	1.339 inch	1.339 inch
body length	2.83 inch	2.357 inch	0.94 inch	1.413 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	45 mΩ	45 mΩ	45 mΩ	45 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
maximum insertion force	.695 N	.695 N	.695 N	.695 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223524	223524	223524	223524
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5
Number of rows loaded	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	31u inch	31u inch	31u inch	31u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.132 inch	0.132 inch	0.132 inch	0.132 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	180	150	60	90
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N	.1112 N
