P0176T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> P0176T

P0176T: DescriptionGeneral Purpose Inductor, 5.5uH, 10%, 2 Element, SMD; CategoryPassive components inductor; File Size66KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

P0176T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P0176T	-	-	View	Buy Now

P0176T Overview

General Purpose Inductor, 5.5uH, 10%, 2 Element, SMD

P0176T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.019 Ω
Nominal inductance(L)	5.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	P0176
Number of functions	2
Number of terminals	4
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Maximum rated current	5.2 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	PARALLEL CONNECTED
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	ONE SURFACE
Tolerance	10%

Preview

Download Datasheet

View All

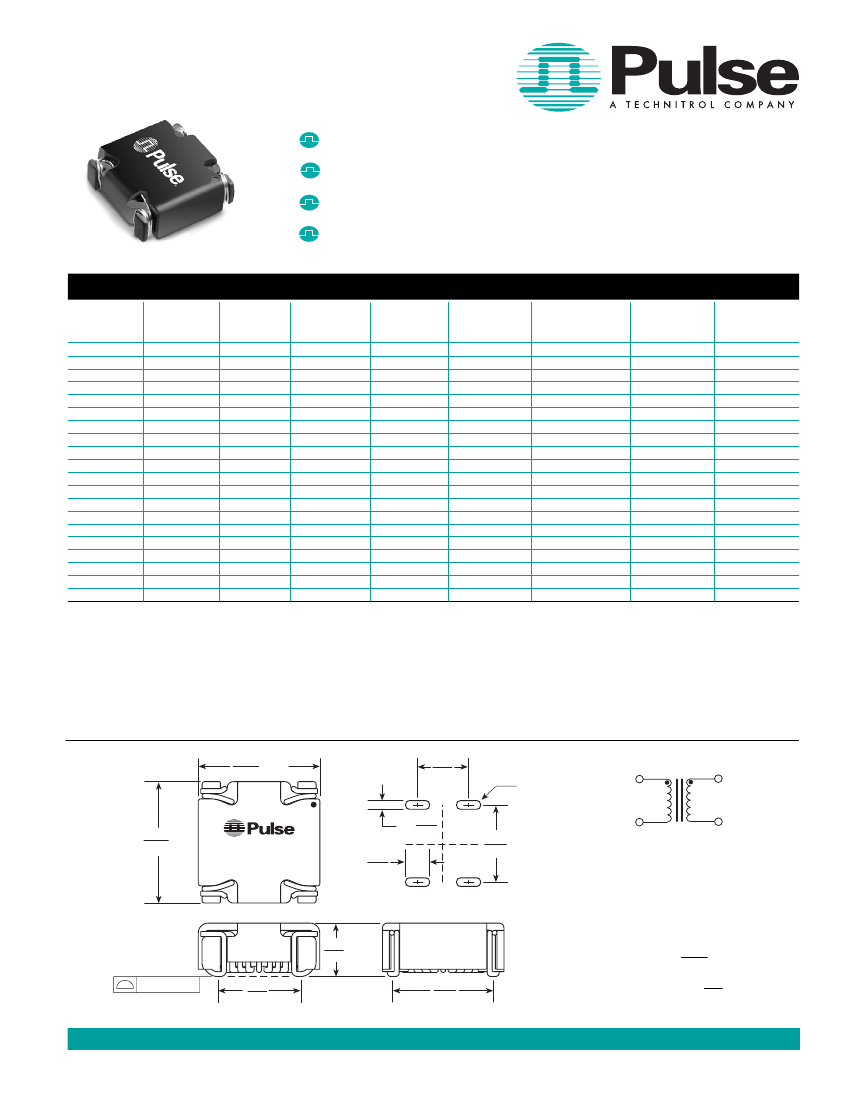

SMT POWER INDUCTORS

Toroid - Polecat Series

Height:

5.5mm Max

Footprint:

12.7mm x 12.7mm Max

Current Rating:

up to 8.3A

Inductance Range:

2.0µH to 336µH

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

Number

P0174

P0175

P0176

P0174

P0177

P0175

P0178

P0179

P0176

P0180

P0177

P0181

P0178

P0182

P0179

P0183

P0180

P0181

P0182

P0183

Inductance

@ Irated

(µH)

2.0

2.4

5.0

7.8

9.3

9.6

14.1

19.7

20.0

29.3

37.3

42.6

56.2

61.3

79.0

84.2

117.3

170.3

245.3

336.7

Irated

(A)

8.30

7.20

5.20

4.15

3.84

3.60

3.12

2.64

2.60

2.16

1.92

1.80

1.56

1.48

1.32

1.22

1.08

0.90

0.74

0.61

DCR (MAX)

(mΩ)

7.6

10.9

19.0

30.3

29.8

43.6

45.3

66.3

76.0

106

119

151

181

224

265

324

424

603

897

1295

(V-µsec)

7.31

7.81

11.72

14.61

16.12

15.62

19.73

23.45

23.43

28.50

32.25

34.49

39.46

40.85

46.90

46.22

57.00

68.99

81.70

92.43

Inductance

@0A

(µH ±20%)

2.2

2.6

5.5

8.6

10.4

15.7

22.1

32.8

41.7

47.6

62.8

67.5

88.2

91.0

131.0

190.3

270.2

364.0

100 Gauss

100

(V-µsec)

1.20

1.33

1.93

2.41

2.65

3.25

3.86

4.70

5.30

5.66

6.51

6.75

7.71

7.83

9.40

11.33

13.50

15.66

1 Amp DC

(Orsted)

5.43

5.97

8.69

10.86

11.95

14.66

17.38

21.18

23.89

25.52

29.32

30.41

34.75

35.30

42.36

51.05

60.82

70.59

Connection

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

Parallel

Series

NOTES:

1. The reference inductance at rated DC current is a typical value.

2. Temperature rise is 50°C in typical buck or boost circuits at 250kHz and with the ref-

erence ET applied to the inductor.

3. Total loss in the inductor is 380mWatts for a 50°C temperature rise above ambient.

4. To estimate temperature rise in a given application, determine copper and core

losses, divide by 380 and multiply by 50.

5. For the copper loss, calculate I

X R

6. For core loss, using frequency (f) and operating flux density (B),

calculate 6.11 x 10

-18

x B

2.7

x f

2.04

7. For flux density (B), calculate ET (V-µsec) for the application, divide by ET

100

from

the table, and multiply by 100.

8. Limit the DC bias (H) to 46 orsteds. Calculate H by multiplying H

from the table by

of the application.

9. The maximum DCR listed is approximately 17% over the nominal DCR.

10. Add suffix

"T"

to part number for tape and reel package (i.e. P0183T).

Mechanical

.500 MAX

12,70

.330

8,38

Schematic

.500 MAX

12,70

P01XX

Date Code

Country of Origin

4X .060

1,52

4X .175

4,45

.410

10,41

1:1 ±1%

Suggested Pad Layout

Weight

. . . . . . . . 1.5 grams

Tape & Reel

. . . . . . 500/reel

Tube

. . . . . . . . . . . . 40/tube

.215 MAX

5,46

.005/0,13

4 SURFACES

.330

8,38

.410

10,41

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

US 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Taiwan 886 2 2698 0228

•

Hong Kong 852 2788 6588

•

http://www.pulseeng.com

PC500.D (3/04)

P0176T Related Products

	P0176T	P0177T	P0174T	P0178T	P0183T	P0179T	P0180T	P0181T	P0175T	P0182T
Description	General Purpose Inductor, 5.5uH, 10%, 2 Element, SMD	General Purpose Inductor, 10.4uH, 10%, 2 Element, SMD	General Purpose Inductor, 2.2uH, 10%, 2 Element, SMD	General Purpose Inductor, 15.7uH, 10%, 2 Element, SMD	General Purpose Inductor, 91uH, 10%, 2 Element, SMD	General Purpose Inductor, 22.1uH, 10%, 2 Element, SMD	General Purpose Inductor, 32.8uH, 10%, 2 Element, SMD	General Purpose Inductor, 47.6uH, 10%, 2 Element, SMD	General Purpose Inductor, 2.6uH, 10%, 2 Element, SMD	General Purpose Inductor, 67.5uH, 10%, 2 Element, SMD
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	Pulse Electronics	Pulse Electronics	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
