M13251EG10FREQ2 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> M13251EG10FREQ2

M13251EG10FREQ2: DescriptionParallel - Fundamental Quartz Crystal, 20MHz Min, 29.999999MHz Max, ROHS COMPLIANT, MINIATURE, LEADLESS, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size284KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M13251EG10FREQ2 Overview

Parallel - Fundamental Quartz Crystal, 20MHz Min, 29.999999MHz Max, ROHS COMPLIANT, MINIATURE, LEADLESS, CERAMIC PACKAGE-4

M13251EG10FREQ2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	ROHS COMPLIANT, CERAMIC, 4-PIN
Reach Compliance Code	unknown
Other features	TAPE AND REEL; AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	15 ppm
load capacitance	10 pF
Manufacturer's serial number	M1325
Installation features	SURFACE MOUNT
Maximum operating frequency	29.9999 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L5.0XB3.2XH0.8 (mm)/L0.197XB0.126XH0.031 (inch)
Series resistance	70 Ω
surface mount	YES

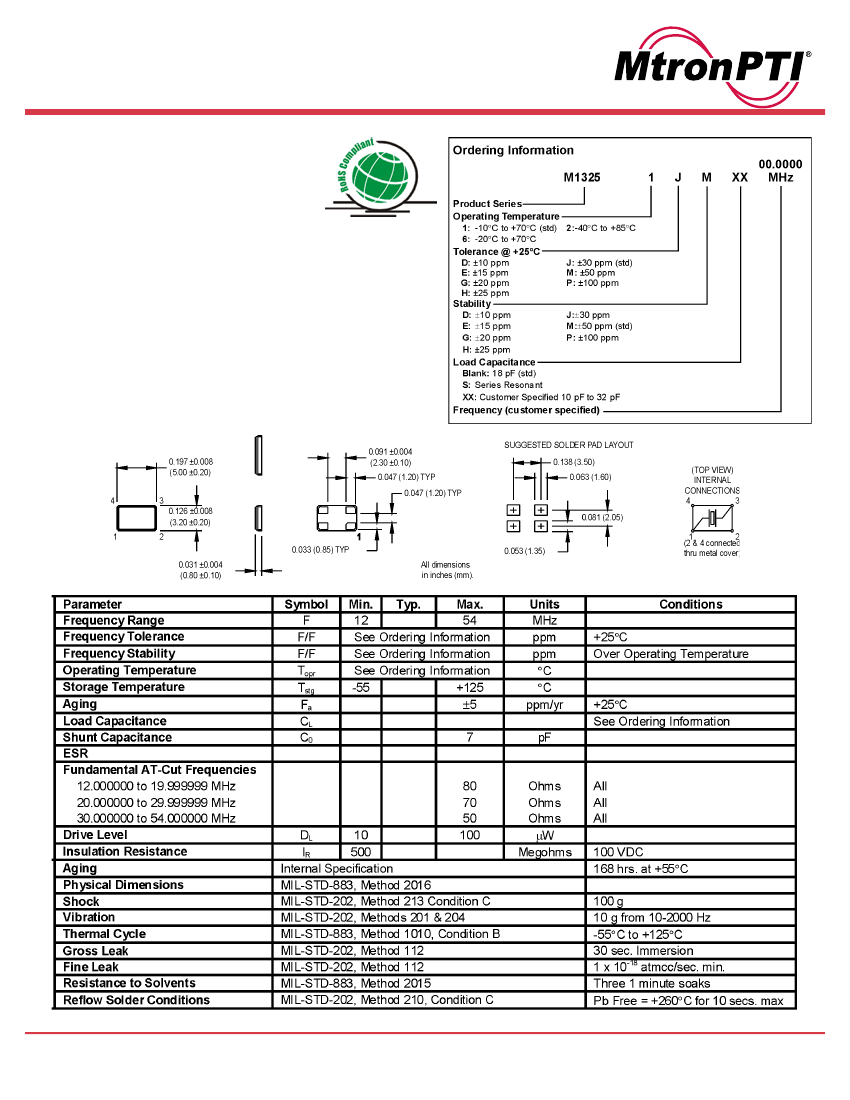

Preview

Download Datasheet

View All

M1325 Surface Mount Crystal

3.2 x 5 x 0.8 mm

Features:

•

Ultra-Miniature Size

•

Tape & Reel

•

Leadless Ceramic Package - Seam Sealed

Applications:

•

Handheld Electronic Devices

•

PDA, GPS, MP3

•

Portable Instruments

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-17-06
