PB15SP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PB15SP

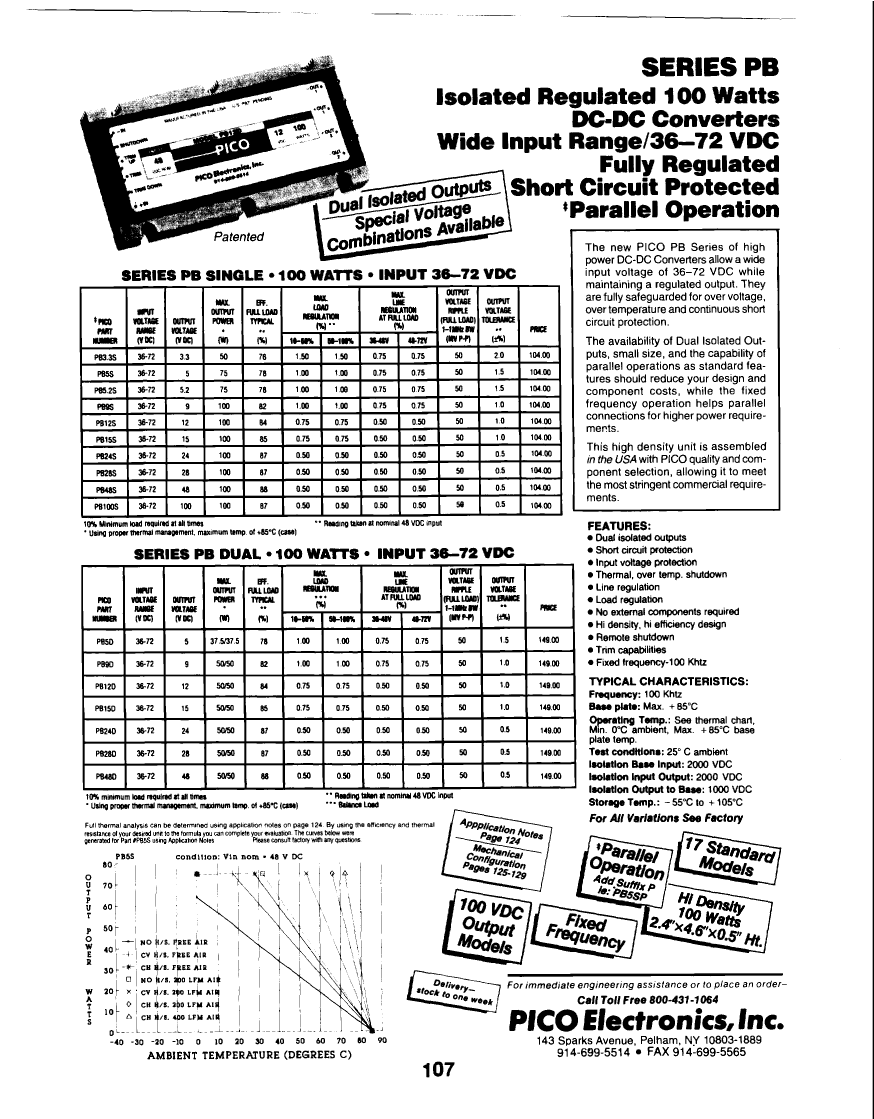

PB15SP: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,; CategoryPower/power management The power supply circuit; File Size92KB，1 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric Compare View All

PB15SP Overview

DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,

PB15SP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pico Electronics Inc.
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	85%
Maximum input voltage	72 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDFM-P8
JESD-609 code	e0
Maximum grid adjustment rate	0.5%
Maximum load regulation	0.75%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature
Maximum output voltage	15.75 V
Minimum output voltage	14.25 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	THERMAL; CURRENT; INPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	100 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

PB15SP Related Products

	PB15SP	PB5SP	PB3.3SP	PB9SP	PB24SP	PB12SP	PB48SP
Description	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	85%	78%	76%	82%	87%	84%	88%
Maximum input voltage	72 V	72 V	72 V	72 V	72 V	72 V	72 V
Minimum input voltage	36 V	36 V	36 V	36 V	36 V	36 V	36 V
Nominal input voltage	48 V	48 V	48 V	48 V	48 V	48 V	48 V
JESD-30 code	R-XDFM-P8	R-XDFM-P8	R-XDFM-P8	R-XDFM-P8	R-XDFM-P8	R-XDFM-P8	R-XDFM-P8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.5%	0.75%	0.75%	0.75%	0.5%	0.5%	0.5%
Maximum load regulation	0.75%	1%	1.5%	1%	0.5%	0.75%	0.5%
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Maximum output voltage	15.75 V	5.25 V	3.465 V	9.45 V	25.2 V	12.6 V	50.4 V
Minimum output voltage	14.25 V	4.75 V	3.135 V	8.55 V	22.8 V	11.4 V	45.6 V
Nominal output voltage	15 V	5 V	3.3 V	9 V	24 V	12 V	48 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Protect	THERMAL; CURRENT; INPUT OVER VOLTAGE	THERMAL; CURRENT; INPUT OVER VOLTAGE	THERMAL; CURRENT; INPUT OVER VOLTAGE	THERMAL; CURRENT; INPUT OVER VOLTAGE	THERMAL; CURRENT; INPUT OVER VOLTAGE	THERMAL; CURRENT; INPUT OVER VOLTAGE	THERMAL; CURRENT; INPUT OVER VOLTAGE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	100 W	75 W	50 W	100 W	100 W	100 W	100 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES
Maker	Pico Electronics Inc.	Pico Electronics Inc.	-	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.	Pico Electronics Inc.
