Technical
Specification
PQ60015SMx25
35-75V
Input
100V
Transient Input
1.5V
Output
2250V dc
Isolation
Sixteenth-Brick
DC-DC Converter

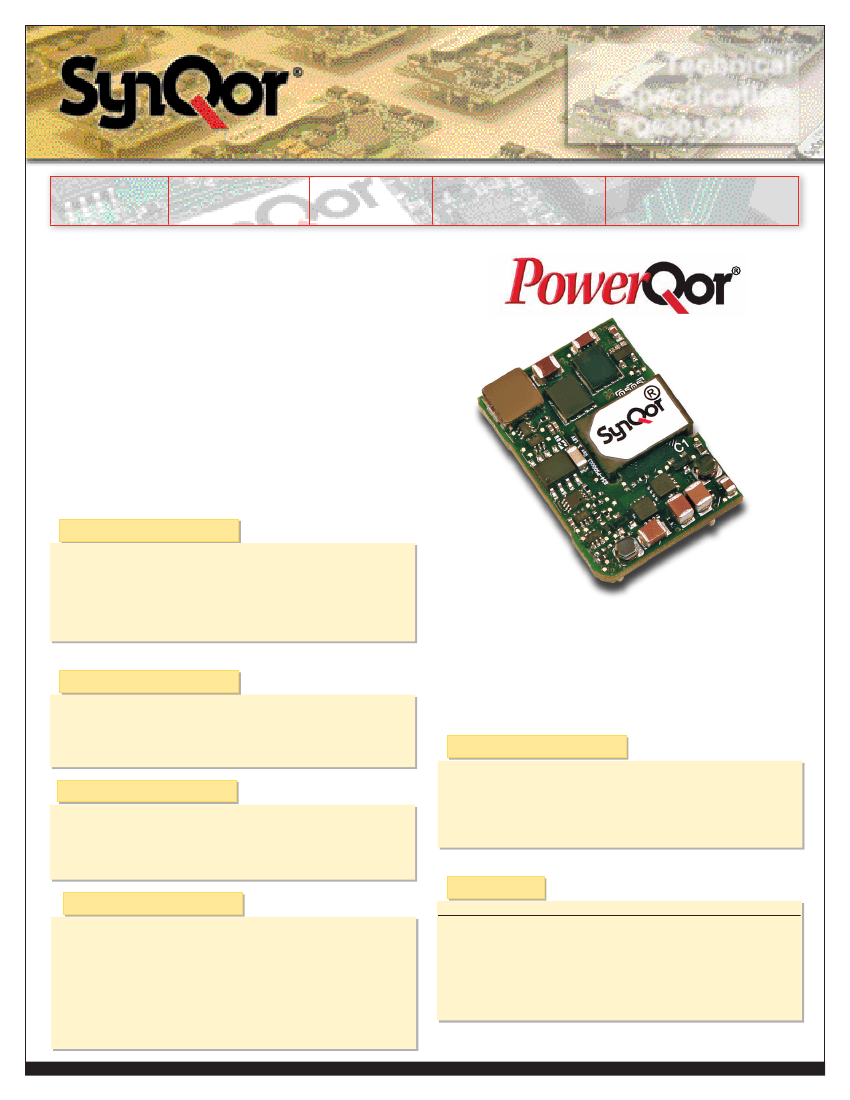

The PQ60015SMx25 PowerQor
®
Mega sixteenth brick
converter is a next-generation, board-mountable,
isolated, fixed switching frequency DC/DC converter
that uses synchronous rectification to achieve
extremely high conversion efficiency. The power
dissipated by the converter is so low that a heatsink
is not required, which saves cost, weight, height,
and application effort. All of the power and control
components are mounted to the multi-layer PCB
substrate with high-yield surface mount technology.
Since the PowerQor converter has no explicit thermal
interfaces, it is extremely reliable. RoHS compliant
(see last page).
Operational Features
• High efficiency, 83% at full rated load current
• Delivers up to 37W of output power with minimal derating
• Operating input voltage range: 35-75Vdc, with 100V for 100ms input
transient capability
• Fixed frequency switching provides predictable EMI
• No minimum load requirement
PQ60015SML25 Module
Mechanical Features
•
•
•
•
Industry standard sixteenth-brick pin-out configuration
Size: 0.95" x 1.35" (24.1 x 34.3 mm)
Height: .327" (8.3mm) low profile and .397" (10.1mm) standard
Weight: .476oz (13.5g)
Protection Features
•
•
•
•
•
Input under-voltage lockout
Output current limit and short circuit protection
Active back bias limit
Output over-voltage protection
Thermal shutdown
Control Features
• On/Off control referenced to input side (positive and negative logic
options are available)
• Remote sense for the output voltage compensates for output
distribution drops
• Output voltage trim permits custom voltages and voltage margining
Safety Features
Pending
• 2250V input-to-output isolation
• UL 60950-1:2003
• CAN/CSA-C22.2 No. 60950-1:2003
• EN60950-1:2001
• Needle Flame Test (IEC 695-2-2)
• IEC 61000-4-2
• RoHS compliant (see page 15)
Product # PQ60015SMx25
Phone 1-888-567-9596
Contents
PQ60 SMA & SML Mechanical Drawing. . . . . . . . . . . . . . . . . . . . . . . . 2
PQ60 SMC Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PQ60015SMx25 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . 4-5
PQ60015SMx25 Standards & Qualification Testing . . . . . . . . . . . . . . . 6
PQ60015SMx25 Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Application Section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-14
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Page No.
www.synqor.com
Doc.# 005-0005218 Rev. C
06/28/11
Page 1
Technical
Specification
PQ60015SMx25

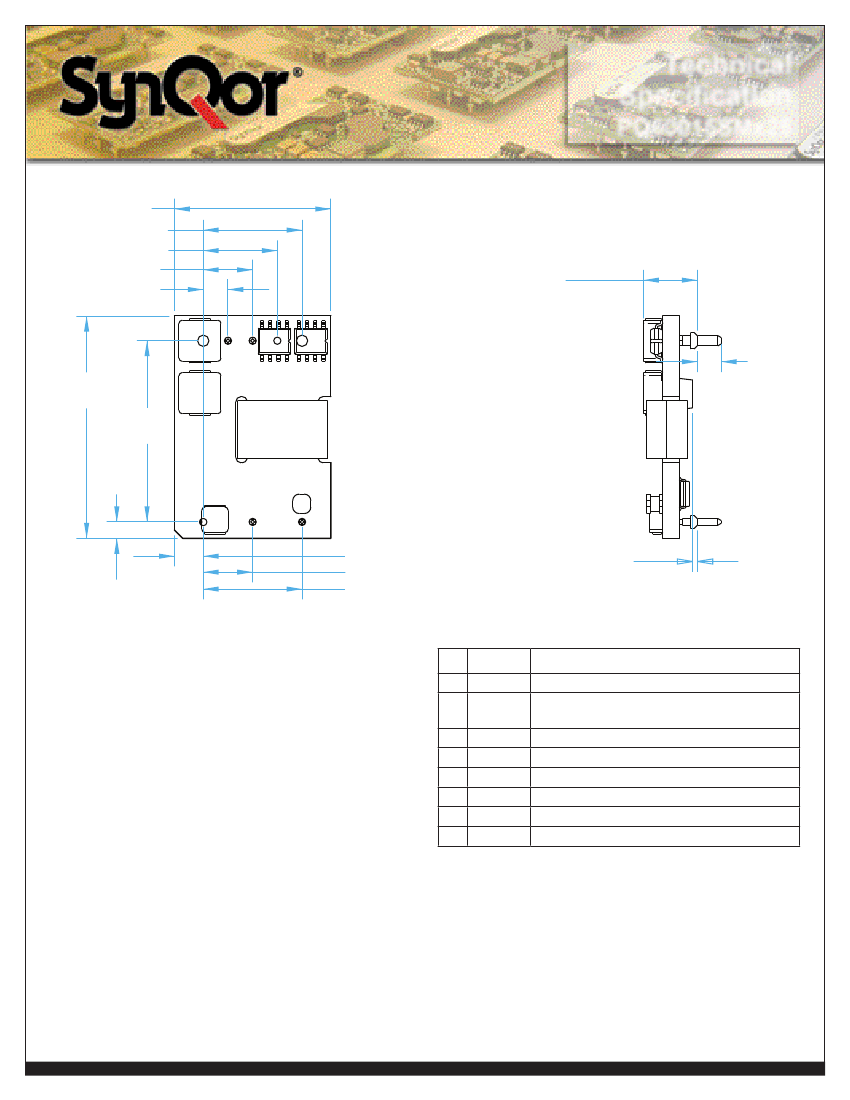

PQ60 SMA & SML Mechanical Drawing
.95 [24.1]
.600 [15.24]
.450 [11.43]
.300 [7.62]
.150 [3.81]
OVERALL HEIGHT
Low Profile
.327 [8.31]
8
1.35
[34.3]
1.10
[27.9]
.100
[2.54]
1
2
3
.18 [4.4]
.300 [7.62]
.600 [15.24]
BOTTOMSIDE CLEARANCE
Low Profile
.027 ±.015 [0.69 ±0.38]
TOP VIEW
7
6 5
4
.145
[3.68]
SIDE VIEW
NOTES
1)
Pins 1-3, 5-7 are 0.040” (1.02mm) diameter, with 0.080”
(2.03mm) diameter standoff shoulders.
2)
Pins 4 and 8 are 0.062” (1.57 mm) diameter with 0.100" (2.54
mm) diameter standoff shoulders.
3)
Other pin extension lengths available. Recommended pin length is
0.03” (0.76mm) greater than the PCB thickness.
4)
All Pins: Material - Copper Alloy- Finish (RoHS 6/6) - Matte Tin
over Nickel plate
5)
Undimensioned components are shown for visual reference only.
6)
All dimensions in inches (mm) Tolerances: x.xx +/-0.02 in. (x.x
+/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm)
7)
Weight: .476oz (13.5g)
8)
Workmanship: Meets or exceeds IPC-A-610C Class II
9)
Open frame units have flanged pins are designed to permit surface
mount soldering (avoid wave solder) using PiP technique.
1)
2)
3)
Pin
1
2
3
4
5
6
7
8
Notes:
Name
Vin(+)
ON/OFF
Vin(–)
Vout(–)
SENSE(–)
TRIM
SENSE(+)
Vout(+)
PIN DESIGNATIONS
Function
Positive input voltage
TTL input to turn converter on and off, referenced to
Vin(–), with internal pull up.
Negative input voltage
Negative output voltage
Negative remote sense(see note 1)
Output voltage trim (see note 2)
Positive remote sense (see note 3)
Positive output voltage
SENSE(–) should be connected to Vout(–) either remotely or at
the converter.
Leave TRIM pin open for nominal output voltage.
SENSE(+) should be connected to Vout(+) either remotely or at
the converter.
Product # PQ60015SMx25
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005218 Rev. C
06/28/11
Page 2
Technical
Specification
PQ60015SMx25

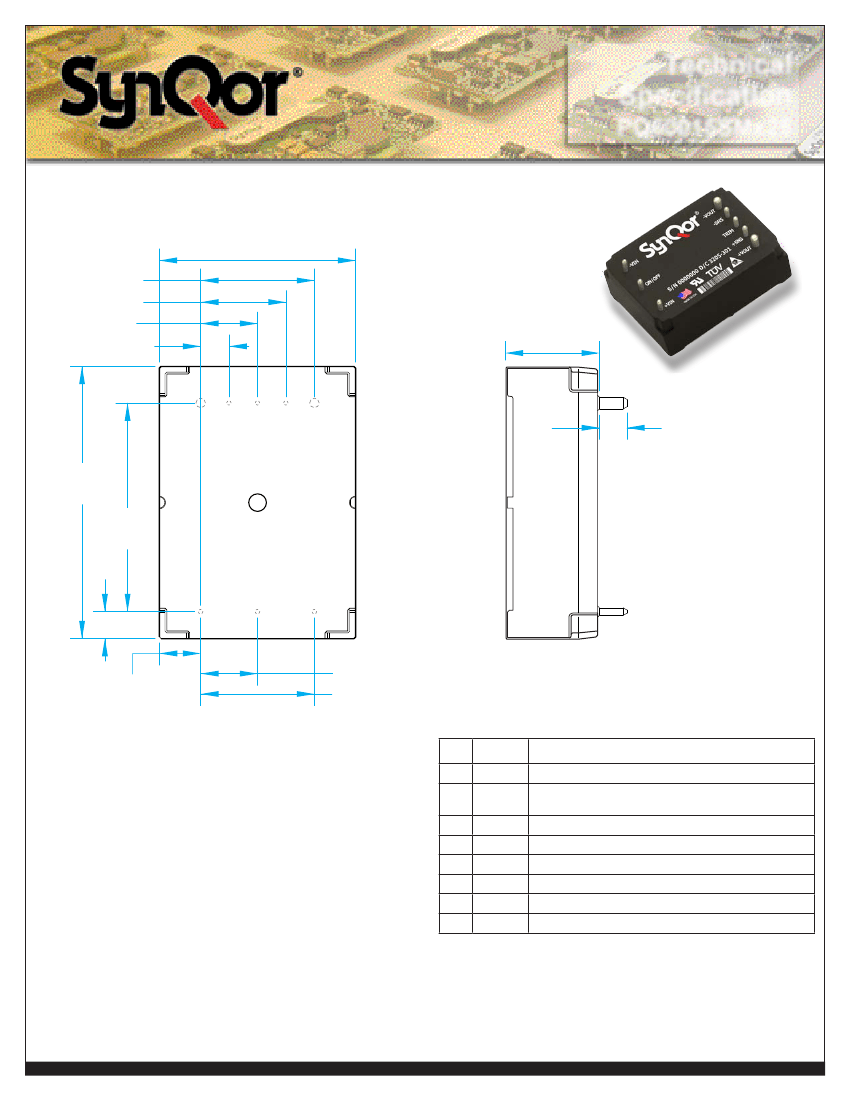

PQ60 SMC Mechanical Drawing
1.036±.020 (26.31±0.5)
P
T
5 S
V
OU
r
0 1
1.5
rte
60
75 V
IN
ve
Q
2
MC
5N
RS
-G
34
-
.600 (15.24)
.450 (11.43)
.300 (7.62)
.150 (3.81)
0.500±.025
(12.7±0.63)
Overall height
@
25
DC
A Con
C
/D
PQ60015SMC25
Module
8 7 6 5 4
1.436±.020
(36.47±0.5)
1.10
(27.9)
0.18
(4.6)
Top View
Side View
.143±.020
(3.63±0.5)
1
2
3
.218±.020
(5.54±0.5)
.300 (7.62)
.600 (15.24)
NOTES
1)
Pins 1-3, 5-7 are 0.040” (1.02mm) diameter, with 0.080” (2.03mm)
diameter standoff shoulders.
2)
Pins 4 and 8 are 0.062” (1.57 mm) diameter with 0.100" (2.54 mm)
diameter standoff shoulders.
Pin
1
2
3
4
5
6
7
8
Notes:
1)
2)
3)
Name
Vin(+)
ON/OFF
Vin(–)
Vout(–)
TRIM
Vout(+)
PIN DESIGNATIONS
Function
Positive input voltage
TTL input to turn converter on and off, referenced to
Vin(–), with internal pull up.
Negative input voltage
Negative output voltage
Output voltage trim (see note 2)
Positive output voltage
3)
Other pin extension lengths available. Recommended pin length is
0.03” (0.76mm) greater than the PCB thickness.
4)
All Pins: Material - Copper Alloy- Finish (RoHS 6/6) - Matte Tin over
Nickel plate
5)
Undimensioned components are shown for visual reference only.
6)
All dimensions in inches (mm) Tolerances: x.xx +/-0.02 in. (x.x
+/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm)
7)
Weight: 1.14oz (32.3g)
8)
Workmanship: Meets or exceeds IPC-A-610C Class II
SENSE(–) Negative remote sense(see note 1)
SENSE(+) Positive remote sense (see note 3)
SENSE(–) should be connected to Vout(–) either remotely or at
the converter.
Leave TRIM pin open for nominal output voltage.
SENSE(+) should be connected to Vout(+) either remotely or at
the converter.
Doc.# 005-0005218 Rev. C
06/28/11
Page 3
Product # PQ60015SMx25
Phone 1-888-567-9596
www.synqor.com
Technical
Specification
PQ60015SMx25
PQ60015SMx25 Electrical Characteristics
Ta = 25 °C, airflow rate = 300 LFM, Vin = 48V dc unless otherwise noted; full operating temperature range is -40 °C to +100 °C ambient temperature
with appropriate power derating. Specifications subject to change without notice.
Parameter
ABSOLUTE MAXIMUM RATINGS
Input Voltage
Non-Operating
Operating
Operating Transient Protection
Isolation Voltage
Input to Output
Operating Temperature
Storage Temperature
Voltage at ON/OFF input pin
INPUT CHARACTERISTICS
Operating Input Voltage Range
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Lockout Voltage Hysteresis
Maximum Input Current
No-Load Input Current
Disabled Input Current
Response to Input Transient
Input Reflected Ripple Current
Input Terminal Ripple Current
Recommended Input Fuse
Recommended External Input Capacitance
Input Filter Component Values (L\C)
OUTPUT CHARACTERISTICS
Output Voltage Set Point
Output Voltage Regulation
Over Line
Over Load
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
Peak-to-Peak
RMS
Operating Output Current Range
Output DC Current-Limit Inception
Back-Drive Current Limit while Enabled
Back-Drive Current Limit while Disabled
Maximum Output Capacitance
EFFICIENCY
100% Load
50% Load
Min.
Typ.
Max.
Units Notes & Conditions
100
80
100
2250
-40
-55
-2
35
31.2
28.9
48
32.5
30.5
2.0
1.4
48
10
50
3
35
20
100
1.0/2.35
1.485
1.5
±0.1/1.5
±0.1/1.5
-23
1.463
25
6
0
27.5
30
1.5
2
10
83
82
1.515
+0.3/3.5
+0.3/3.5
23
1.538
50
10
25
32l.5
60
14
100
125
8
75
33.8
32.2
V
V
V
V dc
°C
°C
V
V
V
V
V
A
mA
mA
mV
mA
mA
A
µF
µH/µF
V
%mV
%mV
mV
V
mV
mV
A
A
A
mA
mF
%
%
Continuous
Continuous
100ms transient
Input to output
100% Load, Vin min, nominal Vout
1000V/ms input transient
RMS thru 10μH inductor; Figures 13 & 15
RMS; Figures 13 & 14
Typical ESR 0.1-0.2 Ω
Internal values; see Figure E
Over sample, line, load, temperature & life
20 MHz bandwidth; Figures 13 & 16; see Note 1
Full load
Full load
Subject to thermal derating; Figures 5 - 8
Figure 17
Negative current drawn from output
Negative current drawn from output
Vout nominal at full load (resistive load); See Note 2
See Figure 1 for efficiency curve
See Figure 1 for efficiency curve
Note 1: For applications requiring reduced output voltage ripple and noise, consult SynQor applications support (email: support@synqor.com)
Note 2: Recommended minimum output capacitance is 100uF
Product # PQ60015SMx25
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005218 Rev. C
06/28/11
Page 4
Input:
48V
Output:
1.5V
Current:
25A
Technical Specification
PQ60015SMx25 Electrical Characteristics (continued)
Ta = 25 °C, airflow rate = 300 LFM, Vin = 48V dc unless otherwise noted; full operating temperature range is -40 °C to +100 °C ambient temperature
with appropriate power derating. Specifications subject to change without notice.
Parameter
DYNAMIC CHARACTERISTICS
Input Voltage Ripple Rejection
Output Voltage during Load Current Transient
Step Change in Output Current (0.1 A/µs)
Step Change in Output Current (2 A/µs)
Settling Time
Turn-On Transient
Turn-On Time
Start-Up Inhibit Time
Power-Up Inhibit Time
Output Voltage Overshoot
ISOLATION CHARACTERISTICS
Isolation Voltage (dielectric strength)
Isolation Resistance
Isolation Capacitance (input to output)
Min.
Typ.
70
50
50
150
35
Max.
Units Notes & Conditions
dB
mV
mV
µs
ms
120 Hz; Figure 20
50% to 75% to 50% Iout max; Figure 11
50% to 75% to 50% Iout max; Figure 12
To within 1% Vout nom
Full load, Vout=90% nom.
Figure F; See Note 1
Figure F
Max output capacitance and full load
180
200
2
0
2250
30
1000
250
ms
ms
%
MΩ
pF
125
125
125
°C
°C
°C
kHz
V
V
V
V
Figures A & B
V
kΩ
10
10
%
%
V
°C
°C
106 Hrs.
106 Hrs.
106 Hrs. See our website for details
Measured across Pins 8 & 4; Figure C
Measured across Pins 8 & 4
Over full temp range
Average PCB Temperature; Auto Recovery
See Note 2
Package rated to 150 °C
UL rated max operating temp 130 °C
See Figure 2 for derating curve
TEMPERATURE LIMITS FOR POWER DERATING CURVES
Semiconductor Junction Temperature
Board Temperature
Transformer Temperature
FEATURE CHARACTERISTICS
Switching Frequency
ON/OFF Control (Option P)
On-State Voltage
Off-State Voltage
ON/OFF Control (Option N)
On-State Voltage
Off-State Voltage
ON/OFF Control (Either option)
Pull-Up Voltage
Pull-Up Resistance
Output Voltage Trim Range
Output Voltage Remote Sense Range
Output Over-Voltage Protection
Over-Temperature Shutdown OTP Trip Point
Over-Temperature Shutdown Restart Hysteresis
RELIABILITY CHARACTERISTICS
Calculated MTBF (Telcordia) TR-NWT-000332
Calculated MTBF (MIL-217) MIL-HDBK-217F
Field Demonstrated MTBF
Note 1: Maximum value is 400ms for DC current limit and short circuit fault conditions
Note 2: Higher values of isolation capacitance can be added external to the module.
Product # PQ60015SMx25
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005218 Rev. C
06/28/11
Page 5
315
2.4
-2
-2
2.4
4.5
-10
1.7
350
385
8
0.8
0.8
8
5
10
5.5
1.9
125
10
3.9
3.5
2.1
京公网安备 11010802033920号
EEWORLD
