2235-6-34-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2235-6-34-1

2235-6-34-1: DescriptionBoard Connector, 102 Contact(s), 3 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2235-6-34-1 Overview

Board Connector, 102 Contact(s), 3 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal

2235-6-34-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.236 inch
subject depth	0.286 inch
body length	2.677 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	2235
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	102
Base Number Matches	1

Preview

Download Datasheet

View All

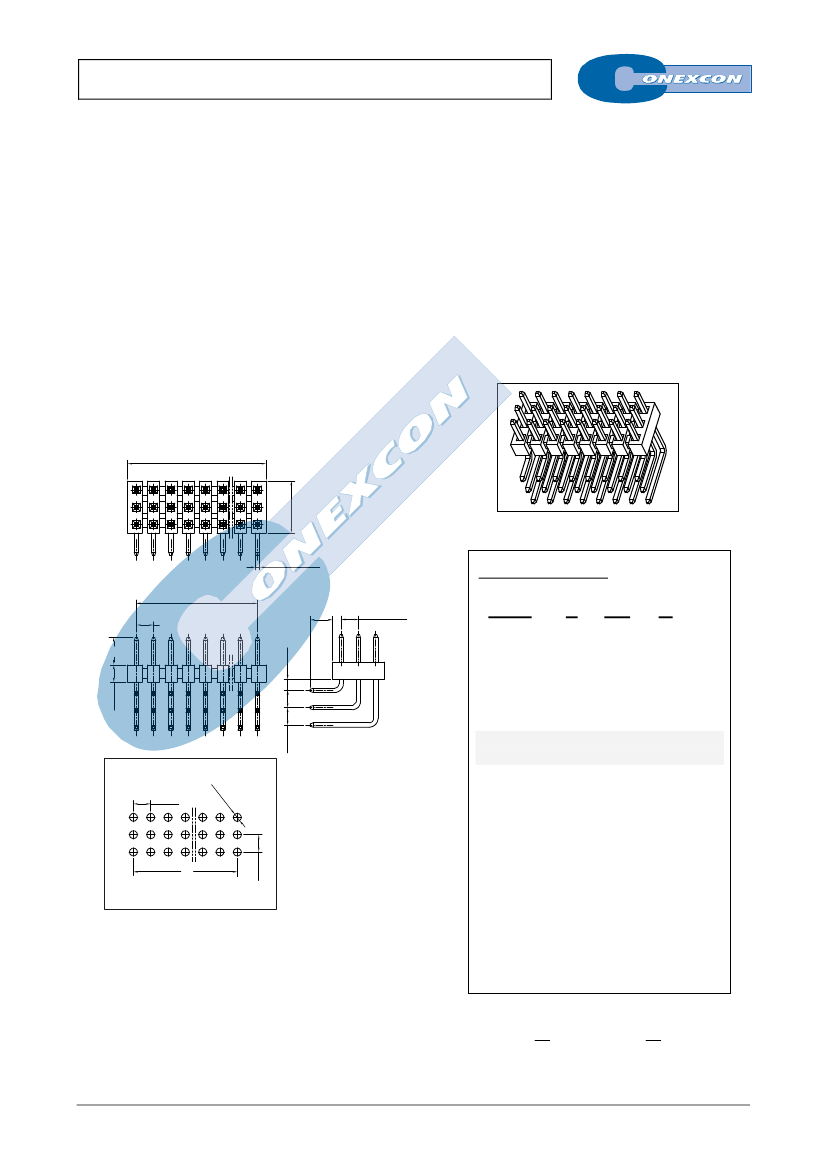

TRIPLE ROW RIGHT ANGLE PIN HEADER

2235 SERIES.

2.00 mm. (0.079”) pitch.

General Features

Electrical Features



Available in 12 through 120 circuits

Mates with sockets 2.00 mm. pitch

0.50 mm. square pin with different plating

Available with different pin length.

Contact sales office



Voltage rating: < 125V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2pF at 1 KHz.

Materials

Mechanical Features

Pin retention force to insulator: > 0.30 Kgf

Durability: 50 cycles



Insulator: Polyester nylon 6T UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Dimension Information

B±0.25

0.50±0.2

A±0.15

D±0.3

2.00±0.1

1.27

H±0.15

2.00±0.1

6.00

Ordering Information:

2235 -

T-

XX-

1. Connector Series

2. (T) Contact Plating

2.00



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

Tolerance: 0.05 mm.

.90

ø0

2.00

3. (XX) Number of circuits

RECOMMENDED HOLE PATTERN







Available in 6 through 120 circuits

(XX= circuits per row)

4. (C) Pin Dimensions

C =

H = 4.00 mm. ; D = 2.80 mm.

DIMENSIONS

2.00















2.00













(XX) = Number of circuits

A-XX
