2-487952-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-487952-3

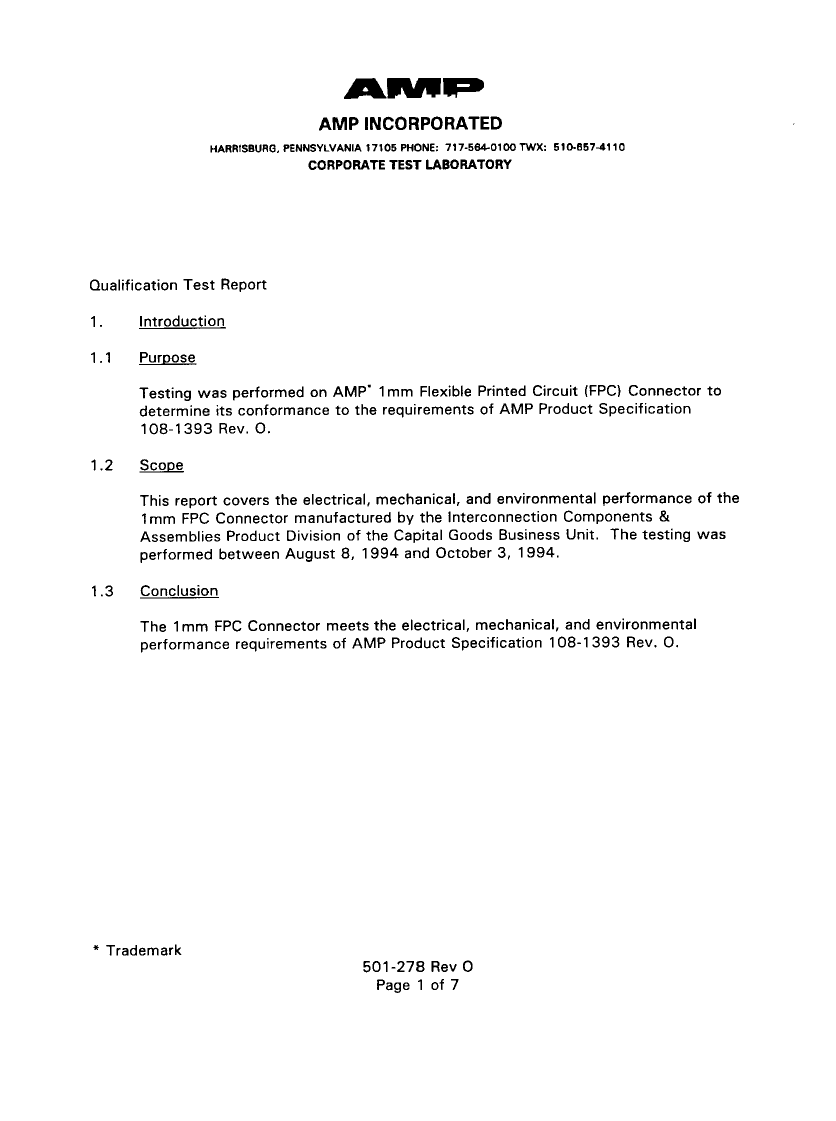

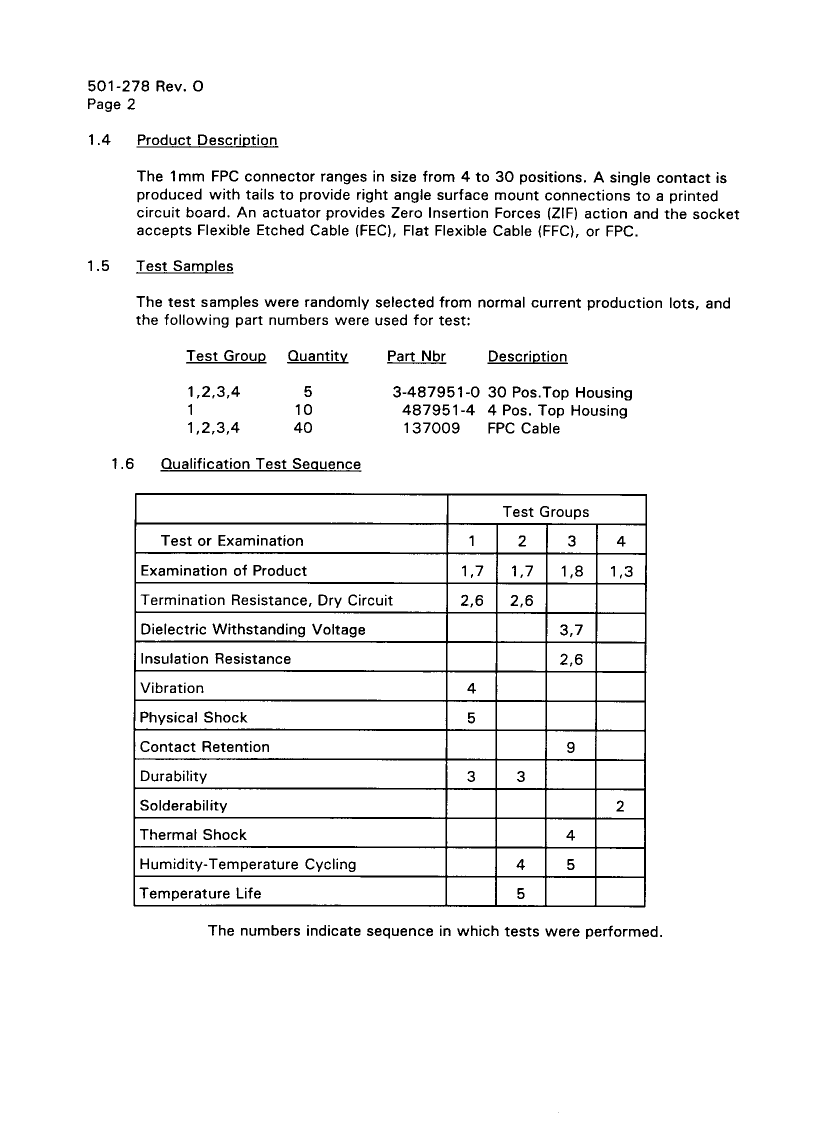

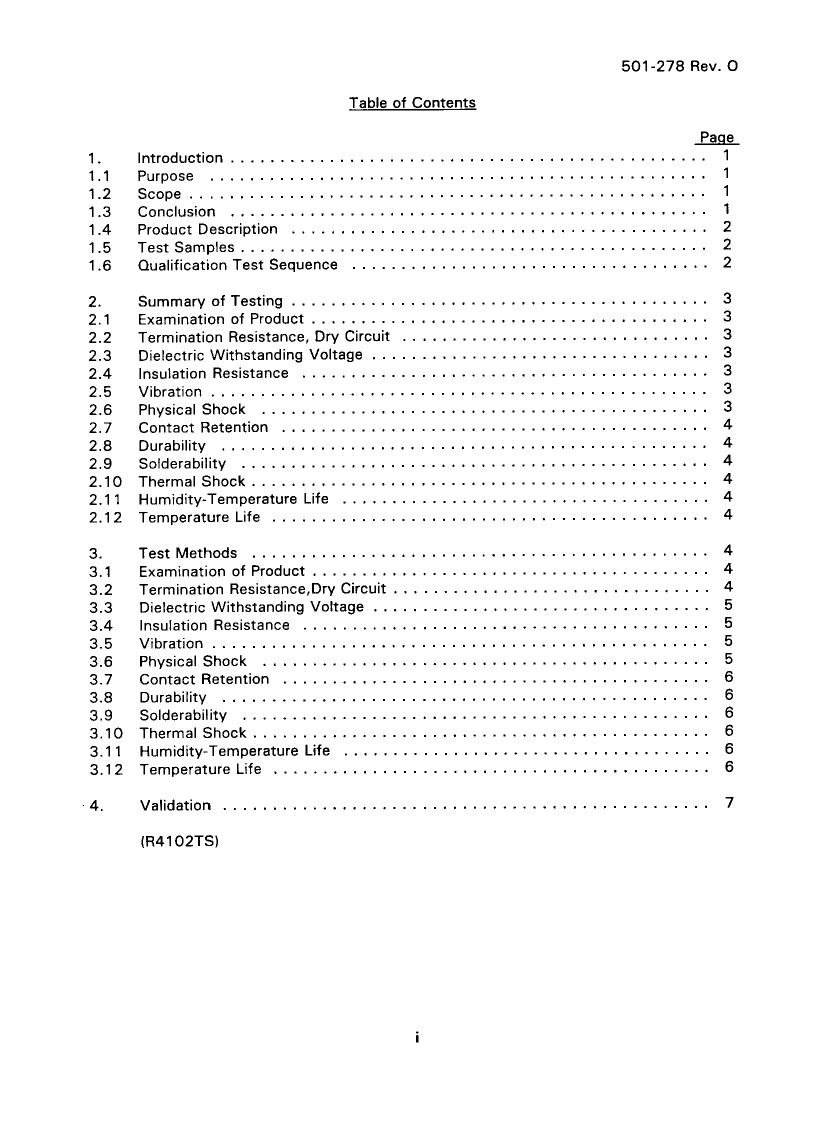

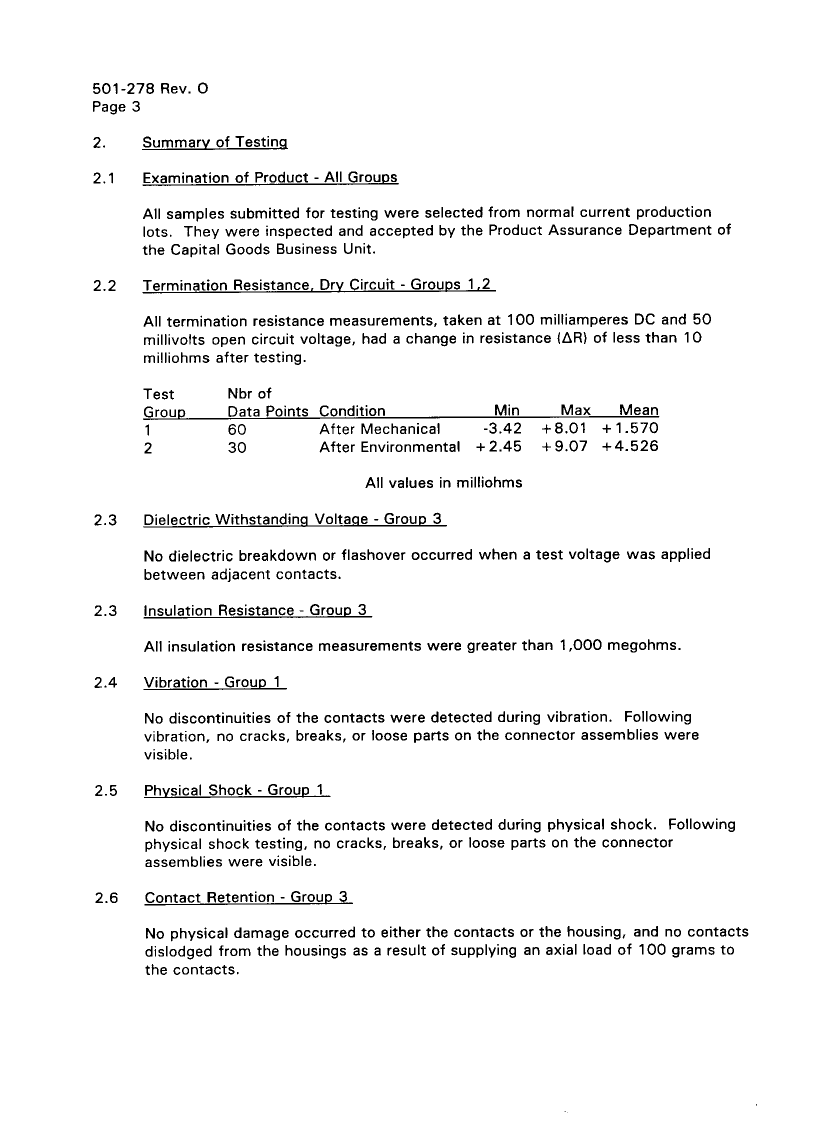

2-487952-3: Description23 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size142KB，9 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-487952-3 Overview

23 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT

2-487952-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1504490160
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	AMP
body width	0.101 inch
subject depth	0.233 inch
body length	1.217 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	150u inch
Rated current (signal)	1 A
Guideline	UL, CSA
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	23
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

2-487952-3 Related Products

	2-487952-3	2-487951-8	G2809S-13-G2	H140250G	1-487952-3	1-487952-5	1-487952-7
Description	23 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	28 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Board Connector, 40 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	13 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	15 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	17 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT
Reach Compliance Code	compliant	compli	compliant	compliant	unknown	compliant	unknown
body width	0.101 inch	0.101 inch	0.078 inch	0.13 inch	0.101 inch	0.101 inch	0.101 inch
subject depth	0.233 inch	0.213 inch	0.06 inch	0.059 inch	0.233 inch	0.233 inch	0.233 inch
body length	1.217 inch	1.414 inch	1.027 inch	4 inch	0.824 inch	0.902 inch	0.981 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Plug contact pitch	0.039 inch	0.039 inch	0.079 inch	0.1 inch	0.039 inch	0.039 inch	0.039 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Guideline	UL, CSA	UL	UL	UL	UL, CSA	UL, CSA	UL, CSA
Terminal pitch	1 mm	1 mm	2.0066 mm	2.54 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SOLDER	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	23	28	13	40	13	15	17
Is it Rohs certified?	incompatible	incompatible	-	-	incompatible	incompatible	incompatible
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	AMP	AMP	-	-	AMP	AMP	AMP
Contact to complete cooperation	NOT SPECIFIED	TIN LEAD	AU ON NI	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	10 mΩ	10 mΩ	-	-	10 mΩ	10 mΩ	10 mΩ
DIN compliance	NO	NO	-	-	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	-	-	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	-	-	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	-	-	NO	NO	NO
IEC compliance	NO	NO	-	-	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	-	-	ZIF N	ZIF N	ZIF N
Insulation resistance	1000000000 Ω	1000000000 Ω	-	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	BLACK	-	NATURAL	NATURAL	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	POLYESTER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	-	-	NO	NO	NO
Mixed contacts	NO	NO	-	-	NO	NO	NO
Installation option 1	LOCKING	LOCKING	-	-	LOCKING	LOCKING	LOCKING
Maximum operating temperature	85 °C	85 °C	-	-	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	150u inch	-	-	-	150u inch	150u inch	150u inch
Rated current (signal)	1 A	1 A	-	-	1 A	1 A	1 A
UL Flammability Code	94V-0	94V-0	-	-	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	-	-	ZIF N	ZIF N	ZIF N
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Base Number Matches	-	1	-	-	1	1	1
