222506-4 datasheet, PDF - EEWORLD Datasheet

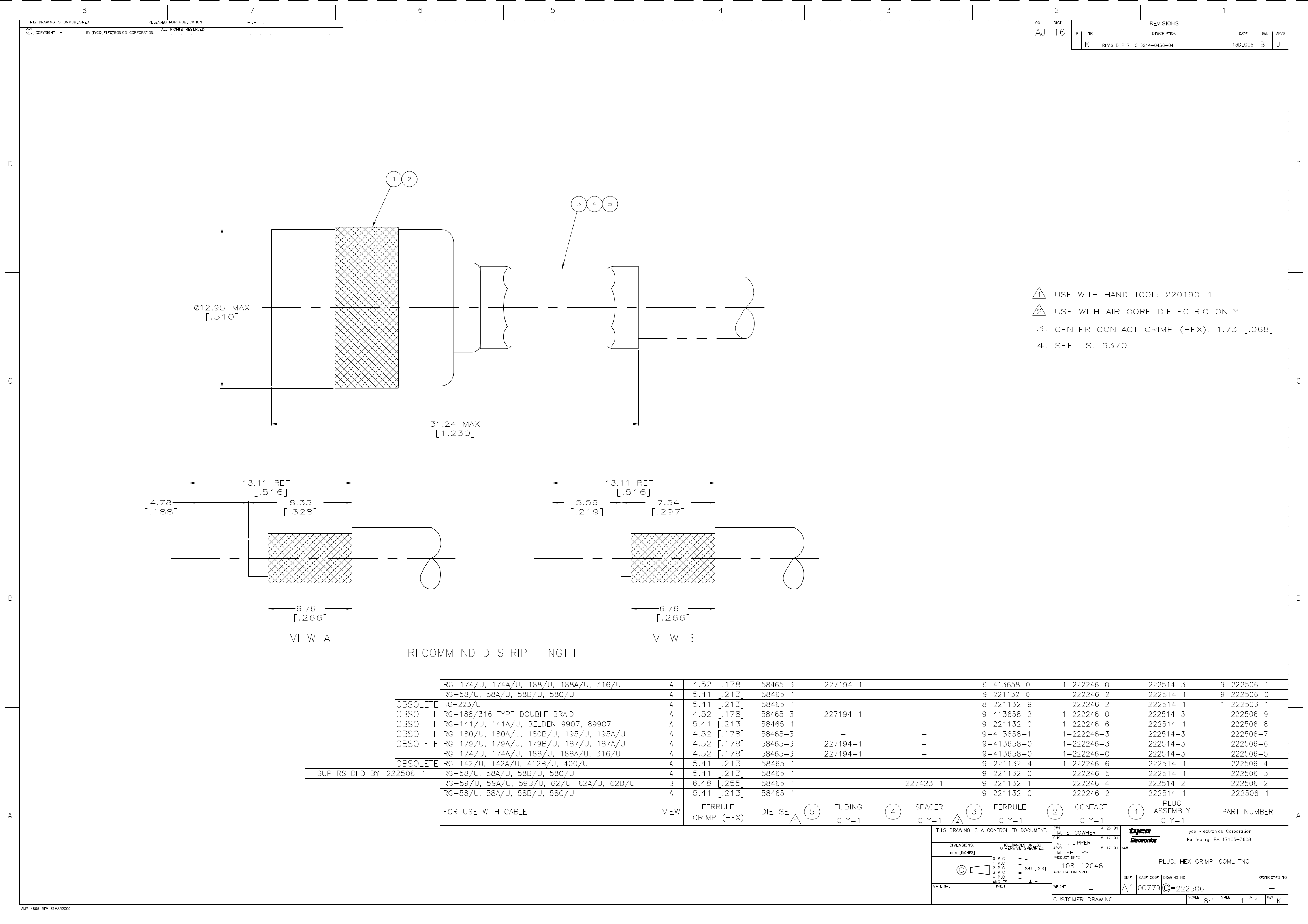

222506-4: DescriptionCABLE TERMINATED, MALE, TNC CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size136KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

222506-4 Overview

CABLE TERMINATED, MALE, TNC CONNECTOR, CRIMP, PLUG

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 142/U; RG 142A/U
Body/casing type	PLUG
Cable type	RG-174
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	222506
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	7 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

	222506-4	222506-7	TPS40322_15	TLV62090_15	333-2-058-1-T-RR1-1150
Description	CABLE TERMINATED, MALE, TNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, TNC CONNECTOR, CRIMP, PLUG	Dual Output or Two-Phase Synchronous Buck Controller	TLV62090 3A High Efficient Synchronous Step Down Converter with DCS™ Control	Board Connector, 58 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal
Reach Compliance Code	unknow	unknow	-	-	compliant
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR	-	-	BOARD CONNECTOR
Contact to complete cooperation	GOLD	NOT SPECIFIED	-	-	SN
Contact point gender	MALE	MALE	-	-	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	-	COPPER ALLOY
Manufacturer's serial number	222506	222506	-	-	333
Installation method	STRAIGHT	STRAIGHT	-	-	RIGHT ANGLE
Installation type	CABLE	CABLE	-	-	BOARD
Termination type	CRIMP	CRIMP	-	-	SURFACE MOUNT
