P6-352320 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> P6-352320

P6-352320: DescriptionSnap Acting/Limit Switch, DPDT, Momentary, 10A, 28VDC, 3.82mm, Quick Connect Terminal, Lever Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size532KB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

P6-352320 Overview

Snap Acting/Limit Switch, DPDT, Momentary, 10A, 28VDC, 3.82mm, Quick Connect Terminal, Lever Actuator, Panel Mount

P6-352320 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OTTO
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	3.82 mm
Actuator type	LEVER
body width	14.86 mm
body height	17.53 mm
Body length or diameter	21.59 mm
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
Manufacturer's serial number	P6-3
Installation features	PANEL MOUNT
Maximum operating force	8.9 N
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Maximum pre-travel	3.18 mm
seal	WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

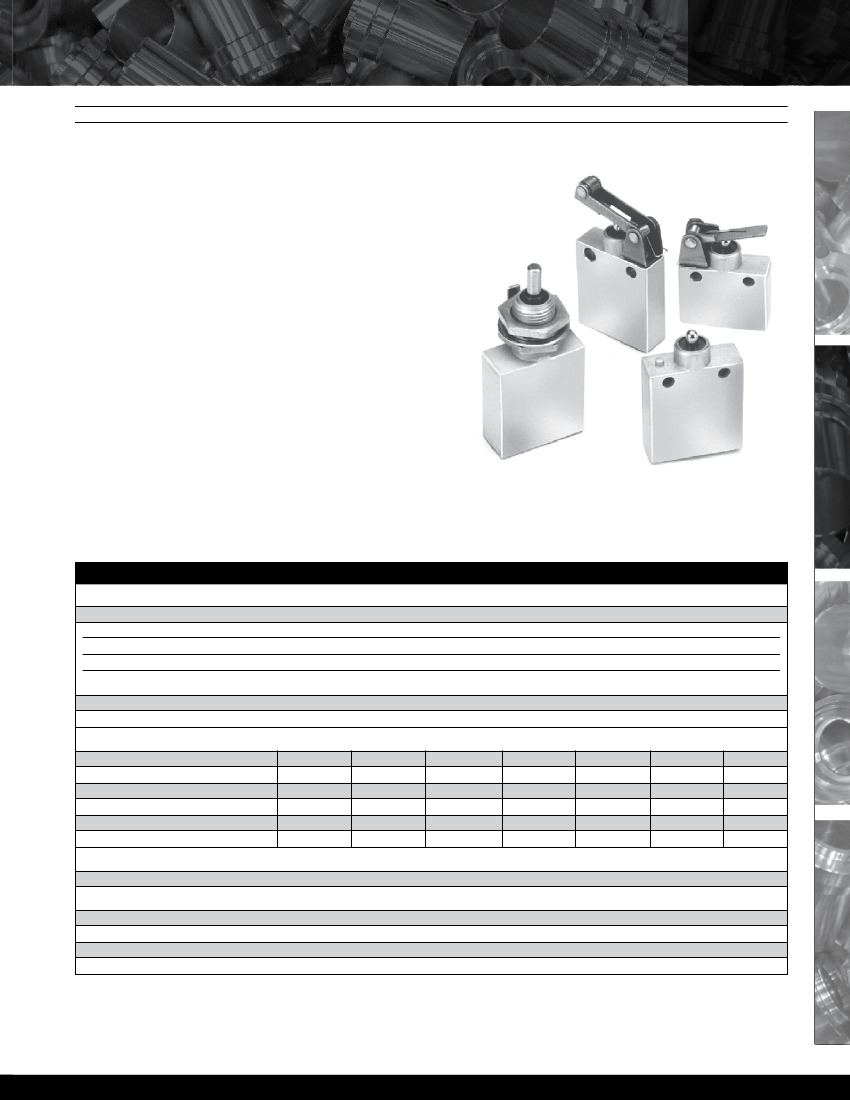

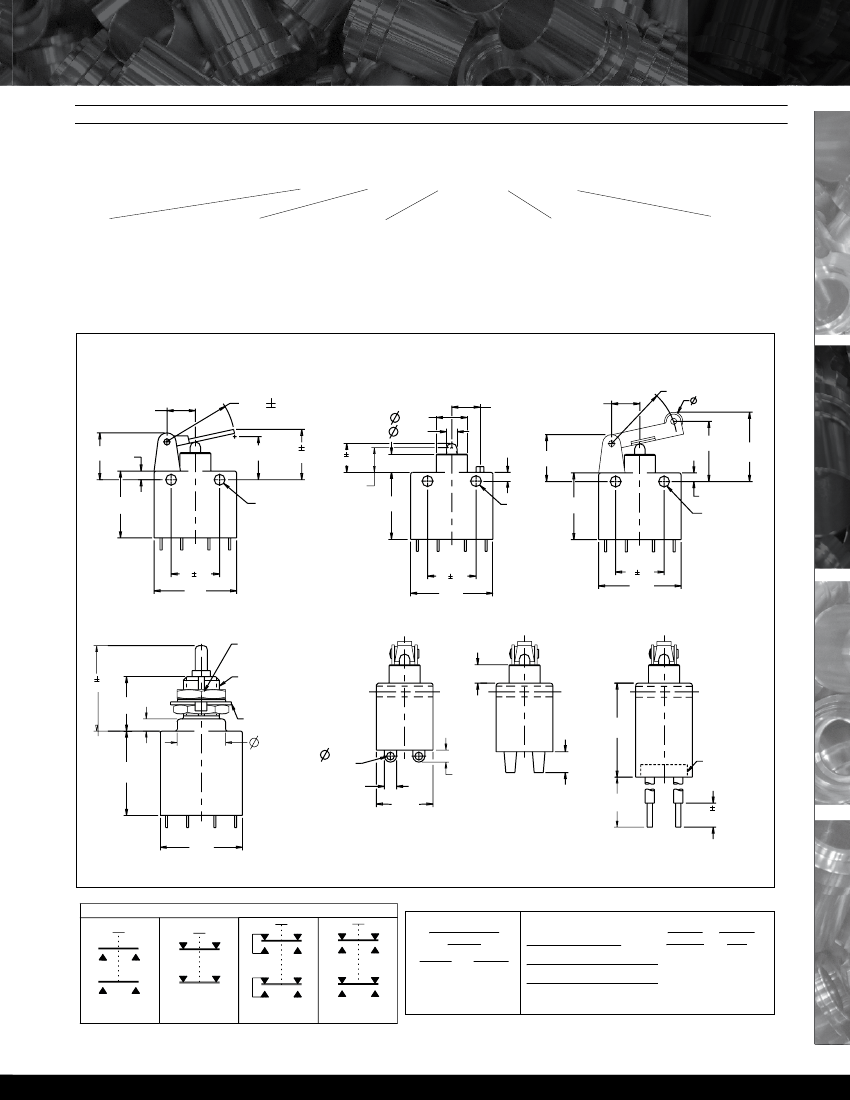

SubMInIaTurE WaTErTIgHT SEaLEd

fEaTurIng oTTo b5 SErIES baSIC SWITCHES

LIMIT

SWITCHES

p6-3

These subminiature sealed switches are contained in a

rugged aluminum housing with choice of lever, roller or

plunger. Featuring the B5 series basic switch, the P6-3

series is able to switch up to 10 amps. The high contact

pressure and superior wiping action of the OTTO design

also makes the P6-3 series an excellent choice when

switching logic level loads.

Sealing against water and other liquids is per MIL-PRF-8805.

Wire leaded models feature potted leads. The solder terminals

are epoxy sealed.

Roller

Lever Style

Features:

•

Compact design

Watertight to MIL-PRF-8805

Choice of four actuator styles

Choice of wire lead or solder termination styles

Up to 10 amps switching capability

High contact pressure for low levels

Precision operating points

Reach compliant

LIMIT SWITCHES

Plunger

Style

Overtravel

Plunger Style

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive

Inductive

Motor

DWV

Electrical Life:

Mechanical Life:

50,000 cycles

10A

7.5A

Sea Level @ 28VDC

10A

3.5A

N/A

50,000 feet @ 28VDC

2 Circuit Per Pole

10A

N/A

500Vrms

Single Circuit N.O. or N.C.

2 Circuit Per Pole

Single Circuit N.O. or N.C.

1000Vrms

OPERATIONAL:

Operating Force:

Release Force:

Movement Differential:

Pretravel:

Overtravel:

Strength of Actuator:

Temperature Range:

Seal:

P6-31

16 oz max

4 oz min

0.060” max

0.125” max

0.025” min

10.0 lbs.

-55°C to +85°C

P6-32

40 oz max

8 oz min

0.020” max

0.050” max

0.012” min

25.0 lbs.

P6-33

20 oz max

4 oz min

0.060” max

0.125” max

0.025” min

10.0 lbs.

P6-34

40 oz max

8 oz min

0.020” max

0.070” max

0.187” min

25.0 lbs.

P6-35

32 oz max

4 oz min

0.080” max

0.125” max

0.025” min

10.0 lbs.

P6-36

60 oz max

24 oz min

0.035” max

0.050” max

0.012” min

25.0 lbs.

P6-37

20 oz max

4 oz min

0.080” max

0.125” max

0.025” min

10.0 lbs.

P6-38

48 oz max

8 oz min

0.040” max

0.070” max

0.187” min

25.0 lbs.

Enclosure Design 3, watertight per MIL-PRF-8805

MATERIALS:

Plunger:

Lever:

Mounting Hardware:

Corrosion resistant steel

Corrosion resistant steel (where applicable)

None provided

Specifications Subject To Change Without notice

www.ottoexcellence.com
