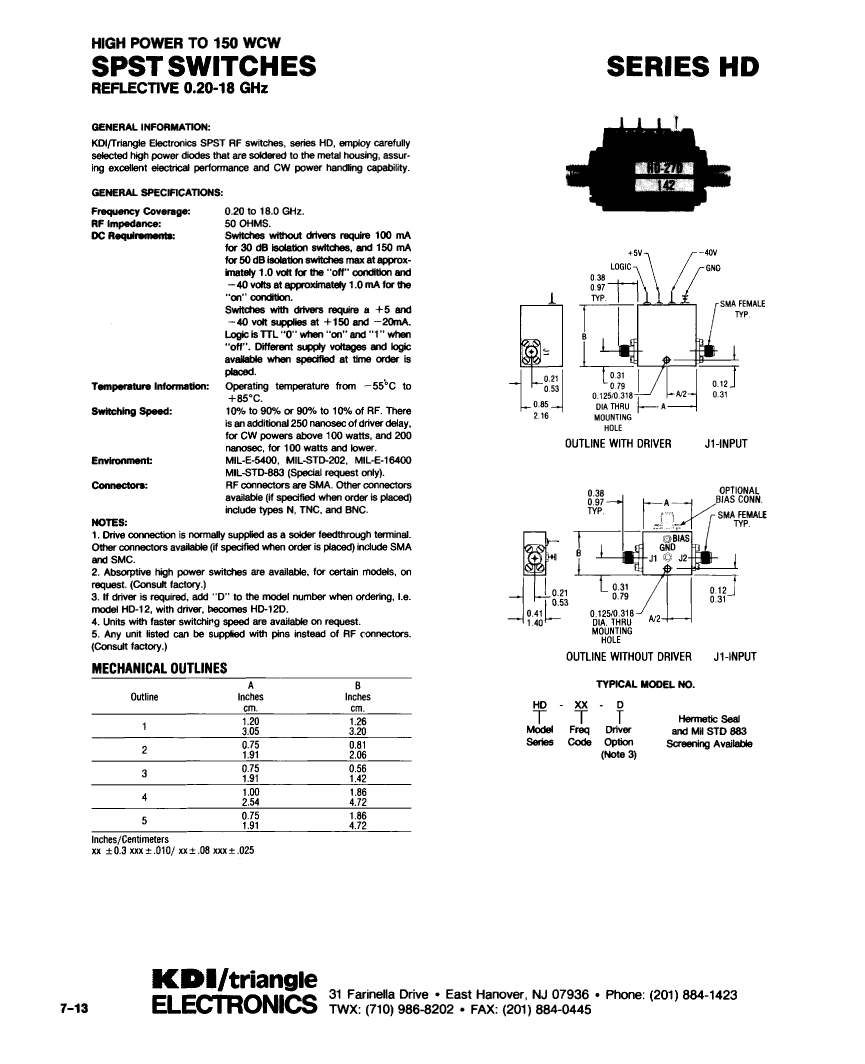

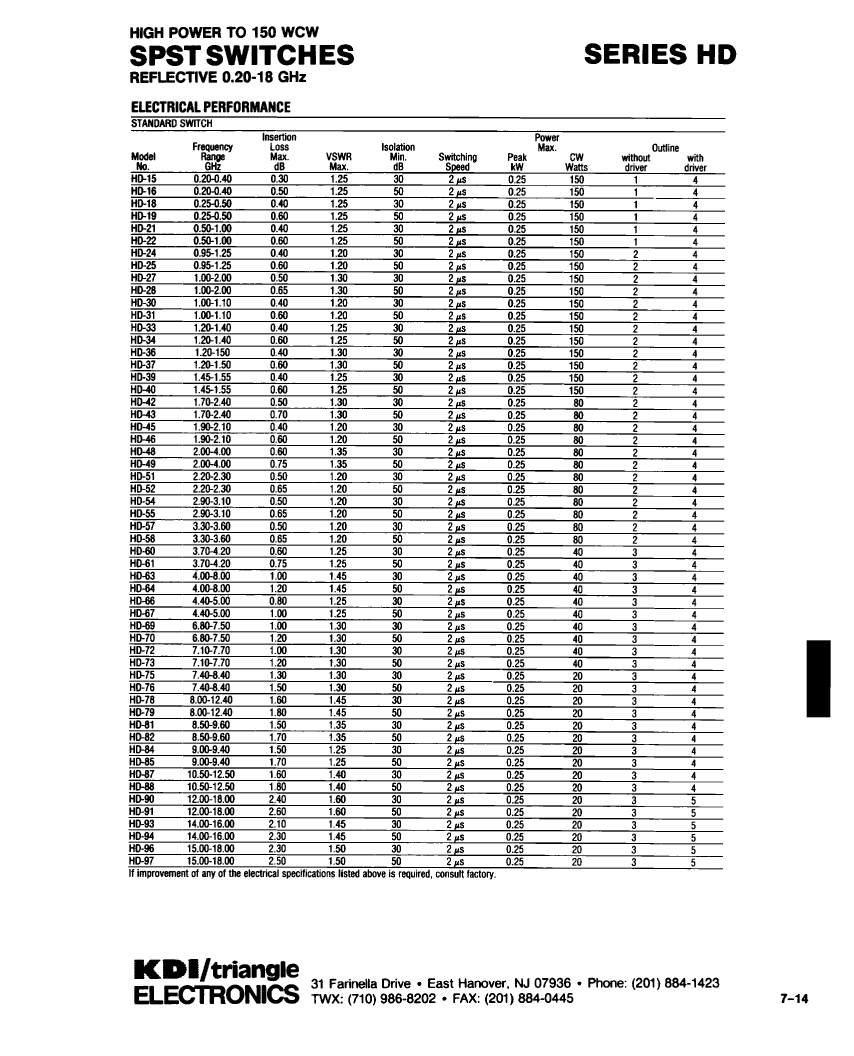

HD-54: DescriptionRF/Microwave Switch, 2900 MHz - 3100 MHz RF/MICROWAVE SGL POLE SGL THROW SWITCH, 0.5 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size95KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

HD-54 Overview

RF/Microwave Switch, 2900 MHz - 3100 MHz RF/MICROWAVE SGL POLE SGL THROW SWITCH, 0.5 dB INSERTION LOSS

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
Maximum input power (CW)	49.03 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	3100 MHz
Minimum operating frequency	2900 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPST
Maximum voltage standing wave ratio	1.2
