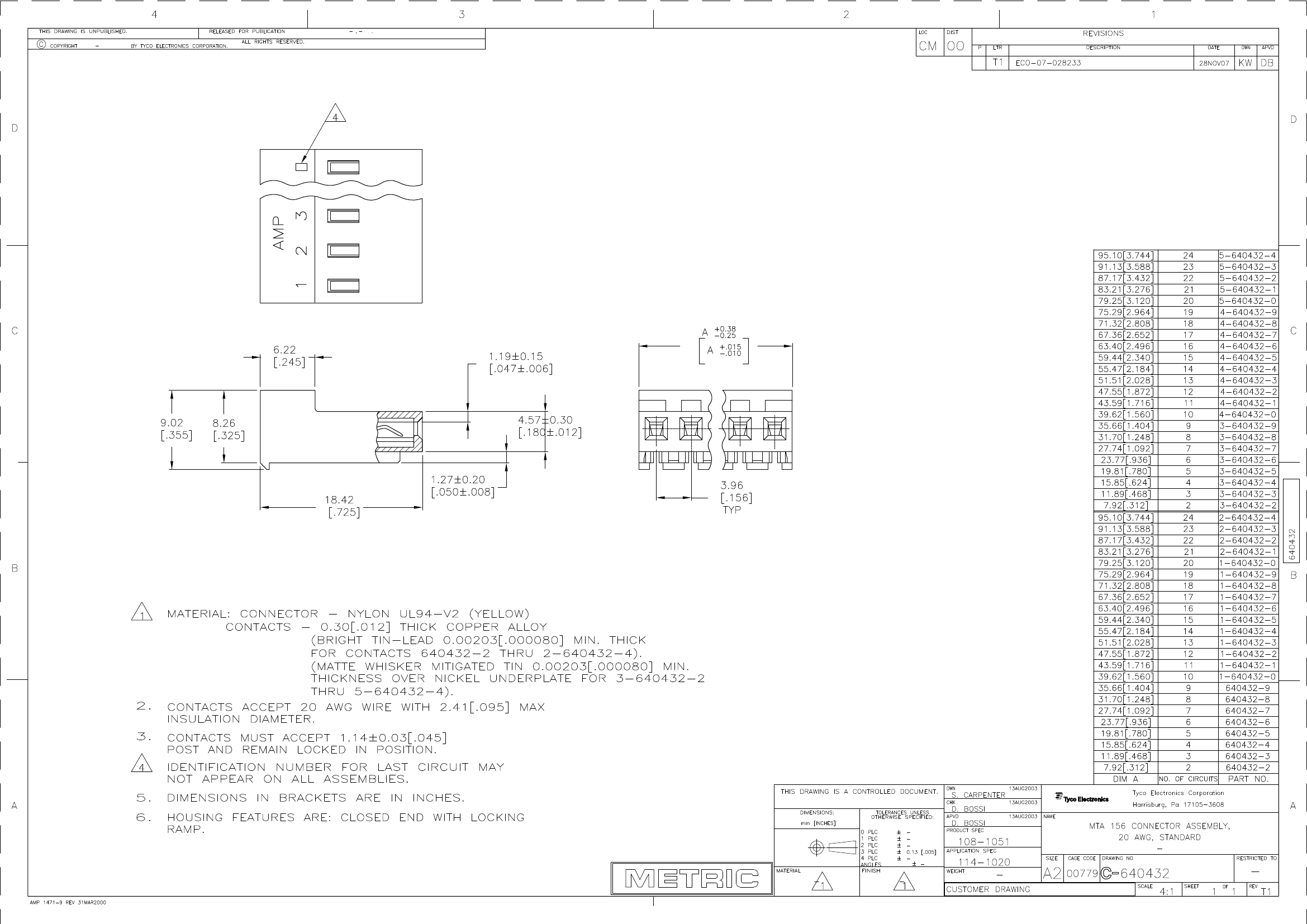

HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compli |
| Other features | CLOSED END, TERMINATION |
| body width | 0.725 inch |
| subject depth | 0.355 inch |
| body length | 3.588 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | SN |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 3 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1250VAC V |
| Insulation resistance | 5000000 Ω |
| Insulator color | ORANGE |
| insulator material | NYLON |
| Plug contact pitch | 0.156 inch |
| Installation type | CABLE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.48 inch |
| Termination type | IDC |
| Total number of contacts | 23 |
| Maximum wire diameter | 22 AWG |
| Minimum wire diameter | 22 AWG |
| Base Number Matches | 1 |
| 2-640432-3 | 2-640432-1 | 2-640432-2 | 2104-S4-38-10 | 2104-S5-32-10 | 2104-S6-22-40 | 2106-S2-23-10 | 2107-N6-26-40 | 2110-N3-26-30 | 2114-N5-22-50 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE | HEADER CONNECTOR,CABLE MNT,PLUG,21 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE | HEADER CONNECTOR,CABLE MNT,PLUG,22 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE | 8 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER | Card Edge Connector, 8 Contact(s), 2 Row(s), Female, Straight, Solder Terminal | 8 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER | Card Edge Connector, 12 Contact(s), 2 Row(s), Female, Straight, Solder Terminal | Card Edge Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal | 20 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER | Card Edge Connector, 28 Contact(s), 2 Row(s), Female, Straight, Solder Terminal |
| Reach Compliance Code | compli | compli | compli | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Installation type | CABLE | CABLE | CABLE | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Termination type | IDC | IDC | IDC | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 23 | 21 | 22 | 8 | 8 | 8 | 12 | 14 | 20 | 28 |
| Other features | CLOSED END, TERMINATION | CLOSED END, TERMINATION | CLOSED END, TERMINATION | - | POLARIZED | - | POLARIZED | POLARIZED | - | POLARIZED |
| Objectid | - | - | - | 1970369863 | 1970316301 | 1970415958 | 1970376129 | 1970415874 | 1970373713 | 1970686037 |
| ECCN code | - | - | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| DIN compliance | - | - | - | NO | NO | NO | NO | NO | NO | NO |
| Filter function | - | - | - | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | - | - | - | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | - | - | - | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | - | - | - | NO | NO | NO | NO | NO | NO | NO |
| Installation method | - | - | - | RIGHT ANGLE | STRAIGHT | STRAIGHT | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT |
| Options | - | - | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | - | - | - | 3.175 mm | 3.18 mm | 3.175 mm | 3.18 mm | 3.18 mm | 3.175 mm | 3.18 mm |
| UL Flammability Code | - | - | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
