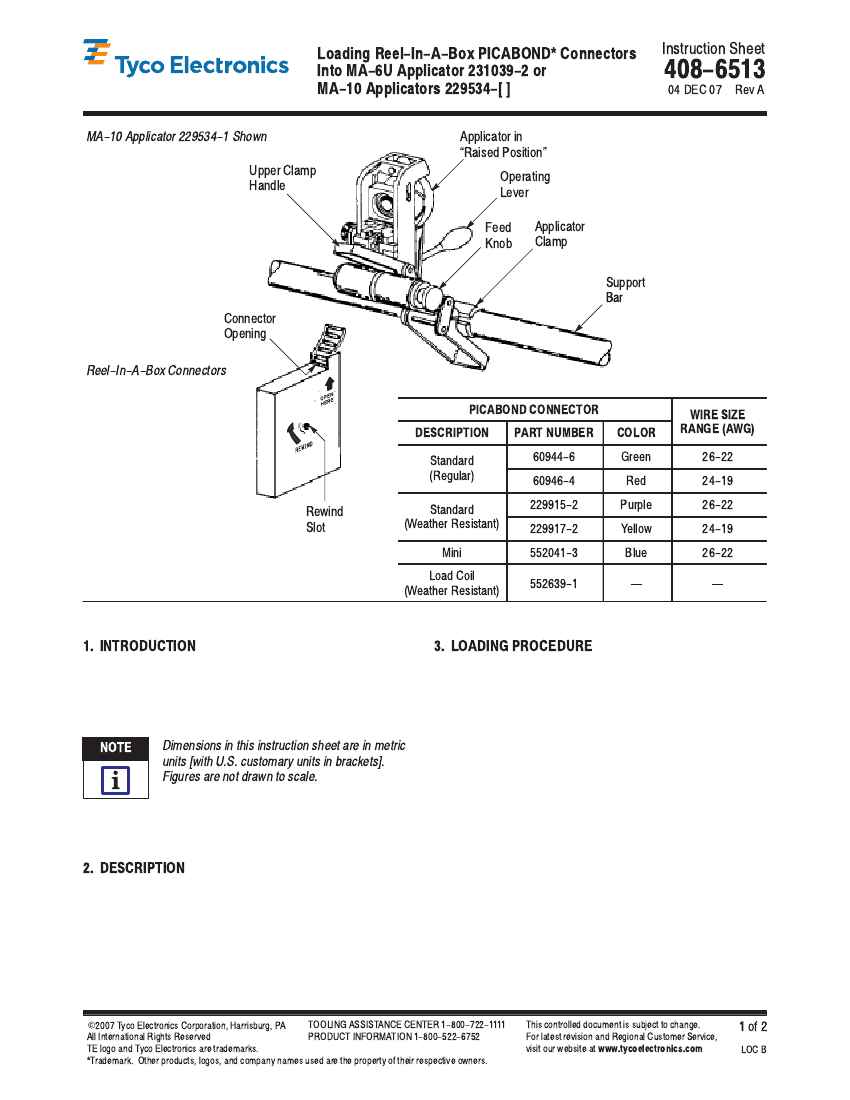

Loading Reel-In-A-Box PICABOND* Connectors
Into MA-6U Applicator 231039-2 or
MA-10 Applicators 229534-[ ]
Instruction Sheet
408-6513
04 DEC 07
Rev A
MA-10 Applicator 229534-1 Shown
Upper Clamp
Handle
Applicator in
Raised Position"
Operating
Lever
Feed
Knob
Applicator
Clamp
Support
Bar
Connector
Opening
Reel-In-A-Box Connectors
PICABOND CONNECTOR
DESCRIPTION
PART NUMBER
COLOR
WIRE SIZE
RANGE (AWG)
Standard
(Regular)
60944-6
60946-4
229915-2
229917-2
552041-3
Green
Red
Purple
Yellow
Blue
26-22
24-19
26-22
24-19
26-22
Rewind
Slot
Standard
(Weather Resistant)
Mini
Load Coil
(Weather Resistant)
552639-1
Figure 1
1. INTRODUCTION
3. LOADING PROCEDURE
This instruction sheet covers loading the
reel–in–a–box connectors listed in Figure 1 into
MA–6U Applicator 231039–2 or MA–10 Applicators
229534–[ ].
NOTE
1. Open the small tabs at the connector opening of
the box. Refer to Figure 1. Unroll 0.457 m [18 in.]
of connectors.
2. Check the end of the connector carrier strip, and
remove any damaged connectors. DO NOT feed
damaged connectors into the applicator; otherwise,
the applicator will jam.
3. Cut the ends of the carrier strip as shown in
Figure 2. For mini connectors, DO NOT cut
through the pilot holes.
4. Cycle the applicator to the “REST” position.
For manually–operated applicators, rotate the
operating lever
counterclockwise
to the 9 o’clock
position. For power–operated applicators, push the
buttons until the cycle stops.
5. Turn the feed knob
counterclockwise
until the
index mark on the feed knob aligns with the index
mark on the backup plate. See Figure 3.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.tycoelectronics.com
LOC B
i
Dimensions in this instruction sheet are in metric
units [with U.S. customary units in brackets].
Figures are not drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 4, REVISION SUMMARY.
2. DESCRIPTION
Each reel–in–a–box is a water–resistant cardboard
box containing 1000 strip–form connectors. The
connectors are mounted on a three–piece, plastic,
rotating reel in the center of the box. The box serves
as the reel holder, thus eliminating the need for a
separate reel holder assembly. A rewind slot is
provided to reel the connectors back into the box.
E
2007 Tyco Electronics Corporation, Harrisburg, PA
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
1
of 2
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.

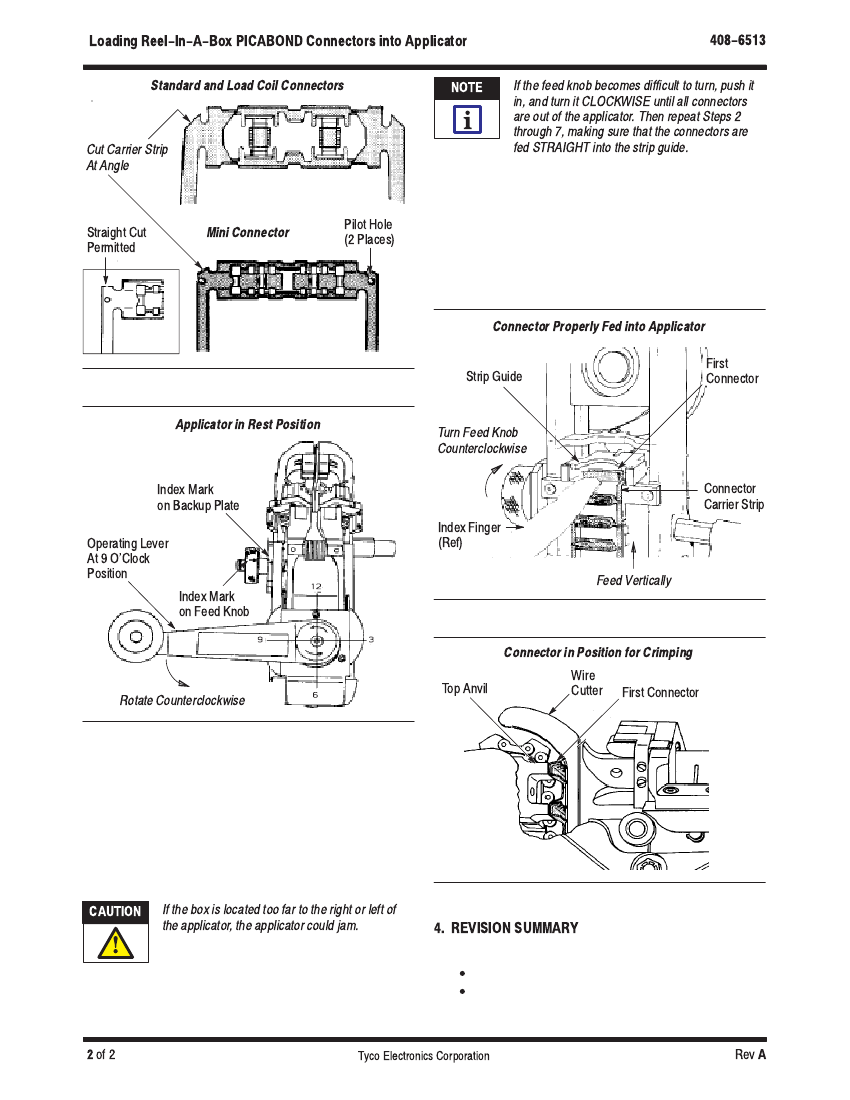

Loading Reel-In-A-Box PICABOND Connectors into Applicator
408-6513
If the feed knob becomes difficult to turn, push it
in, and turn it CLOCKWISE until all connectors
Standard and Load Coil Connectors
NOTE
i
Cut Carrier Strip
At Angle
are out of the applicator. Then repeat Steps 2
through 7, making sure that the connectors are
fed STRAIGHT into the strip guide.
8. Release the upper clamp handle, and place the
applicator in a horizontal position.
Straight Cut
Permitted
Mini Connector
Pilot Hole
(2 Places)
9. Cycle the applicator until the first connector
aligns with the top anvil as shown in Figure 5.
10. After use, using a straight instrument, turn the
rewind slot to reel the exposed connectors back
into the box.
Connector Properly Fed into Applicator
First
Figure 2
Strip Guide
Connector
Applicator in Rest Position
Turn Feed Knob
Counterclockwise
Index Mark
on Backup Plate
Connector
Carrier Strip
Index Finger
Operating Lever
At 9 O'Clock
Position
(Ref)
Feed Vertically
Index Mark
on Feed Knob
Figure 4
Connector in Position for Crimping
Wire
T
op Anvil
Cutter
First Connector
Rotate Counterclockwise
Figure 3
6. Place the box directly below the applicator. The
box can be laid down or raised off the ground by
running a lacing cord or wire through the rewind
slot of the box. Position the box in a manner that
will allow the connector carrier strip to feed
vertically into the applicator. Feed the first
connector STRAIGHT into the strip guide as far as
it will go. See Figure 4.
CAUTION
Figure 5
If the box is located too far to the right or left of
the applicator, the applicator could jam.
4. REVISION SUMMARY
Revisions to this instruction sheet include:
S
Updated document to corporate requirements
S
Removed obsolete applicators and connectors
!
7. Turn the feed knob
counterclockwise
one full
turn. See Figure 4.
2
of 2
Tyco Electronics Corporation
Rev
A
Automotive Electronics
