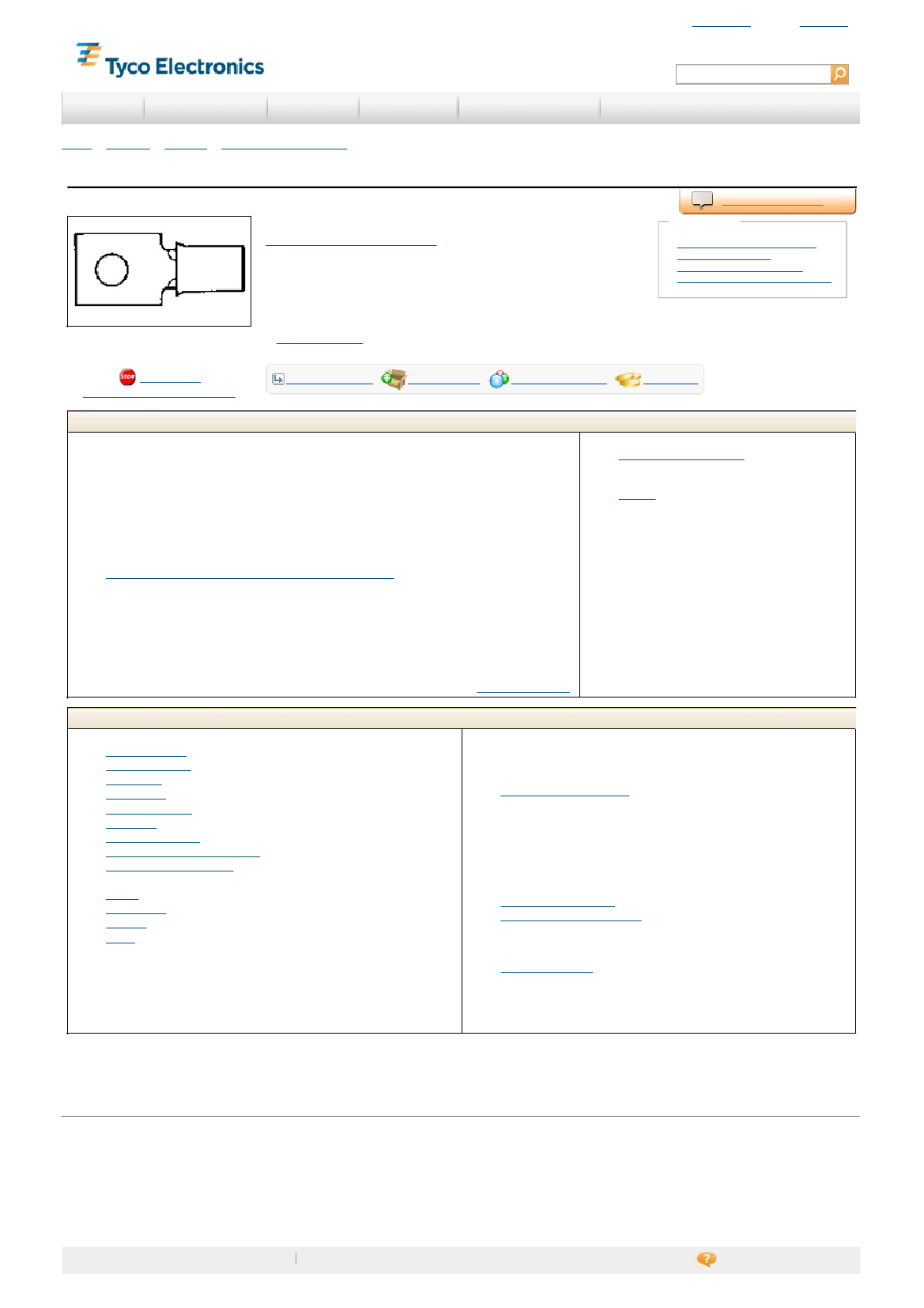

2-33172-1 Product Details
Live Product Chat
Ring and Spade Tongue Terminals
Not re vie we d for R oHS C om plia nce
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
2-33172-1
T E I nternal N umber: 2 - 3 3 1 7 2 - 1
Product Highlights:
l
Terminal Shape = Rectangular Tongue
l
Receptacle Style = Straight
l
Body Style = PIDG
l
Barrel Type = C losed Barrel
l
Wire/C able Type = Regular Wire
View all Features
Superseded
Search for Replacement Parts
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
Pre-Insulated Diamond Grip (PIDG) Terminals, Splices...
(PDF, English)
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Terminal Shape
= Rectangular Tongue
l
Receptacle Style
= Straight
l
Body Style
= PIDG
l
Barrel Type
= C losed Barrel
l
Wire/C able Type
= Regular Wire
l
Insulation
= Yes
l
Insulation Support
= Insulation Support
l
Insulation Diameter (mm [in])
= 2.67- 3.81 [.105-.150]
l
Stud Diameter (mm [in])
= 3.68 [0.145]
l
Stud Size = 6 [M3.5]
l
Shape
= RING-055
l
Heavy Duty
= No
l
Material
= C opper
l
Finish
= Tin
l
Tongue Material Thickness (mm [in]) = 0.79 [0.031]
l
C olor = Blue
l
Insulation Material = Nylon
Electrical Characteristics:
l
Voltage (VAC ) = 300
Body Related Features:
l
Wire Range (mm [AWG])
= 1.25-2.00² [16-14]
l
Wire Range (C MA) = 2,050 – 5,180
l
Length (mm [in]) = 21.74 [0.856]
l
Width (mm [in]) = 6.20 [0.244]
l
Insulation Sleeve Material = C opper
Industry Standards:
l
Government/Industry Qualification = No
l
RoHS/ELV C ompliance
= Not reviewed for ELV/RoHS compliance
l
Lead Free Solder Processes
= Not reviewed for lead free solder
process
Packaging Related Features:
l
Packaging Method
= Tape Mounted
Other:
l
Brand = AMP
Additional Information:
l
Product Line Information
