CDRH10D68/ANP271MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH10D68/ANP271MB

CDRH10D68/ANP271MB: Description1 ELEMENT, 270uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size289KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH10D68/ANP271MB Overview

1 ELEMENT, 270uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT

CDRH10D68/ANP271MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
DC Resistance	0.674 Ω
Nominal inductance(L)	270 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH10D68/A
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Maximum rated current	0.58 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

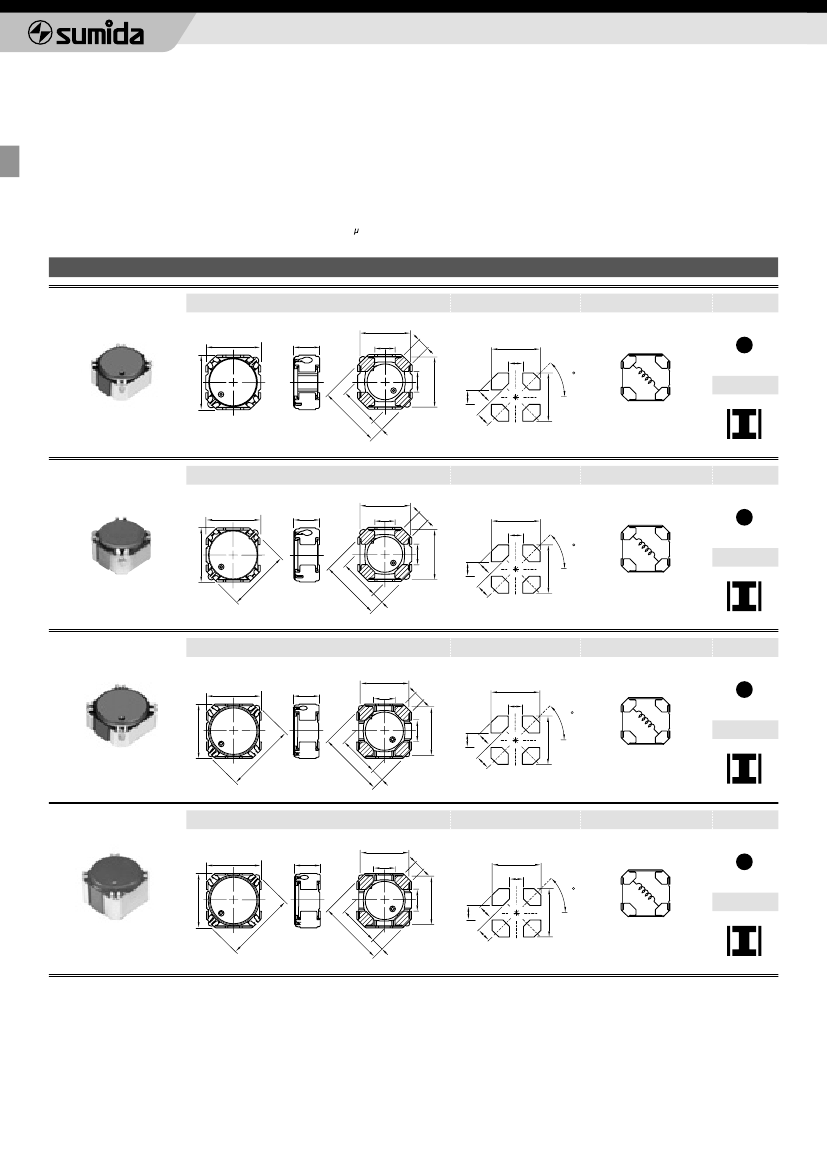

SMD Shielded Type : CDRH

/A Series Recommended Automotive Application Type Usable up to 125˚C (excluding self heating)

SMD Shielded Type

OUTLINE

/ 概要

Automotive Application / SMD Shielded Type

CDRH

/A Series

（車載向け高温対応インダクタ）

Recommended Automotive Application Type Usable up to 125˚C (excluding self heating)

The operating temperature range is a maximum of 125 degree, and the inductance range is 2.4~560µH.

It matches as power inductor for DC/DC converters corresponding high temperature.

½用温度範囲125℃まで可½なインダクタです。インダクタンス範囲 2.4∼560 Hまで取り揃えています。

高温度対応のDC-DCコンバータ電源用のパワーインダクタコイルとして最適です。

CDRH8D38/A

Max. 8.5

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

推奨ラン

ド寸法

CONNECTION

端子接続

WIRE

線種

7.0

Max. 4.0

3.0

8.9

2.3

3.0

7.0

2.3

8.9

CONSTRUCTION

磁気構造図

BOTTOM VIEW

裏面図

( 10µH - 120µH )

CDRH8D48/A

Max. 8.5

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

推奨ラン

ド寸法

CONNECTION

端子接続

WIRE

線種

7.0

Max. 5.0

3.0

8.9

2.3

3.0

7.0

2.3

8.9

CONSTRUCTION

磁気構造図

BOTTOM VIEW

裏面図

5. 1

( 10µH - 150µH )

CDRH10D48/A

Max. 10.5

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

推奨ラン

ド寸法

CONNECTION

端子接続

WIRE

線種

9.0

Max. 5.0

4.0

11.0

3.2

4.0

9.0

11.0

3.2

CONSTRUCTION

磁気構造図

BOTTOM VIEW

裏面図

7. .9

( 2.4µH - 330µH )

CDRH10D68/A

Max. 10.5

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

推奨ラン

ド寸法

CONNECTION

端子接続

WIRE

線種

9.0

Max. 7.0

4.0

11.0

3.2

9.0

11.0

3.2

4.0

CONSTRUCTION

磁気構造図

BOTTOM VIEW

裏面図

7. .9

( 10µH - 560µH )
