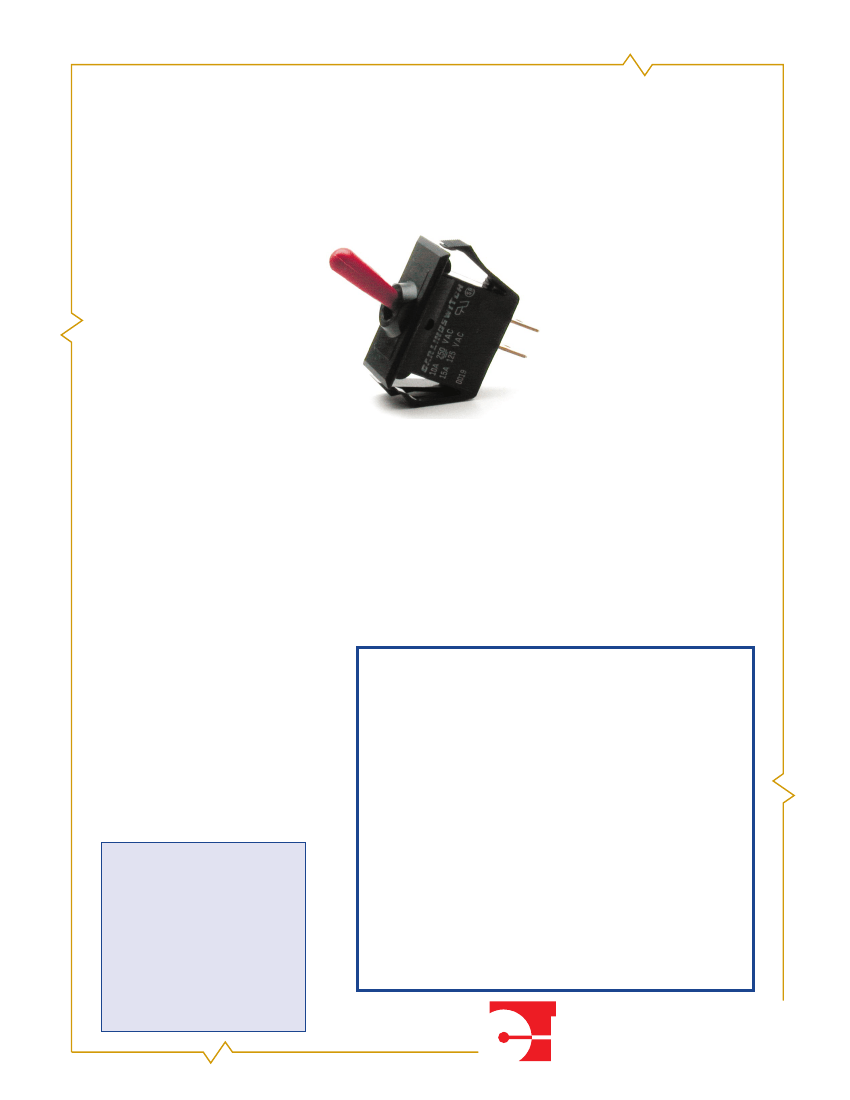

Snap-In Toggle Switches
Looking for an economical, easy to install toggle switch? Carling Technologies has the solution. The tried
and true T-Series with bat style actuator. Installation is literally a snap for this veteran workhorse switch.
The T-Series with toggle actuator provides a cost effective alternative to expensive metal toggles. Snap-in
installation is quick, easy and eliminates the need for cumbersome and costly mounting hardware. Simply
snap the switch into a .550 X 1.125 rectangular hole and installation is complete.
This offering is ideal for usage in applications including Wet/Dry vacs, Appliances, Medical equipment,
Audio/Visual, Lawn and Garden and sundry other markets.
Key Features/Benefits of the T-Series Snap-In Toggle:
•
•
•
•
•
•
•
Product Bulletin #93
June 17, 2002
ON-OFF, ON-ON and ON-OFF-ON maintained circuitry
Dielectric Strength:
UL/CSA:1000V
- live to dead metal
Electrical Life: 100,000 cycles
Mechanical Life: 100,000 cycles
Operating Temperature : 32°F to 185°F (0°C to 85°C)
Aesthetically appealing matte finish toggle and bezel
One step snap-in mount for industry standard .550 X 1.125 mounting
hole installs in seconds
UL/CSA approved 10A 250 VAC, 15A 125VAC 3/4 HP 125-250VAC rating
Durable, cost effective all nylon construction
The performance and quality that you’ve come to expect from Carling
Technologies
For additional information on our T-Series Snap-In
Toggle Switches, please contact a Carling
Technologies Technical Customer Service Rep:
Phone
Fax
email
internet
mail
(860) 793-9281
(860) 793-9231
sales@carlingtech.com
www.carlingtech.com
Carling Technologies, Inc.
60 Johnson Avenue
Plainville, CT 06062-1177
•
•
•
Carling Technologies
™
Innovative Designs. Powerful Solutions.
T-Series Snap-In Toggle Switch Ordering Scheme
TA201 - B
1
Base Part Number
2
Actuator
R - B
3
Color
4
Bezel Color
1 BASE PART NUMBER: SERIES / CIRCUITRY / RATING / TERMINATION
1
RATING 5 = 10A 250 VAC, 15A 125 VAC, 3/4 HP 125-250 VAC
1
.250 Tab
circuit
OFF-NONE-ON
ON-NONE-ON
ON-OFF-ON
4
TA201
TB201
TC201
2 ACTUATOR STYLE
B
Snap-In Toggle
3 ACTUATOR COLOR
2
B
Black
W
White
R
Red
4 BEZEL COLOR
B
Black
W
White
Warranty Policy
Carling Technologies, Inc. (Seller) warrants that goods sold hereunder shall be free of defects in material and workmanship for one
year from date of shipment.
In the event of such defects, the Seller’s only obligation shall be the replacement or the cost of the defective goods, themselves, exclud-
ing, without limitation, labor costs, which are or may be required in connection with the replacement or reinstallation of the goods.
This warranty is the Seller’s sole obligation and excludes all other remedies or warranties, express or implied, including warranties of
merchantability and fitness for a particular purpose, whether or not purposes or specifications are described herein. This Warranty
expressly excludes any and all incidental, special and/or consequential damages of any nature. Seller further disclaims any responsi-
bility for injury to person or damage to or loss of property or value caused by any product which has been subjected to misuse, negli-
gence, or accident; or misapplied, or modified or repaired by a person or persons not authorized by the Seller or which have been
improperly installed.
NOTES
1 For additional rating requirements, consult factory.
2 Custom colors are available, consult factory.
Carling Technologies
™
Innovative Designs. Powerful Solutions.
