SMTV3010-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMTV3010-6

SMTV3010-6: DescriptionL BAND, 10pF, 30V, SILICON, VARIABLE CAPACITANCE DIODE, SURFACE MOUNT PACKAGE-3; CategoryDiscrete semiconductor diode; File Size54KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

SMTV3010-6 Overview

L BAND, 10pF, 30V, SILICON, VARIABLE CAPACITANCE DIODE, SURFACE MOUNT PACKAGE-3

SMTV3010-6 Parametric

Parameter Name	Attribute value
Maker	MACOM
package instruction	R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Minimum breakdown voltage	30 V
Configuration	SINGLE
Diode Capacitance Tolerance	20%
Minimum diode capacitance ratio	4.4
Nominal diode capacitance	10 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	L BAND
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
minimum quality factor	1600
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

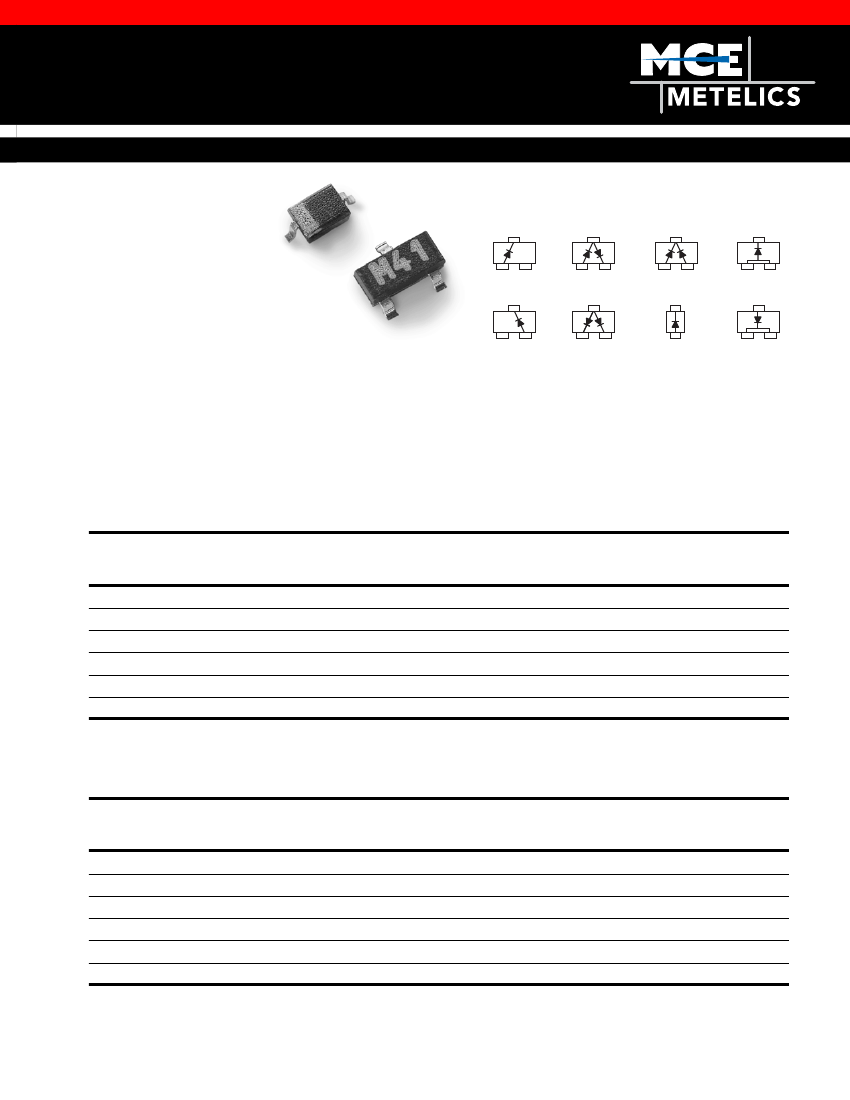

SURFACE MOUNT TUNING VARACTORS SERIES

FEATURES

• High-Q

• Low leakage

• Rugged construction

• Passivated

• Repeatable performance

Package Terminal Identification Code

SOT23

SINGLE DIODE (-0)

SOT23

SERIES DIODES (-2)

SOT23

COMMON CATHODE (-4)

SOT23

DUAL ANODE (-5)

APPLICATIONS

• Tuning oscillators, filters and resonators

• Voltage controlled capacitor

SOT23

SINGLE DIODE (-1)

SOT23

COMMON ANODE (-3)

SOD323

SOT23

DUAL CATHODE (-6)

SILICON VARACTOR DESCRIPTION

The SMTV and SMTD series of Metelics silicon varactor

diodes are constructed using advanced material

and processes, resulting in a lower series resistance

) than is produced with conventional methods.

This lower R

results in a higher Q. These diodes are

suitable for applications where the most Q for the dol-

lar is required, since they are competitive with the lower

end of GaAs diodes for Q, while priced as silicon.

SOT23 PACKAGE TUNING VARACTORS ELECTRICAL SPECIFICATIONS VB @ 10 uA=30 V MIN

Part

Number

Package

Mark

CT-4

Typ.

(pF)

CTR

Min.

0/30

Q@4V

Min.

Recommended

Frequency

(MHz)

SMTV3001

SMTV3002

SMTV3004

SMTV3006

SMTV3008

SMTV3010

M01

M02

M04

M06

M08

M10

1.00

2.00

4.00

6.00

8.00

10.00

3.5

3.6

4.2

4.3

4.4

3000

2800

2400

2100

1800

1600

3000

2500

2000

Capacitance values are

±20%.

Other values available.

SOD323 PACKAGE TUNING VARACTORS ELECTRICAL SPECIFICATIONS VB @ 10 uA=30 V MIN

Part

Number

Package

Mark

CT-4

Typ.

(pF)

CTR

Min.

0/30

Q@4V

Min.

Recommended

Frequency

(MHz)

SMTD3001

SMTD3002

SMTD3004

SMTD3006

SMTD3008

SMTD3010

Cathode Band Only

1.00

2.00

4.00

6.00

8.00

10.00

3.5

3.6

4.2

4.3

4.4

3000

2800

2400

2100

1800

1600

3000

2500

2000

Capacitance values are

±20%.

Other values available.

975 Stewart Drive • Sunnyvale, CA 94O86 • 4O8.737.8181 • FAX: 4O8.733.7645 • www.metelics.com •
