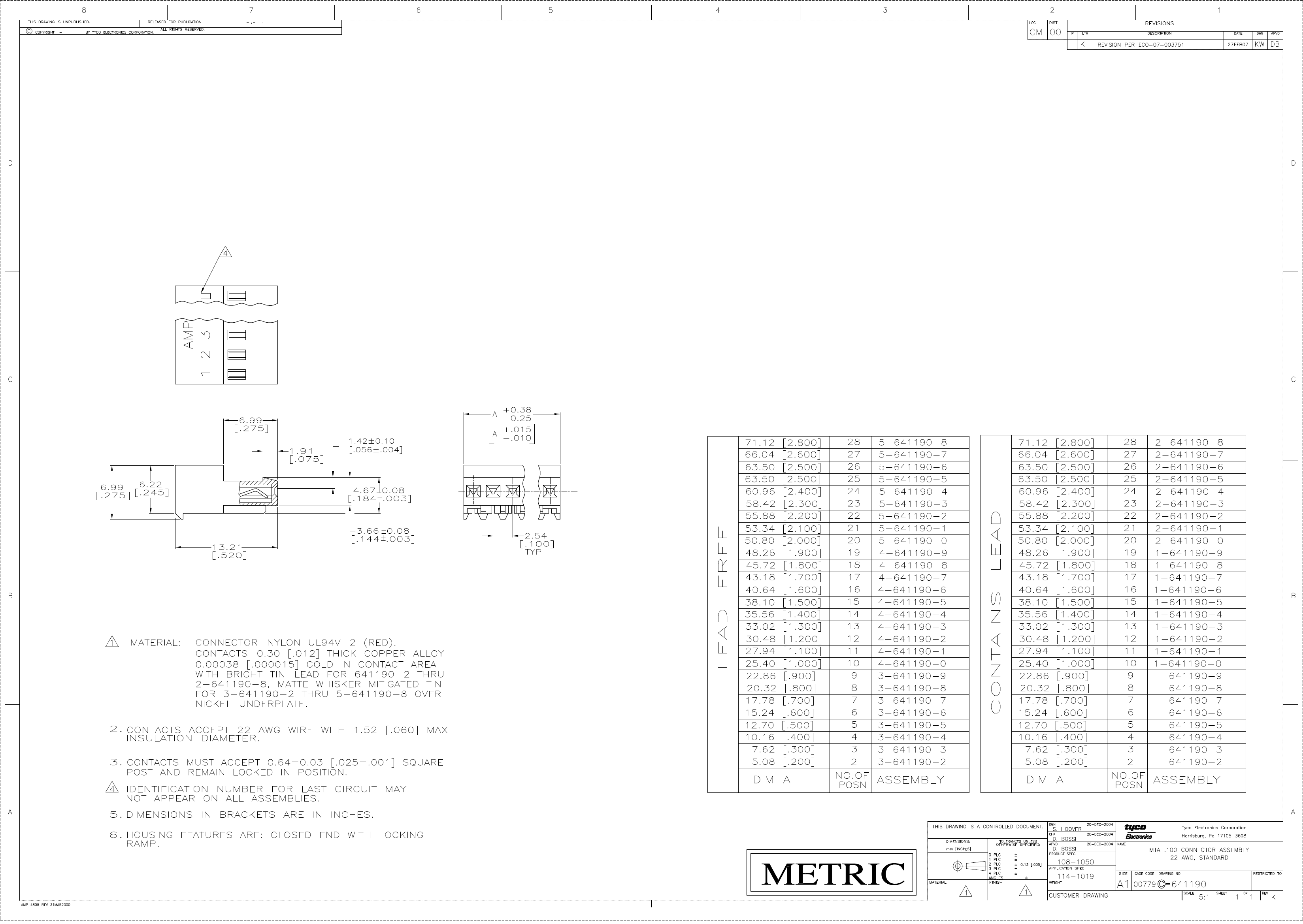

2-641190-7: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,27 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-641190-7 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,27 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED

2-641190-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	CLOSED END, LOOSE PIECE PKG.
body width	0.275 inch
subject depth	0.52 inch
body length	2.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	25 Cycles
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	RED
insulator material	NYLON
Manufacturer's serial number	641190
Plug contact pitch	0.1 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	27
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	3.614 N
Base Number Matches	1

Preview

Download Datasheet

View All

2-641190-7 Related Products

	2-641190-7	2-641190-1	2-641190-2	2-641190-4	2-641190-5	2-641190-6	1-641190-7	1-641190-9
Description	HEADER CONNECTOR,CABLE MNT,PLUG,27 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED	HEADER CONNECTOR,CABLE MNT,PLUG,21 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED	HEADER CONNECTOR,CABLE MNT,PLUG,22 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED	HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED	HEADER CONNECTOR,CABLE MNT,PLUG,25 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED	HEADER CONNECTOR,CABLE MNT,PLUG,26 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,RED	17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	19 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown
Other features	CLOSED END, LOOSE PIECE PKG.	CLOSED END, LOOSE PIECE PKG.	CLOSED END, LOOSE PIECE PKG.	CLOSED END, LOOSE PIECE PKG.	CLOSED END, LOOSE PIECE PKG.	CLOSED END, LOOSE PIECE PKG.	AMP	AMP
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED
Manufacturer's serial number	641190	641190	641190	641190	641190	641190	641190	641190
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1	1
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	27	21	22	24	25	26	17	19
body width	0.275 inch	0.275 inch	0.275 inch	0.275 inch	0.275 inch	0.275 inch	-	-
subject depth	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.52 inch	-	-
body length	2.7 inch	2.1 inch	2.2 inch	2.4 inch	2.5 inch	2.6 inch	-	-
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-	-
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-	-
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Contact resistance	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	-	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	-	-
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	-	-
maximum insertion force	8.896 N	8.896 N	8.896 N	8.896 N	8.896 N	8.896 N	-	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	-
Insulator color	RED	RED	RED	RED	RED	RED	-	-
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	-	-
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Plating thickness	15u inch	15u inch	15u inch	15u inch	15u inch	15u inch	-	-
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	-	-
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-
Maximum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	-	-
Minimum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	-	-
Evacuation force-minimum value	3.614 N	3.614 N	3.614 N	3.614 N	3.614 N	3.614 N	-	-
Base Number Matches	1	1	1	1	1	1	-	-
