RACF324D150K5%R: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.125W, 150000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1220, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size207KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RACF324D150K5%R Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.125W, 150000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1220, CHIP, ROHS COMPLIANT

RACF324D150K5%R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEI(Stackpole Electronics Inc.)
package instruction	SMT, 1220
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Component power consumption	0.125 W
The first element resistor	150000 Ω
JESD-609 code	e3
Manufacturer's serial number	RAC
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	5.08 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3 mm
method of packing	TAPE, EMBOSSED
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	150000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	RAC324D(5%)
size code	1220
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

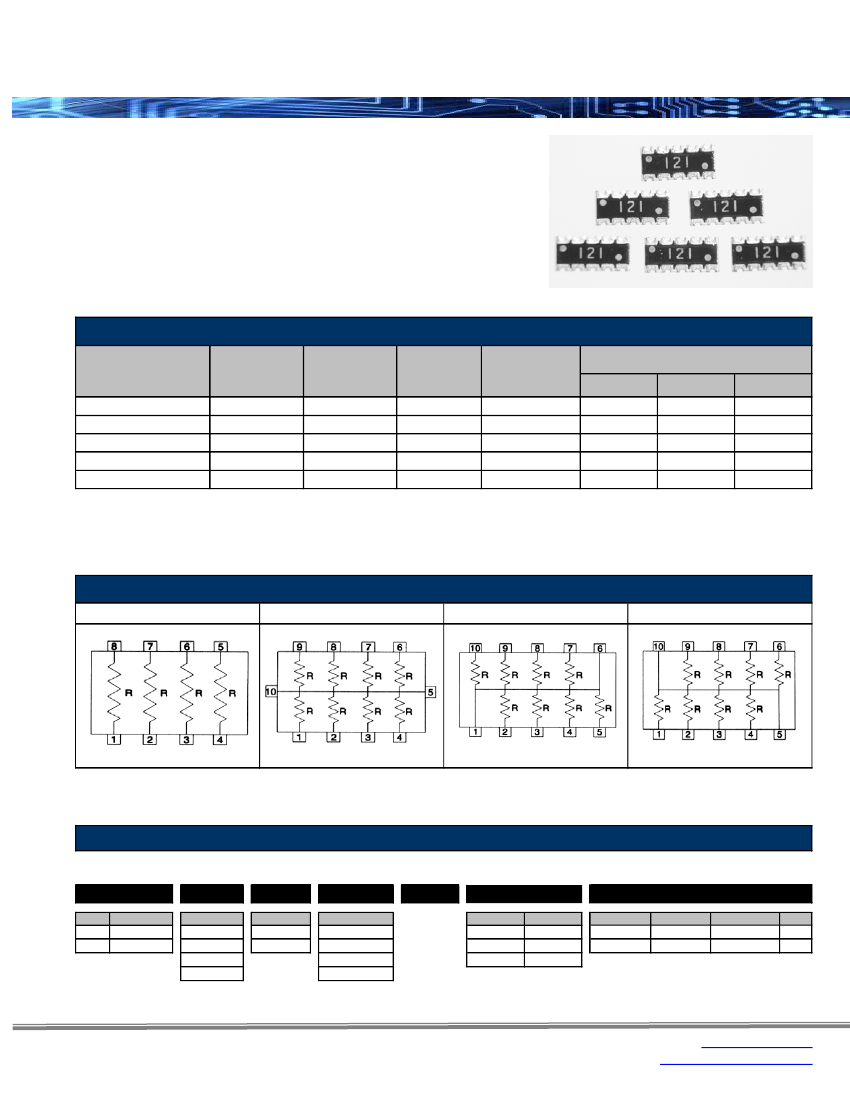

RAC Series

Concave Termination Chip Resistor Array

Stackpole Electronics, Inc.

Resistive Product Solutions

Features:

•

Thick film resistor element

Zero ohm available

Auto-placement capability

Multiple circuit types available

Ideal SMD substitute for leaded networks

RoHS compliant / lead-free available (RACF)

Electrical Specifications

Type / Code /

# of Elements /

Circuit Type

RAC 16-4D

RAC 32-4D

RAC 40-8M

RAC 64-8N

Power Rating

(per element)

@ 70ºC

0.063W

0.125W

0.063W

Maximum

Working

Voltage (1)

50V

200V

25V

50V

Maximum

Overload

Voltage

100V

400V

50V

100V

Resistance

Temperature

Coefficient

±200 ppm/ºC

Ohmic Range (Ω) and Tolerance

1 - 1M

22 - 1M

1 - 10M

10 - 1M

22 - 1M

RAC 64-8R

0.063W

50V

(1) Lesser of

√PR

or maximum working voltage.

Operating Temperature: RAC 16-4D:

-55ºC to +155ºC

All other types:

-55ºC to +125ºC

Schematics

Isolated Circuit - D

Bussed Circuit - M

Bussed Circuit - N

Bussed Circuit - R

How to Order

SEI Type

Code

Number of

Elements

Circuit Type

Nominal

Resistance

Tolerance

Packaging

RAC

Type Description

RAC

Standard

RACF

RoHS

Code

Elements

Circuit Type

D = Isolated

M = Bussed

N = Bussed

R = Bussed

10K

Tolerance

Values

E24

SEI Types

32, 40, 64

Pkg Qty

5,000

4,000

Description Code

Paper

Emboss

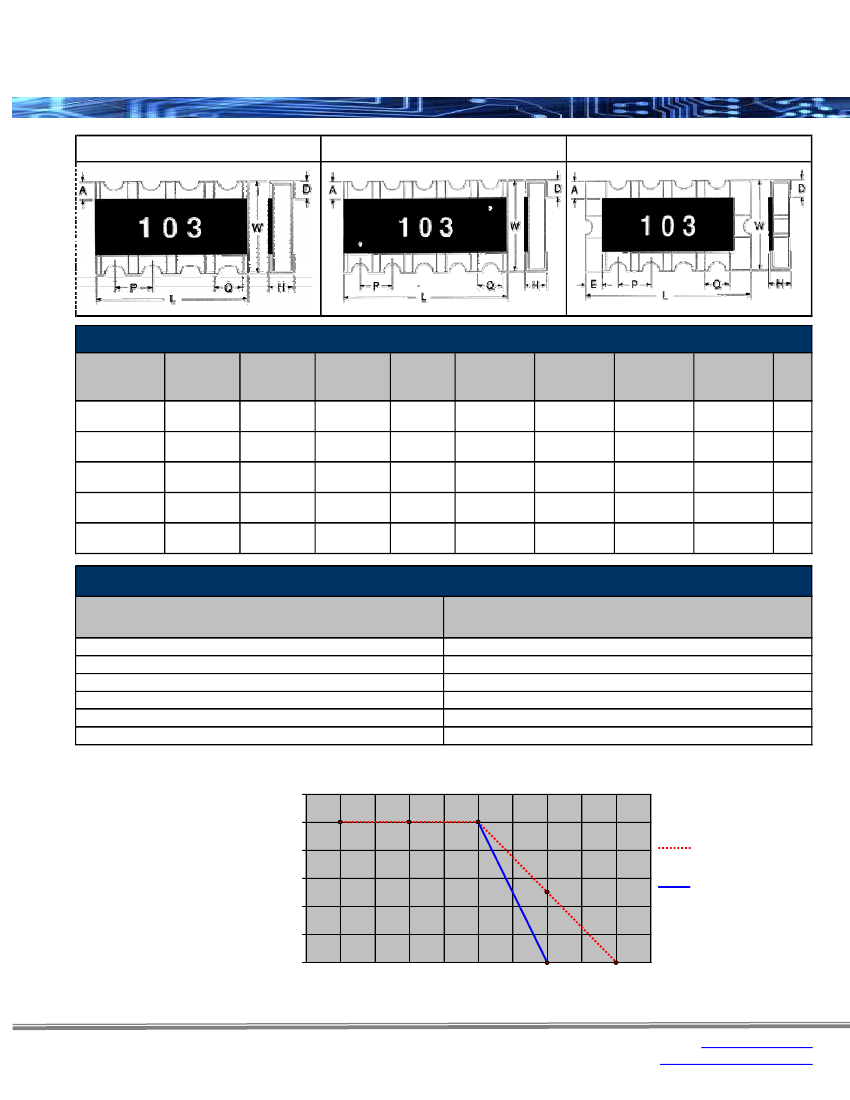

Rev Date: 05/03/2010

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com

marketing@seielect.com
