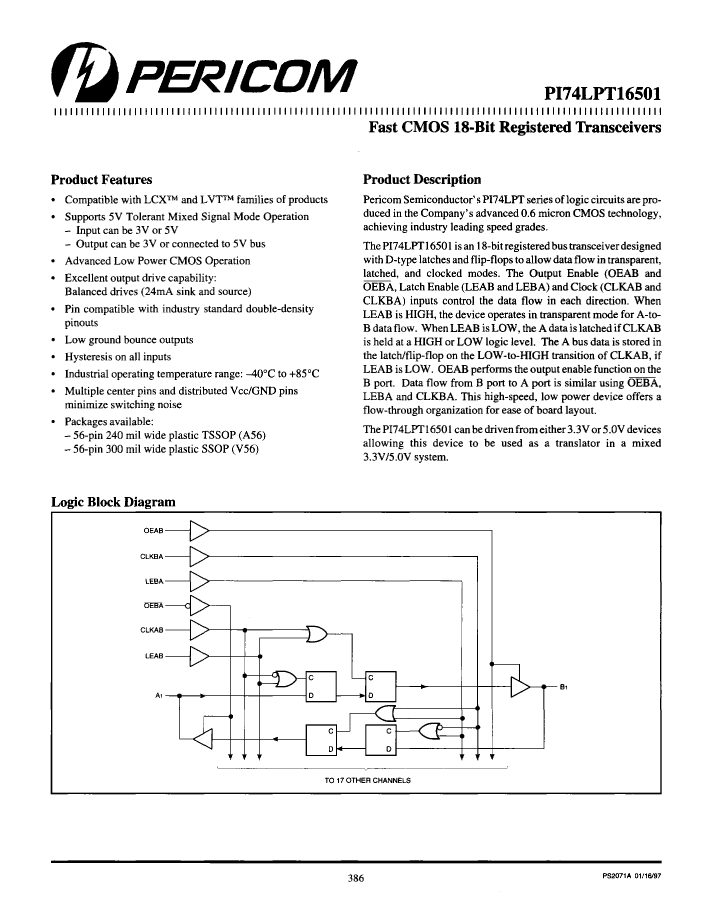

Preview

PI74LPT16501AX: DescriptionRegistered Bus Transceiver, LPT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56; Categorylogic logic; File Size178KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI74LPT16501AX Overview

Registered Bus Transceiver, LPT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56

PI74LPT16501AX Parametric

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LPT
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	14 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	18
Number of functions	1
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	9.6 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

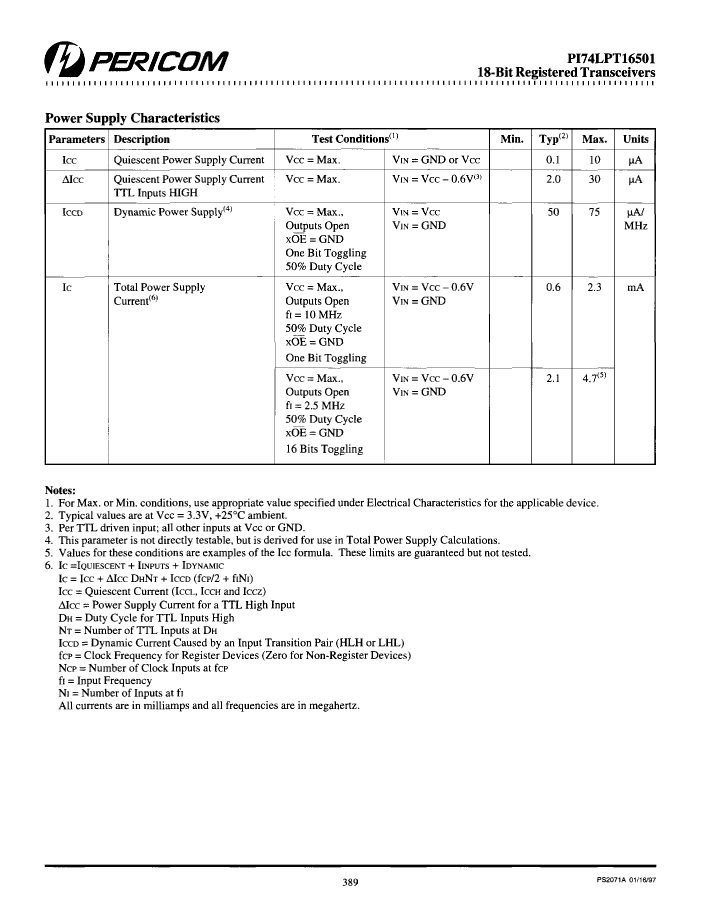

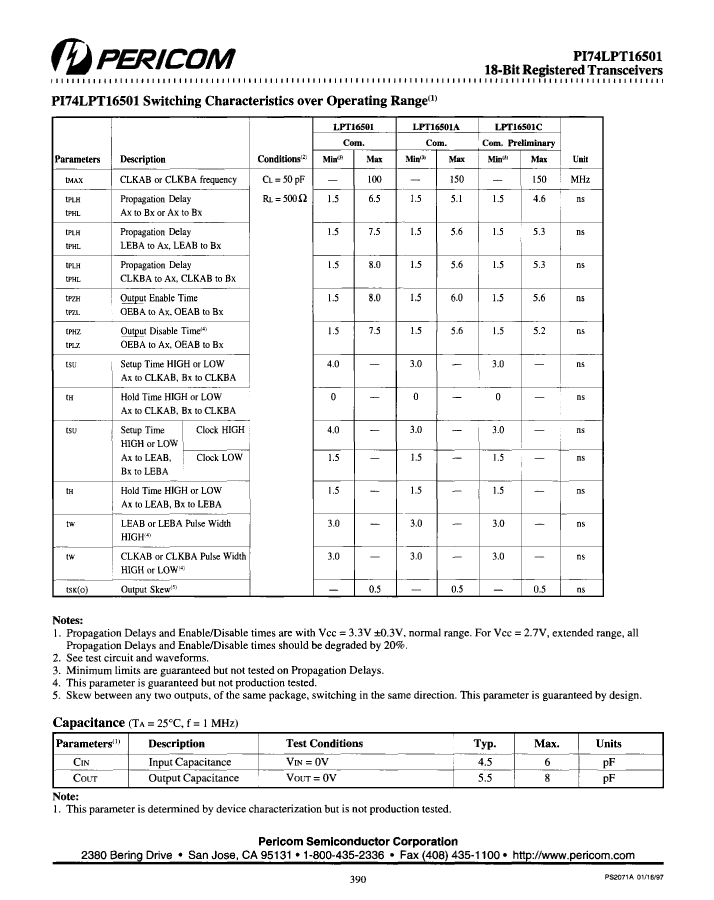

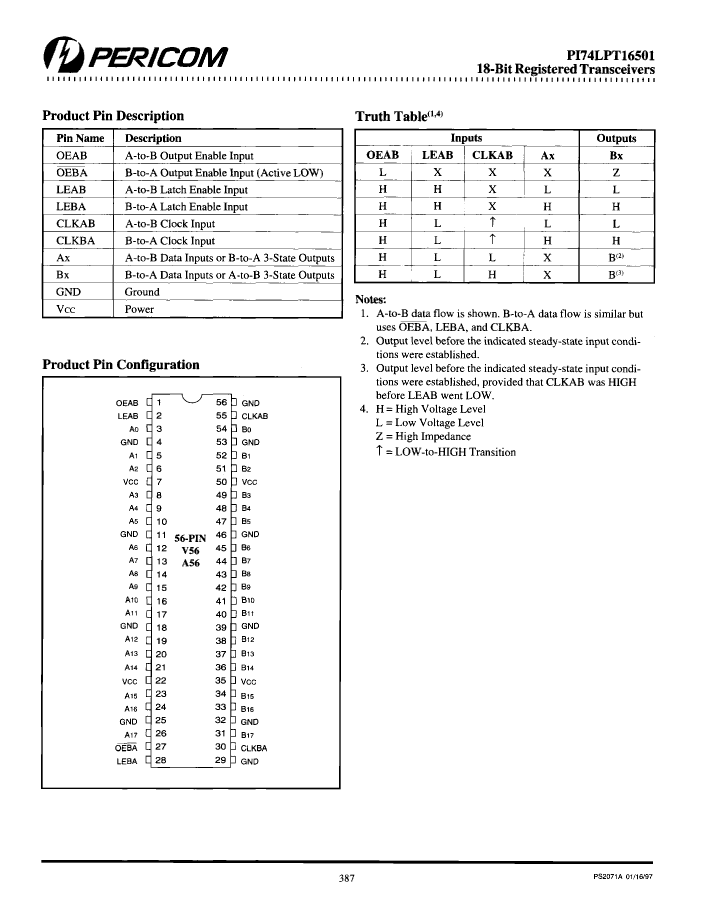

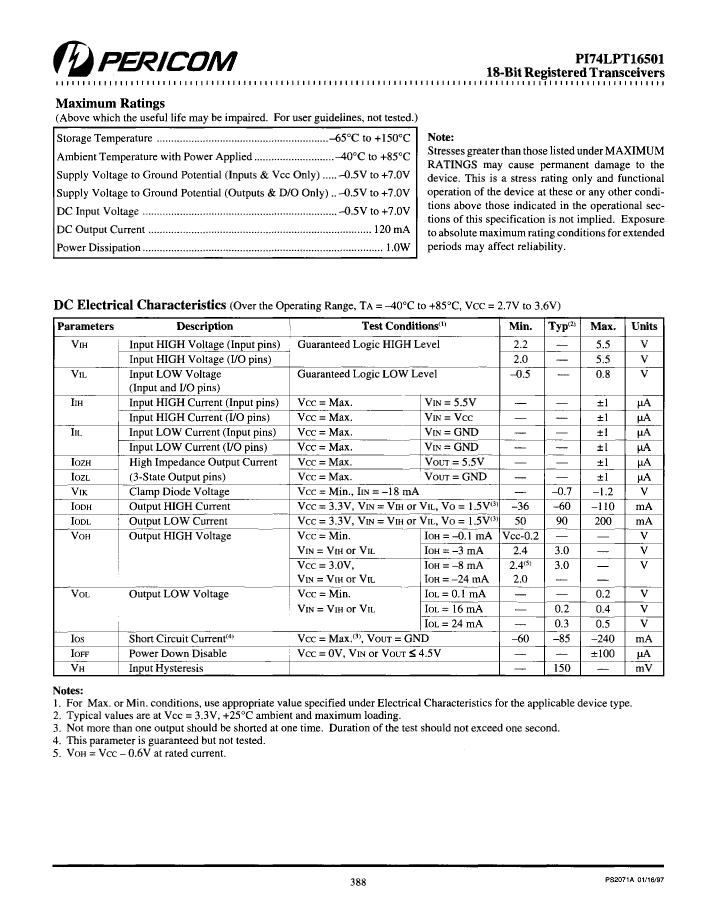

Preview

Download Datasheet

View All

PI74LPT16501AX Related Products

	PI74LPT16501AX	PI74LPT16501CAX	PI74LPT16501AAX	PI74LPT16501AVX	BZY97-C13	PI74LPT16501VX
Description	Registered Bus Transceiver, LPT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Registered Bus Transceiver, LPT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Registered Bus Transceiver, LPT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	Registered Bus Transceiver, LPT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56	ZENER DIODES	Registered Bus Transceiver, LPT Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	-	-
Parts packaging code	TSSOP	TSSOP	TSSOP	SSOP	-	SSOP
package instruction	TSSOP,	0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	0.240 INCH, 1.10 MM HEIGHT, 0.50 MM PITCH, PLASTIC, TSSOP-56	0.300 INCH, 0.635 MM PITCH, PLASTIC, SSOP-56	-	SSOP,
Contacts	56	56	56	56	-	56
Reach Compliance Code	unknown	compliant	unknown	unknown	-	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	-	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LPT	LPT	LPT	LPT	-	LPT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	-	R-PDSO-G56
JESD-609 code	e0	e0	e0	e0	-	e0
length	14 mm	14 mm	14 mm	18.415 mm	-	18.415 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	-	REGISTERED BUS TRANSCEIVER
Number of digits	18	18	18	18	-	18
Number of functions	1	1	1	1	-	1
Number of ports	2	2	2	2	-	2
Number of terminals	56	56	56	56	-	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	-	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	SSOP	-	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	9.6 ns	6.36 ns	6.72 ns	6.72 ns	-	9.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	2.794 mm	-	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	-	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	-	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	-	3.3 V
surface mount	YES	YES	YES	YES	-	YES
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.635 mm	-	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL
width	6.1 mm	6.1 mm	6.1 mm	7.5 mm	-	7.5 mm
Base Number Matches	-	1	1	1	-	1
