PCA8598F-2T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> PCA8598F-2T

PCA8598F-2T: DescriptionIC 1K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 7.50 MM, PLASTIC, SOT-176-1, SO-8, Programmable ROM; Categorystorage storage; File Size344KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PCA8598F-2T Overview

IC 1K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 7.50 MM, PLASTIC, SOT-176-1, SO-8, Programmable ROM

PCA8598F-2T Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA RETENTION = 40 YEARS; WIRE I2C INTERFACE
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	40
JESD-30 code	R-PDSO-G8
length	7.55 mm
memory density	8192 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	1024 words
character code	1000
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	1KX8
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	2.65 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Maximum write cycle time (tWC)	10 ms

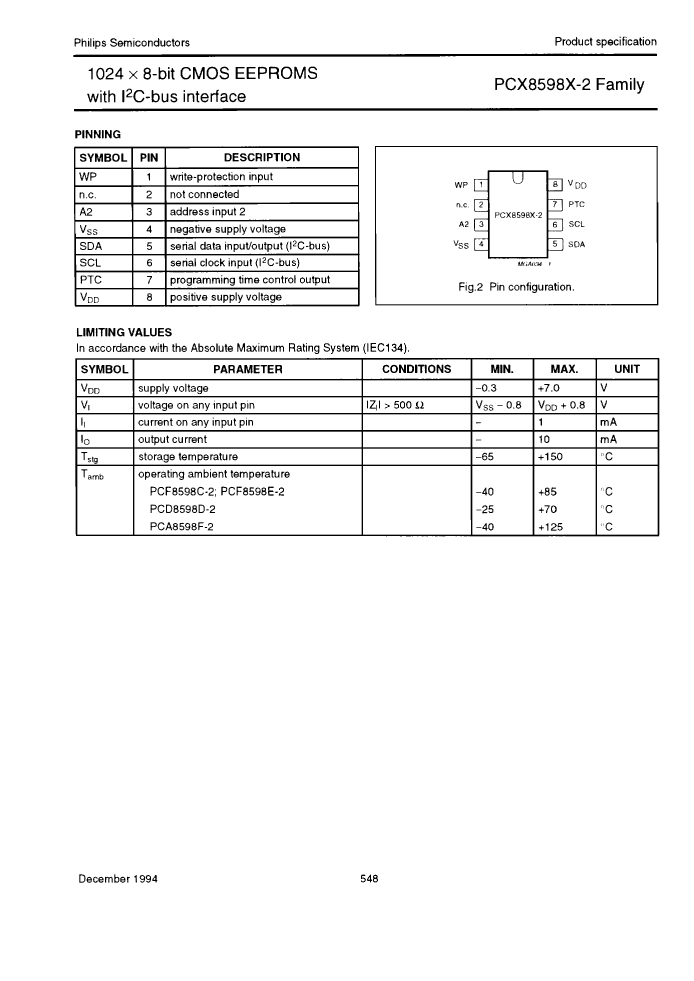

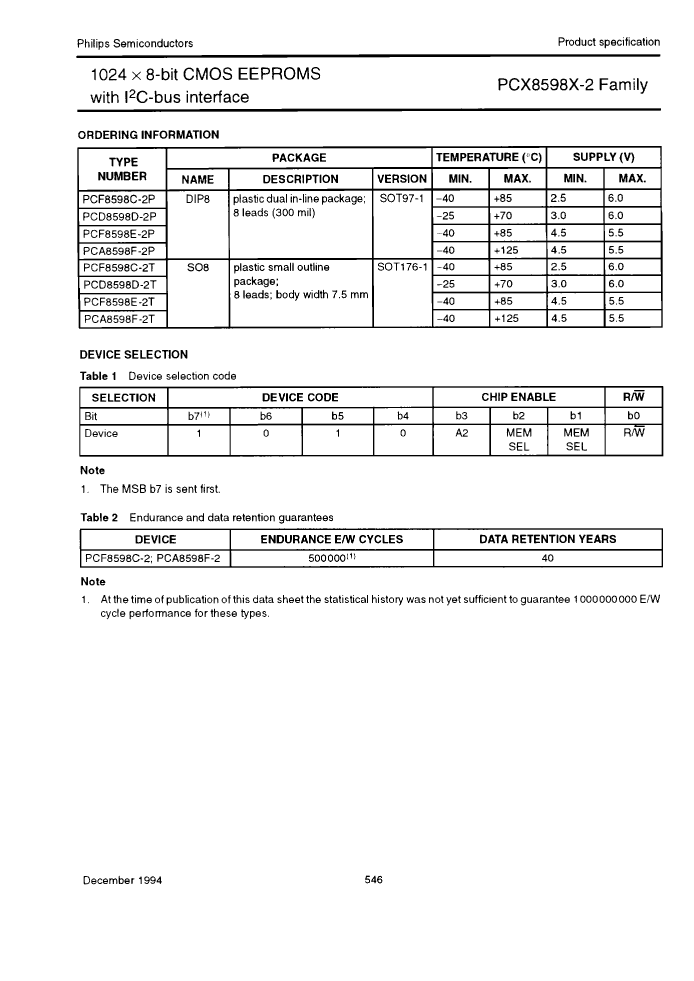

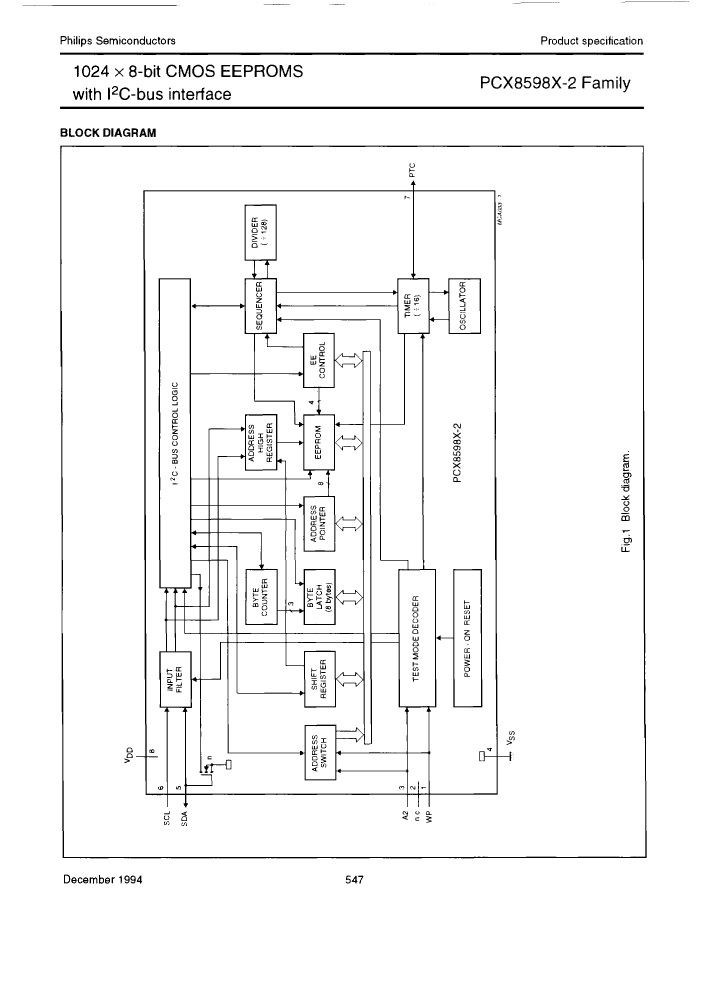

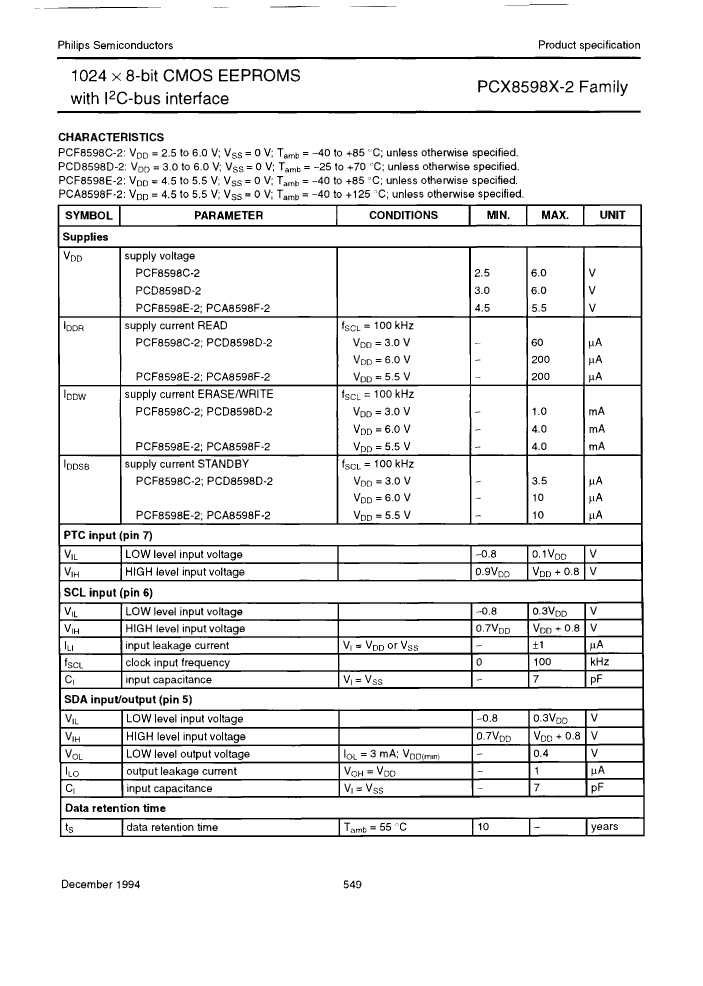

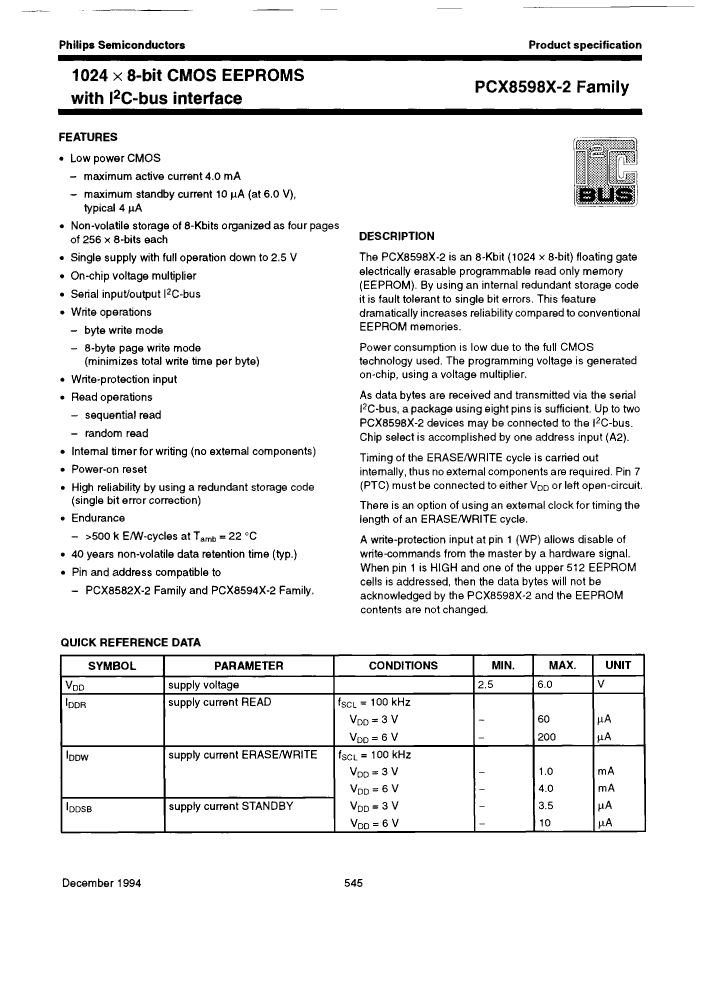

Preview

Download Datasheet

View All

PCA8598F-2T Related Products

	PCA8598F-2T	PCA8598F-2P	PCD8598D-2P	PCF8598E-2P	PCF8598E-2T
Description	IC 1K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 7.50 MM, PLASTIC, SOT-176-1, SO-8, Programmable ROM	IC 1K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, MO-001, SOT-97-1, DIP-8, Programmable ROM	IC 1K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, MO-001, SOT-97-1, DIP-8, Programmable ROM	IC 1K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, MO-001, SOT-97-1, DIP-8, Programmable ROM	IC 1K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 7.50 MM, PLASTIC, SOT-176-1, SO-8, Programmable ROM
Parts packaging code	SOIC	MO-001	MO-001	MO-001	SOIC
package instruction	SOP,	DIP,	DIP,	0.300 INCH, PLASTIC, MO-001, SOT-97-1, DIP-8	7.50 MM, PLASTIC, SOT-176-1, SO-8
Contacts	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DATA RETENTION = 40 YEARS; WIRE I2C INTERFACE	DATA RETENTION = 40 YEARS; WIRE I2C INTERFACE	DATA RETENTION = 40 YEARS; WIRE I2C INTERFACE	DATA RETENTION = 40 YEARS; WIRE I2C INTERFACE	DATA RETENTION = 40 YEARS; WIRE I2C INTERFACE
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Data retention time - minimum	40	40	40	10	10
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8
length	7.55 mm	9.5 mm	9.5 mm	9.5 mm	7.55 mm
memory density	8192 bit	8192 bit	8192 bit	8192 bi	8192 bi
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
word count	1024 words	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	1000	1000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-25 °C	-40 °C	-40 °C
organize	1KX8	1KX8	1KX8	1KX8	1KX8
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.2 mm	4.2 mm	4.2 mm	2.65 mm
Serial bus type	I2C	I2C	I2C	I2C	I2C
Maximum supply voltage (Vsup)	5.5 V	5.5 V	6 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	3 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	OTHER	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	10 ms
Maker	NXP	-	NXP	NXP	NXP
