2-640440-5 datasheet, PDF - EEWORLD Datasheet

2-640440-5: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,25 CONTACTS,SKT,0.1 PITCH,RED; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

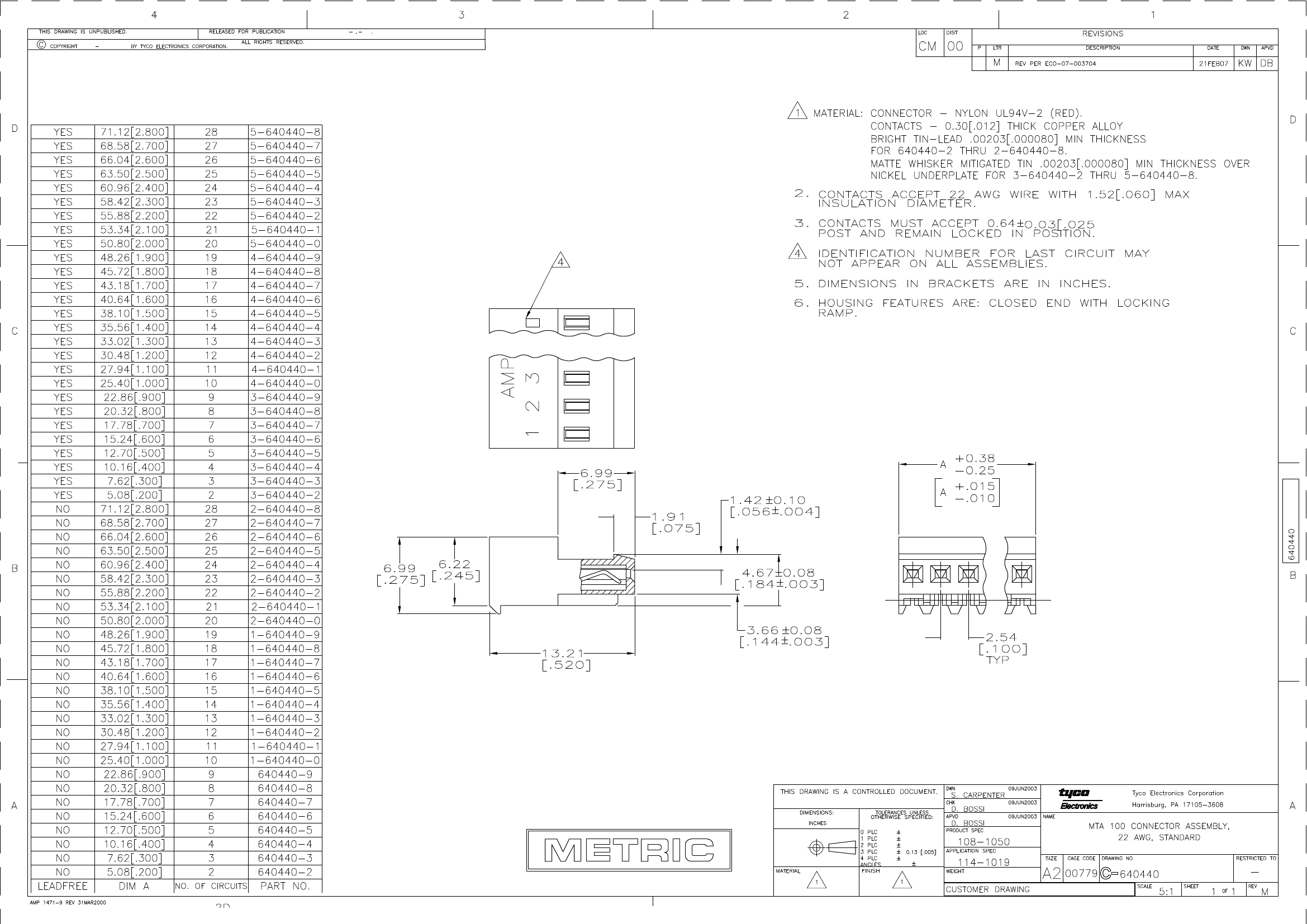

2-640440-5 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,25 CONTACTS,SKT,0.1 PITCH,RED

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	CLOSED END, TERMINATION
body width	0.52 inch
subject depth	0.275 inch
body length	2.5 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	RED
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.275 inch
Termination type	IDC
Total number of contacts	25
UL Flammability Code	94V-2
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

	2-640440-5	2-640440-8
Description	HEADER CONNECTOR,CABLE MNT,PLUG,25 CONTACTS,SKT,0.1 PITCH,RED	HEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,RED
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	compli	unknow
Other features	CLOSED END, TERMINATION	CLOSED END, TERMINATION
body width	0.52 inch	0.52 inch
subject depth	0.275 inch	0.275 inch
body length	2.5 inch	2.8 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN
Contact completed and terminated	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	5 mΩ	5 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	RED	RED
insulator material	NYLON	NYLON
JESD-609 code	e4	e4
MIL compliance	NO	NO
Plug contact pitch	0.1 inch	0.1 inch
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	4 A	4 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.275 inch	0.275 inch
Termination type	IDC	IDC
Total number of contacts	25	28
UL Flammability Code	94V-2	94V-2
Maximum wire diameter	22 AWG	22 AWG
Minimum wire diameter	28 AWG	28 AWG
Base Number Matches	1	1
