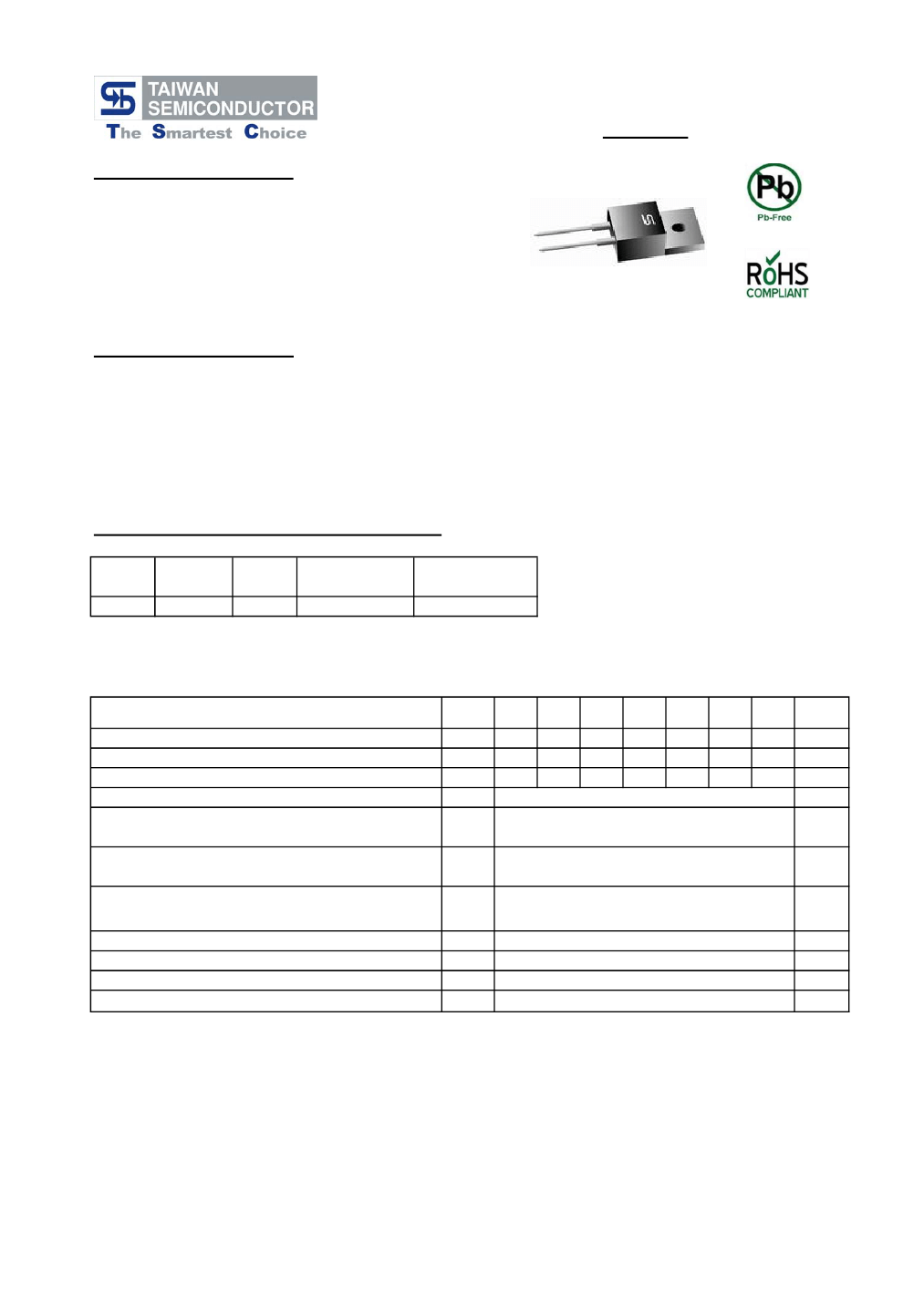

GPA1601 - GPA1607
16.0 AMPS. Glass Passivated Rectifiers

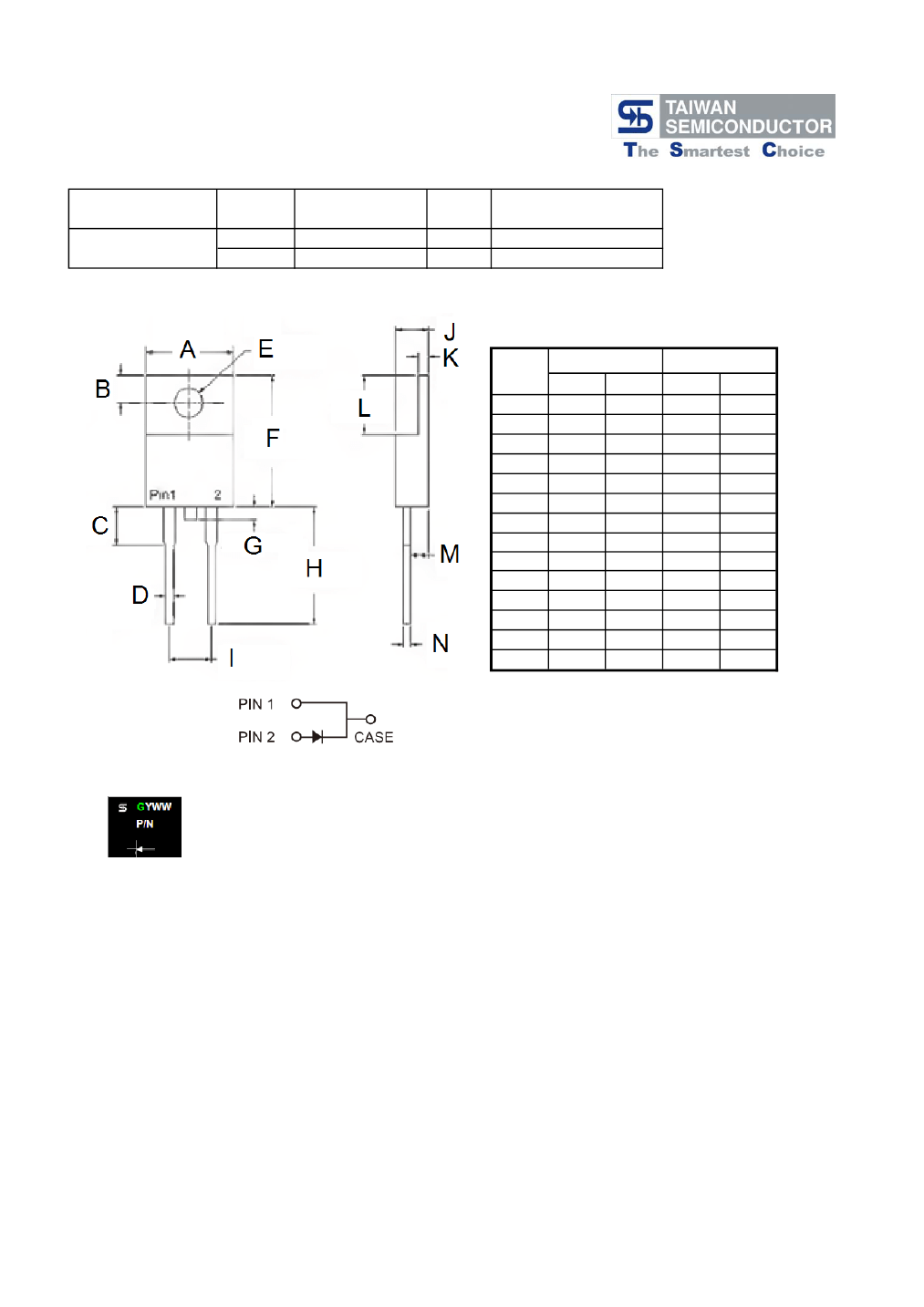

TO-220AC
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: TO-220AC Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260℃/10 seconds .16", (4.06mm) from case.
Weight: 2.24 grams
Ordering Information(example)
Part No.
GPA1601
Package
Packing
Packing
code
D0
Green Compound
Packing code
D0G
TO-220AC 50 / TUBE
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@ 16 A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note1: Pulse Test with PW=300 usec, 1% Duty Cycle
@ T
A
=25
℃
@ T
A
=125℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θJC
T
J
T
STG
GPA
1601
50
35
50
GPA
1602
100
70
100
GPA
1603
200
140
200
GPA
1604
400
280
400
16
250
1.1
10
250
100
2.0
GPA
1605
600
420
600
GPA
1606
800
560
800
GPA
1607
1000
700
1000
Units
V
V
V
A
A
V
uA
pF
o
Typical Junction Capacitance (Note 2)
C/W
O
O
- 65 to + 150
- 65 to + 150
C
C
Note2: Measured at 1 MHz and Applied Reverse Voltage of 4.0 Volts D.C.
Version:A13

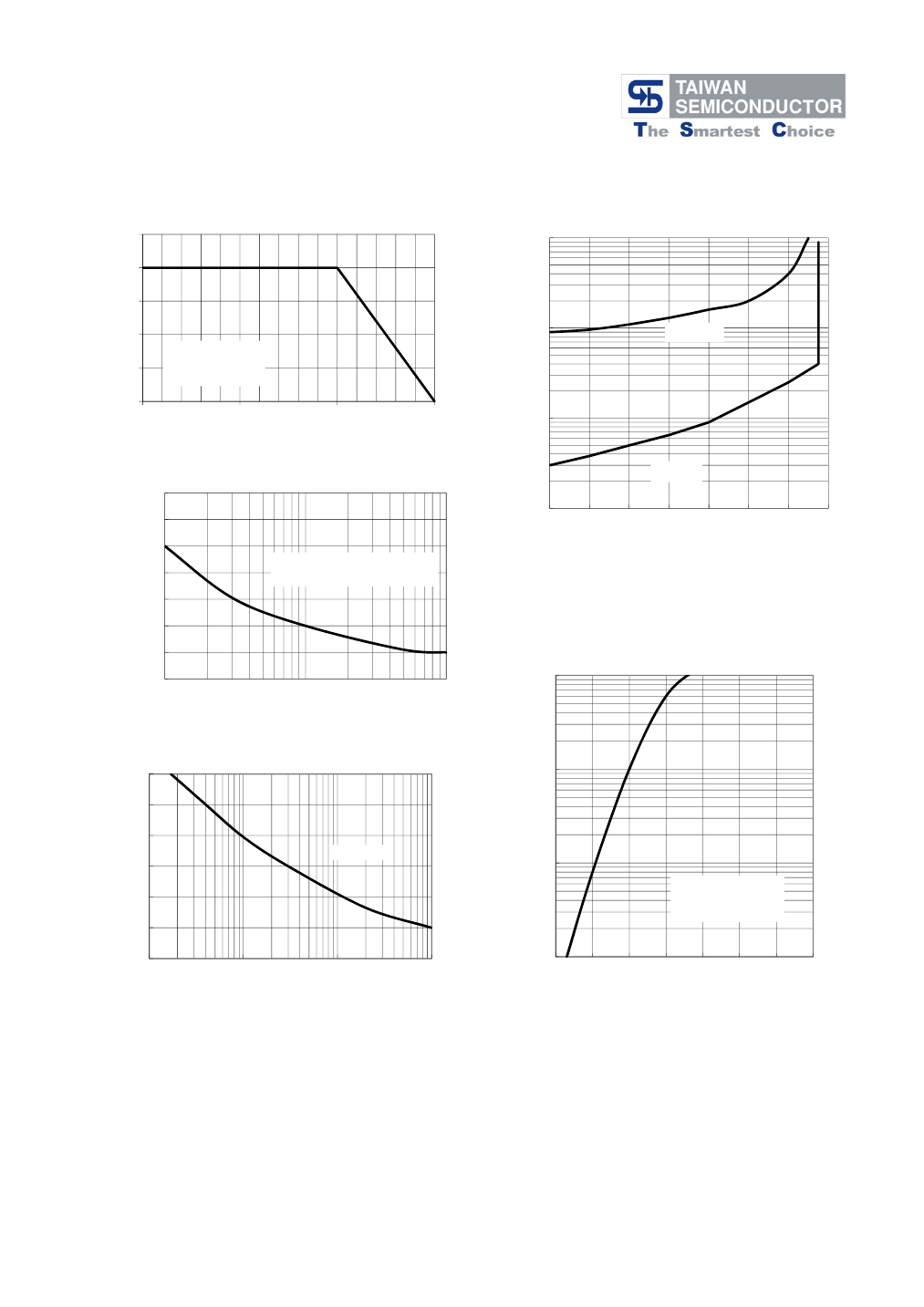

RATINGS AND CHARACTERISTIC CURVES (GPA1601 THRU GPA1607)
FIG.1- MAXMUM FORWARD CURRENT DERATING
CURVE
18
AVERAGE FORWARD CURRENT
(A)
16
14
12
10
8
0
50
100
150
CASE TEMPERATURE(
o
C)
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
INSTANTANEOUS REVERSE CURRENT (uA)
100
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
10
TA=125℃
1
350
PEAK FORWARD SURGE CURRENT
(A)
300
250
200
150
100
50
0
1
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
TA=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
8.3ms Single Half Sine Wave
JEDEC Method
100
10
NUMBER OF CYCLES AT 60 Hz
INSTANTANEOUS FORWARD CURRENT (A)
100
FIG. 5- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FIG. 4- TYPICAL JUNCTION CAPACITANCE
120
JUNCTION CAPACITANCE (pF)
10
100
80
60
40
20
0
1
10
100
1000
REVERSE VOLTAGE (V)
TA=25℃
1
TA=25℃
Pulse Width=300us
1% Duty Cycle
0.1
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE (V)
Version:A13
