GBPC40PS SERIES
40A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
WON-TOP ELECTRONICS
Pb
Features
Glass Passivated Die Construction
Low Reverse Leakage Current
Low Power Loss, High Efficiency
Heatsink Integrated Epoxy Case for
Maximum Heat Dissipation
Low Thermal Resistance
High Surge Current Capability
Recognized File # E157705
A
D
-
C
~
~
G
D
+
C
H
J
E
B
Mechanical Data
Case: Epoxy Case with Heatsink Internally
Mounted in the Bridge Encapsulation
Terminals: Plated Faston Lugs
Polarity: As Marked on Case
Mounting: Through Hole with #10 Screw
Mounting Torque: 2.0 N.m Max.
Weight: 20 grams (approx.)
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
K
KBPC-PS
Dim
Min
Max
A
28.40
28.70
B
—
10.16
C
21.00
22.50
D
9.00
10.00
E
—
25.40
G
5.08Ø Nominal
H
6.35 Typical
J
0.71
0.91
K
2.5Ø Typical
All Dimension in mm
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
GBPC40
00PS 01PS 02PS 04PS 06PS 08PS 10PS 12PS 14PS 16PS
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current @T
C
= 55°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed
on Rated Load (JEDEC Method)
Forward Voltage per leg
Peak Reverse Current
At Rated DC Blocking Voltage
I t Rating for Fusing (t < 8.3ms)
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance (Note 2)
RMS Isolation Voltage, t = 1min
Operating and Storage Temperature Range
2
Characteristic
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
It
C
J
R
θJC
V
ISO
T
J
, T
STG
2
Unit
50
35
100
70
200
140
400
280
600
420
40
800
560
1000 1200 1400 1600
700
840
980
1120
V
V
A
A
V
µA
As
pF
°C/W
V
°C
2
500
1.1
10
500
800
300
1.4
2500
-55 to +150
@I
F
= 20A
@T
C
= 25°C
@T
C
= 125°C
Note: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
2. Thermal resistance junction to case, mounted on 394 x 114 x 114mm Al. heatsink.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
GBPC40PS SERIES
I
(AV)
, AVERAGE FORWARD RECTIFIED CURRENT (A)
WON-TOP ELECTRONICS
40
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
50
100
10
T
J
= 150°C
30
Mounted on
394 x 114 x 114mm
Al. Finned Heatsink
20
1.0
T
J
= 25°C
10
Resistive or
Inductive Load
Pulse Width = 300µs
1% Duty Cycle
0
0
15
30 45 60 75 90 105 120 135 150
T
C
, CASE TEMPERATURE (°C)

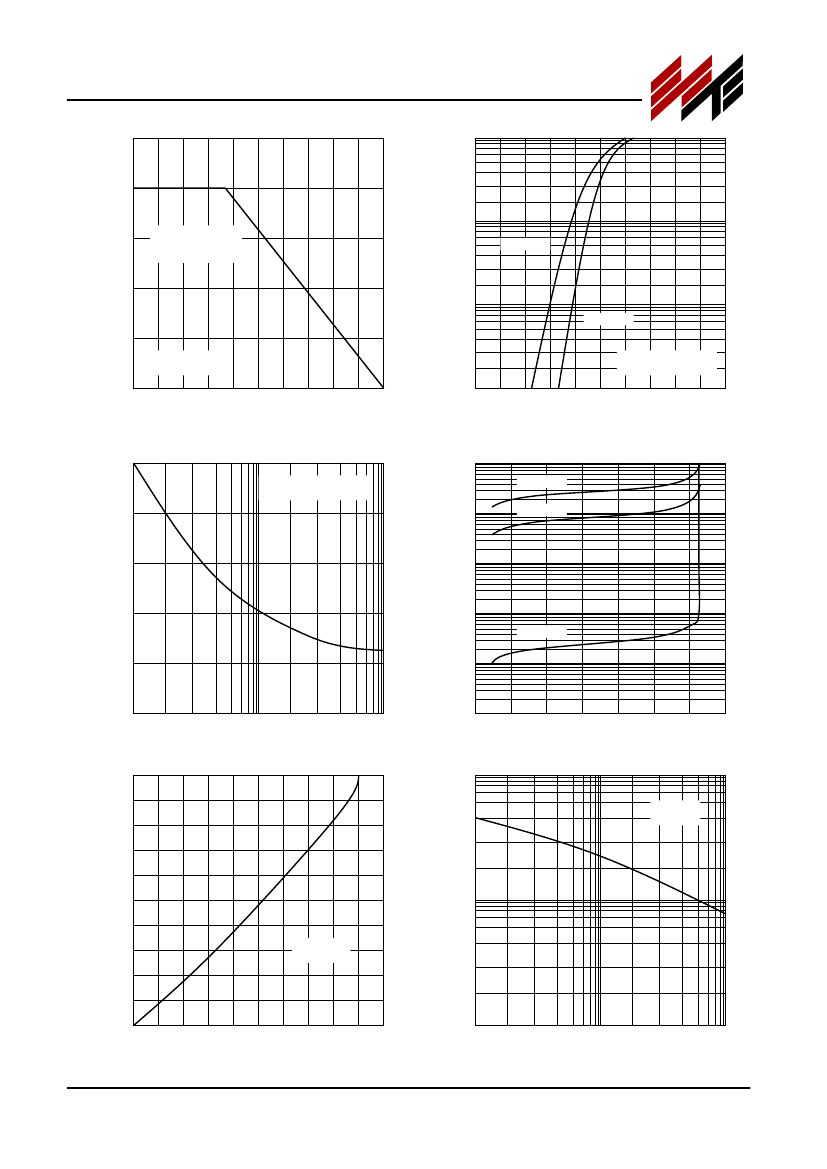

Fig. 1 Forward Current Derating Curve
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
0.1
0
0.4
0.8
1.2
1.6
2.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
500
Single Half-Sine-Wave
JEDEC Method
1000
T
A
= 150°C
400
100
T
A
= 125°C
300
10
200
1.0
T
A
= 25°C
100
0.1
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Forward Surge Current Derating Curve
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
1000
C
J
, JUNCTION CAPACITANCE (pF)
T
J
= 25°C
f = 1MHz
100
P
D
, POWER DISSIPATION (W)
80
60
100
40
Sine-Wave
T
J
= 150°C
20
0
0
10
20
30
40
50
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Fig. 5 Forward Power Dissipation
10
1
10
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
100
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
GBPC40PS SERIES
WON-TOP ELECTRONICS
MARKING INFORMATION
+
AC
GBPC40xxPS
GBPC40xxPS
xx
Polarity
= Device Number
= 00, 01, 02, 04, 06, 08, 10, 12, 14 or 16
= As Marked on Body
PACKAGING INFORMATION
BULK
Inner Box Size
L x W x H (mm)
195 x 195 x 40
Quantity
(PCS)
50
Carton Size
L x W x H (mm)
405 x 205 x 240
Quantity
(PCS)
500
Approx. Gross Weight
(KG)
12.0
Case Style
KBPC-PS
Note:
1. Paper box, white or brown color.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
®
GBPC40PS SERIES
WON-TOP ELECTRONICS
ORDERING INFORMATION
Product No.
GBPC40xxPS
1.
2.
Package Type
Square Bridge
Shipping Quantity
50 Units/Box
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF”
suffix to part number above. For example, GBPC4000PS-LF.
WON-TOP ELECTRONICS and
are registered trademarks of Won-Top Electronics Co., Ltd (WTE). WTE has checked all information carefully and
believes it to be correct and accurate. However, WTE cannot assume any responsibility for inaccuracies. Furthermore, this information does not give the
purchaser of semiconductor devices any license under patent rights to manufacturer. WTE reserves the right to change any or all information herein
without further notice.
WARNING:
DO NOT USE IN LIFE SUPPORT EQUIPMENT. WTE power semiconductor products are not authorized for use as critical components in life
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road,
Chine Chen Dist., Kaohsiung 806, Taiwan
Phone:
886-7-822-5408 or 886-7-822-5410
Fax:
886-7-822-5417
Email:
sales@wontop.com
Internet:
http://www.wontop.com
We power your everyday.
www.wontop.com
4
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
