811-22-022-30-007-101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 811-22-022-30-007-101

811-22-022-30-007-101: DescriptionBoard Stacking Connector, 22 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size326KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

811-22-022-30-007-101 Overview

Board Stacking Connector, 22 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,

811-22-022-30-007-101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	LOW PROFILE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (100)
Contact completed and terminated	GOLD (20) OVER NICKEL (100)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	811
Plug information	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

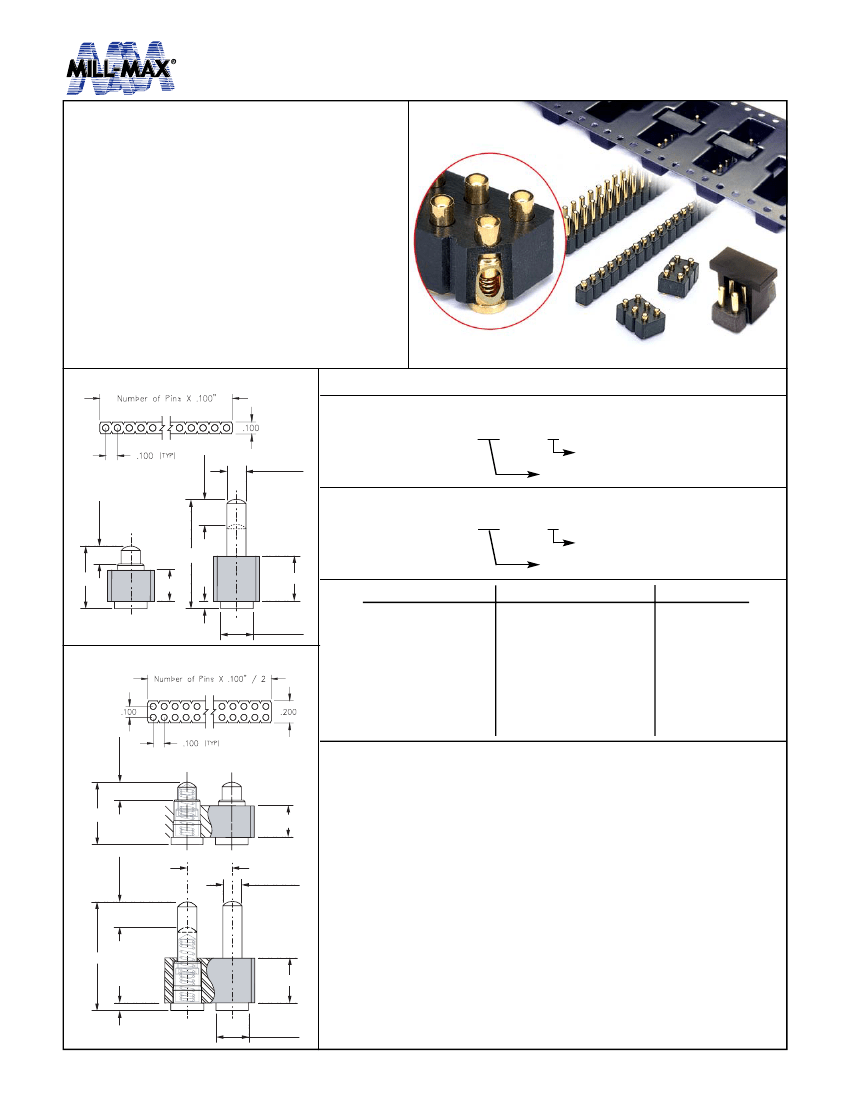

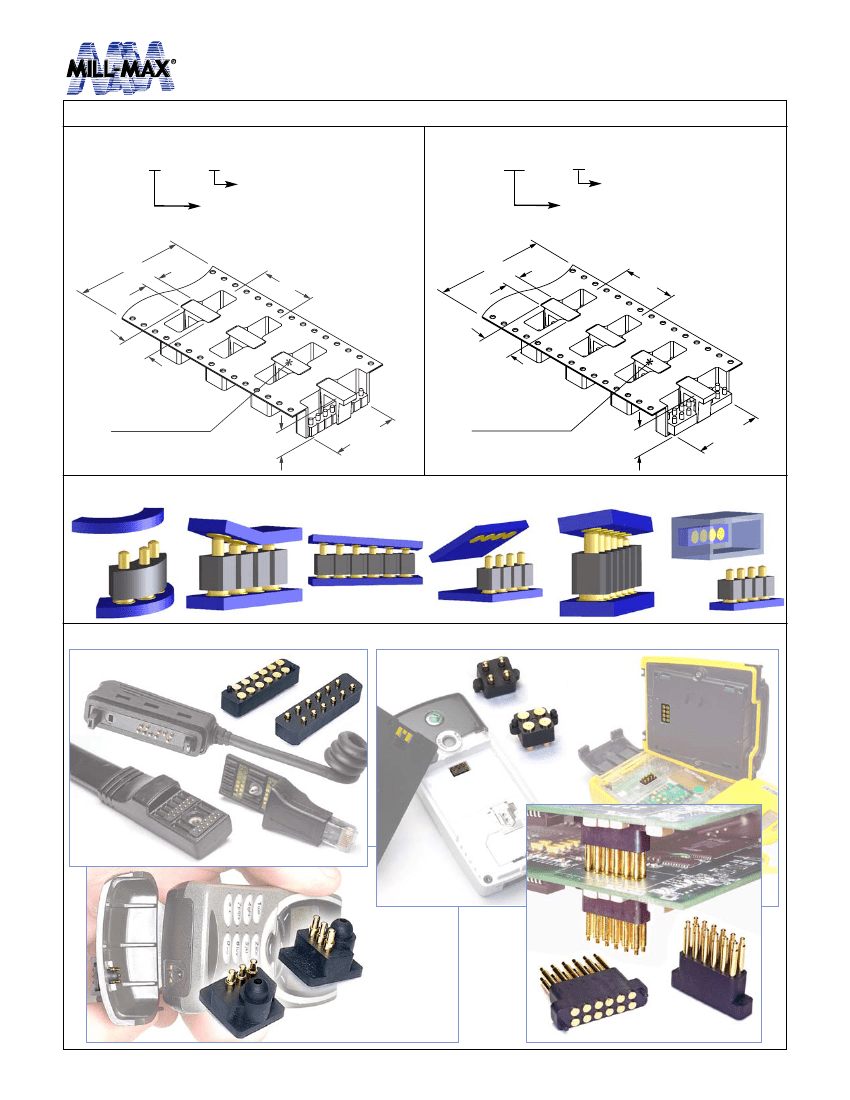

SPRING LOADED CONNECTORS

Surface Mount

Single and Double Row

•

Modular contacts for use on .100” grid, available in

eight heights from .137” to .295”, supplied in single

and double row contact strips.

•

Precision machined piston / base and gold plated

components assure a 100,000 min. cycle life.

•

Pistons have a long stroke relative to the low pro-

file of the assembly.

•

Low resistance, high current contacts are rated at

2 amps continuous, 3 amps peak.

•

High temperature thermoplastic insulators are suit-

able for surface mount processes.

•

A typical application would be as the base unit

(battery/charger) interface for portable equipment

such as mobile phones/radios, bar code readers,

medical and test instruments.

Series 811, 813

SINGLE ROW Series 811

Ordering Information

Single Row Series 811

811-22-0XX-30-00X-101

Specify contact style

0-7

Specify # of contacts

01-64

Double Row Series 813

813-22-0XX-30-00X-101

Specify contact style

0-7

Specify # of contacts

04-72

CONTACT STYLE

INITIAL HEIGHT

.137

.177

.197

.217

.236

.256

.276

.295

STROKE

.039

.055

Stroke

.042 DIA.

Stroke

.071

.110

Style 0 only

.016

.072 DIA.

DOUBLE ROW Series 813

Stroke

Technical Specifications

Style 0 only

.071

.100

.042 DIA.

.110

.016

.072 DIA.

Materials:

Contact piston & Base: Machined copper alloy plated 20µ” gold

over 100µ” nickel

Spring: Beryllium copper plated 10µ” gold

Insulator: High temp. thermoplastic rated UL94 V-0

Mechanical:

Spring force @ initial height (A): 25 grams

Spring force @ mid stroke (B/2): 60 grams

Spring force @ full stroke (B): 95 grams

Durability: 100,000 cycles min.

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mΩ max.

Insulation resistance: 10,000MΩ min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.
